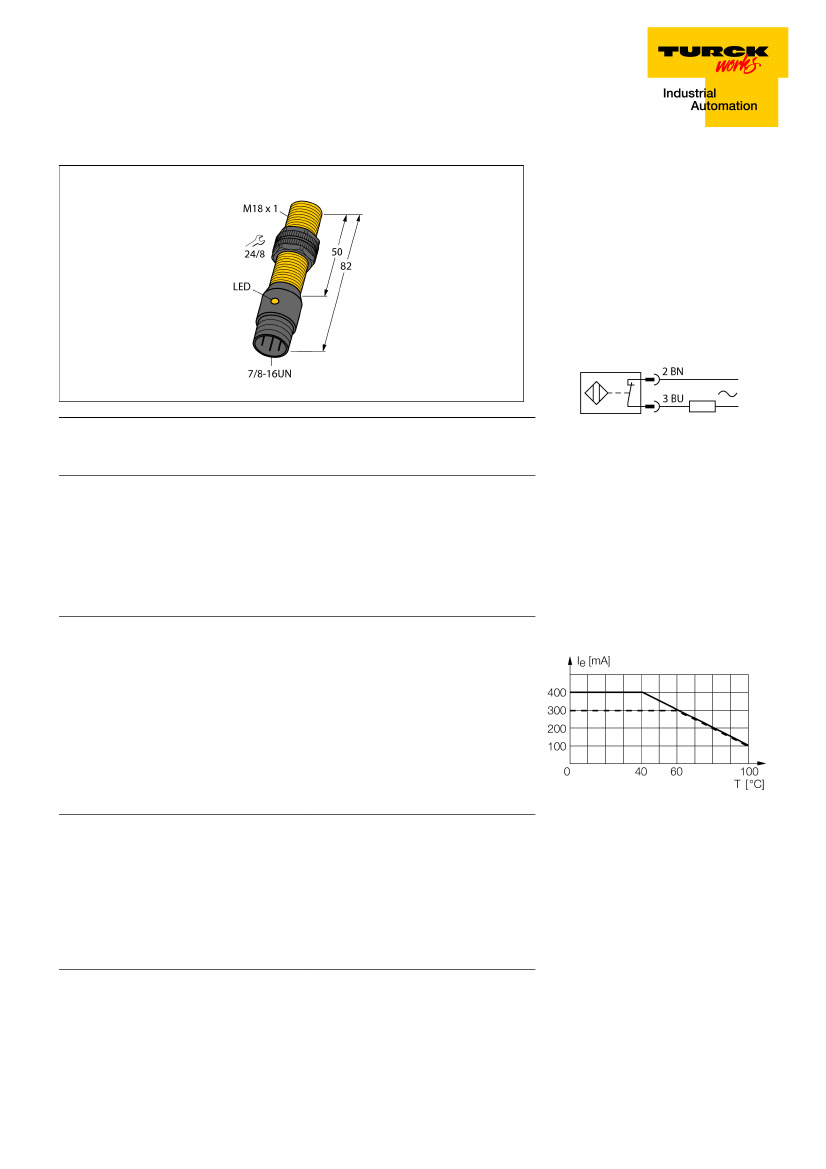

Inductive sensor
With extended temperature range
BI5-P18-RZ3X-B2331/S100
■
Threaded barrel, M18 x 1
■
Plastic, PA12-GF30-V0
■
Temperatures up to +100 °C
■
AC 2-wire, 20…250 VDC
■
DC 2-wire, 10…300 VDC
■
NC contact
■
7/8" male connector
Wiring Diagram
Type designation
Ident-No.
Ident-No (TUSA)
Rated switching distance Sn
Mounting conditions
Secured operating distance
Correction factors
Repeat accuracy
Temperature drift
Hysteresis
Ambient temperature
Operating voltage
Operating voltage
AC rated operational current
DC rated operational current
Rated operational current
Frequency
Residual current
Isolation test voltage
Surge current
Voltage drop at I
e
Output function
Smallest operating current I
m
Switching frequency
Design
Dimensions
Housing material
Active area material
Max. tightening torque housing nut
Electrical connection
Vibration resistance
Shock resistance
Protection class
MTTF
Switching state
Edition • 2017-09-15T06:22:25+02:00
BI5-P18-RZ3X-B2331/S100
4375001
T4375001
5 mm
Flush
ð
(0,81 x Sn) mm
St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4
ð
2 % of full scale
ð
± 10 %
ð
± 20 %,
ï
+70 °C
3…15 %
-25…+100 °C
20…250VAC
10…300 VDC
ð
400 mA
ð
300 mA
See derating curve
ï
50…ð 60 Hz
ð
1.7 mA
ð
1.5 kV
ð
8 A (ð 10 ms max. 5 Hz)
ð
6V
2-wire, NC contact
ï
3 mA
0.02 kHz
Threaded barrel, M18 × 1
82 mm
Plastic, PA12-GF30
Plastic, PA12-GF30
2 Nm
Connector, 7/8"
55 Hz (1 mm)
30 g (11 ms)
IP67
2283 years acc. to SN 29500 (Ed. 99) 40 °C
LED red
Functional principle
Inductive sensors detect metal objects con-
tactless and wear-free. For this purpose they
use a high-frequency electromagnetic AC
field that interacts with the target. The sensors
hosting a ferrite core coil generate the AC field
through an LC resonant circuit.
Special versions are available for ambient
temperatures between -60°C and +250°C.
Derating Curve
1/3
TURCK Inc.
ñ
3000 Campus Drive Minneapolis, MN 55441-2656
ñ
Phone: 763-553-7300
ñ
Application Support: 1-800-544-7769
ñ
Fax 763-553-0708
ñ
www.turck.com
Inductive sensor
With extended temperature range
BI5-P18-RZ3X-B2331/S100

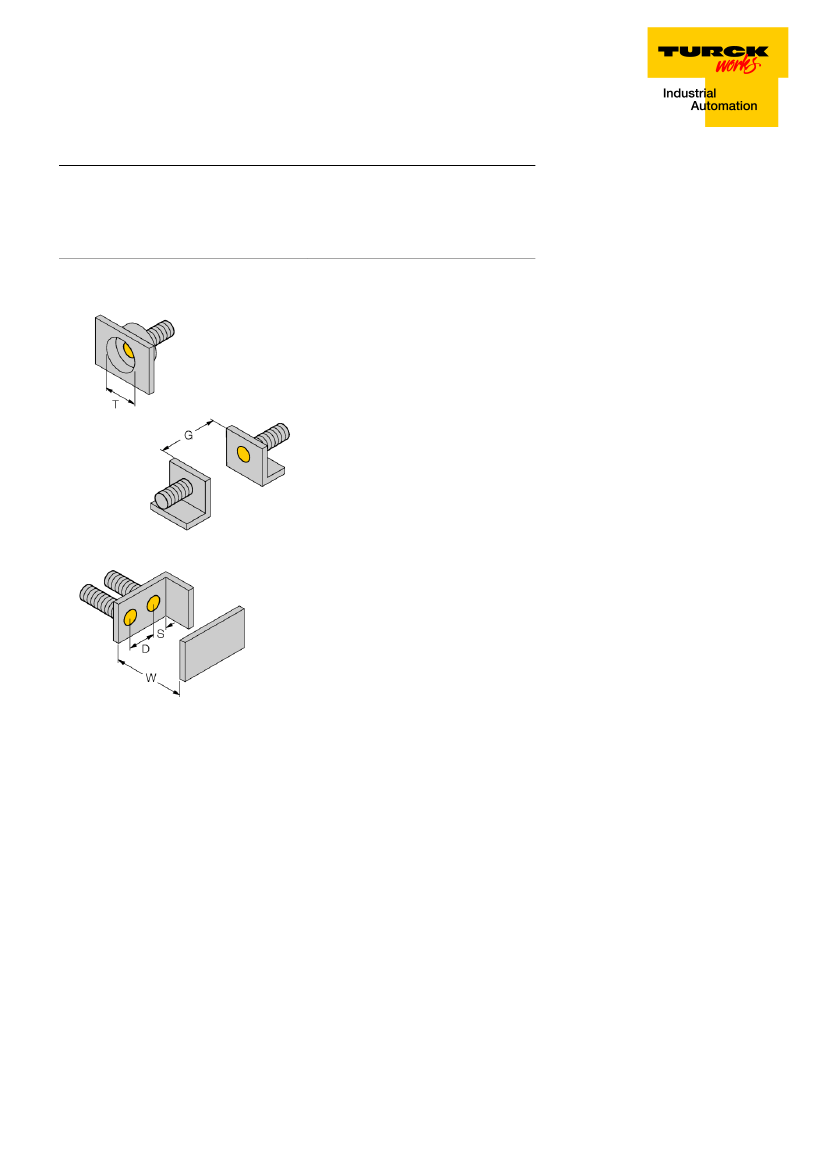

Distance D
Distance W
Distance T
Distance S
Distance G
Diameter active area B
2xB
3 x Sn
3xB
1.5 x B
6 x Sn
Ø 18 mm
Edition • 2017-09-15T06:22:25+02:00
2/3
TURCK Inc.
ñ
3000 Campus Drive Minneapolis, MN 55441-2656
ñ
Phone: 763-553-7300
ñ
Application Support: 1-800-544-7769
ñ
Fax 763-553-0708
ñ
www.turck.com
Inductive sensor
With extended temperature range
BI5-P18-RZ3X-B2331/S100

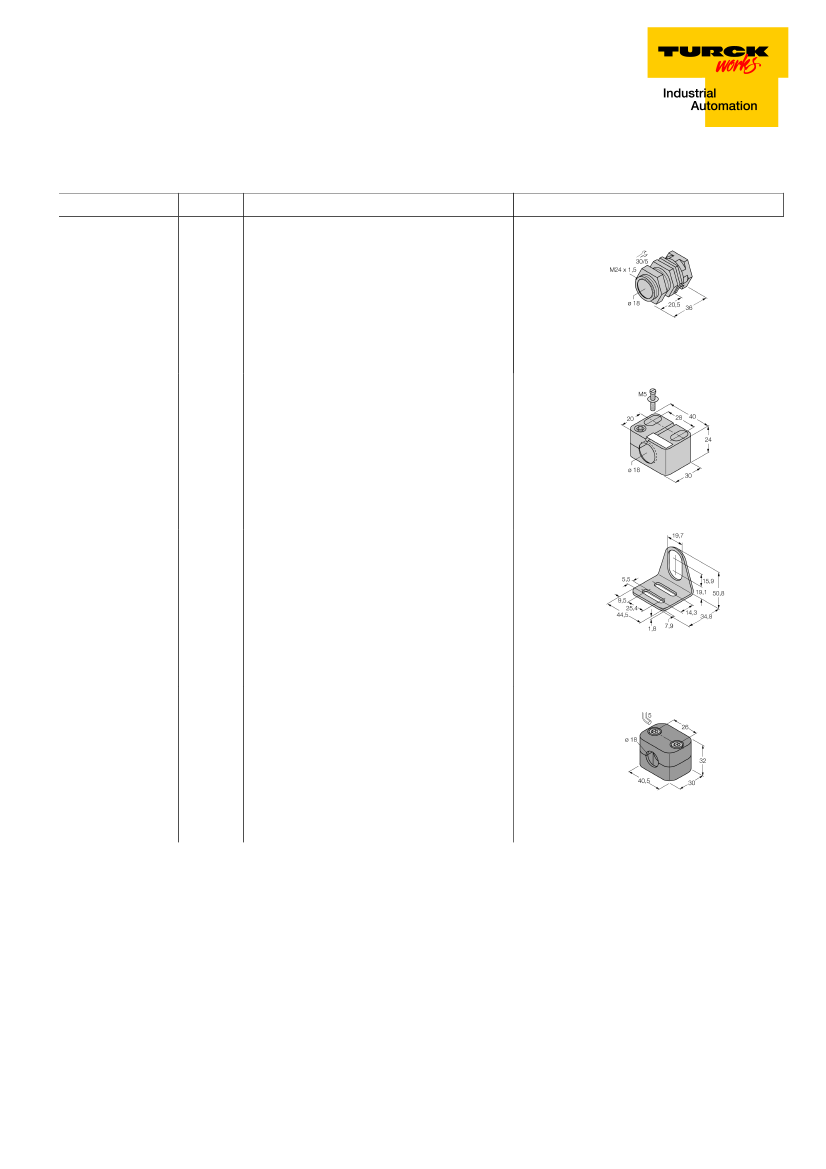

Accessories
Type code
QM-18
Ident-No.
6945102
Description
Quick-mount bracket with dead-stop; material: Chrome-plat-
ed brass Male thread M24 x 1.5. Note: The switching dis-
tance of proximity switches can be reduced by the use of
quick-mount brackets.
BST-18B
6947214
Fixing clamp for threaded barrel devices, with dead-stop; ma-
terial: PA6
MW-18
6945004
Mounting bracket for threaded barrel devices; material: Stain-
less steel A2 1.4301 (AISI 304)
BSS-18
6901320
Mounting bracket for smooth and threaded barrel devices;
material: Polypropylene
Edition • 2017-09-15T06:22:25+02:00
3/3
TURCK Inc.
ñ
3000 Campus Drive Minneapolis, MN 55441-2656
ñ
Phone: 763-553-7300
ñ
Application Support: 1-800-544-7769
ñ
Fax 763-553-0708
ñ
www.turck.com
