3JS1.5-RTR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 3JS1.5-RTR

3JS1.5-RTR: DescriptionElectric Fuse, Time Lag Blow, 1.5A, 350VAC, 140VDC, 100A (IR), Through Hole, 5x15mm, HALOGEN FREE AND ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size718KB，4 Pages; ManufacturerBel Fuse; Environmental Compliance

Download Datasheet Parametric Compare View All

3JS1.5-RTR Overview

Electric Fuse, Time Lag Blow, 1.5A, 350VAC, 140VDC, 100A (IR), Through Hole, 5x15mm, HALOGEN FREE AND ROHS COMPLIANT

3JS1.5-RTR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Bel Fuse
package instruction	HALOGEN FREE AND ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	RATED BREAKING CAPACITY AT 140 VDC: 150 A
Fusing characteristics	TIME LAG
body height	18 mm
Body length or diameter	6.2 mm
Circuit protection type	ELECTRIC FUSE
Fuse size	5x15mm
JESD-609 code	e3
Joule integral nominal	15 J
Installation features	THROUGH HOLE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	TAPE AND REEL
physical size	6.2mm x 18mm
Pre-discharge rating	19 A2/s
Rated breaking capacity	100 A
Rated current	1.5 A
Rated voltage	350 V
Rated voltage (AC)	350 V
Rated voltage (DC)	140 V
Guideline	CE; CSA; CUL; PSE; UL
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal shape	PIN WIRE
Disconnect time or delay	14400 s
Base Number Matches	1

Preview

Download Datasheet

View All

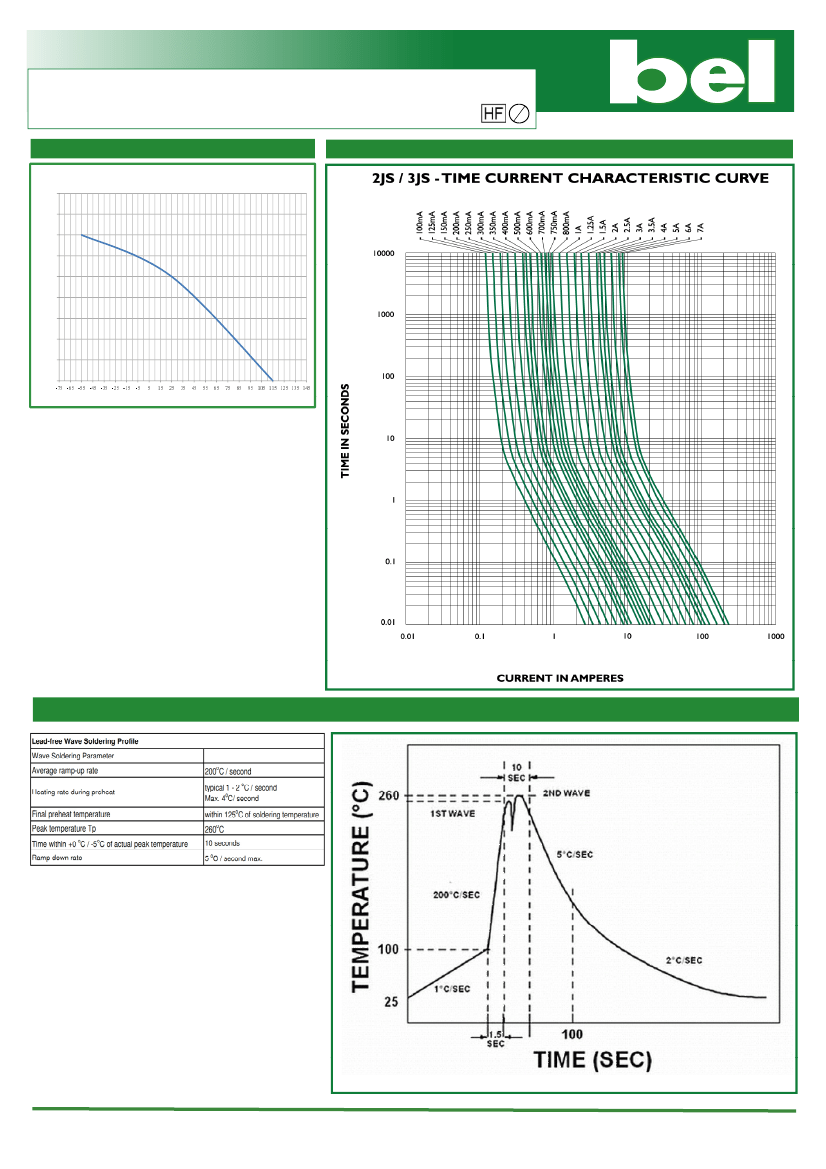

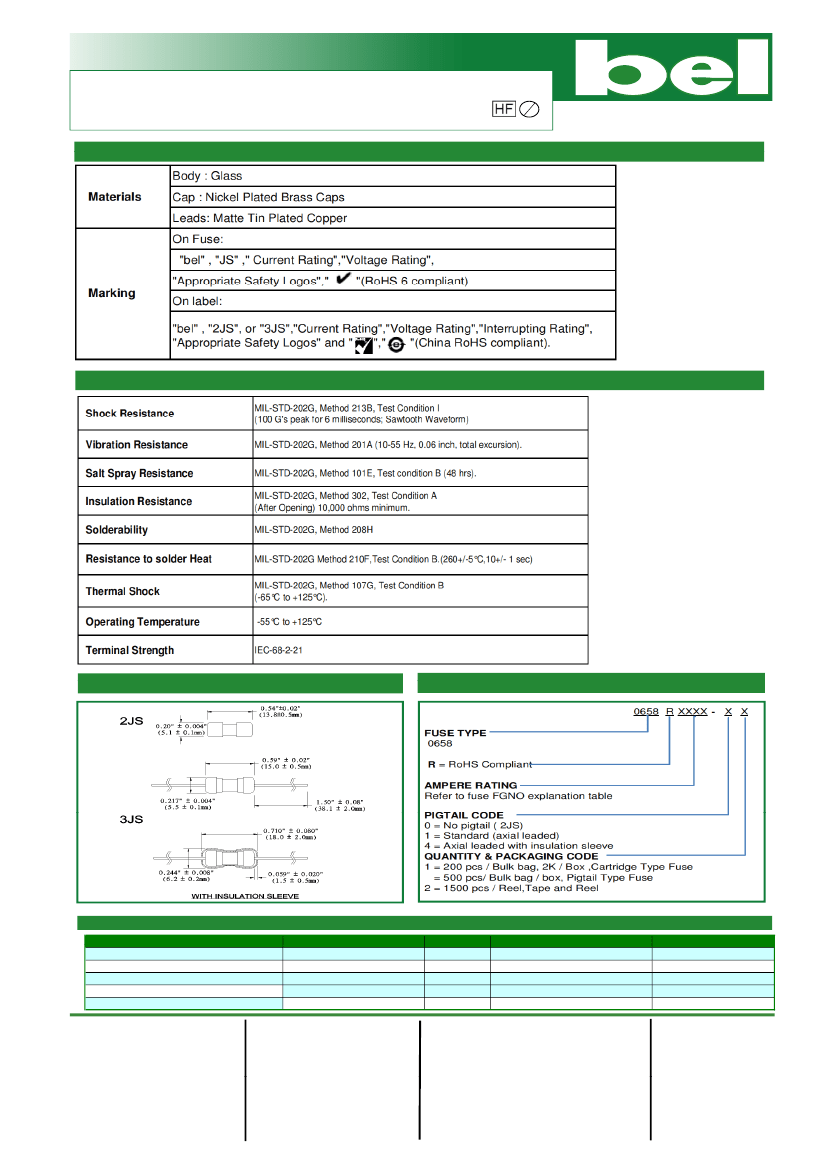

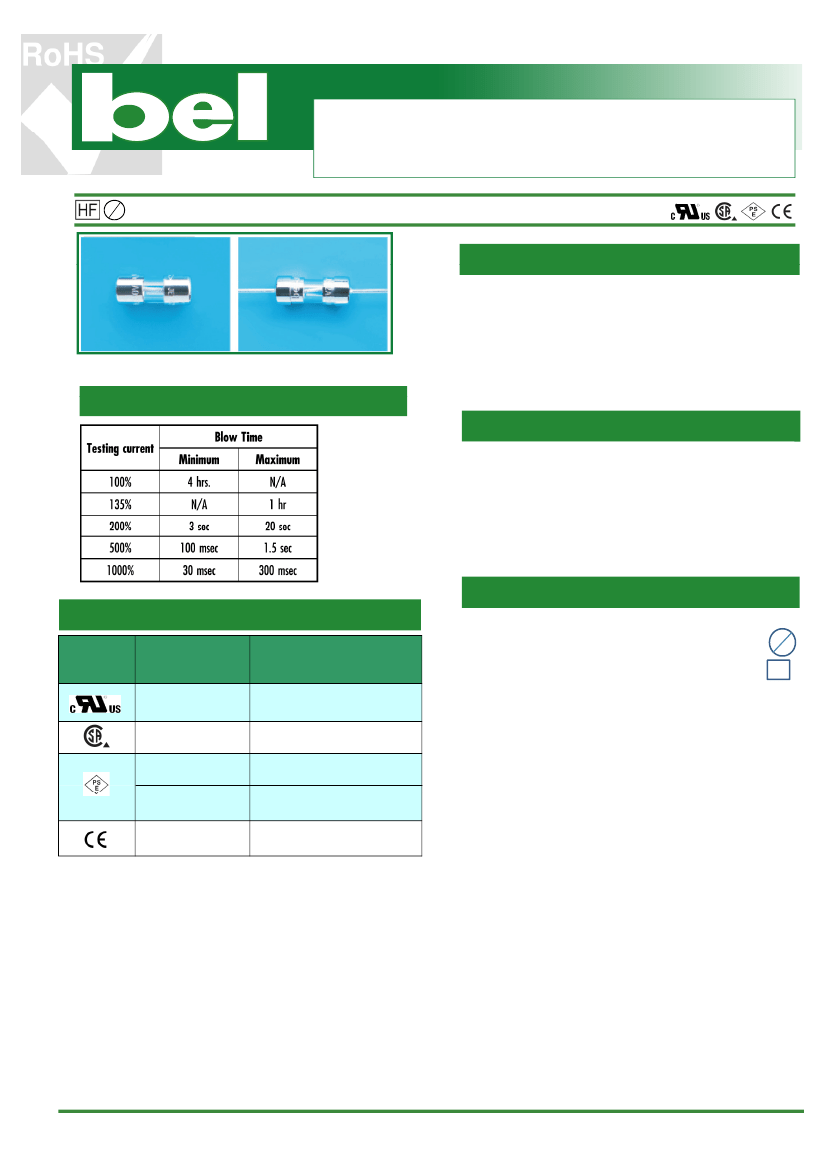

Type 2JS / 3JS

JS May 2012D

5 x 15mm Glass Tube

RoHS 6 Compliant

Time-lag Fuse Series

2JS / 3JS Series, 5 x 15mm Time-lag Fuse

Description

5x15 mm Time -lag ,glass tube body cartridge fuse

designed, approved and complied with UL and CSA

standard 248-14.

Electrical Characteristics (UL / CSA STD.248-14)

Features

- Meet UL and CSA standard 248-14

- Wide operating temperature range

- Bulk and Tape & Reel packing available

- RoHS6 compliant

- Halogen Free

- Leadfree

Applications

Safety Agency Approvals

SAFETY

AGENCY

SAFETY AGENCY

CERTIFICATE

NUMBER

E20624

AMPERE RANGE / VOLT @

I.R.ABILITY

100mA - 7A / 350V AC @100A

100mA - 7A / 125V AC @10,000A

100mA - 7A / 140V DC @150A

100mA - 7A / 350V AC @100A

100mA - 7A / 125V AC @10,000A

1A - 5A / 125V AC @500A

Provide individual protection for components or internal

circuits.

LEAD FREE =

- Power Supplies

- Battery charger

HALOGEN FREE =

- Monitor

- Adapter

LR39772

JET 1037-31003-1010

JET 1037-31003-1011

JET 1037-31003-1007

>5A - 15A / 125V AC @300A

100mA - 7A / 350V AC @100A

100mA - 7A / 125V AC @10,000A

100mA - 7A / 140V DC @150A

Specifications subject to change without notice

Bel Fuse Inc.

206 Van Vorst Street, Jersey City, NJ 07302

‧Tel:

201-432-0463

‧Fax:

201-432-9542

‧E-Mail:

belfuse@belf.com

Website: www.belfuse.com

3JS1.5-RTR Related Products

	3JS1.5-RTR	3JS300-R	3JS400-R
Description	Electric Fuse, Time Lag Blow, 1.5A, 350VAC, 140VDC, 100A (IR), Through Hole, 5x15mm, HALOGEN FREE AND ROHS COMPLIANT	Electric Fuse, Time Lag Blow, 0.3A, 350VAC, 140VDC, 100A (IR), Through Hole, 5x15mm, ROHS COMPLIANT	Electric Fuse, Time Lag Blow, 0.4A, 350VAC, 140VDC, 100A (IR), Through Hole, 5x15mm, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to
Maker	Bel Fuse	Bel Fuse	Bel Fuse
package instruction	HALOGEN FREE AND ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	RATED BREAKING CAPACITY AT 140 VDC: 150 A	PRE-ARCING TIME: OPEN WITHIN 30 MILLISEC. AT 1000% RATED CURRENT; RATED BREAKING CAPACITY AT 140 VDC: 150 A	PRE-ARCING TIME: OPEN WITHIN 30 MILLISEC. AT 1000% RATED CURRENT; RATED BREAKING CAPACITY AT 140 VDC: 150 A
Fusing characteristics	TIME LAG	TIME LAG	TIME LAG
body height	18 mm	18 mm	18 mm
Body length or diameter	6.2 mm	6.2 mm	6.2 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Fuse size	5x15mm	5x15mm	5x15mm
JESD-609 code	e3	e3	e3
Installation features	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
method of packing	TAPE AND REEL	BULK; TAPE AND REEL	BULK; TAPE AND REEL
physical size	6.2mm x 18mm	6.2mm x 18mm	6.2mm x 18mm
Rated breaking capacity	100 A	100 A	100 A
Rated current	1.5 A	0.3 A	0.4 A
Rated voltage	350 V	350 V	350 V
Rated voltage (AC)	350 V	350 V	350 V
Rated voltage (DC)	140 V	140 V	140 V
Guideline	CE; CSA; CUL; PSE; UL	CE; CSA; UL	CE; CSA; UL
surface mount	NO	NO	NO
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal shape	PIN WIRE	PIN WIRE	PIN WIRE
Base Number Matches	1	1	1
Is it lead-free?	-	Lead free	Lead free
