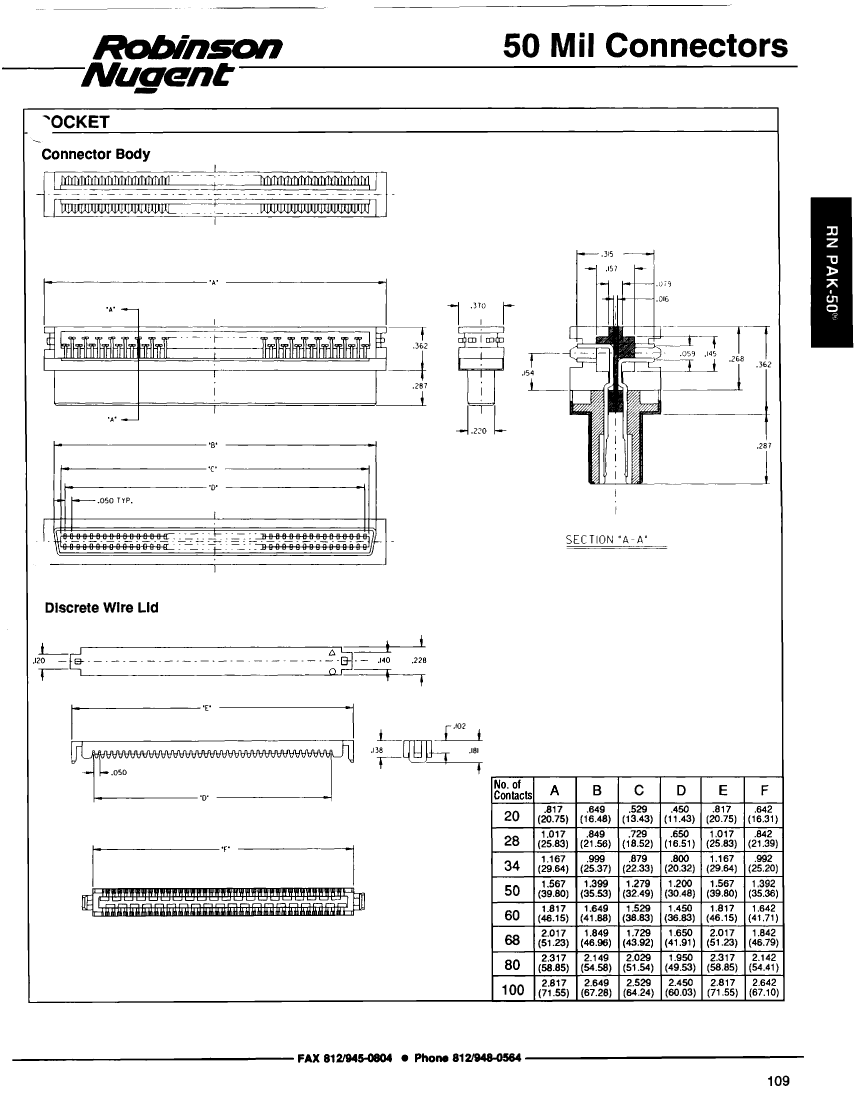

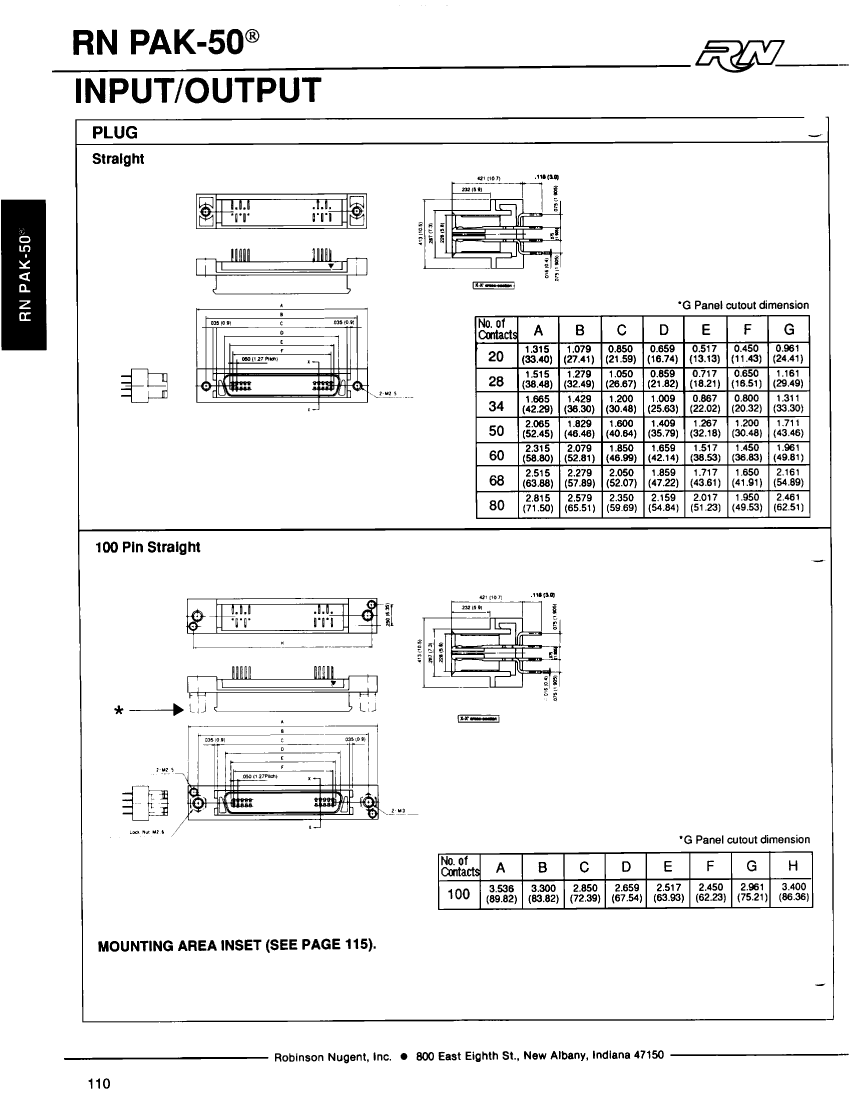

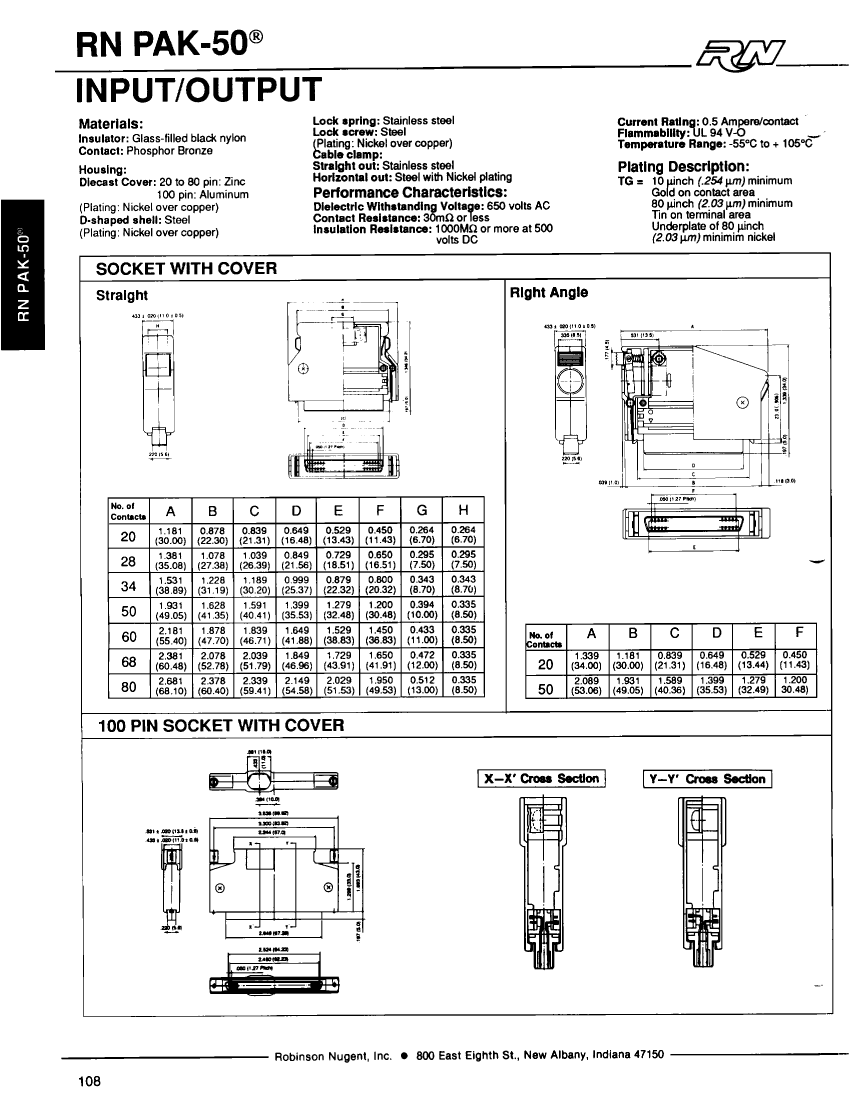

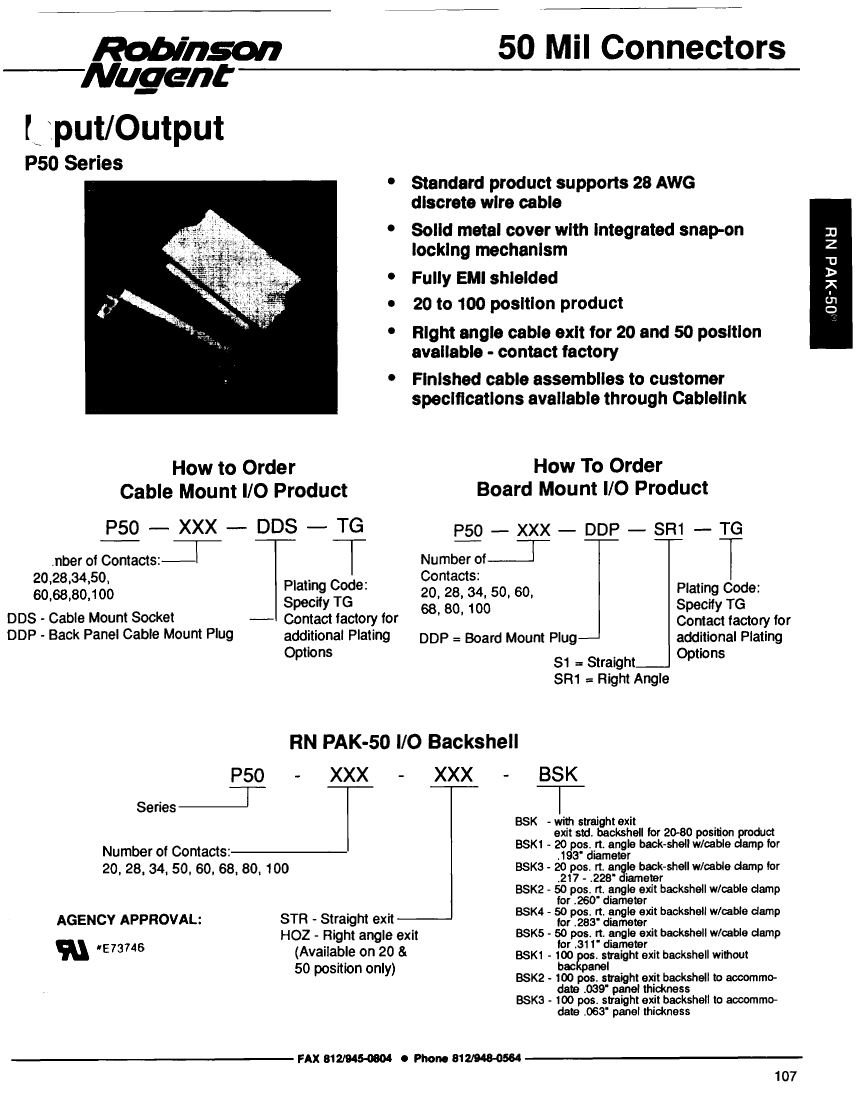

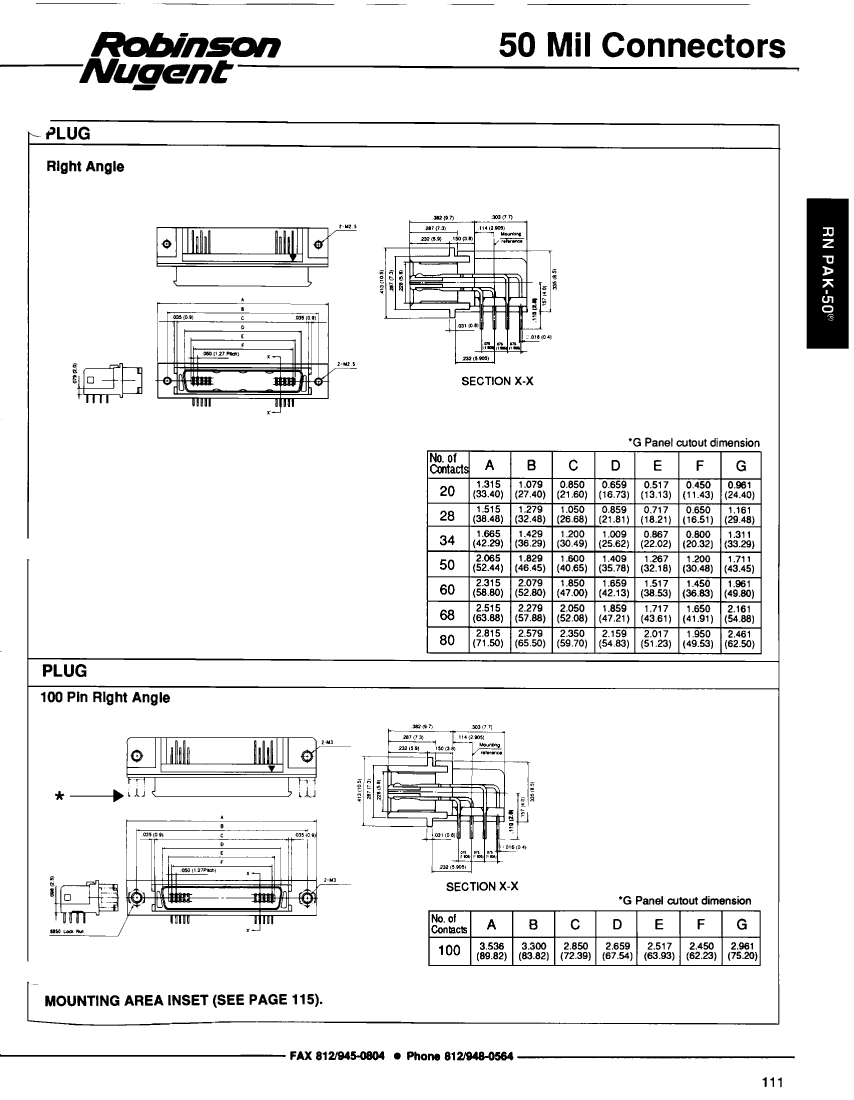

P50-080-DDS-TG Overview

CONNECTOR,D-SHELL,CABLE MNT,PLUG,80 CONTACTS,SKT,0.05 PITCH

Parameter Name	Attribute value
Maker	3M
Reach Compliance Code	unknown
Other features	SHIELDED
body width	0.37 inch
subject depth	0.649 inch
body length	2.317 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	650VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	P50
Plug contact pitch	0.05 inch
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	10u inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Total number of contacts	80
Maximum wire diameter	28 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1
