MS27468T13B35PC datasheet, PDF

Datasheet> All Categories > The connector> The connector> MS27468T13B35PC

MS27468T13B35PC: Descriptionconn rcpt 22pos jam nut W/pins; CategoryThe connector The connector; File Size2MB，51 Pages; ManufacturerSOURIAU

Download Datasheet Parametric View All

MS27468T13B35PC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MS27468T13B35PC	-	-	View	Buy Now

MS27468T13B35PC Overview

conn rcpt 22pos jam nut W/pins

MS27468T13B35PC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	incompatible
Maker	SOURIAU
Reach Compliance Code	_compli
Other features	STANDARD: MIL-C-38999
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact point gender	MALE
Contact material	COPPER ALLOY
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	FLUID RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Options	GENERAL PURPOSE
Shell surface	OLIVE GREEN CADMIUM
Shell material	ALUMINUM ALLOY
Housing size	13
Total number of contacts	22

Preview

Download Datasheet

View All

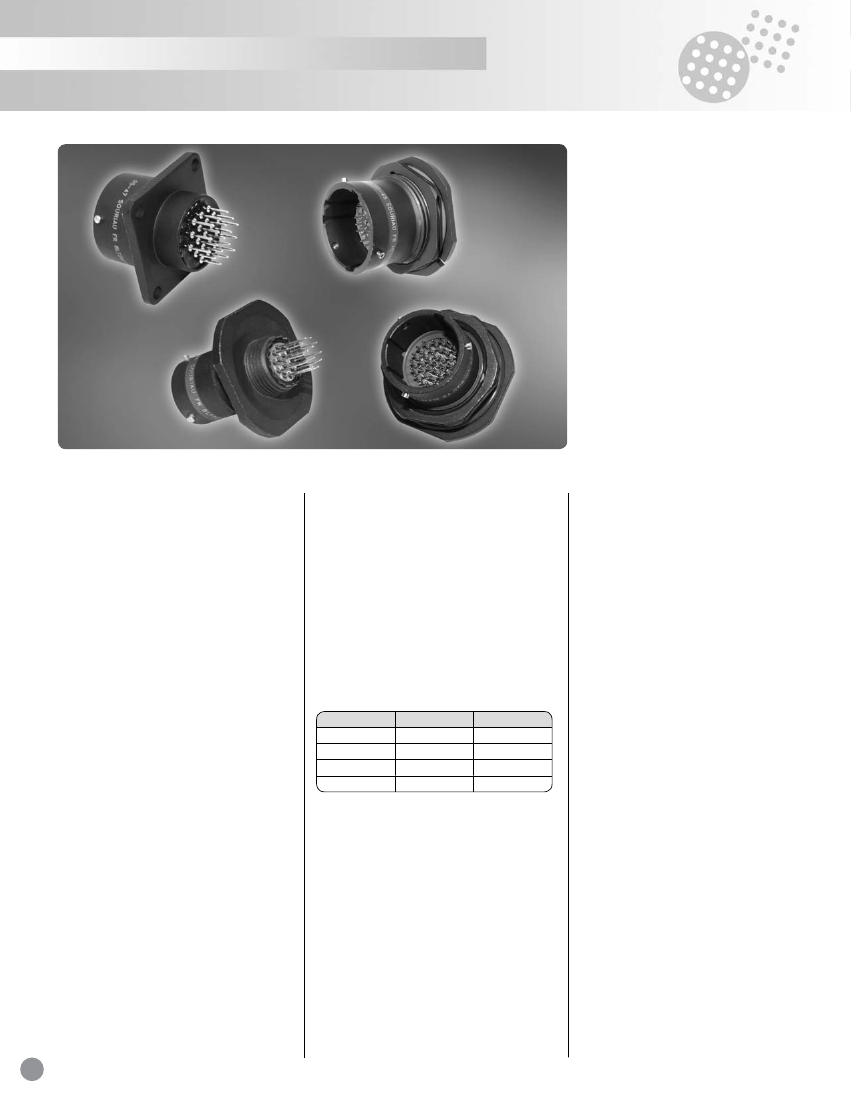

8LT Series

Description

• High contact density

• Bayonet coupling

• Contact protection : 100% Scoop proof

• Shell size from 9 to 25

• Accessories available (protective caps,

backshells, etc… )

• RFI - EMI shielding and shell to shell

continuity

• Hermetic

• Alluminium alloy, protection by cadmium,

nickel, green zinc cobalt or black zinc

nickel plating

Applications

• Civil and Military Aerospace

• Marine Equipments

• Communications Equipements

• Medical Instrumentation

• Ballistic Missiles & Weapon Systems

• Armored Carriers & Tanks

• Test Equipments

• Chock: 300 g during 3 ms and as per

MIL S 901 grade A

• Vibration: . Sine 10 to 2000 Hz - 30 g

. Random 100 à 300 Hz - 5 g²/Hz

• Contact retention (min force in N):

. Size 22D: 44 N

. Size 1 1 1 N

2: 1

. Size 20: 67 N

. Size 8: 1 1 N

. Size 16: 1 1 N

. Size 4: 200 N

• Shielding: 90 db at 100 MHz, 50 db at

10 000 MHz

• Electrical continuity between contact and

shell for speciﬁcation 284 & 384: 10 mΩ

max

Climatic

• Temperature range:

. olive green cadmium plating (B)

- 65°C +1

75°C

. nickel plating (F)

- 65°C +200°C

. green zinc cobalt plating (Z)

- 65°C +200°C

. black zinc nickel plating (L)

- 65°C +200°C

• Sealing: mated connectors

Differential pressure 2 bars:

leakage

≤

16 cm

• Salt spray as per:

. MIL STD 1

344 method 1001 :

- 500 hours (versions B, L and Z)

- 48 hours (version F)

. NFC 93422 :

- 48 hours (version F)

• Resistance to ﬂuids

. As per MIL DTL 38999, hydraulic ﬂuids,

solvants

. Speciﬁcation 022 for fuel immersion

(please consult us)

Electrical

• Test voltage (Vrms)

Service

sea level

1 300

1 000

1 800

2 300

at 21 000 m

800

600

1 000

Technical features

Mechanical

• Shell: aluminum alloy

• Plating:

. olive green cadmium (B)

. nickel (F)

. green zinc cobalt (Z)

. black zinc nickel (L)

• Insulation resistance:

≥

5 000 MW (at 500

Vcc)

• Contact resistance:

resistance of wire included in measurement

. size 22D: 1

4.6 mΩ

. size 1 3.5 mΩ

. size 20: 7.3 mΩ

. size 8: 3 mΩ

. size 16: 3.8 mΩ

. size 4: 2 mΩ

• Contact rating:

. size 22D: 5 A

. size 20: 7.5 A

. size 16: 1 A

• Insulator: thermoplastic or metallic version

available for speciﬁcation 284 & 384

• Grommet or seal: liquid silicone rubber or

ﬂuorocarbone elastomer for speciﬁcation 022

• Contact: copper alloy

• Plating contact: gold over nickel

• Endurance: 500 mating / unmating

operations

. size 1 23 A

. size 8: 45 A

. size 4: 80 A

• Shell continuity: . olive green plating: 2.5 mΩ

. nickel plating: 1 mΩ

. green zinc cobalt: 2.5 mΩ

. black zinc nickel: 2.5 mΩ
