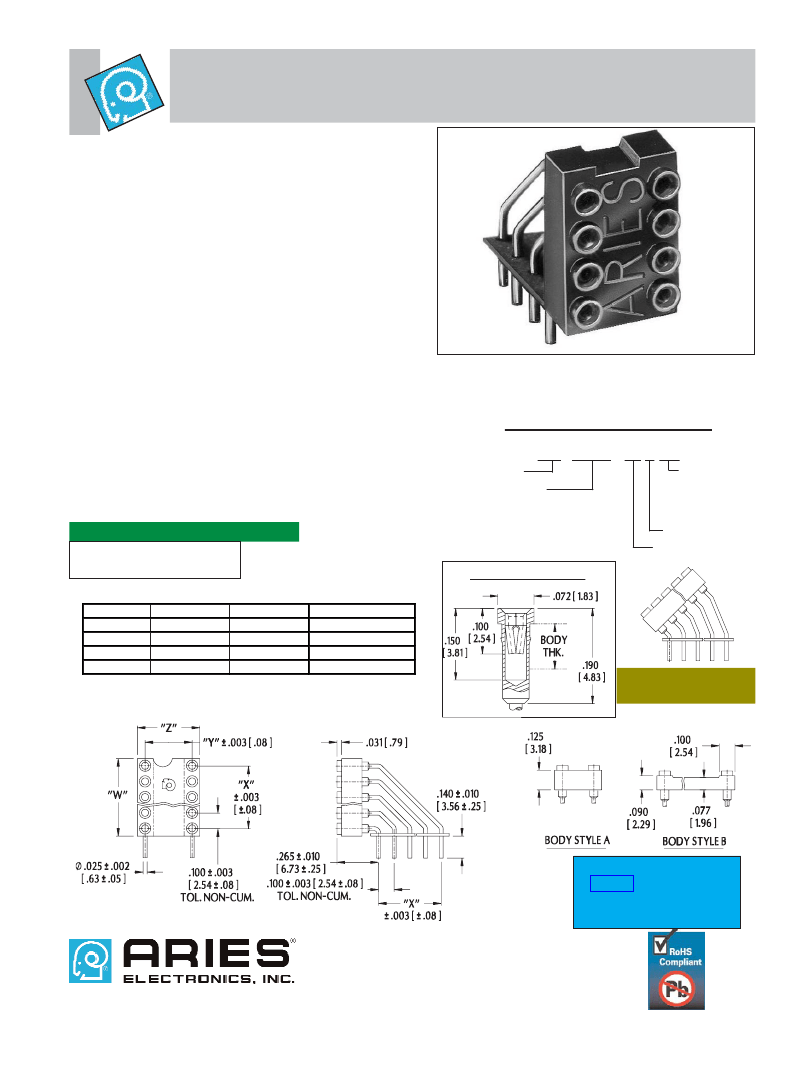

Series 800 Vertisockets

™

Vertical Mounting with Collet Contacts

FEATURES:

• Aries offers a full line of Vertisockets

for DIP packaging of

LEDs, incandescent lamps, DIP switches, test points, etc. The

variations of mounting positions provide exceptional design

freedom.

• Accepts standard LEDs and incandescent displays as well as

.500 [21.70] and .600 [15.24] high large displays.

SPECIFICATIONS:

• Body material is black UL 94V-0 Glass-filled 4/6 Nylon.

• Spacer is fishpaper.

• Pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-

B16-00.

• Pin body plating is either 200μ [5.08

μm]

min. 93/7 Tin/Lead per

ASTM B545 or 200μ [5.08

μm]

min Tin per ASTM B545 Type1

over 100μ [2.54

μm]

min. Nickel per SAE-AMS-QQ-N-290.

• 4-fingered collet contact is Beryllium Copper Alloy per UNS

C17200 ASTM-B194-01.

• Contact plating is 30μ [.76

μm]

min. Gold per MIL-G-45204 over

50μ [1.27

μm]

min. Nickel per SAE-AMS-QQ-N-290.

• Contact current rating=3 Amps.

• Operating temperature=221°F [105°C].

• Insertion Force=180 grams/pin; Withdrawal

Force=90 grams/pin; Normal Force=140 grams/pin; (based on

a .018 [.46] diameter test lead).

• Accepts leads .015-.025 [.38-.64] in diameter, .110-.150

[2.79-3.81] in length.

MOUNTING CONSIDERATIONS:

• Suggested PCB hole size=.035 ± .002 [.89 ± .05] dia.

Note: Aries specializes in custom design and production. In addition to the

standard products shown on this page, special materials, platings, sizes, and

configurations can be furnished, depending on quantities. Aries reserves the

right to change product specifications without notice.

ORDERING INFORMATION

No. of pins

(see table)

XX-X810-90CXX

Optional suffix:

TL= Tin/Lead

Pin Body plat-

ing

Collet contacts

90° display angle

LL DIMENSIONS

INCHES

[

MILLIMETERS

]

All tolerances ± .005 [.13]

unless otherwise specified

Consult factory for non-standard sizes.

Body Style

Centers “Y”

.200 [5.08]

.300 [7.62]

.400 [10.16]

.600 [15.24]

Dim. “Z”

.300 [7.62]

.400 [10.16]

.500 [12.70]

.700 [17.78]

Available Sizes

8, 10

8, 10, 12, 14, 16

8, 10

8, 10, 12, 14, 16

Series:

2810: “Y”=.200 [5.08]

810: “Y”=.300 [7.62]

4810 “Y”=.400 [10.16]

6810: “Y”=.600 [15.24]

CONTACT DETAIL

“W”=NO. OF PINS PER ROW X .100 [2.54]

“X”=(NO. OF PINS PER ROW - 1) X .100 [2.54]

Consult factory for

other display angles

90° ± 2°

Consult Data Sheet No.

13005 for Series 800

Horizontal Mounting

Vertisockets

http://www.arieselec.com • info@arieselec.com

13004

REV.E

PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
