22-45-7199 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 22-45-7199

22-45-7199: DescriptionBoard Connector, 19 Contact(s), 1 Row(s), Female, IDC Terminal; CategoryThe connector The connector; File Size39KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

22-45-7199 Overview

Board Connector, 19 Contact(s), 1 Row(s), Female, IDC Terminal

22-45-7199 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	KK, DOUBLE CANTILEVER CONTACT, POLARIZED
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	7720
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Termination type	IDC
Total number of contacts	19
UL Flammability Code	94V-2
Base Number Matches	1

Preview

Download Datasheet

View All

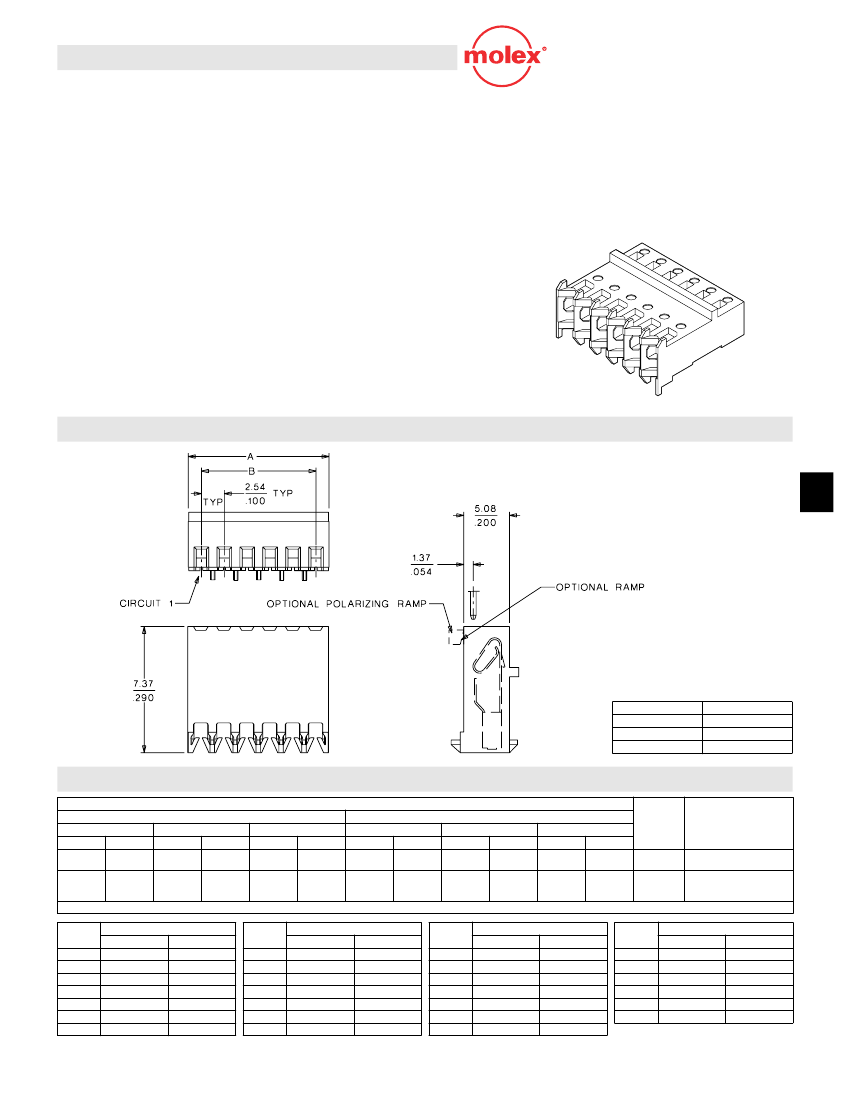

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 2 to 28 circuits

4 points of contact on conductor

Feed-to and feed-through versions available

Standard with locking ramp

End-to-end polarization optional

Molded-in strain reliefs

Electrical

Voltage: 250V

Current: 3.5A max. (24 AWG)

Contact Resistance: 20m

Ω

max.

Dielectric Withstanding Voltage: 1500V AC

Insulation Resistance: 200K M

Ω

min.

Mechanical

Contact Retention to Housing: 6 lb min.

Mating Force: 255g max.

Unmating Force: 85g min.

Normal Force: 6.5 oz min.

Physical

Housing: Natural nylon, UL 94V-2

Contact: Phosphor Bronze

Plating: Tin or Gold

Temperature: 0 to +75˚C

Wire Range: 0.76 to 1.52mm (.030 to .060") OD max.

(Discrete Wire) and 0.76 to 1.27mm (.030 to .050")

OD max. (mass termination)

2.54mm (.100") Pitch

Connector

7720

24, 26 or 28 AWG, IDT

Double Cantilever Contact

Polarizing Key

Feed To

Feed Through

Order No.

15-04-0292

15-05-8XX7

15-05-8XX5

ORDERING INFORMATION AND DIMENSIONS

Order No.

Without Ramp

Tin

Gold

22-26-7XX1

22-26-7XX2

22-45-7XX3

22-45-7XX5

Feed-Through

With Ramp

Tin

Gold

22-26-8XX1

22-26-8XX2

22-45-8XX1

22-45-8XX2

With Polarized Ramp

Tin

Gold

22-26-9XX1

22-26-9XX2

22-45-9XX1

22-45-9XX2

Without Ramp

Tin

Gold

22-41-3XX1

22-41-3XX2

22-45-7XX9

22-45-8XX7

Feed-To

With Ramp

Tin

Gold

22-41-4XX1

22-41-4XX2

22-45-7XX4

22-45-7XX6

With Polarized Ramp

Tin

Gold

22-41-5XX1

22-41-5XX2

22-45-7XX7

22-45-7XX8

Color

Type of Wire Terminated

26 AWG stranded or solid, and 28

AWG solid, stranded or fused

24 AWG stranded, solid, fused,

topcoat, and 26 AWG fused and

topcoat

Brown

Green

Replace XX with number of circuits, 02 to 28

Circuits

Dimension

5.44 (.214)

2.54 (.100)

7.98 (.314)

5.08 (.200)

10.52 (.414)

7.62 (.300)

13.06 (.514)

10.16 (.400)

15.60 (.614)

12.70 (.500)

18.14 (.714)

15.24 (.600)

20.68 (.814)

17.78 (.700)

Circuits

Dimension

23.22 (.914)

20.32 (.800)

25.76 (1.014)

22.86 (.900)

28.30 (1.114)

25.40 (1.000)

30.84 (1.214)

27.94 (1.100)

33.38 (1.314)

30.48 (1.200)

35.92 (1.414)

33.02 (1.300)

38.46 (1.514)

35.56 (1.400)

Circuits

Dimension

41.00 (1.614)

38.10 (1.500)

43.54 (1.714)

40.64 (1.600)

46.08 (1.814)

43.18 (1.700)

48.62 (1.914)

45.72 (1.800)

51.16 (2.014)

48.26 (1.900)

53.70 (2.114)

50.80 (2.000)

56.24 (2.214)

53.34 (2.100)

Circuits

Dimension

58.78 (2.314)

55.88 (2.200)

61.32 (2.414)

58.42 (2.300)

63.86 (2.514)

60.96 (2.400)

66.40 (2.614)

63.50 (2.500)

68.94 (2.714)

66.04 (2.600)

71.48 (2.814)

68.58 (2.700)

Note: Some wires require deviation from chart

990

J-43

PCB and Wire Connectors

Reference Information

Product Speciﬁcation: PS-7690

Packaging: Bag

Tooling Information: See crimp tooling section

UL File No.: E29179

CSA File No.: LR19980

Mates With: Molex KK 2.54mm (.100") pitch headers and

0.64mm (.025") pins

Use Molex Cable: 7234, 7307, 7767, 8996, 8997, 24214

and 24241

Designed In: Inches
