Part Number

Search

Q67040-A4463

Description
41 A, 600 V, N-CHANNEL IGBT, TO-263AB
Categorysemiconductor    Discrete semiconductor
File Size414KB,12 Pages
ManufacturerInfineon
Websitehttp://www.infineon.com/
Download Datasheet Parametric Compare View All

Q67040-A4463 Overview

41 A, 600 V, N-CHANNEL IGBT, TO-263AB

Q67040-A4463 Parametric

Parameter NameAttribute value
Number of terminals2
Rated off time391 ns
Maximum collector current41 A
Maximum Collector-Emitter Voltage600 V
Processing package descriptionGREEN, PLASTIC, D2PAK-3
Lead-freeYes
EU RoHS regulationsYes
China RoHS regulationsYes
stateACTIVE
packaging shapeRECTANGULAR
Package SizeSMALL OUTLINE
surface mountYes
Terminal formGULL WING
terminal coatingMATTE TIN
Terminal locationSINGLE
Packaging MaterialsPLASTIC/EPOXY
structureSINGLE
Shell connectionCOLLECTOR
Number of components1
transistor applicationsPOWER CONTROL
Transistor component materialsSILICON
Channel typeN-CHANNEL
Transistor typeINSULATED GATE BIPOLAR
Rated on time78 ns

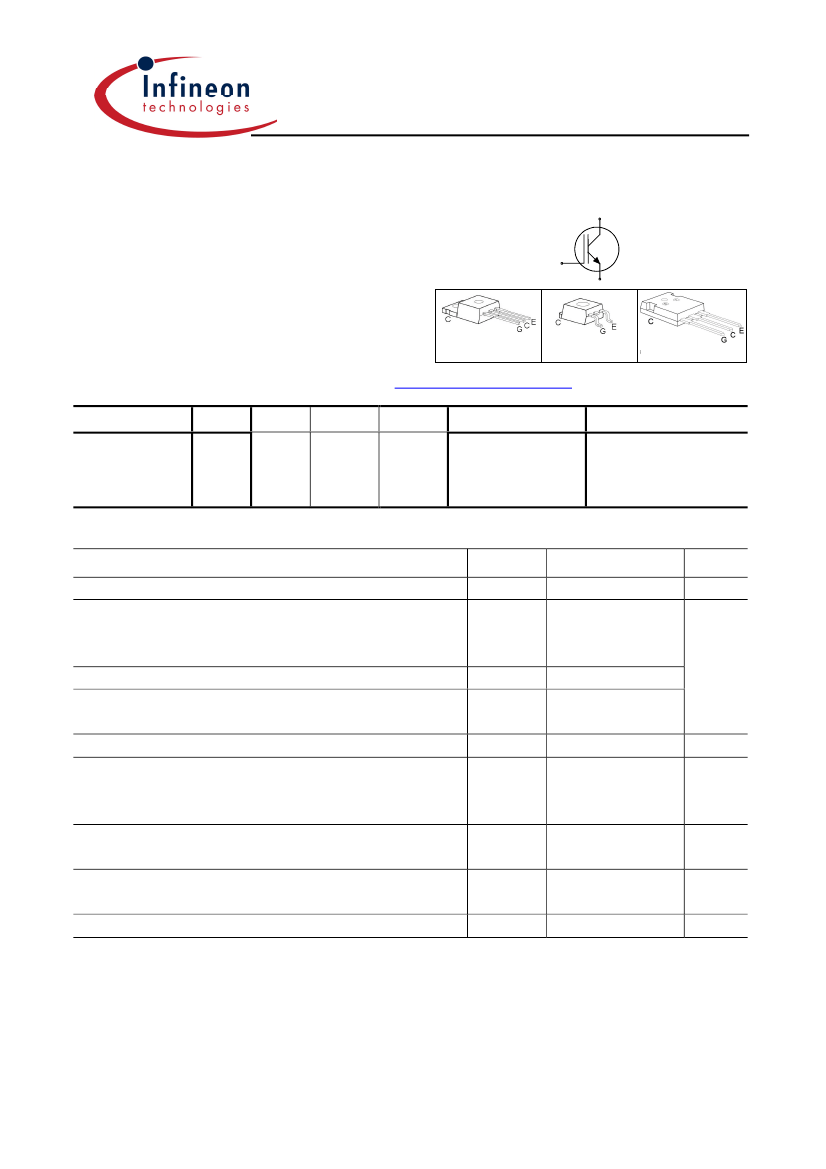

SGP30N60,
Fast IGBT in NPT-technology
75% lower
E
off
compared to previous generation
combined with low conduction losses
Short circuit withstand time – 10
µs
Designed for:
- Motor controls
- Inverter
NPT-Technology for 600V applications offers:
- very tight parameter distribution
- high ruggedness, temperature stable behaviour
- parallel switching capability
SGB30N60
SGW30N60
C
G
E
P-TO-220-3-1
(TO-220AB)
P-TO-263-3-2 (D²-PAK) P-TO-247-3-1
(TO-263AB)
(TO-247AC)
Complete product spectrum and PSpice Models :
http://www.infineon.com/igbt/
Type
SGP30N60
SGB30N60
SGW30N60
Maximum Ratings
Parameter
Collector-emitter voltage
DC collector current
T
C
= 25°C
T
C
= 100°C
Pulsed collector current,
t
p
limited by
T
jmax
Turn off safe operating area
V
CE
600V,
T
j
150°C
Gate-emitter voltage
Avalanche energy, single pulse
I
C
= 30 A,
V
CC
= 50 V,
R
GE
= 25
Ω,
start at
T
j
= 25°C
Short circuit withstand time
Power dissipation
T
C
= 25°C
Operating junction and storage temperature
T
j
,
T
stg
-55...+150
°C
1)
V
CE
600V
I
C
30A
V
CE(sat)
2.5V
T
j
150°C
Package
TO-220AB
TO-263AB
TO-247AC
Ordering Code
Q67040-A4463
Q67041-A4713
Q67040-S4237
Symbol
V
CE
I
C
Value
600
41
30
Unit
V
A
I
Cpul s
-
V
GE
E
AS
112
112
±20
165
V
mJ
t
SC
P
tot
10
250
µs
W
V
GE
= 15V,
V
CC
600V,
T
j
150°C
1)
Allowed number of short circuits: <1000; time between short circuits: >1s.
1
Jul-02

Q67040-A4463 Related Products

Q67040-A4463 Q67040-S4237 Q67041-A4713
Description 41 A, 600 V, N-CHANNEL IGBT, TO-263AB 41 A, 600 V, N-CHANNEL IGBT, TO-263AB 41 A, 600 V, N-CHANNEL IGBT, TO-263AB
Number of terminals 2 2 2
Rated off time 391 ns 391 ns 391 ns
Maximum collector current 41 A 41 A 41 A
Maximum Collector-Emitter Voltage 600 V 600 V 600 V
Processing package description GREEN, PLASTIC, D2PAK-3 GREEN, PLASTIC, D2PAK-3 GREEN, PLASTIC, D2PAK-3
Lead-free Yes Yes Yes
EU RoHS regulations Yes Yes Yes
China RoHS regulations Yes Yes Yes
state ACTIVE ACTIVE ACTIVE
packaging shape RECTANGULAR RECTANGULAR RECTANGULAR
Package Size SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
surface mount Yes Yes Yes
Terminal form GULL WING GULL WING GULL WING
terminal coating MATTE TIN MATTE TIN MATTE TIN
Terminal location SINGLE SINGLE SINGLE
Packaging Materials PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
structure SINGLE SINGLE SINGLE
Shell connection COLLECTOR COLLECTOR COLLECTOR
Number of components 1 1 1
transistor applications POWER CONTROL POWER CONTROL POWER CONTROL
Transistor component materials SILICON SILICON SILICON
Channel type N-CHANNEL N-CHANNEL N-CHANNEL
Transistor type INSULATED GATE BIPOLAR INSULATED GATE BIPOLAR INSULATED GATE BIPOLAR
Rated on time 78 ns 78 ns 78 ns
