RN2114 RN2118
TOSHIBA Transistor
Silicon PNP Epitaxial Type (PCT Process) (Bias Resistor built-in Transistor)
RN2114, RN2115, RN2116, RN2117, RN2118
Switching, Inverter Circuit, Interface Circuit
and Driver Circuit Applications
Built-in bias resistors
Simplified circuit design
Fewer parts and simplified manufacturing process
Complementary to RN1107 to RN1109
Unit: mm

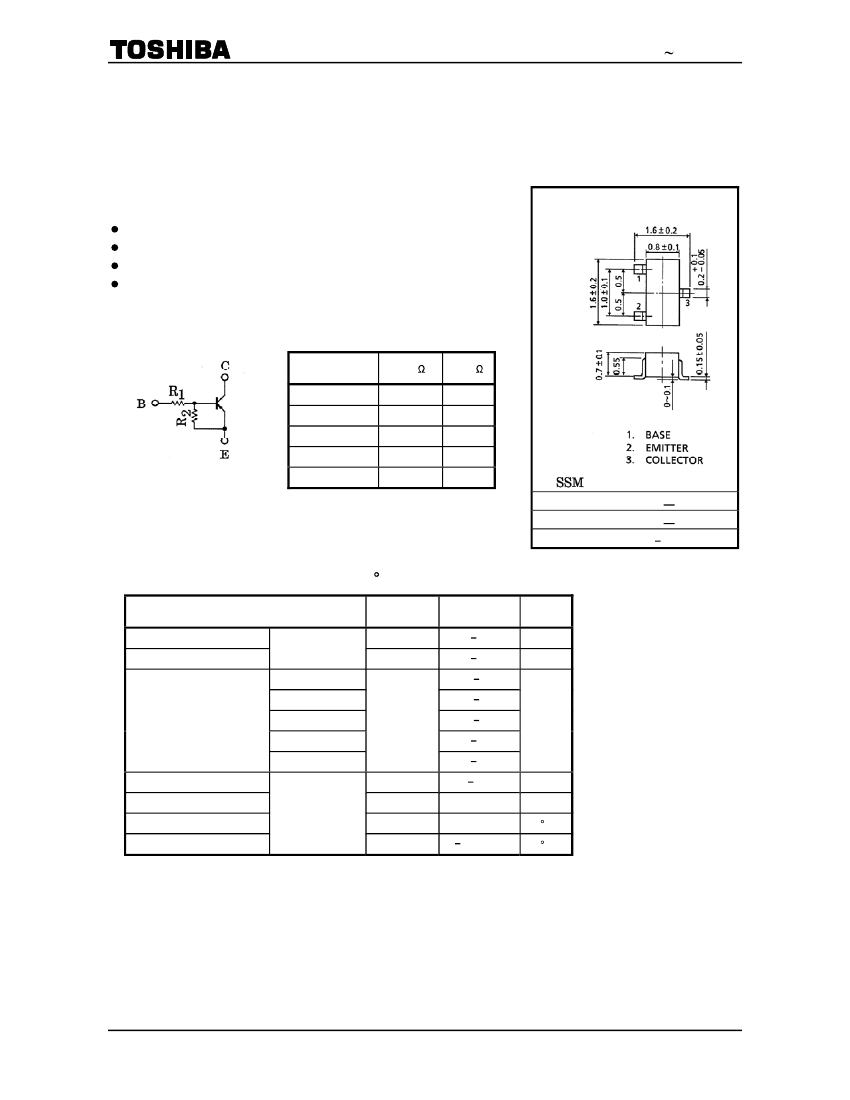

Equivalent Circuit and Bias Resistor Values
Type No.
RN2114
RN2115
RN2116
RN2117
RN2118
R1 (k )
1
2.2
4.7
10
47
R2 (k )
10
10
10
4.7
10
JEDEC
JEITA
TOSHIBA
2 2H1A
Weight: 2.4mg (typ.)
Absolute Maximum Ratings
(Ta
=
25 C)
Characteristic
Collector-base voltage
Collector-emitter voltage
RN2114 to 2118
RN2114
RN2115
Emitter-base voltage
RN2116
RN2117
RN2118
Collector current
Collector power dissipation
Junction temperature
Storage temperature range
RN2114 to 2118
I
C
P
C
T
j
T
stg
V
EBO
Symbol
V
CBO
V
CEO
Rating
50
50
5
6
7
15
25
100
100
150
55 to 150
mA
mW
C
C
V
Unit
V
V
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if
the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum
ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(Handling Precautions/Derating Concept and Methods) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Start of commercial production
1994-08
1
2014-03-01
RN2114 RN2118
RN2114
-100

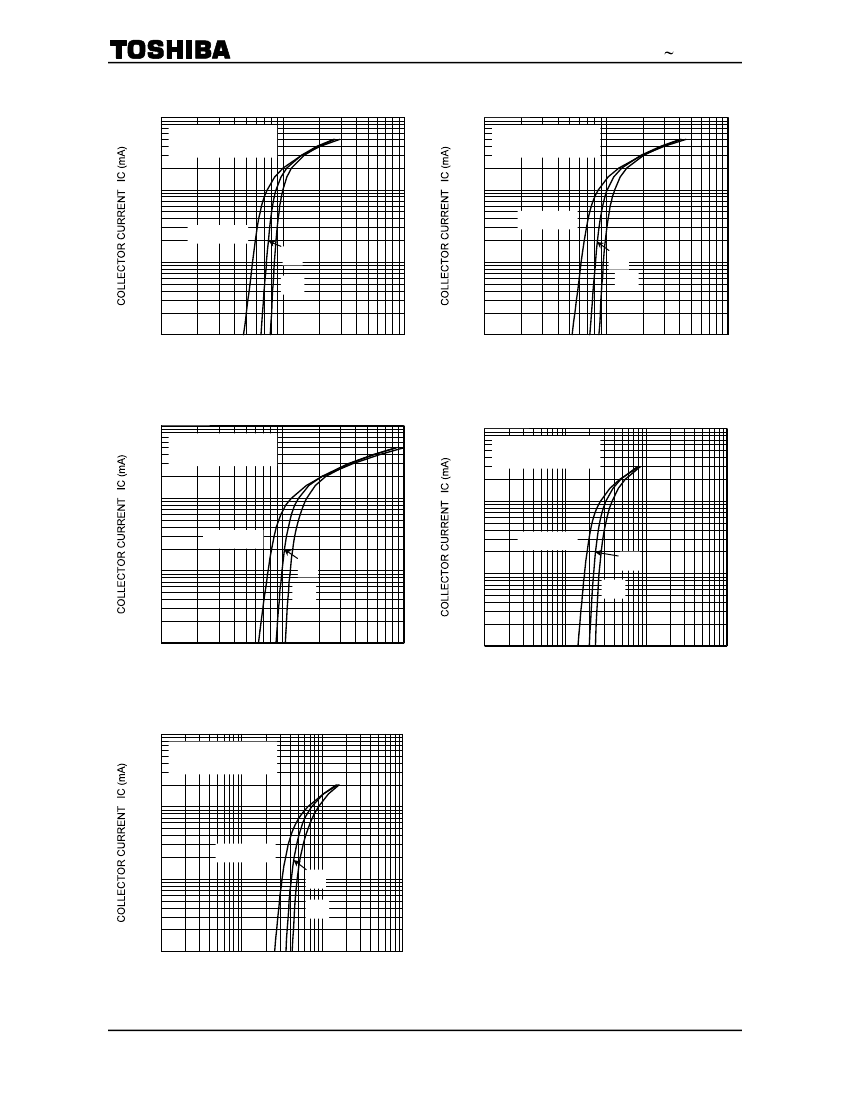

IC - VI (ON)
-100
RN2115
IC - VI (ON)
COMMON EMITTER
VCE = -0.2 V
COMMON EMITTER
VCE = -0.2 V
-10
-10
Ta = 100°C
Ta = 100°C
-1
25
-25
-1
25
-25
-0.1
-0.1
-1
INPUT VOLTAGE VI (ON) (V)
-10
-0.1
-0.1
-1
INPUT VOLTAGE VI (ON) (V)
-10
-100
RN2116
IC - VI (ON)
-100
RN2117
IC - VI (ON)
COMMON EMITTER
VCE = -0.2 V
COMMON EMITTER
VCE = -0.2 V
-10
-10
Ta = 100°C
Ta = 100°C
-1
25
-25
25
-1
-25
-0.1
-0.1
-1
INPUT VOLTAGE VI (ON) (V)
-10
-0.1
-0.1
-1
-10
-100
INPUT VOLTAGE VI (ON) (V)
-100
RN2118
IC - VI(ON)
COMMON EMITTER
VCE = -0.2 V
-10
Ta = 100°C
-1
25
-25
-0.1
-0.1
-1
-10
-100
INPUT VOLTAGE VI (ON) (V)
3
2014-03-01
RN2114 RN2118
-10000
RN2114

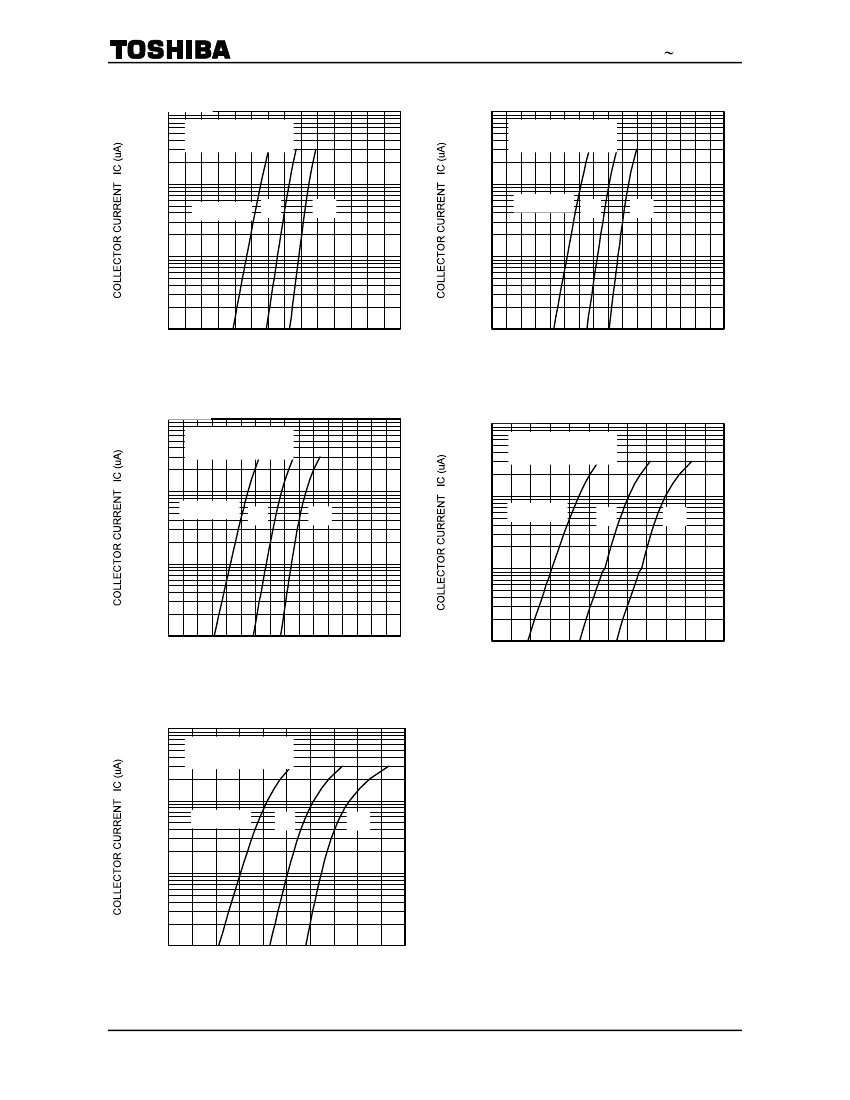

IC - VI (OFF)
-10000
RN2115
IC - VI (OFF)
COMMON EMITTER
VCE = -5 V
COMMON EMITTER
VCE = -5 V
-1000
Ta = 100°C
-1000
25
-25
Ta = 100°C
25
-25
-100
-100
-10
-0
-0.2
-0.4
-0.6
-0.8
-1
-1.2
-1.4
INPUT VOLTAGE VI (OFF) (V)
-10
-0
-0.2
-0.4
-0.6
-0.8
-1
-1.2
-1.4
-1.6
INPUT VOLTAGE VI (OFF) (V)
-10000
RN2116
IC - VI (OFF)
-10000
RN2117
IC - VI (OFF)
COMMON EMITTER
VCE = -5 V
COMMON EMITTER
VCE = -5 V
-1000
Ta = 100°C
-1000
25
-25
Ta = 100°C
25
-25
-100
-100
-10
-0.2
-0.4
-0.6 -0.8
-1 -1.2 -1.4 -1.6
INPUT VOLTAGE VI (OFF) (V)
-1.8
-10
-0.8
-1.2
-1.6
-2
-2.4
-2.8
INPUT VOLTAGE VI (OFF) (V)
-3.2
-10000
RN2118
IC - VI (OFF)
COMMON EMITTER
VCE = -5 V
-1000
Ta = 100°C
25
-25
-100
-10
-1
-2
-3
-4
-5
INPUT VOLTAGE VI (OFF) (V)
-6
4
2014-03-01
RN2114 RN2118
1000
RN2114

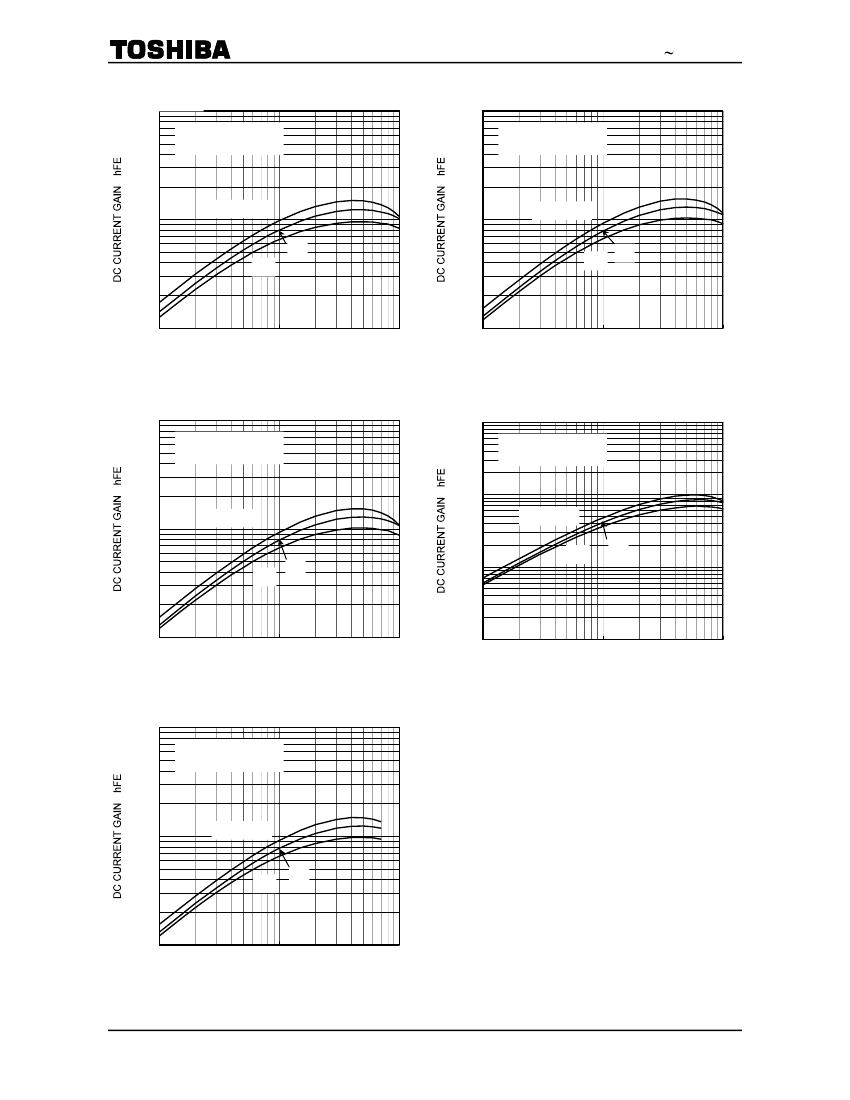

hFE - IC
1000
RN2115
hFE - IC
COMMON EMITTER
VCE = -5 V
COMMON EMITTER
VCE = -5 V
Ta = 100°C
100
100
Ta = 100°C
25
-25
-25
25
10
-1
-10
COLLECTOR CURRENT IC (mA)
-100
10
-1
-10
COLLECTOR CURRENT IC (mA)
-100
1000
RN2116
hFE - IC
1000
RN2117
hFE - IC
COMMON EMITTER
VCE = -5 V
COMMON EMITTER
VCE = -5 V
100
Ta = 100°C
100
Ta = 100°C
-25
-25
25
10
25
10
-1
-10
COLLECTOR CURRENT IC (mA)
-100
1
-1
-10
COLLECTOR CURRENT IC (mA)
-100
1000
RN2118
hFE - IC
COMMON EMITTER
VCE = -5 V
100
Ta = 100°C
-25
25
10
-1
-10
COLLECTOR CURRENT IC (mA)
-100
5
2014-03-01
