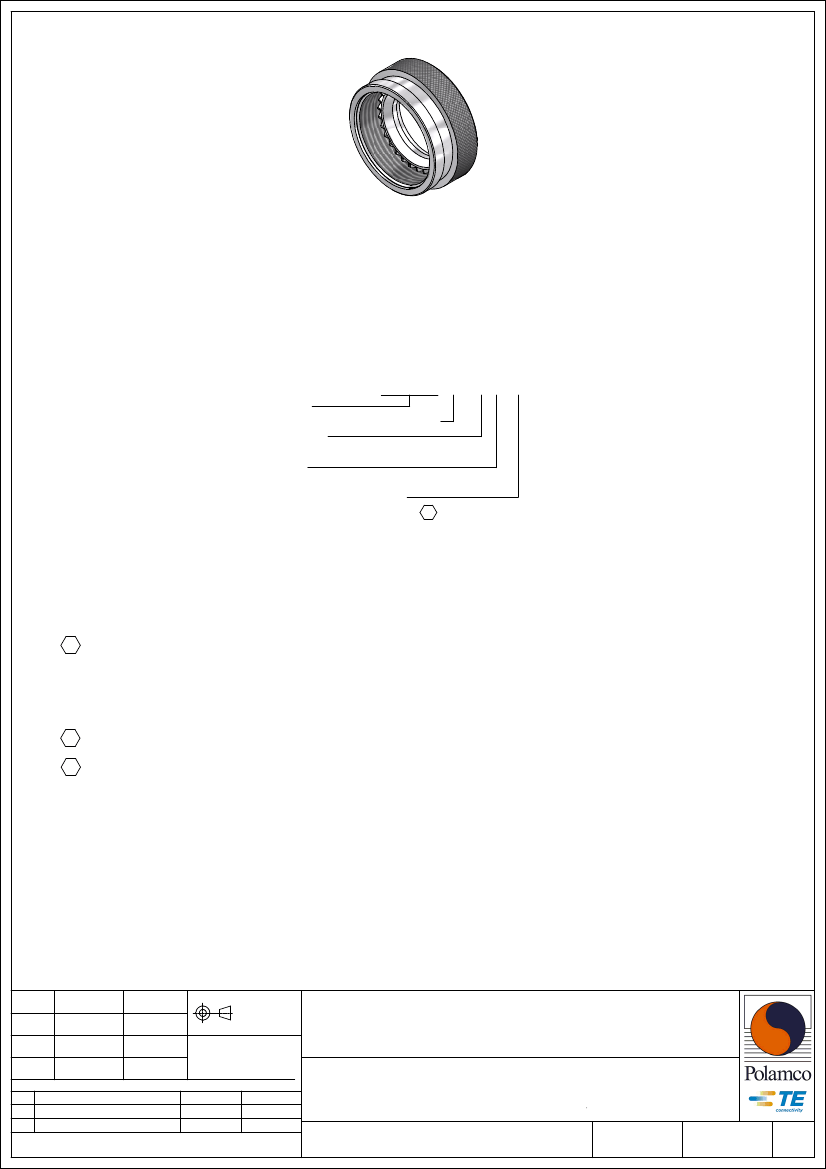

CODE 54 - LOW PROFILE
HEAT SHRINK BOOT BACKSHELL
201M916-19C
SERIES
ORDER NUMBER (TABLE 1)
MATERIAL
REFER TO CH00-0250-004
FINISH
REFER TO CH00-0250-004
MODIFICATION CODE
REFER TO CH00-0250-004 2
NOTES:
1. THIS PRODUCT IS DESIGNED TO TERMINATE A HEAT SHRINKABLE LIPPED
BOOT TO A CONNECTOR.
2. FOR ADDITIONAL DIMENSIONS, ORDERING INFORMATION AND MODIFICATIONS,
SEE CH00-0250-004.
3. BACKSHELL TO BE PERMANENTLY MARKED/BAGGED AND LABELLED WITH CODE
IDENTIFICATION NUMBER AND PART NUMBER. (e.g. 06090-201M916-19B YYWW).
4. BACKSHELL MATES TO MIL-C-81703, SERIES III, MS3424, MS3446, MS3464, MS3467, MS3468, CLASS E & L
5. BACKSHELL MATES TO MIL-C-5015G, MS3400 SERIES, CLASS D, E, K, L, U & W,
MS3400, MS3401, MS3404, MS3406,MS3450, MS3451, MS3454, MS3456, MS3470, MS3471, MS3472,
MS3474, MS3475, MS3476. MIL-C-83723, SERIES II, CLASS A & L. MIL-C-83723,
SERIES I & III, CLASS A, G, K, R & S: M83723/1, /2, /3, /4, /5, /6, /7, /8, /13,
/14, /36, /37, /38, /40, /41, /42, /43, /48, /49, /65, /66, /67, /68, /69,
/70, /71, /72, /73, /74, /75, /76, /77, /78, /82, /83, /84, /85, /86, /87, /91, /92, /95, /97, /98,
(MS3155 CONTROLLED INTERFACE).
6. THIS PRODUCT IS A FUNCTIONAL EQUIVALENT OF SAE-AS85049/60-2.
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
18/02/2015
18/02/2015
25/02/2015
20/08/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
LOW PROFILE HEAT SHRINK BOOT
BACKSHELL(CODE 54)
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
K REVISED PER ECO-15-003652
L
REVISED PER ECO-15-012000
DATE
03/06/2015
20/08/2015
APPROVED
I.MYONG
H.SMITH
MIL-DTL-26482 SERIES II, MIL-DTL-83723 SERIES I & III
TE CONNECTIVITY - POLAM CO LTD RESERVES THE RIGHT TO AMEND THIS DRAW ING
DRAWING NO:
DRAWING REV:
SHT
AND THE INFORMATION SET FORTH HEREON AT ANY TIM E. USERS SHOULD
TE CAGE CODE: 06090
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
POLAMCO/TE CAGE CODE: U5792
If this document is printed it becomes uncontrolled. Check for the latest revision
201M9XX
L
1

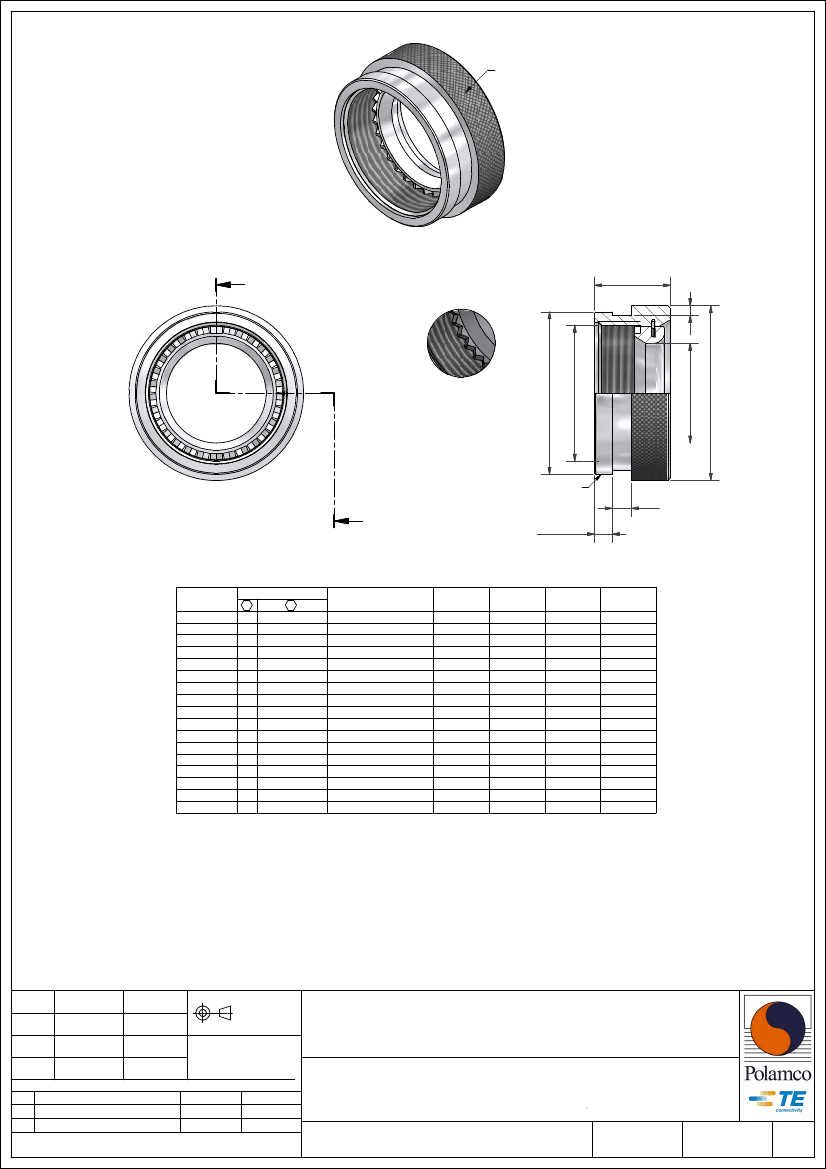

MEDIUM DIAMOND
KNURL
A-A
A
13,70 MAX
A THREAD
ØB
X
STAINLESS
STEEL & BRONZE
TEETH VIEW
PART MARK
HERE
XXXX
3,56
3,30
A
TABLE 1
BASE PART
NUMBER
201M903
201M908
201M910
201M912
201M914
201M916
201M918
201M920
201M922
201M924
201M928
201M932
201M936
201M940
201M944
201M948
201M961
3,17 + 0,00
- 0,50
SHELL SIZE
4
5
3
8 & 8S
10, 10S & 10SL
7
12 & 12S
12
14 & 14S
19
16 & 16S
27
18
37
20
22
24
28
32
36
40
44
48
61
A
THREAD
9/16 -24UNEF
1/2 -20UNF
5/8 -24UNEF
3/4 -20UNEF
7/8 -20UNEF
1 -20UNEF
1 1/16 -18UNEF
1 3/16 -18UNEF
1 5/16 -18UNEF
1 7/16 -18UNEF
1 3/4 -18UNS
2 -18UNS
2 1/4 -16UN
2 1/2 -16UN
2 3/4 -16UN
3 -16UN
1 1/2 -18UNEF
ØB
MAX
18,0
16,6
19,6
22,7
25,9
29,2
31,5
34,7
36,6
41,0
50,0
56,4
62,7
69,1
75,4
81,8
42,0
ØZ
MIN
6,5
6,6
9,3
12,8
14,7
17,8
19,8
23,0
26,2
29,1
34,9
41,4
46,6
52,1
58,6
64,9
30,0
ØY
MAX
19,1
17,4
20,4
23,8
27,0
31,4
33,2
36,4
39,6
42,8
52,4
58,3
65,1
71,4
77,4
84,1
44,4
X
+0,20/-0,00
1,12
1,12
1,12
1,12
1,12
1,75
1,75
1,75
1,75
1,75
2,18
2,18
2,18
2,18
2,18
2,18
1,75
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
18/02/2015
18/02/2015
25/02/2015
20/08/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
LOW PROFILE HEAT SHRINK BOOT
BACKSHELL(CODE 54)
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
K REVISED PER ECO-15-003652
L
REVISED PER ECO-15-012000
DATE
03/06/2015
20/08/2015
APPROVED
I.MYONG
H.SMITH
MIL-DTL-26482 SERIES II, MIL-DTL-83723 SERIES I & III
TE CONNECTIVITY - POLAM CO LTD RESERVES THE RIGHT TO AMEND THIS DRAW ING
DRAWING NO:
DRAWING REV:
ØY
ØZ
SHT
AND THE INFORMATION SET FORTH HEREON AT ANY TIM E. USERS SHOULD
TE CAGE CODE: 06090
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
POLAMCO/TE CAGE CODE: U5792
If this document is printed it becomes uncontrolled. Check for the latest revision
201M9XX
L
2
