FEATURES
+
* Accommodates .062
_
.008" PC board
* PPS or PA9T insulator
* Molded-in key available
* High reliability/high cycle hairpin
bellows contact
* 1 amp current rating
* 150 grams normal force minimum

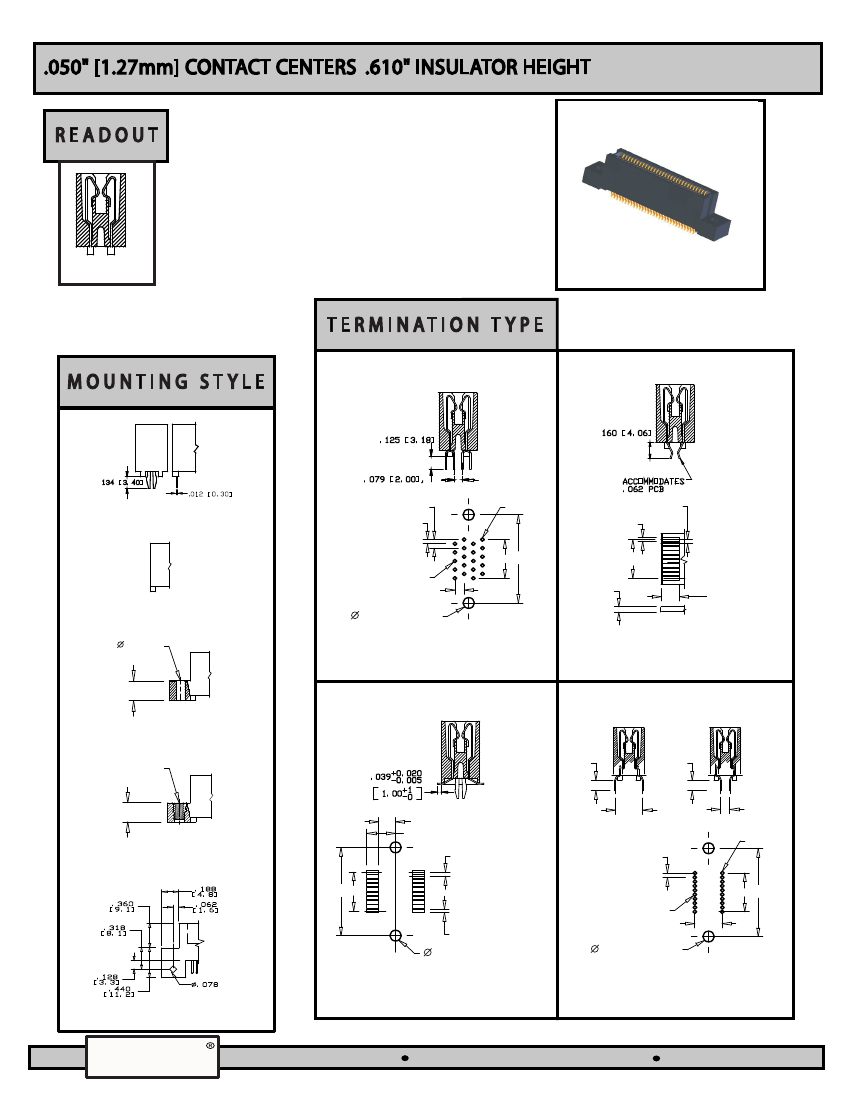

DUAL (D)
STAGGERED DIP SOLDER (HH)
CARD EXTENDER (HR)
.100, 3 PLS.
[2.54]
BOARD LOCK (R)
.100 TYP [2.54]
.050 TYP. [1.27]
PIN ONE
.050 TYP [1.27]
PAD WIDTH
.040 [1.02]
A
A D
.040 MINIMUM [1.02]
.100, 3 PLS [2.54]
NO MOUNTING EARS (N)
.125 [3.18]
.062 PCB
[1.57]
.200
[5.08]
.125 [3.18], 2 PLS.
OPTIONAL FOR (D) OR
(T) MOUNTING
PC BOARD LAYOUT, CONNECTOR SIDE
.250 [6.35]
PC BOARD LAYOUT, SOLDER END
DIP SOLDER (HL, HN)
SURFACE MOUNT (HF)
HL
FLUSH MOUNTING (D)
#4-40
HN
.125
[3.18]
.100,
[2.54]
PIN ONE
.160
[4.06]
.250 [6.35]
.185 MAXIMUM [4.70]
.315 MINIMUM [8.00]
.050 TYP [1.27]
F A
.250
[6.35]
.050 TYP. [1.27]
FLUSH MOUNTING
WITH THREADED INSERT (T)
A D
.028 MINIMUM [1.02]
HL = .250 [6.35]
HN =.100 [2.54]
.125 [3.18], 2 PLS.
OPTIONAL FOR (D) OR
(T) MOUNTING
.040 MAXIMUM [1.02]
.125 [3.18], 2 PLS.
OPTIONAL FOR
(R) MOUNTING
STRADDLE MOUNT (Q)
PC BOARD LAYOUT, CONNECTOR SIDE
PC BOARD LAYOUT, CONNECTOR SIDE
10
Sullins
PHONE 760.744.0125
www.SullinsElectronics.com
FAX 760.744.6081
*
R Z B 40 D
MATERIALS (Insulator/Contact)
R = PPS/Phosphor Bronze
A = PPS/Berylium Copper
G = PA9T/Phosphor Bronze
J = PA9T/Beryllium Copper
Consult Factory for Other Materials
CONTACT FINISH
(All Platings have .000050" NICKEL Underplate)
Contact Surface
Termination
Z = .000010" Gold
.000100" Tin/Lead
X = .000030" Gold
.000100" Tin/Lead
B = .000010" Gold
.000100" Pure Tin, Matte
C = .000030" Gold
.000100" Pure Tin, Matte
CONTACT CENTERS
B = .050" [1.27 mm]
NUMBER OF CONTACT POSITIONS
5 thru 110
HH D -SXXX
MODIFICATIONS (Consult Factory)
Omit For Standard
MOUNTING STYLE (Opposite Page)
D = Flush Mounting
N = No Mounting
T = Flush Mounting With Threaded Insert
Q = Straddel Mount
R = Metal Boardlocks
TERMINATION TYPE (Opposite Page)
HH = Staggered Dip Solder
HR = Card Extender
HF = Surface Mount
HL = .250" [6.35mm] x.160" [4.06mm] Dip Solder
HN = .100" [2.54mm] x.125" [3.18mm] Dip Solder
(REPLACES TERMINATIONS: CH, CR, CF, CL, CN)
READOUT (Opposite Page)
D = Dual
= Lead Free Plating
RoHS COMPLIANT
Dimensions in [ ] are in millimeters, all others in inches.
10 POSITIONS,
(D) MOUNTING SHOWN
.125 [3.18], 2 PLS.
PIN ONE
.370
[9.40]
A
B
D
E
.300 INSERTION DEPTH [7.62]
C
.250 [6.35]
.610
[15.49]
.050 TYP [1.27]
.012 X .018 [0.31 X 0.46] POST
REFER TO TERMINATION TYPE
INCHES
C
+ .015
_
0.490
0.540
0.690
0.740
0.890
0.940
0.990
1.240
1.340
1.490
1.740
1.940
1.990
2.240
2.490
2.740
2.990
3.240
3.440
3.490
3.540
3.740
3.990
4.240
4.490
4.740
4.990
5.240
5.490
5.640
5.740
6.240
.060 [1.52]
POSITIONS/
CONTACTS
5/10
6/12
9/18
10/20
13/26
14/28
15/30
20/40
22/44
25/50
30/60
34/68
35/70
40/80
45/90
50/100
55/110
60/120
64/128
65/130
66/132
70/140
75/150
80/160
85/170
90/180
95/190
100/200
105/210
108/216
110/220
120/240
A
+ .005
_
0.200
0.250
0.400
0.450
0.600
0.650
0.700
0.950
1.050
1.200
1.450
1.650
1.700
1.950
2.200
2.450
2.700
2.950
3.150
3.200
3.250
3.450
3.700
3.950
4.200
4.450
4.700
4.950
5.200
5.350
5.450
5.950
B
+ .005
_
0.300
0.350
0.500
0.550
0.700
0.750
0.800
1.050
1.150
1.300
1.550
1.750
1.800
2.050
2.300
2.550
2.800
3.050
3.250
3.300
3.350
3.550
3.800
4.050
4.300
4.550
4.800
5.050
5.300
5.450
5.550
6.050
D
+
_ .010
0.776
0.826
0.976
1.026
1.176
1.226
1.276
1.526
1.626
1.776
2.026
2.226
2.276
2.526
2.776
3.026
3.276
3.526
3.726
3.776
3.826
4.026
4.276
4.526
4.776
5.026
5.276
5.526
5.776
5.926
6.026
E
+ .020
_
1.090
1.140
1.290
1.340
1.490
1.540
1.590
1.840
1.940
2.090
2.340
2.540
2.590
2.840
3.090
3.340
3.590
3.840
4.040
4.090
4.140
4.340
4.590
4.840
5.090
5.340
5.590
5.840
6.090
6.240
6.340
F
+ .010
_
.350
.400
.550
.600
.750
.800
.850
1.100
1.200
1.350
1.600
1.800
1.850
2.100
2.350
2.600
2.850
3.100
3.300
3.350
3.400
3.600
3.850
4.100
4.350
4.600
4.850
5.100
5.350
5.500
5.600
6.100
A
+ 0.13
_
5.08
6.35
10.16
11.43
15.24
16.51
17.78
24.13
26.67
30.48
36.83
41.91
43.18
49.53
55.88
62.23
68.58
74.93
80.01
81.28
82.55
87.63
93.98
100.33
106.68
113.03
119.38
125.73
132.08
135.89
138.43
151.13
B
+ 0.13
_
7.62
8.89
12.70
13.97
17.78
19.05
20.32
26.67
29.21
33.02
39.37
44.45
45.72
52.07
58.42
64.77
71.12
77.47
82.55
83.82
85.09
90.17
96.52
102.87
109.22
115.57
121.92
128.27
134.62
138.43
140.97
153.67
MILLIMETERS
C
D
+ 0.25
_
+ 0.38
_
12.45
13.72
17.53
18.80
22.61
23.88
25.15
31.50
34.04
37.85
44.20
49.28
50.55
56.90
63.25
69.60
75.95
82.30
87.38
88.65
89.92
95.00
101.35
107.70
114.05
120.40
126.75
133.10
139.45
143.26
145.08
158.50
19.71
20.98
24.79
26.06
29.87
31.14
32.41
38.76
41.30
45.11
51.46
56.54
57.81
64.16
70.51
76.86
83.21
89.56
94.64
95.91
97.18
102.26
108.61
114.96
121.31
127.66
134.01
140.36
146.71
150.52
153.06
E
+ 0.51
_
27.69
28.96
32.77
34.04
37.85
39.12
40.39
46.74
49.28
53.09
59.44
64.52
65.79
72.14
78.49
84.84
91.19
97.54
102.62
103.89
105.16
110.24
116.59
122.94
129.29
135.64
141.99
148.34
154.69
158.50
161.06.
F
+ 0.25
_
'N' MOUNTING ONLY
8.890
10.160
13.970
15.240
19.050
20.320
21.590
27.940
30.480
34.290
40.640
45.720
46.990
53.340
59.690
66.040
72.390
78.740
83.820
85.090
86.360
91.440
97.790
104.140
110.490
116.840
123.190
129.540
135.890
139.700
142.240
154.940
* For complete part number add termination type and mounting style from Part Number Coding (e.g. RZB40DHHD).
