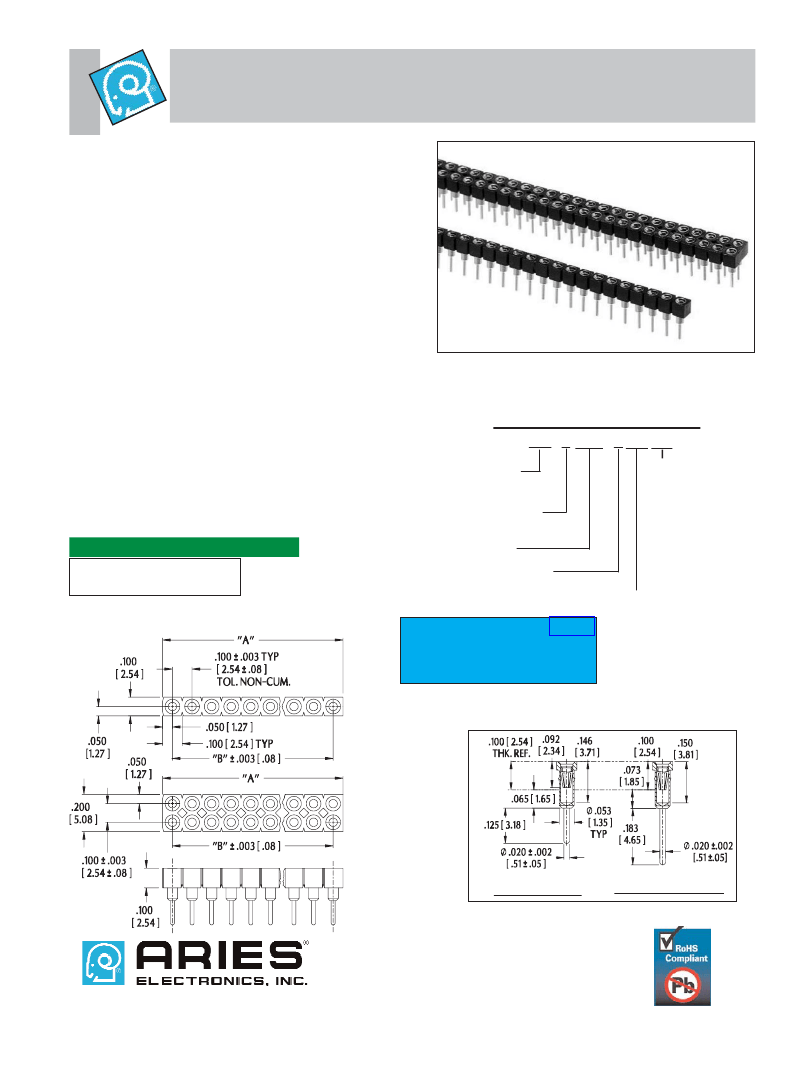

Series X518 Single and Dual Row
Collet Sockets with Solder Tail Pins
FEATURES:
• Aries collet sockets are available in single or dual rows.
• Cuttable to the number of pins desired to fit the application.
• Side-to-side and end-to-end stackable.
SPECIFICATIONS:
• Body material is black UL 94V-0 Glass-filled 4/6 Nylon.
• Pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-00.
• Pin body plating is either 10
μ
[.25μm] min. Gold per MIL-G-45204 or
200μ [5.08μm] min. 93/7 Tin/Lead per ASTM B545 or 200μ [5.08μm]
min. Tin per ASTM B545 Type 1 over 100μ [2.54μm] min. Nickel per
SAE-AMS-QQ-N-290.
• 4-fingered collet contact is Beryllium Copper Alloy per UNS C17200
ASTM-B194-01.
• Contact plating is either 200
μ
[5.08μm] min. 93/7 Tin/Lead per ASTM
B545 or 200μ [5.08μm] min Tin per ASTM B545 Type 1 or 10μ [.25μm]
Gold per MIL-G-45204 over 50
μ
min. [1.27μm] Nickel per SAE-AMS-
Note: Aries specializes in custom design and production. In addition to
QQ-N-290. Heavy 30μ [.76μm] Gold Plating also available.
the standard products shown on this page, special materials, platings,
• Contact current rating=3 Amps.
sizes, and configurations can be furnished, depending on quantities.
• Insertion Force=180 grams/pin; Withdrawal Force=90 grams/pin; Normal
Aries reserves the right to change product specifications without notice.
Force=140 grams/pin; based on a .018 [.46] dia. test lead.
ORDERING INFORMATION
• Operating temperature=221°F [105°C] Tin & Tin/Lead plating
=257°F [125°C] Gold plating.
XX-X518-1XXXX
• Insertion Force=180 grams/pin; Withdrawal Force=90 grams/pin; Normal
Optional suffix:
No. of pins:
Force=140 grams/pin; based on a .018 [.46] dia. test lead.
H=Heavy Gold
Single row: 1-40 pins
• Accepts leads .015-.025 [.38-.64] in diameter.
plating on collet
Dual row: 2-40 pins
• Accepts lead lengths from .100 [2.54] min.
T=Tin collet/ Tin
MOUNTING CONSIDERATIONS:
0=Single row
shell
•Suggested PCB hole size=.030 ± .002 [.76 ± .05] dia.
1=Dual row
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
All tolerances ± .005 [.13]
unless otherwise specified
“A”=(NO. OF PINS PER ROW) X .100 [2.54]
“B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
Series
Solder tail pin
TL=Tin/Lead collet/
Tin/Lead shell
E=Extra long solder
tail pin
Consult Data Sheet No. 12021
for Series X518 Collet Sockets
with wire wrap pins.
Plating:
0=Gold collet/Tin shell
0TL=Gold collet/
Tin/Lead Shell
1=Gold collet/Gold shell
SOLDER TAIL
EXTRA LONG “E”
12020
http://www.arieselec.com • info@arieselec.com
REV. G
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
Bristol, PA USA
TEL: (215) 781-9956
FAX: (215) 781-9845
