362311K33 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 362311K33

362311K33: DescriptionBoard Connector, 11 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, IDC Terminal, Polarized Lck, Natural Insulator, Plug; CategoryThe connector The connector; File Size186KB，2 Pages; ManufacturerLumberg; Websitehttp://www.lumberg.com/zh/

Download Datasheet Parametric Compare View All

362311K33 Overview

Board Connector, 11 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, IDC Terminal, Polarized Lck, Natural Insulator, Plug

362311K33 Parametric

Parameter Name	Attribute value
Maker	Lumberg
Reach Compliance Code	compliant
body width	0.591 inch
subject depth	1.083 inch
body length	2.165 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	5 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	3000VAC V
maximum insertion force	3.892 N
Minimum insulation diameter	0.03 inch
Insulation resistance	10000000000 Ω
Insulator color	NATURAL
insulator material	POLYAMIDE
Manufacturer's serial number	3623
Plug contact pitch	0.197 inch
Installation option 1	POLARIZED LCK
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Plating thickness	197u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	6 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	11
Evacuation force-minimum value	1.0008 N
Base Number Matches	1

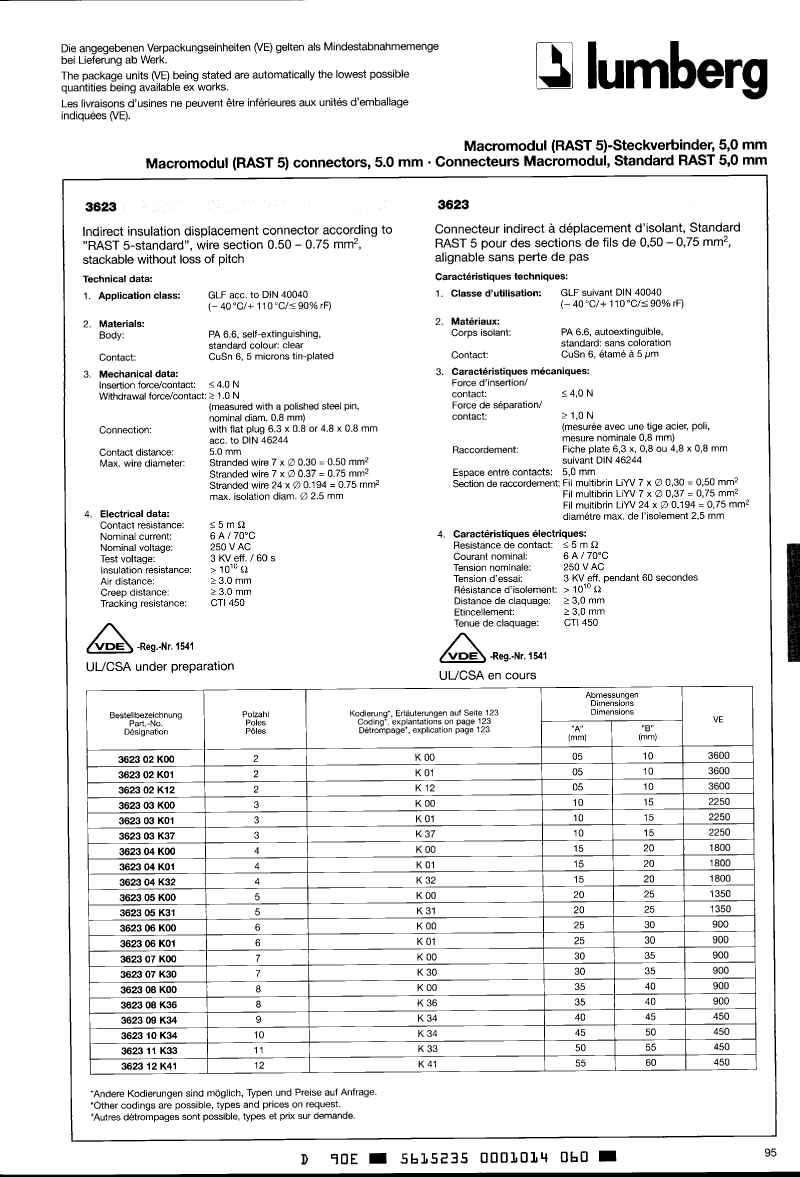

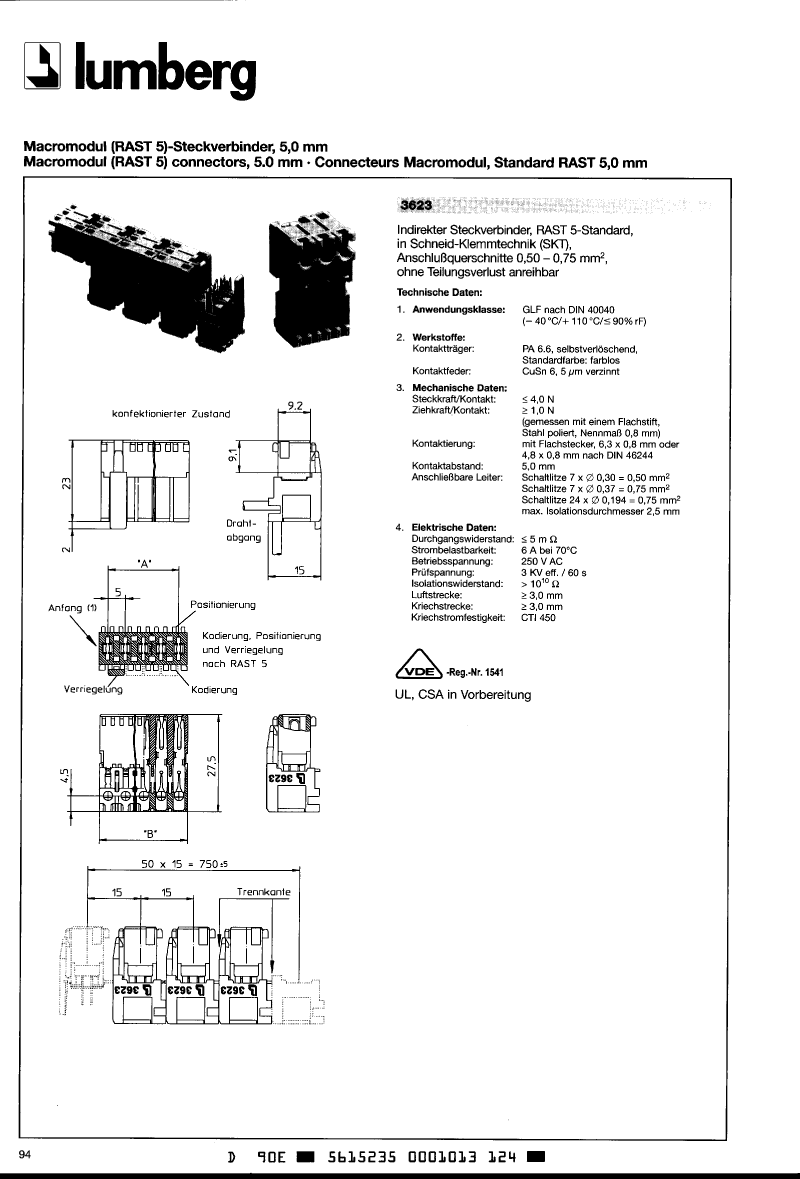

Preview

Download Datasheet

View All

362311K33 Related Products

	362311K33	362304K32	362305K00	362308K36	362309K34	362312K41
Description	Board Connector, 11 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, IDC Terminal, Polarized Lck, Natural Insulator, Plug	Board Connector, 4 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, IDC Terminal, Polarized Lck, Natural Insulator, Plug	Board Connector, 5 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, IDC Terminal, Polarized Lck, Natural Insulator, Plug	Board Connector, 8 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, IDC Terminal, Polarized Lck, Natural Insulator, Plug	Board Connector, 9 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, IDC Terminal, Polarized Lck, Natural Insulator, Plug	Board Connector, 12 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, IDC Terminal, Polarized Lck, Natural Insulator, Plug
Maker	Lumberg	Lumberg	Lumberg	Lumberg	Lumberg	Lumberg
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.591 inch	0.591 inch	0.591 inch	0.591 inch	0.591 inch	0.591 inch
subject depth	1.083 inch	1.083 inch	1.083 inch	1.083 inch	1.083 inch	1.083 inch
body length	2.165 inch	0.787 inch	0.984 inch	1.575 inch	1.772 inch	2.362 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	SN	SN	SN	SN	SN	SN
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	5 mΩ	5 mΩ	5 mΩ	5 mΩ	5 mΩ	5 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	3000VAC V	3000VAC V	3000VAC V	3000VAC V	3000VAC V	3000VAC V
maximum insertion force	3.892 N	3.892 N	3.892 N	3.892 N	3.892 N	3.892 N
Minimum insulation diameter	0.03 inch	0.03 inch	0.03 inch	0.03 inch	0.03 inch	0.03 inch
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω
Insulator color	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL
insulator material	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
Manufacturer's serial number	3623	3623	3623	3623	3623	3623
Plug contact pitch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch
Installation option 1	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1	1	1	1
Maximum operating temperature	110 °C	110 °C	110 °C	110 °C	110 °C	110 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Plating thickness	197u inch	197u inch	197u inch	197u inch	197u inch	197u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	6 A	6 A	6 A	6 A	6 A	6 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	11	4	5	8	9	12
Evacuation force-minimum value	1.0008 N	1.0008 N	1.0008 N	1.0008 N	1.0008 N	1.0008 N
