146-93-640-41-012 datasheet, PDF

Datasheet> All Categories > The connector> socket> 146-93-640-41-012

146-93-640-41-012: DescriptionIC Socket, DIP40, 40 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder,; CategoryThe connector socket; File Size151KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

146-93-640-41-012 Overview

IC Socket, DIP40, 40 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder,

146-93-640-41-012 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
ECCN code	EAR99
Other features	DIP SOCKET
body width	0.7 inch
subject depth	0.173 inch
body length	2 inch
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie
Contact material	NOT SPECIFIED
Contact style	RND PIN-SKT
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	DIP40
Dielectric withstand voltage	1000VAC V
Shell material	GLASS FILLED POLYETHYLENE POLYESTER
Insulation resistance	10000000000 Ω
JESD-609 code	e0
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	40
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.6 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

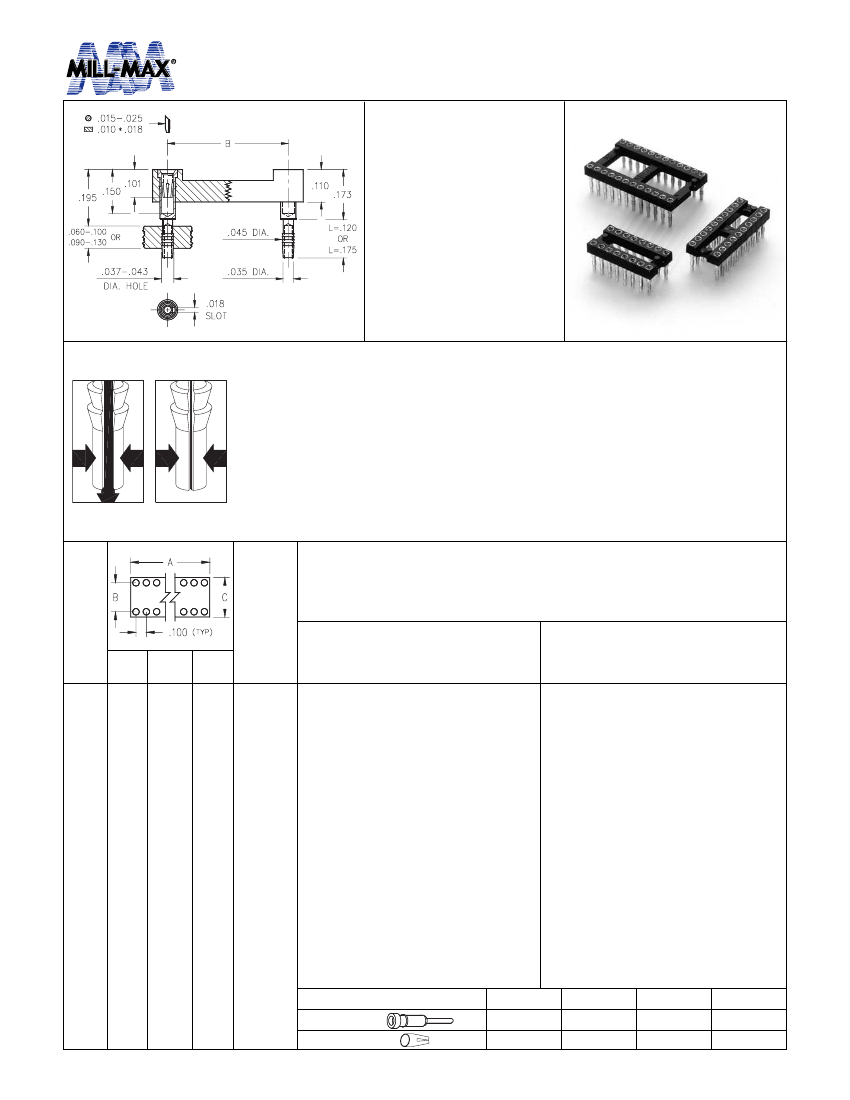

DUAL-IN-LINE SOCKETS

Solderless Press-Fit, Compliant Tail

Open Frame

•

Unique compliant tail

pins conform to .040

±.003” finished hole

diameter without

stressing inner layers.

•

Two tail lengths are

offered for .060”-.100”

and .090”-.130” thick

panels.

•

Uses M-M# 4612 or

4613 pins with #30

contact rated at 3 amps.

See page 131 for pin

details.

APPLICATION OF COMPLIANT TAIL PINS

Series 146

Mill-Max’ patented* compliant tail features precision machined pins that are

hollow and slotted to conform to a .040” ± .003” diameter PTH. As the pin is

inserted, the slot compresses to fit the PTH, thus avoiding damage (see illustration

at left). The pin’s tail has fine serrations that form a perfect “gas tight” connection

that doesn’t require soldering. And since the pin doesn’t damage the hole,

compliant tail sockets and connectors can be easily replaced.

*Patent No. 4,799,904.

Total number

of pins

Quantity

per tube

Ordering Information

L=.120

(for .060”-.100” thick panel)

146-XX-306-41-012

146-XX-308-41-012

146-XX-314-41-012

146-XX-316-41-012

146-XX-318-41-012

146-XX-320-41-012

146-XX-324-41-012

146-XX-422-41-012

146-XX-624-41-012

146-XX-628-41-012

146-XX-632-41-012

146-XX-640-41-012

SPECIFY PLATING CODE XX=

L=.175

(for .090”-.130” thick panel)

146-XX-306-41-013

146-XX-308-41-013

146-XX-314-41-013

146-XX-316-41-013

146-XX-318-41-013

146-XX-320-41-013

146-XX-324-41-013

146-XX-422-41-013

146-XX-624-41-013

146-XX-628-41-013

146-XX-632-41-013

146-XX-640-41-013

30µ” Au

200µ”Sn/Pb

0.3

0.4

0.7

0.8

0.9

1.0

1.2

1.1

1.2

1.4

1.6

2.0

0.3

0.4

0.6

0.4

0.5

0.7

Sleeve (Pin)

Contact (Clip)

200µ” Sn/Pb 200µ”Sn/Pb

w w w. m i l l - m a x . c o m

516-922-6000
