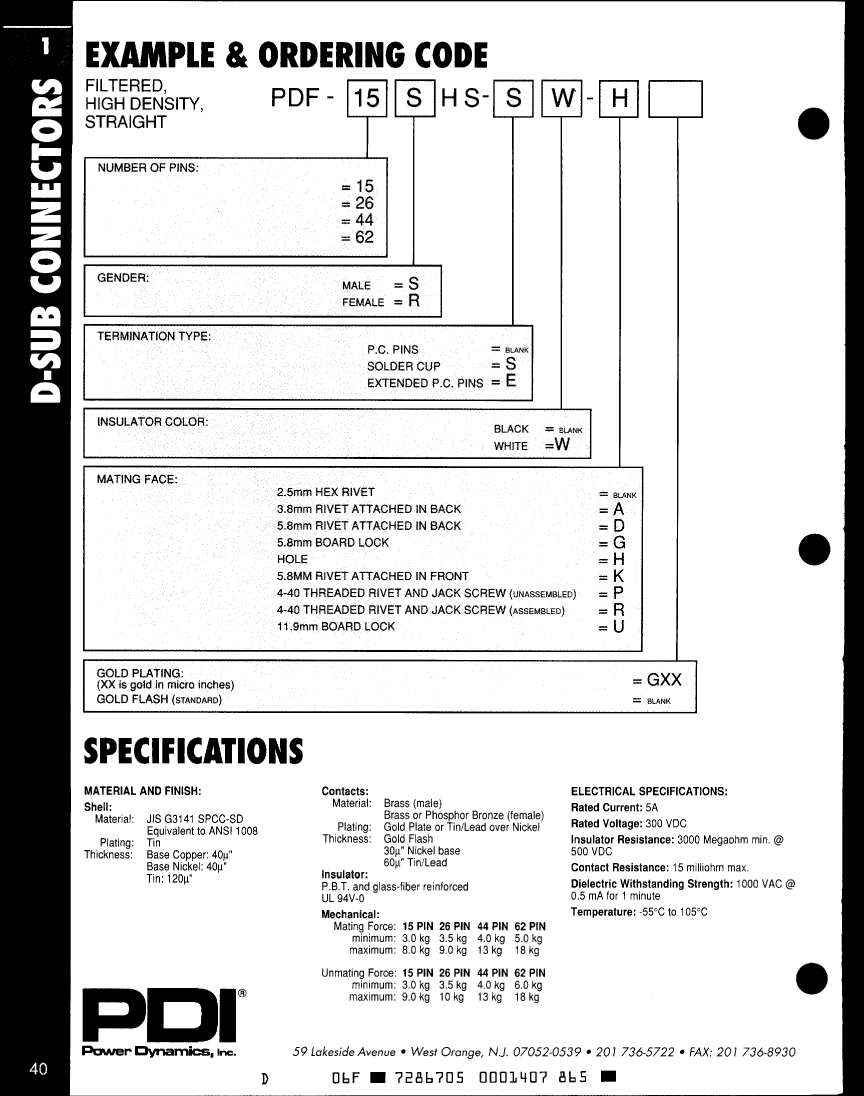

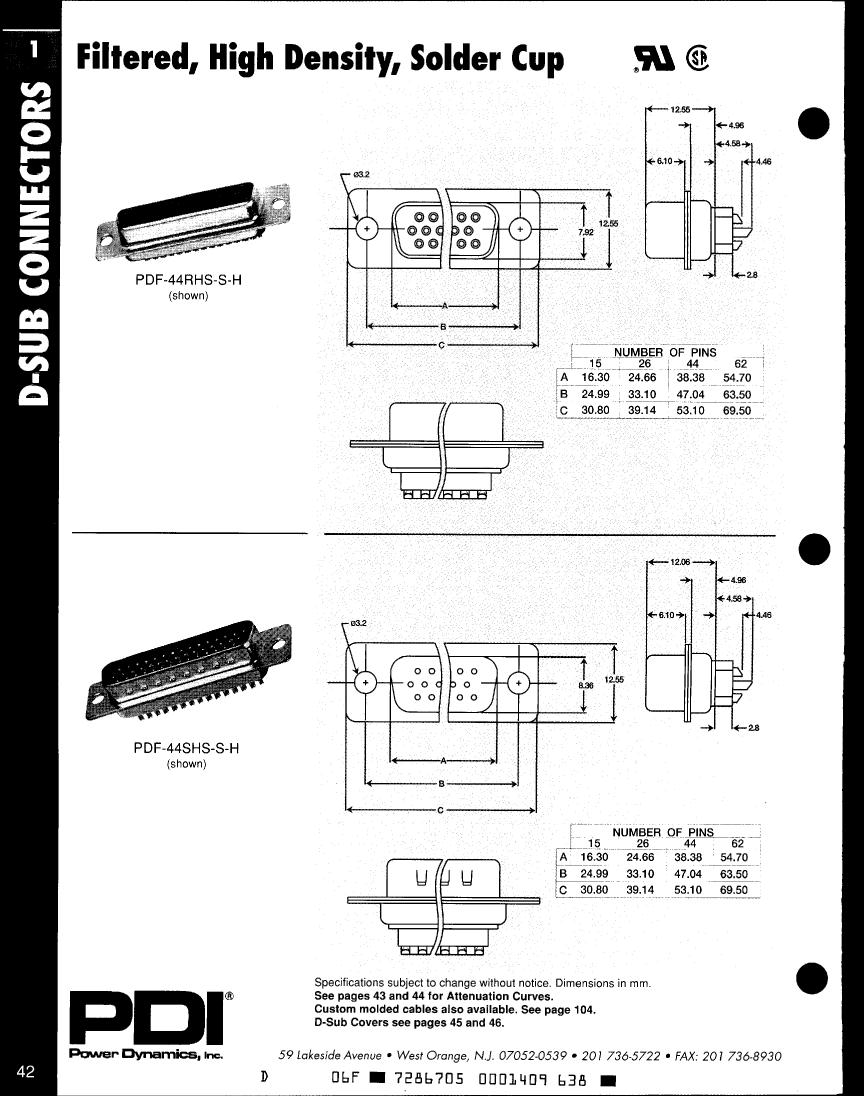

PDF-15SHS-S-P datasheet, PDF - EEWORLD Datasheet

PDF-15SHS-S-P: DescriptionD Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, Solder Lug Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size222KB，2 Pages; ManufacturerPower Dynamics, Inc.; Websitehttp://www.powerdynamics.com/

Download Datasheet Parametric View All

PDF-15SHS-S-P Overview

D Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, Solder Lug Terminal, #4-40, Receptacle

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	FERRITE PLATE FILTER
body width	0.494 inch
subject depth	0.306 inch
body length	1.213 inch
Body/casing type	RECEPTACLE
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Filter function	YES
maximum insertion force	5.004 N
Insulation resistance	3000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	PDF
Plug contact pitch	0.09 inch
Installation option 1	#4-40
Installation option 2	RIVET & JACKSCREW
Installation type	PANEL
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	CARBON STEEL
Terminal length	0.065 inch
Termination type	SOLDER LUG
Total number of contacts	15
Evacuation force-minimum value	1.946 N
Base Number Matches	1
