531142-8: Description2 ROW BOX RECP 80 POS STAG; CategoryThe connector The connector; File Size160KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

531142-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	531142-8	-	-	View	Buy Now

531142-8 Overview

2 ROW BOX RECP 80 POS STAG

531142-8 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1430494869
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	8 weeks 2 days
YTEOL	8
Other features	STANDARD: MIL-C-M55302, STAGGERED CONFIGURATION
body width	0.248 inch
subject depth	0.4 inch
body length	3.88 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	YES
Plug contact pitch	0.075 inch
Match contact row spacing	0.125 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	HOLE .087-.098
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Options	GENERAL PURPOSE
Plating thickness	50u inch
polarization key	SHRD ENDS
Terminal length	0.156 inch
Terminal pitch	1.91 mm
Termination type	SOLDER
Total number of contacts	80

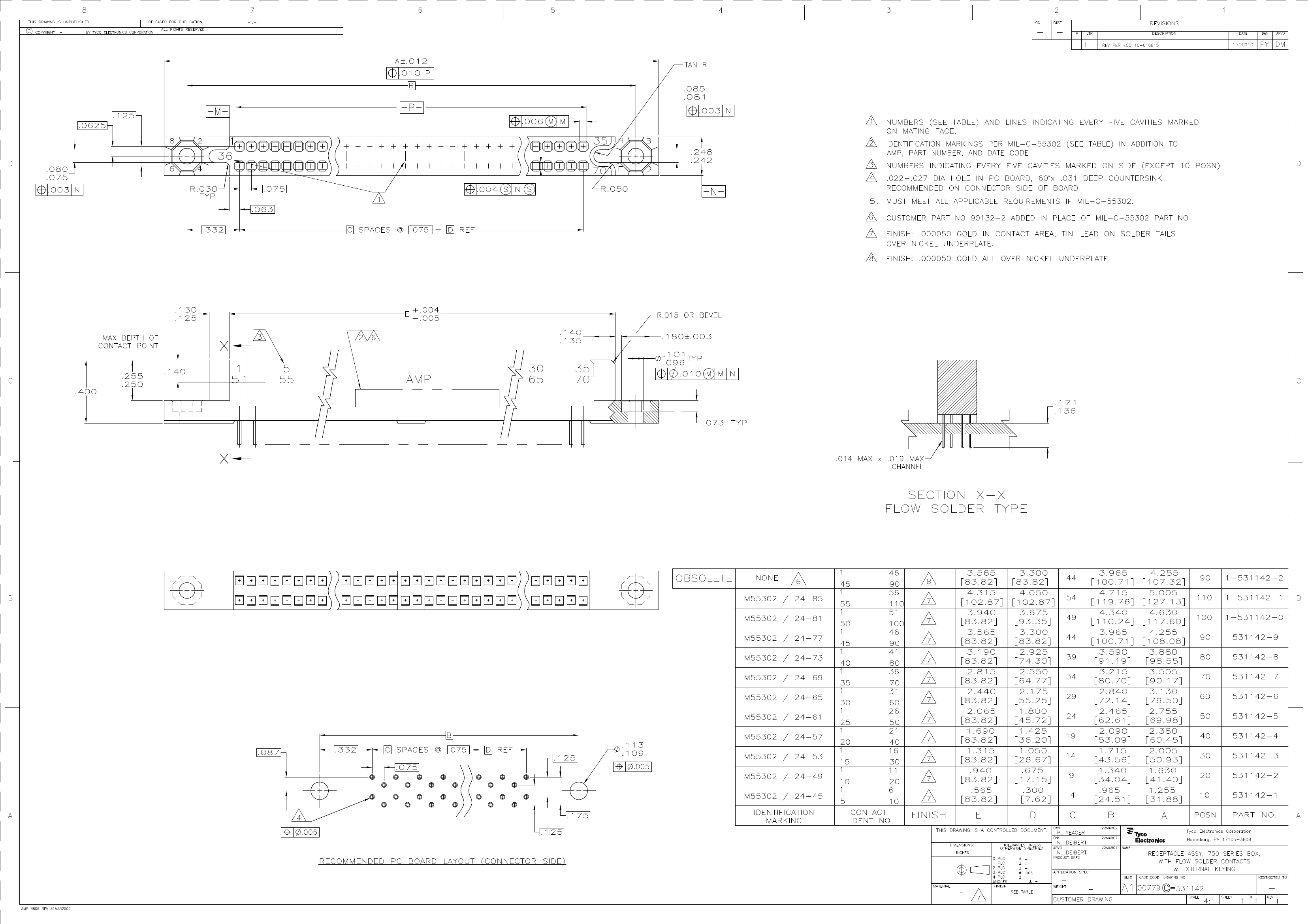

531142-8 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

531142-8 Related Products

	531142-8	2M370MS037C1208-6	531142-5
Description	2 ROW BOX RECP 80 POS STAG	Connector Accessory	2 ROW BOX RECP 50 POS STAG
Is it Rohs certified?	incompatible	conform to	incompatible
Reach Compliance Code	compliant	unknown	compliant
Brand Name	AMP	-	AMP
Is it lead-free?	Contains lead	-	Contains lead
Objectid	1430494869	2026835303	-
ECCN code	EAR99	-	EAR99
Other features	STANDARD: MIL-C-M55302, STAGGERED CONFIGURATION	-	STANDARD: MIL-C-M55302, STAGGERED CONFIGURATION
body width	0.248 inch	-	0.248 inch
subject depth	0.4 inch	-	0.4 inch
body length	3.88 inch	-	2.755 inch
Body/casing type	RECEPTACLE	-	RECEPTACLE
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	-	GOLD (50)
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	-	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	FEMALE	-	FEMALE
Contact material	NOT SPECIFIED	-	BERYLLIUM COPPER
contact mode	RECTANGULAR	-	RECTANGULAR
Contact style	SQ PIN-SKT	-	SQ PIN-SKT
DIN compliance	NO	-	NO
Filter function	NO	-	NO
IEC compliance	NO	-	NO
JESD-609 code	e0	-	e0
MIL compliance	YES	-	YES
Plug contact pitch	0.075 inch	-	0.075 inch
Match contact row spacing	0.125 inch	-	0.125 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	-	NO
Installation option 1	HOLE .087-.098	-	HOLE .087-.098
Installation method	STRAIGHT	-	STRAIGHT
Installation type	BOARD	-	BOARD
Number of connectors	ONE	-	ONE
PCB row number	4	-	4
Number of rows loaded	2	-	2
Options	GENERAL PURPOSE	-	GENERAL PURPOSE
Plating thickness	50u inch	-	50u inch
polarization key	SHRD ENDS	-	ENDS
Terminal length	0.156 inch	-	0.156 inch
Terminal pitch	1.91 mm	-	1.91 mm
Termination type	SOLDER	-	SOLDER
Total number of contacts	80	-	50
