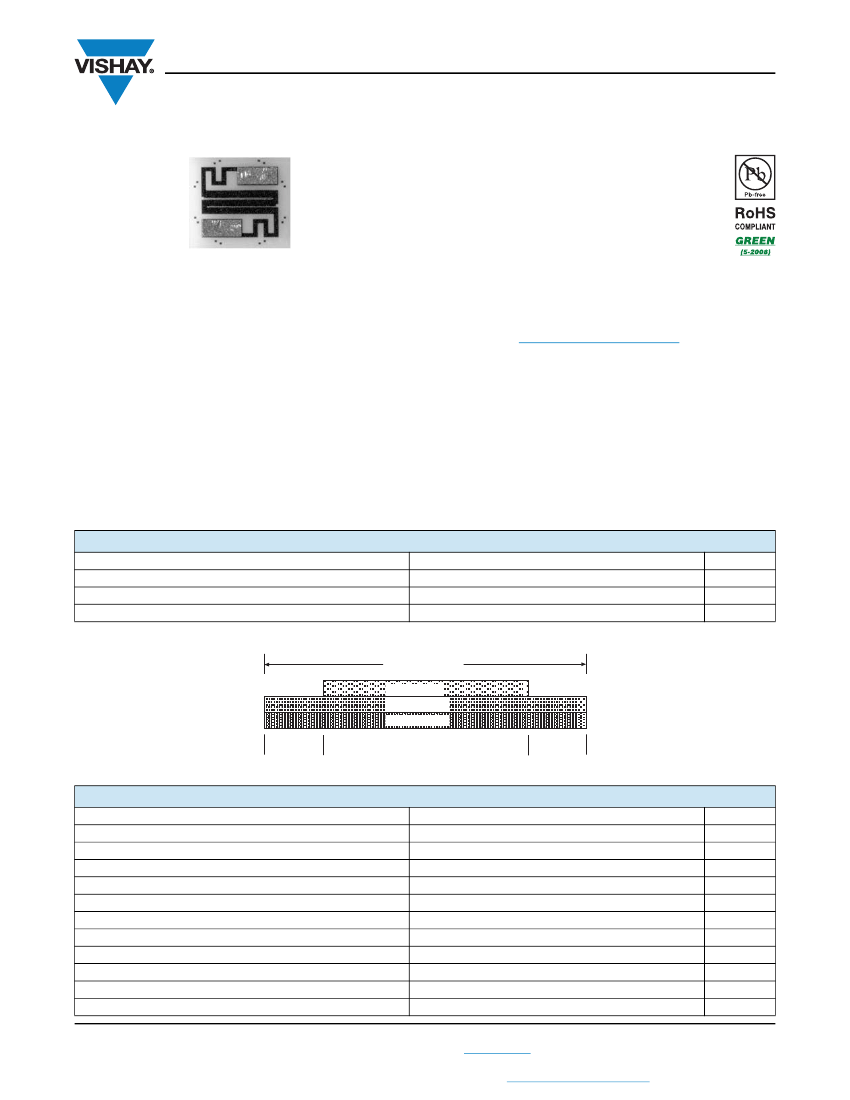

SFC
www.vishay.com
Vishay Electro-Films
Thin Film 0202 Size Resistor on Alumina
FEATURES
•
•
•
•
•
•
•
•
•
Wire bondable
Small size: 0.020 inches square
Case: 0202
Resistance range: 10
to 10 k
Alumina substrate
Low shunt capacitance: < 0.2 pF
Resistor material: Tantalum nitride
Moisture resistant
Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
Product may not be to scale
The SFC series resistor chips offer a combination of low
shunt capacitance and small size. The SFCs tantalum nitride
resistor material offers excellent resistance to high moisture
environments.
The SFCs are manufactured using Vishay Electro-Films (EFI)
sophisticated thin film equipment and manufacturing
technology.
The SFCs are 100 % electrically tested and visually
inspected to MIL-STD-883, method 2032 class H or K.
APPLICATIONS
Vishay EFI SFC chip resistors provide excellent
high-frequency response and are ideally suited for
prototyping.
Typical application areas are:
• Amplifiers
• Oscillators
• Attenuators
• Couplers
• Filters
TEMPERATURE COEFFICIENT OF RESISTANCE, VALUES, AND TOLERANCES
PARAMETER
Total Resistance Range
Standard Tolerances
TCR
VALUE
10 to 10K
±1
± 50, ± 100, ± 250
Tightest Standard Tolerance Available
1.0 %
± 50 ppm/°C
± 100 ppm/°C
± 250 ppm/°C
UNIT
%
ppm/°C
10
Ω
50
Ω
5.6 kΩ
10 kΩ
STANDARD ELECTRICAL SPECIFICATIONS
PARAMETER
Noise, MIL-STD-202, Method 308
Moisture Resistance, MIL-STD-202, Method 106
Stability, 1000 h, + 125 °C, 25 mW
Operating Temperature Range
Thermal Shock, MIL-STD-202, Method 107, Test Condition F
High Temperature Exposure, + 150 °C, 100 h
Dielectric Voltage Breakdown
Insulation Resistance
Operating Voltage
DC Power Rating at + 70 °C (Derated to zero at + 150 °C)
5 x Rated Power Short-Time Overload, + 25 °C, 5 s
Revision: 20-Mar-13
1
For technical questions, contact:
efi@vishay.com
VALUE
- 20 typ.
± 0.5 max.
R/R
± 0.5 max.
R/R
- 55 to + 125
± 0.25 max.
R/R
± 0.5 max.
R/R
400
10
12
min.
100 max.
0.062 max.
± 0.25 max.
R/R
UNIT
dB
%
%
°C
%
%
V
V
W
%
Document Number: 61008
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SFC
www.vishay.com
DIMENSIONS
in inches
Vishay Electro-Films
0.020
0.020
0.020
0.004
0.020
0.004
0.012
TYPICAL RANGE
10
Ω
- 49
Ω
0.006
TYPICAL RANGE
50
Ω
- 10 kΩ
SCHEMATIC
MECHANICAL SPECIFICATIONS
PARAMETER
Chip Size
Chip Thickness
Chip Substrate Material
Resistor Material
Bonding Pad Size
Number of Pads
Pad Material
Backing
VALUE
0.020" x 0.020" ± 0.003" (0.5 mm x 0.5 mm ± 0.768 mm)
0.010" ± 0.002" (0.25 mm ± 0.05 mm)
99.6 % alumina, 2 μ" to 4 μ" finish
Tantalum nitride, self-passivating
0.004" x 0.006" (0.10 mm x 0.15 mm) minimum
2
25 kÅ minimum gold standard (Al optional)
None (Au optional)
GLOBAL PART NUMBER INFORMATION
Global Part Number: SFC12500KKSSNHWS
Global Part Number Description: SFC 1.25K 10 % 100 ppm/°C Std SnPb None H WS
S
F
C
1
2
5
TOL.
CODE
(%)
F
= 1.0
G
= 2.0
J
= 5.0
K
= 10.0
0
0
K
K
S
S
N
H
W
S
MODEL
SFC
20 x 20
size
Ta2N on
Alumina
RESISTANCE
First 4
digits are
significant
figures of
resistance
RESISTANCE
MULTILPLIER
CODE
B
= 0.01
A
= 0.1
0
=1
1
= 10
TCR
(ppm/°C)
C
= ± 50
K
= ± 100
M
= ± 250
TRIM
STYLE
E
= Edg
S
= Std
U
= Usr
TERMINATION
G
= Au
A
= Al
BACK
METAL
G
= Au
N
= None
VISUAL
CLASS
H
=
Class H
K
=
Class K
PACKAGING
CODE
WS
=
Waffle pack
100 min.,
1 mult
Revision: 20-Mar-13
2
For technical questions, contact:
efi@vishay.com
Document Number: 61008
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
