Push-On Coaxial Connectors (PC Card Type
2
Mountable)
MRF01 Series
Modem Card Mounting Example
(A special frame kit has not been manufactured.)
Board Mounting Example

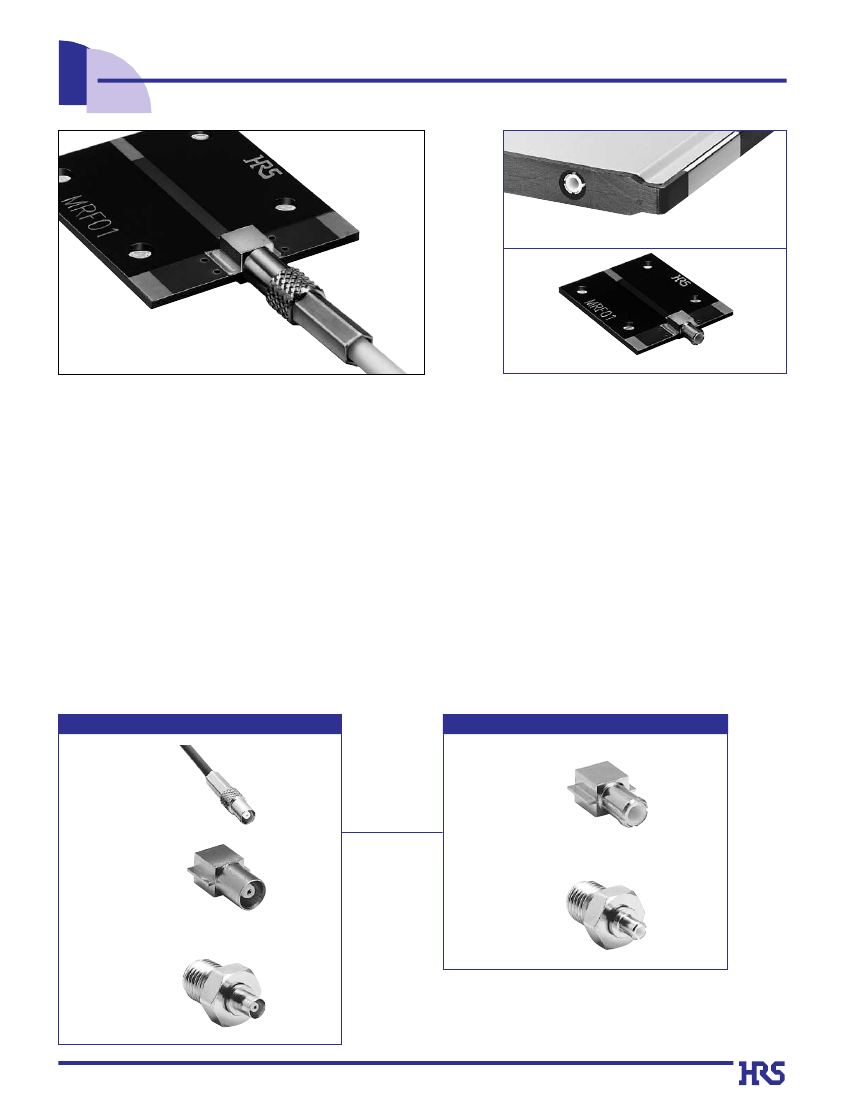

sFeatures
1. Uses a push-on type system which is easy to
engage and disengage. (There is no lock.)
2. Mountable on PCMCIA Type
II
Card
The 3 mm receptacle thickness permits mounting to the
back side of a type II card.
Note that at the time of card mounting, use of 0.15mm
offset of the board mounting surface from the card center
line will result in the same card center axis and connector
center axis.
3. High Degree of Matching
These connectors offer high frequency performance from
0 to 3 GHz with a V.S.W.R. of 1.3 or less.
4. Accommodates Ultra-Fine Cable
Suitable cable ...RG-178B/U (
Ø
1.8)
...RG-196A/U (
Ø
2)
sApplications
Wireless LAN cards, GPS cards, and miniature wireless
communications devices.
sFunction
Diagrams
Jack Side

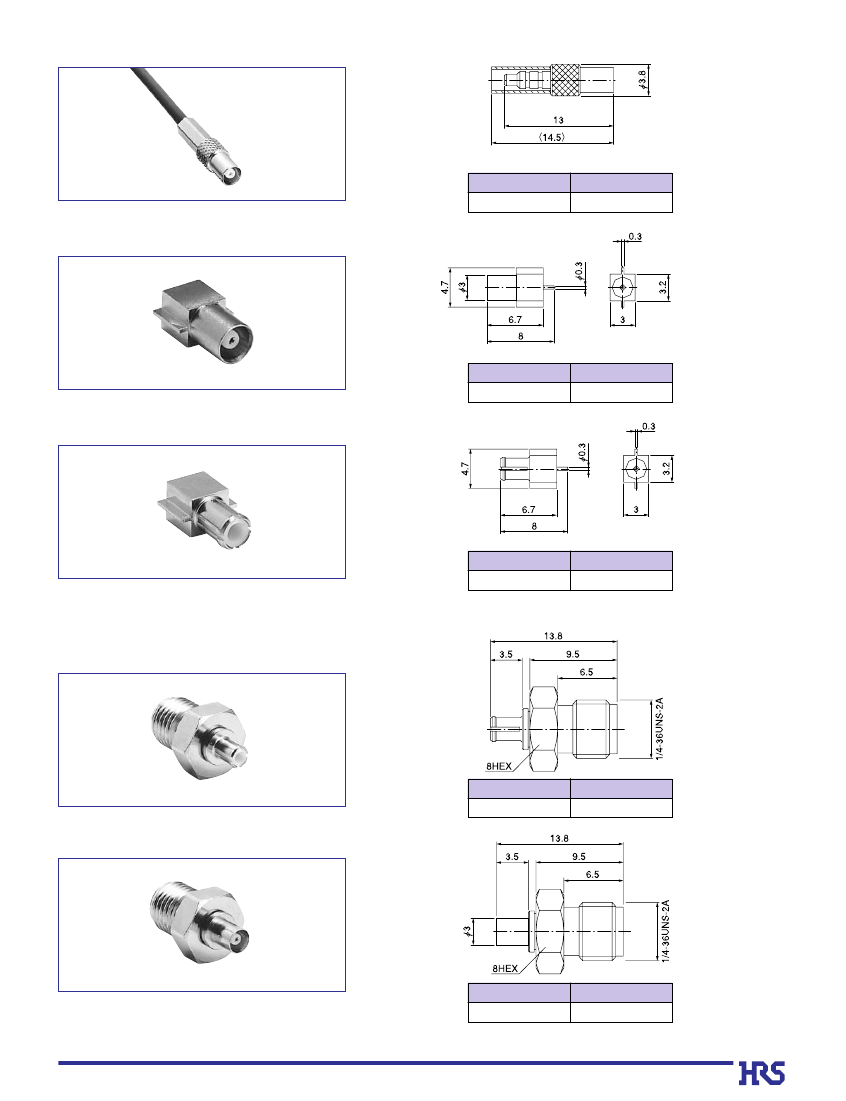

sJack
MRF01-J-178
MRF01-PR-1
Plug Side
sPlug
Receptacle
sReceptacle
MRF 01-R-1
sConversion
Adapter
(Coupling portion: MRF01 side plug - SMA side jack)
MRF01P-HRMJ
sConversion
Adapter
(Coupling portion: MRF01 side jack - SMA side jack)
MRF01J-HRMJ
B27
s
Product Specifications
Nominal characteristic impedance
Ratings
Voltage
Rated Frequency
50 ohms
150 V AC
DC to 3 GHz
Operating temperature
Operating humidity
-20°C to +60°C
95% or less
Item
1. Contact resistance
2. Insulation resistance
3. Withstanding voltage
4. V.S.W.R.(*)
5. Female contact retention
Requirements
Inner : 10 mø max.
Outer : 3 mø max.
5000 Mø min.
No flashover or insulation breakdown.
1.3 N max.
0.137 N min.
10 mA max.
500 V DC
Test Conditions
500 V AC / 1 minute
DC to 3 GHz
Measured with a
Ø
0.381 pin gauge
With corresponding connector
10,000 cycles
Frequency: 10 to 2000 Hz, single amplitude of 0.76 mm or
acceleration of 147 m/s
2
(peak), 4 hours in each of the 3 directions.
Acceleration of 490 m/s
2
, 11 ms duration, sine half-wave
waveform, 6 cycles in each of the 3 axis
240 hours at temperature of -10ç to 65ç and humidity of
90% to 96%
Temperature: -65°C
¡
20 to 35°C
¡
125°C
¡
20 to 35°C
30 min
¡
Within 5 min
¡
30 min.
¡
Within 5 min
Time:
Cycles:
5
Leave for 96 hours in an atmosphere of 3ppm concentration
sulfur dioxide gas at temperature of 40°C and humidity of 80%.
Exposed to density 5% salt water for 48 hours
6. Insertion and withdrawal force (plug) 0.56 N min.
7. Durability (Insertion/withdrawal)
8. Vibration
Contact resistance: Amount of change 20 mø max.
No electrical discontinuity of 1µs or more
No damage, cracks, or parts looseness.
No electrical discontinuity of 1µs or more
No damage, cracks, or parts looseness.
Insulation resistance: 100 Mø min.
Contact resistance: Amount of change 20 mø max.
No damage, cracks, or parts looseness.
9. Shock
10. Humidity (Steady state)
11. Temperature cycle
No damage, cracks, or parts looseness.
12. Hydrogen sulfide gas
13. Salt spray
Contact resistance: Amount of change 20 mø max.
No damage, cracks, or parts looseness.
No marked corrosion
*Voltage
standing wave ratio (V.S.W.R.) measuring system.
The above voltage standing wave ratio (V.S.W.R.) standard value is measured in the measuring system as shown below.
Note1: The cable connector is measured with double ended 10cm cable
assembly.
Note2: The printed circuit board connector is mounted on the 50 ohms PCB, to
which Hirose's adaptor is connected.
sMaterials
Part
Body
Insulator
Female inner contact
Male inner contact
Crimp sleeve
Material
Beryllium copper/Brass
PTFE
Beryllium copper
Phosphor bronze
Copper
Finish
Gold plating
––––––––
Gold plating
Gold plating
Nickel plating
sOrdering
Information
MRF01 –
[
q
q
Series name : MRF01
w
Connector types
J
: Jack
R
: Receptacle
PR : Plug receptacle
]
–
[
w
e
]
e
Applicable cable or suffix
178: RG-178B/U (
Ø
1.8)
RG-196B/U (
Ø
2)
B28
