3-1534799-1

Description
AMP DUOPLUG MK2 CONNECTOR 11P SELECTIVE
CategoryThe connector

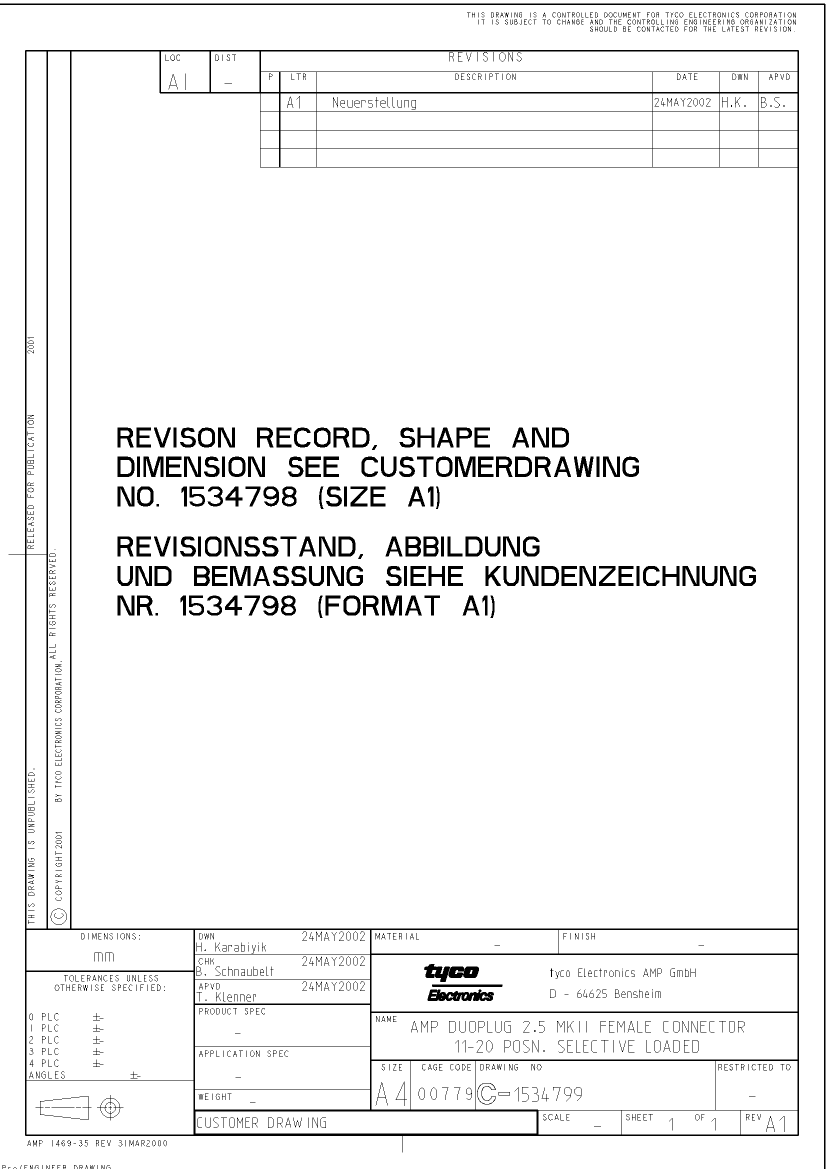

File Size20KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

3-1534799-1 Online Shopping

Suppliers Part Number Price MOQ In stock
3-1534799-1 - - View Buy Now

3-1534799-1 Overview

AMP DUOPLUG MK2 CONNECTOR 11P SELECTIVE

3-1534799-1 Parametric

Parameter NameAttribute value
Connector Systemwire to board
Connector typefemale end
Connectors and terminals terminate toA printed circuit board
Connector typecard edge
Connector typeConnector components
shapestandard
Cable typeStranded wire
Number of Positions11
Rows1
Connector terminal load statusselective loading
PCB mounting directionright angle
Pre-installedyes
Card entry methodside
SupportWithout
pre-assembledyes
hot swapno
Operating Voltage250 V
colornature
Cable exit angle90°
Terminal base materialcopper tin
Contact Current Rating (Max) (A)2
Terminal contact plating materialtin
Terminal contact plating thickness (µm)3 – 6
Terminal termination area plating materialtin
Terminal typesocket
Cable termination methodPiercing crimping (IDC)
PCB installation and fixationWithout
Panel mount featuresWithout
PCB mounting alignmentwith
Terminal retention typelock gun
Lock clip positionnone
Connector mounting typeCable installation
Terminal positioning forcewith
joint fixationWithout
Joint alignment typekeying
joint alignmentwith
Centerline (Pitch)2.5 mm [ .098 in ]
Shell colornature
Shell materialPA 6 GF
end capWithout
Shell typeclosed end
Accepts Wire Insulation Diameter Range1.2 – 1.4 mm [ .047 – .055 in ]
PCB thickness (recommended)1.5 mm [ .059 in ]
Cable size24 – 22 AWG [ .22 – .35 mm² ]
high7.3 mm [ .287 in ]
Acceptable wire insulation diameter range1.2 – 1.6 mm [ .047 – .063 in ]
Card slot depth (mm)5.05
Working group temperature range-40 – 110 °C [ -40 – 230 °F ]
Circuit ApplicationSignal
Applicable toPCB frame, male header
UL flammability ratingUL 94V-2
Package quantity1232
Encapsulation methodbox
Ignored load location6

3-1534799-1 Related Products

3-1534799-1 3-1534799-3
Description AMP DUOPLUG MK2 CONNECTOR 11P SELECTIVE AMP DUOPLUG MARK II CONNEC.SELEC.LOADED
Connector System wire to board wire to board
Connectors and terminals terminate to A printed circuit board A printed circuit board
shape standard standard
Cable type Stranded wire Stranded wire
Number of Positions 11 13
Rows 1 1
Connector terminal load status selective loading selective loading
PCB mounting direction right angle right angle
Pre-installed yes yes
Card entry method side side
Support Without Without
pre-assembled yes yes
hot swap no no
Operating Voltage 250 V 250 V
color nature nature
Cable exit angle 90° 90°
Terminal base material copper tin copper tin
Contact Current Rating (Max) (A) 2 2
Terminal contact plating material tin tin
Terminal contact plating thickness (µm) 3 – 6 3 – 6
Terminal termination area plating material tin tin
Terminal type socket socket
Cable termination method Piercing crimping (IDC) Piercing crimping (IDC)
PCB installation and fixation Without Without
Panel mount features Without Without
PCB mounting alignment with with
Terminal retention type lock gun lock gun
Lock clip position none none
Connector mounting type Cable installation Cable installation
Terminal positioning force with with
joint fixation Without Without
Joint alignment type keying keying
joint alignment with with
Centerline (Pitch) 2.5 mm [ .098 in ] 2.5 mm [ .098 in ]
Shell color nature nature
Shell material PA 6 GF PA 6 GF
end cap Without Without
Shell type closed end closed end
Accepts Wire Insulation Diameter Range 1.2 – 1.4 mm [ .047 – .055 in ] 1.2 – 1.4 mm [ .047 – .055 in ]
PCB thickness (recommended) 1.5 mm [ .059 in ] 1.5 mm [ .059 in ]
Cable size 24 – 22 AWG [ .22 – .35 mm² ] 24 – 22 AWG [ .22 – .35 mm² ]
high 7.3 mm [ .287 in ] 7.3 mm [ .287 in ]
Acceptable wire insulation diameter range 1.2 – 1.6 mm [ .047 – .063 in ] 1.2 – 1.6 mm [ .047 – .063 in ]
Card slot depth (mm) 5.05 5.05
Working group temperature range -40 – 110 °C [ -40 – 230 °F ] -40 – 110 °C [ -40 – 230 °F ]
Circuit Application Signal Signal
Applicable to PCB frame, male header PCB frame, male header
UL flammability rating UL 94V-2 UL 94V-2
Package quantity 1232 4312
Encapsulation method box box
Ignored load location 6 6
