3020-60-0200-00 datasheet, PDF

3020-60-0200-00: Descriptionidc box header .100" 60pos; CategoryThe connector; File Size80KB，1 Pages; ManufacturerCNC Tech; Environmental Compliance

Download Datasheet Parametric Compare View All

3020-60-0200-00 Overview

idc box header .100" 60pos

Parameter Name	Attribute value
Datasheets

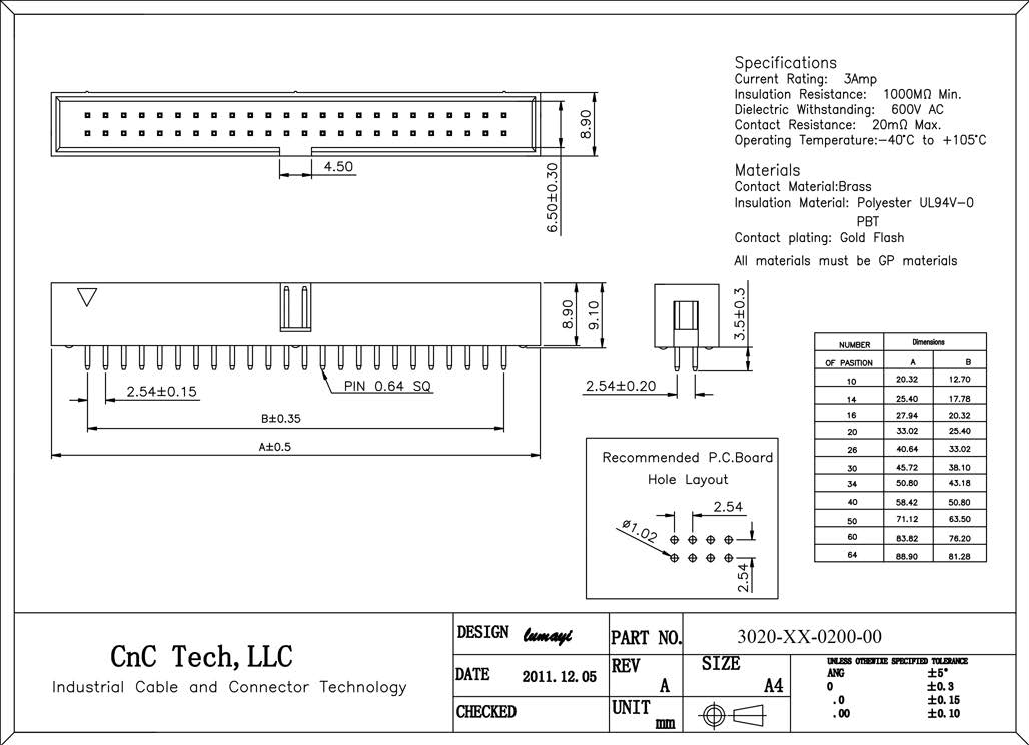

3020-60-0200-00 Drawing
Standard Package	360
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Tray
Contact Type	Male Pi
Connector Type	Header, Shrouded
Number of Positions	60
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Contact Mating Length	-
Mounting Type	Through Hole, Right Angle
Terminati	Solde
Fastening Type	-
Features	-
Contact Finish	Gold
Contact Finish Thickness	Flash
Col	-

	3020-60-0200-00	3020-30-0200-00	3020-34-0200-00	3020-64-0200-00	3020-50-0200-00
Description	idc box header .100" 60pos	idc box header .100" 30pos	idc box header .100" 34pos	idc box header .100" 64pos	IDC BOX HEADER .100" 50POS
Standard Package	360	720	600	360	-
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	-
Family	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	-
Packaging	Tray	Tray	Tray	Tray	-
Contact Type	Male Pi	Male Pi	Male Pi	Male Pi	-
Connector Type	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	-
Number of Positions	60	30	34	64	-
Number of Positions Loaded	All	All	All	All	-
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	-
Number of Rows	2	2	2	2	-
Row Spacing	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	-
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	-
Terminati	Solde	Solde	Solde	Solde	-
Contact Finish	Gold	Gold	Gold	Gold	-
Contact Finish Thickness	Flash	Flash	Flash	Flash	-
