1.25mm Pitch Super Low profile Crimping Connector
DF14 Series
sFeatures

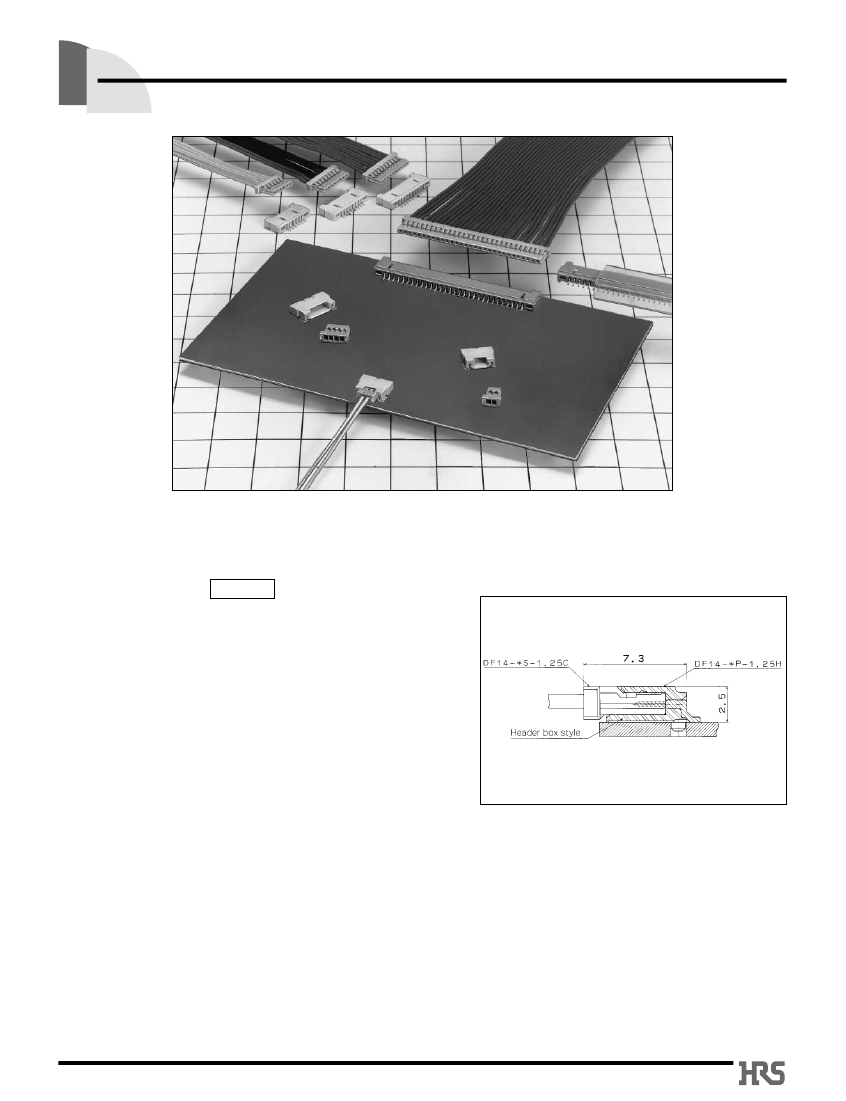

1. Super Low Profile
This is a connector special for right angle which has pursued a low
profile on the board.
Board mounting height:
2.5mm
A signal can be fetched from the area where there is no board to
board space.
Board Mounting Figure
2. Correspond to Automatic Mounting
The header has the vacuum mount face which enables the vacuum
absorption and the automatic mounting by the embossed tape
packaging.In addition, the tube packaging can be selected.
3. Four Wall Type Without Friction to Board by Socket
The header has the box structure to prevent from being twisted and
has the perfect mis-insertion prevention method. Moreover the
header has the wall on the board side and doesn't have any trouble
resulted from the friction to board by socket.
In addition, the metal fitting is attached to prevent the solder peel.
1
sApplications
LCD, Note PC, Mobile Terminal Small business equipment, Video camera
B173
sProduct
Specifications
Rating
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
5. Vibration
500M
ohms
Min
No flashover or insulation breakdown.
30m
ohms
Max
No electrical discontinuity of 1µs or more
Current rating
1A
Operating Temperature Range-25 to +85ç (Note 1)
40 to 80%
Storage Temperature Range -10 to +60ç (Note 2)
Storage Moisture Range
Condition
100V DC
500V AC/1 minute
100mA
Measure at the square steel pin of 0.3±0.002mm
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(-25ç: 30 minutes➝5 to 35ç: 10 minutes➝85ç: 30 minutes➝
5 to 35ç: 10 minutes) 5 cycles
Tin plating: 30 cycles Gold plating: 50 cycles
Reflow: At the recommended temperature profile
Manual soldering: 300ç for 3 seconds
40 to 70%
Voltage rating 150V AC Operating Moisture Range
Specification
4. Insertion/Extraction Force MIN0.15N (15gf), MAX3N (300gf)
6.
Humidity (Steady state)
Contact resistance: 30m ohms Max Insulation resistance:500M
ohms
Min
7. Temperature Cycle
8. Operating Life
9. Resistance to Soldering heat
Contact resistance: 30m
ohms
Max Insulation resistance: 500M
ohms
Min
Contact resistance: 30m
ohms
Max
No deformation of components affecting performance.
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
sMaterial
Product
Crimping Socket
Crimping Contact for Socket
Pin Header
Part
Insulator
Contact
Insulator
Contact
Fitting
Material
Polyamide
Phosphor Copper
Polyamide
Brass
Phosphor copper
Finish
Beige
Tin plating or Gold plating
Beige
Tin plating or Gold plating
Tin plating
Remarks
UL-94V-0
–––––––
UL-94V-0
–––––––
–––––––
Note . Hirose’s tin plating product takes measures against whisker.
sOrdering
Information
qConnector
DF14
1
1
2
3
Series Name: DF14
-
*
S - 1.25 C
2
3
4
5
4
5
Contact Pitch: 1.25mm
Contact Type
C: Crimping socket
H: Right angle SMT
Number of Contacts: 2 to 10, 15, 20, 25, 30
Connector Type
S: Single row socket
P: Single row pin header
qContact
DF14 - 2628 SCF A
1
1
Applicable cable size
2628: AWG26 to 28
3032: AWG30 to 32
2
2
3
3
Packaging Type
SCF: Socket contact/reel
Plating Type
None: Tin plating
A: Gold plating
B174

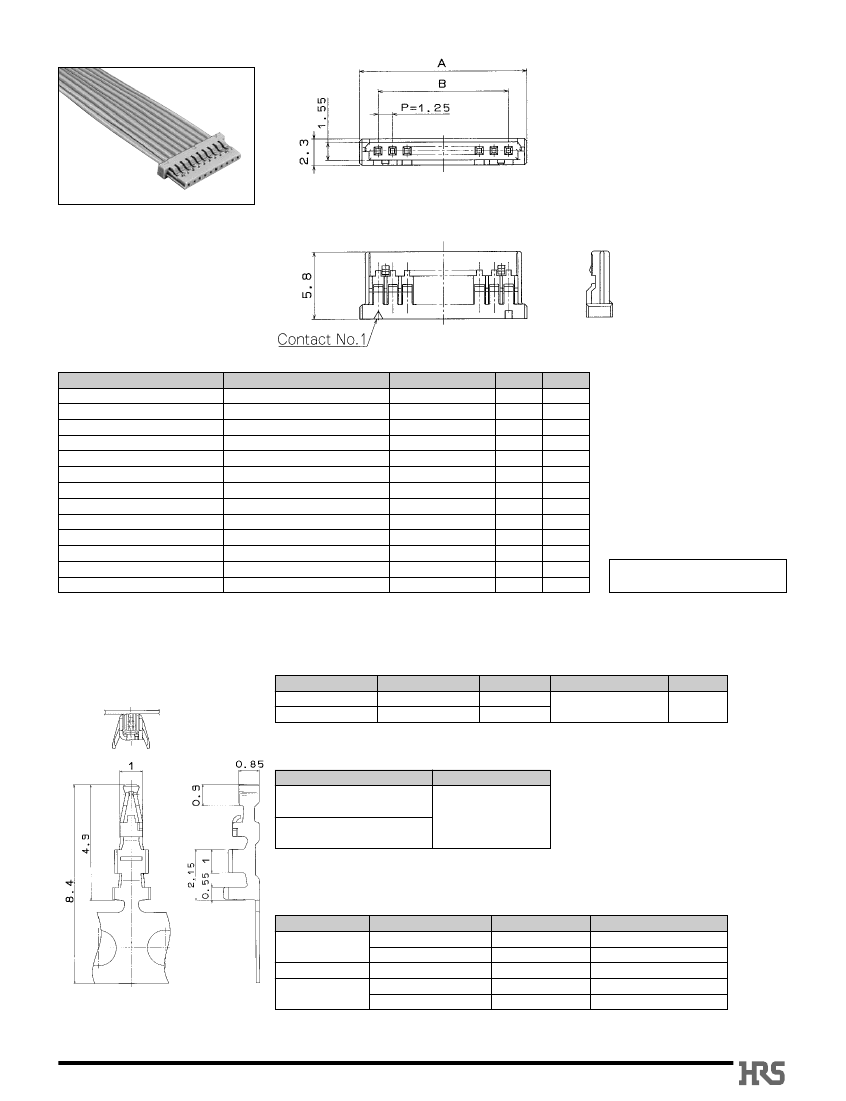

sCrimping
Socket
Photo: Contact insertion state
Unit: mm
Part Number
DF14- 2S-1.25C(**)
DF14- 3S-1.25C(**)
DF14- 4S-1.25C(**)
DF14- 5S-1.25C(**)
DF14- 6S-1.25C(**)
DF14- 7S-1.25C(**)
DF14- 8S-1.25C(**)
DF14- 9S-1.25C(**)
DF14-10S-1.25C(**)
DF14-15S-1.25C(**)
DF14-20S-1.25C(**)
DF14-25S-1.25C(**)
DF14-30S-1.25C(**)
CL No.
538-0005-8-**
538-0006-0-**
538-0007-3-**
538-0008-6-**
538-0009-9-**
538-0010-8-**
538-0011-0-**
538-0013-6-**
538-0014-9-**
538-0054-3-**
538-0059-7-**
538-0064-7-**
538-0012-3-**
Number of Contacts
2
3
4
5
6
7
8
9
10
15
20
25
30
A
4.45
5.70
6.95
8.20
9.45
10.70
11.95
13.20
14.45
20.70
26.95
33.20
39.45
B
1.25
2.50
3.75
5.00
6.25
7.50
8.75
10.00
11.25
17.50
23.75
30.00
36.25
[Specific No.]–**,(**)
None : 1 bag 100 pcs.
Note 1.The quantity at the specific NO. "None" is delivered per bag. If needed, please order the products per bag.
sSocket
Crimping Contact
Part Number
DF14-2628SCF
DF14-3032SCF
CL No.
538-0001-7-**
538-0003-2-**
Packaging Type
Reel
Reel
Quantity
10,000
Finish
Tin plating
K
Applicable Cable (Tin plating Annealed copper wire)
Conductor Size (Wire construction)
AWG26(7 cores./0.16mm)
AWG28(7 cores./0.127mm)
AWG30(7 cores./0.1mm)
AWG32(7 cores./0.08mm)
Jacket Diameter
K
Recommended Cable
UL1571
Ø0.54
to
Ø1mm
K
Strip Length
1.2 to 1.9mm
Note:If other cables are used instead of the applicable cable, contact Hirose
sales department.
B
Applicable Crimping Tool
Type
Applicator
Press Main Unit
Manual Crimping Tool
Part Number
AP105-DF14-2628S
AP105-DF14-3032S
CM-105
DF14-2628/CR-HT
DF14-3032/CR-HT
CL No.
901-4548-1
901-4544-0
901-0005-4
550-0261-1
550-0262-4
Applicable Contact
DF14-2628SCF/SCFA
DF14-3032SCF/SCFA
---------------------------------------------
DF14-2628SCF/SCFA
DF14-3032SCF/SCFA
Note 1.If a trouble has occurred due to tools, which are not designated by Hirose, Hirose won't guarantee any product.
Note 2.Use the reel contact sequentially cut for manual crimping tool.
B175

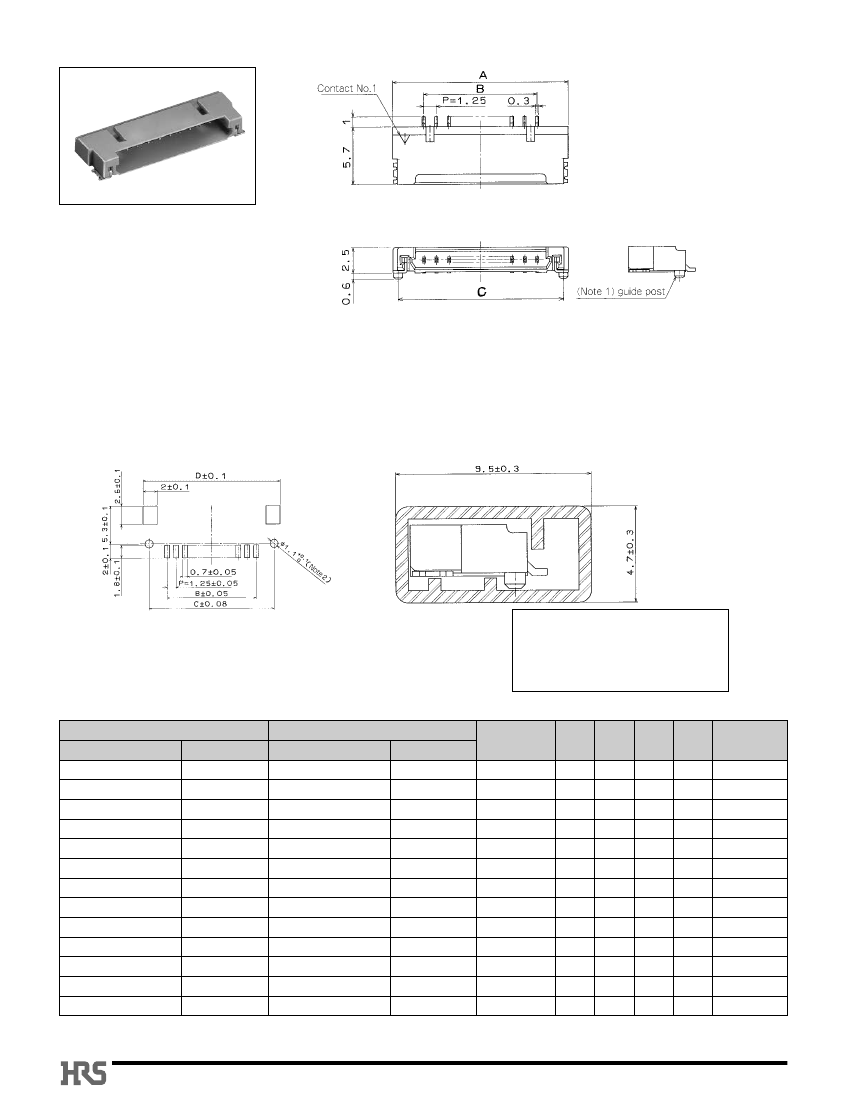

sRight
Angle Pin Header (SMT)
Note 1."Without boss" indicates the style with no boss.
BPCB
mounting pattern
BTube
Packaging Dimensions
Note 2."Without boss" indicates that no hole is needed.
[Specific No.]–**,(**)
(20): Tin plating tube packaging
(21): Tin plating embossed tape packaging
(50): Gold plating tube packaging
(59): Gold plating embossed tape packaging
Unit: mm
With boss
Part Number
DF14- 2P-1.25H(**)
DF14- 3P-1.25H(**)
DF14- 4P-1.25H(**)
DF14- 5P-1.25H(**)
DF14- 6P-1.25H(**)
DF14- 7P-1.25H(**)
DF14- 8P-1.25H(**)
DF14- 9P-1.25H(**)
DF14-10P-1.25H(**)
DF14-15P-1.25H(**)
DF14-20P-1.25H(**)
DF14-25P-1.25H(**)
DF14-30P-1.25H(**)
CL No.
Without boss
Part Number
CL No.
Number of Contacts
2
3
4
5
6
7
8
9
10
15
20
25
30
A
7.45
8.70
9.95
11.20
12.45
13.70
14.95
16.20
17.45
23.70
29.95
36.20
42.45
B
1.25
2.50
3.75
5.00
6.25
7.50
8.75
10.00
11.25
17.50
23.75
30.00
36.25
C
6.45
7.70
8.95
10.20
11.45
12.70
13.95
15.20
16.45
22.70
28.95
35.20
41.45
D
8.05
9.30
10.55
11.80
13.05
14.30
15.55
16.80
18.05
24.30
30.55
36.80
43.05
Tube Packaging
Quantity
66pcs.
56
49
44
39
36
32
30
28
20
16
13
11
538-0021-4-** DF14A- 2P-1.25H(**) 538-0033-3-**
538-0022-7-** DF14A- 3P-1.25H(**) 538-0034-6-**
538-0023-0-** DF14A- 4P-1.25H(**) 538-0035-9-**
538-0024-2-** DF14A- 5P-1.25H(**) 538-0036-1-**
538-0025-5-** DF14A- 6P-1.25H(**) 538-0037-4-**
538-0026-8-** DF14A- 7P-1.25H(**) 538-0038-7-**
538-0027-0-** DF14A- 8P-1.25H(**) 538-0039-0-**
538-0028-3-** DF14A- 9P-1.25H(**) 538-0040-9-**
538-0029-6-** DF14A-10P-1.25H(**) 538-0041-1-**
538-0084-4-** DF14A-15P-1.25H(**) 538-0114-3-**
538-0089-8-** DF14A-20P-1.25H(**) 538-0119-7-**
538-0094-8-** DF14A-25P-1.25H(**) 538-0124-7-**
538-0020-1-** DF14A-30P-1.25H(**) 538-0045-2-**
Note 1.Please order the tube packaging product, multiplying the packaging quantity (pcs.).
Note 2.Please order the embossed tape packaging product according to reel number. (1000 pcs./reel)
B176

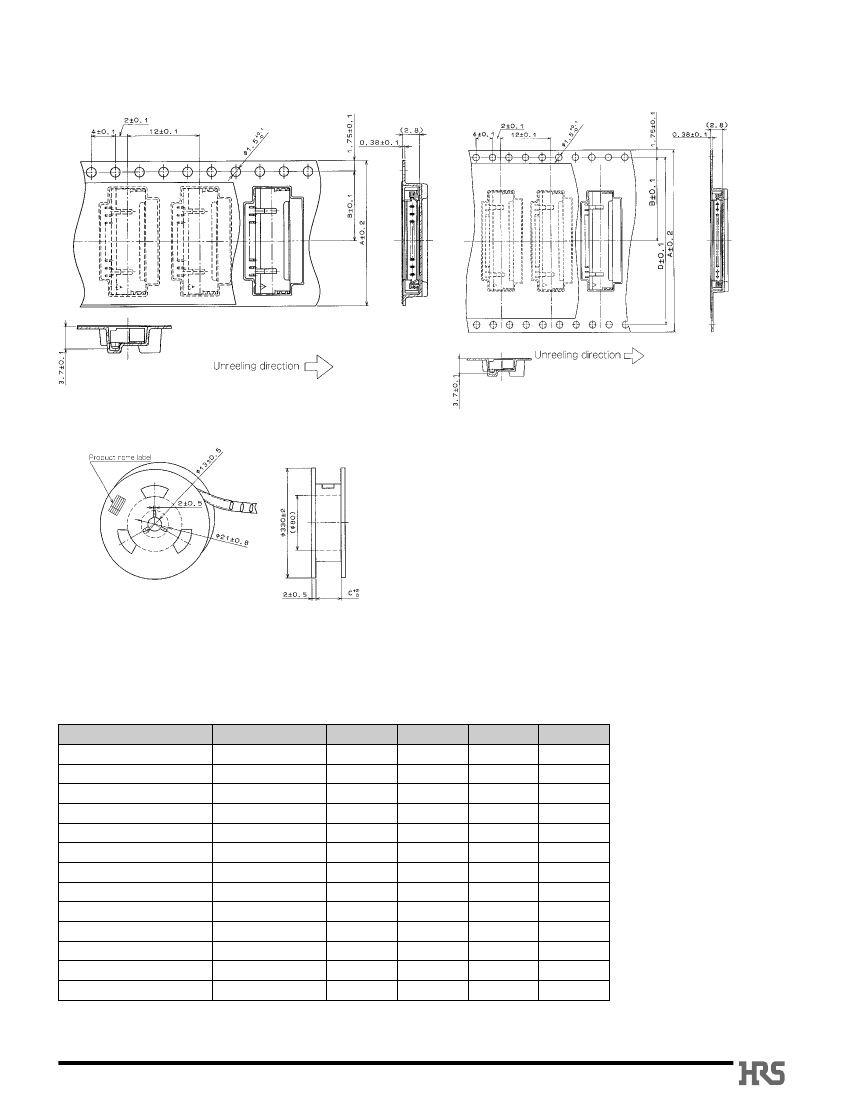

BEmbossed
Carrier Tape Dimensions
s
2 to 10 Contacts
s
15, 20, 25, 30 Contacts
Unit: mm
Inserted Connector
DF14/14A- 2P-1.25H
DF14/14A- 3P-1.25H
DF14/14A- 4P-1.25H
DF14/14A- 5P-1.25H
DF14/14A- 6P-1.25H
DF14/14A- 7P-1.25H
DF14/14A- 8P-1.25H
DF14/14A- 9P-1.25H
DF14/14A-10P-1.25H
DF14/14A-15P-1.25H
DF14/14A-20P-1.25H
DF14/14A-25P-1.25H
DF14/14A-30P-1.25H
Number of Contacts
2
3
4
5
6
7
8
9
10
15
20
25
30
A
16
16
24
24
24
24
24
24
24
44
44
56
56
B
7.5
7.5
11.5
11.5
11.5
11.5
11.5
11.5
11.5
20.2
20.2
26.2
26.2
C
16.4
16.4
24.4
24.4
24.4
24.4
24.4
24.4
24.4
44.4
44.4
56.4
56.4
D
––
–
––
–
––
–
––
–
––
–
––
–
––
–
––
–
––
–
40.4
40.4
52.4
52.4
B177
