PA
2.0mm
(.079") pitch
FAMILY SERIES/PA•PAF•PAL CONNECTOR
Features ––––––––––––––––––––––––
• Secure locking device
The housing has a locking device to prevent accidental
disconnection because of routing of wires or of vibration, and
also reverse and different circuit numbers mating.
Wire-to-board (Crimp style/IDC) / Wire-to-wire (Crimp style/IDC)
• Interchangeable between crimp and IDC socket
Both crimp and IDC sockets use the same headers and wire-to-
wire mating halves.
• Secondary retainers
Secondary retainers enhance safety in case of partial insertion
or accidental release of the contact.
• Harness variation
PAL, wire-to-wire crimp style connector, increases wire harness variation.
PA connector
(Standard type, Retainer mountable type)
• Highly reliable contact
Based upon wire-to-board crimp style PA
connectors, the PA series family of
connector have been expanded to meet the
requirement of complex wire harness of
2.0mm (.079") pitch connectors with secure
locking mechanism thanks to the
additional line up of wire-to-board IDC style
PAF connectors and wire-to-wire crimp
style PAL connectors.
The box contact supplies stable contact performance even under
conditions of vibration, distortion, low voltage or low current.
• Insertion guide mechanism
Header has housing insertion guides for easy and secure insertion.
• Flanged press pin
Top entry type header has flanged press pins, preventing
accidental removal of the pins that might result from the
distorted unmating especially in the case of small No. of circuits.
PAF connector
• The industry’s first secure lock IDC connectors
Retainer
PA Receptacle
(Crimp style Standard type)
Retainer
PAF Receptacle
(IDC style)
Retainer
PA Receptacle
(Crimp style Retainer mountable type)
By separating ID section and secure lock section, the industry’s first
secure lock specification has been achieved for IDC that was said
to be impossible. Our fully automatic IDC machines, BCD-M5BP
(for simple harness) and CAM-M12B, SAD-M12E (for multi-
harness), can be applied for harness making.
PA Shorouded header
(Top entry type)
• Metallic strain relief
PA Shorouded header
(Side entry type)
PAF Receptacle
(IDC style)
PA Shorouded header
(Top entry type)
PAL
(Crimp style Wire-to-wire)
Metallic strain relief on the contact securely grips wire insulation that
can avoid direct stress of vibration or impact. The same grip strength
as insulation barrel of crimp style contact could be achieved.
• Retainer with four locking points
The new four locking points design ensures wire retention force
of every direction that is almost superior to contact retention
force of crimp style connectors. It also completely covers
exposed terminated ID contact.
Retainer
* Contact JST if Lead-Free product is required.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
PAL connector
• The industry’s first wire to wire 2.0mm (.079")
pitch retainer mountable type connector.
• Either with or without panel lock can be
selected according to application.
Standards ––––––––––––––––––––––
1
0
Recognized E60389
Certified LR20812
61
PA
FAMILY SERIES /PA•PAF•PAL CONNECTOR

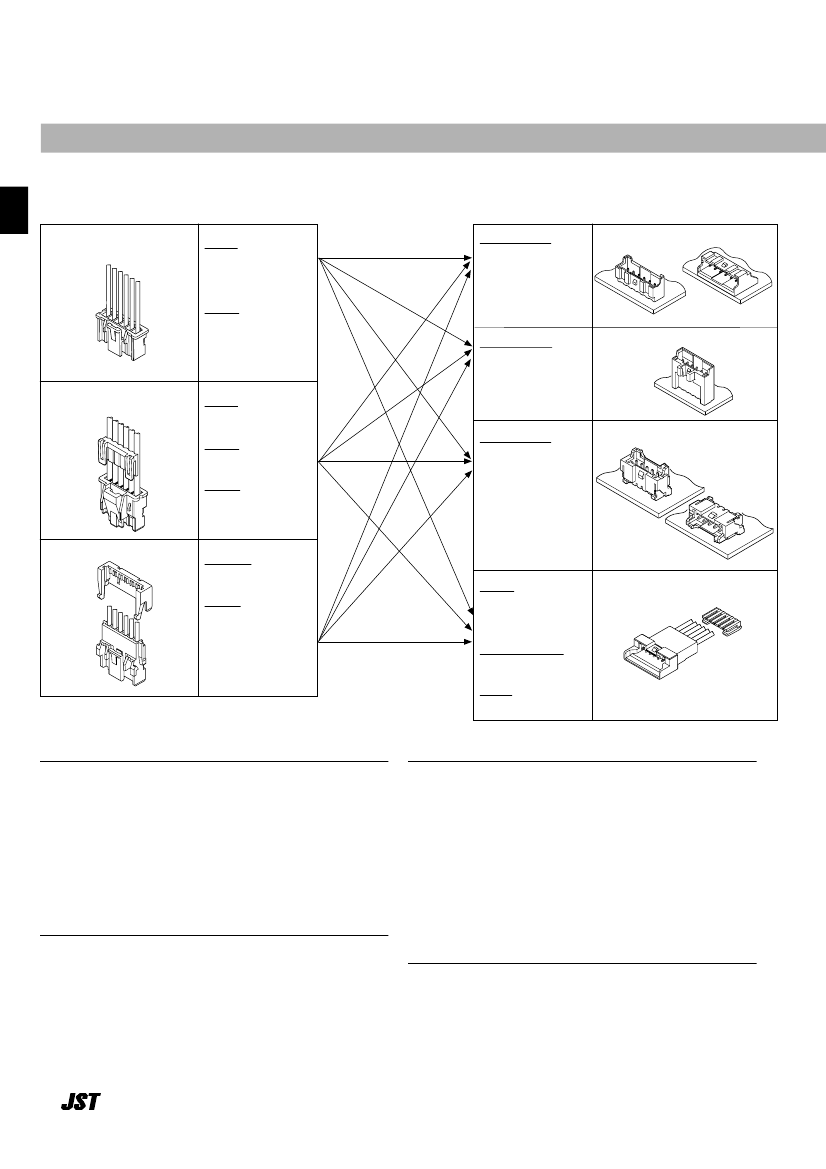

List of combinations ––––––––––––––––––––––––––––––––––––––––––––––––––––––
Crimp style
Standard type
Contact
SPHD-001T-P0.5
SPHD-002T-P0.5
Housing
PAP-( )V-S
Shrouded header
BH( )B-PASK
BH( )B-PASK-1
Shrouded header
B( )B-PASK
B( )B-PASK-1
S( )B-PASK-2
Top entry type
Side entry type
High box type
Crimp style
Retainer mountable type
Contact
SPA-001T-P0.5
Housing
PARP-( )V
Retainer
PMS-( )V-S
Shrouded header
BM( )B-PASS
BM( )B-PASS-1
SMT type
Top entry type
Side entry type
SM( )B-PASS
SM( )B-PASS-1
Insulation displacement type
Receptacle
( )PAF-6S
Retainer
PAFS-( )V-S
Contact
SPAL-001T-P0.5
SPAL-002T-P0.5
Receptacle housing
PALR-( )V(F)
Retainer
PMS-( )V-S
Wire to wire Connectors
Specifications ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
PA Connector (Standard type)
• Current rating: 3A AC, DC (AWG#22)
• Voltage rating: 250V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying electrical current)
• Contact resistance: Initial value/10m
Ω
max.
After environmental testing/20m
Ω
max.
• Insulation resistance:
1,000M
Ω
min.
• Withstanding voltage: 800V AC/minute
• Applicable wire: AWG #28 to #22
• Applicable PC board thickness: 1.6mm(.063")
PAF Connector
• Current rating: 1.0A AC, DC (AWG#26)
• Voltage rating: 100V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying electrical current)
• Contact resistance: Initial value/15m
Ω
max.
After environmental testing/25m
Ω
max.
• Insulation resistance:
1,000M
Ω
min.
• Withstanding voltage: 800V AC/minute
• Applicable wire: UL1061(Contact JST for details regarding other UL wires.)
AWG #26
Conductor/7 strands, tin-coated annealed copper
Insulation O.D./0.9 to 1.0mm(.035" to .039")
PA Connector (Retainer mountable type)
• Current rating: 3A AC, DC (AWG#22)
• Voltage rating: 100V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying electrical current)
• Contact resistance: Initial value/15m
Ω
max.
After environmental testing/25m
Ω
max.
• Insulation resistance:
1,000M
Ω
min.
• Withstanding voltage: 800V AC/minute
• Applicable wire: AWG #28 to #22
PAL Connector
• Current rating: 3A AC, DC (AWG#22)
• Voltage rating: 100V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying electrical current)
• Contact resistance: Initial value/15m
Ω
max.
After environmental testing/25m
Ω
max.
• Insulation resistance:
1,000M
Ω
min.
• Withstanding voltage: 800V AC/minute
• Applicable wire: AWG #28 to #22
• Applicable panel thickness : 0.5 to 2.0mm(.020" to .079")
62
PA
FAMILY SERIES /PA CONNECTOR (Crimp style Standard type)
Contact –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Model No.
1.5(.059)
mm
2
0.13 to 0.33
0.08 to 0.21
Applicable wire
Insulation O.D. mm(in.)
AWG #
26 to 22
28 to 24
1.0 to 1.5(.039 to .059)
0.9 to 1.5(.035 to .059)
Q'ty /
reel
8,000
SPHD-001T-P0.5
SPHD-002T-P0.5
Material and Finish
6.5(.256)
2.85(.112)
1.3(.051)
Phosphor bronze, tin-plated
Housing –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
(2 to 9 circuits)
B
A
[2.0(.079)]
2.0(.079)
5.8(.228)
4.6(.181)
Circuits
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Model No.
Circuit No.1
(10 to 15 circuits)
B
A
[2.0(.079)]
2.0(.079)
5.8(.228)
4.6(.181)
PAP-02V-S
PAP-03V-S
PAP-04V-S
PAP-05V-S
PAP-06V-S
PAP-07V-S
PAP-08V-S
PAP-09V-S
PAP-10V-S
PAP-11V-S
PAP-12V-S
PAP-13V-S
PAP-14V-S
PAP-15V-S
PAP-16V-S
Dimensions mm(in.)
A
B
2.0( .079)
6.0( .236)
4.0( .157)
8.0( .315)
6.0( .236)
10.0( .394)
8.0( .315)
12.0( .472)
10.0( .394)
14.0( .551)
12.0( .472)
16.0( .630)
14.0( .551)
18.0( .709)
16.0( .630)
20.0( .787)
18.0( .709)
22.0( .866)
20.0( .787)
24.0( .945)
22.0( .866)
26.0(1.024)
24.0( .945)
28.0(1.102)
26.0(1.024)
30.0(1.181)
28.0(1.102)
32.0(1.260)
30.0(1.181)
34.0(1.339)
Q'ty /
bag
5,000
5,000
5,000
5,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
7.3(.287)
8.0(.315)
7.3(.287)
8.0(.315)
Material
Nylon 66, UL94V-0, natural (white)
Circuit No.1
(16 circuits)
B
A
[2.0(.079)]
2.0(.079)
5.8(.228)
4.6(.181)
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
PAP-02V-S-
S…natural (white)
K…black R…red E…blue M…green O…orange N…brown
P…purple PK…pink Y…yellow L…lemon yellow FY…vivid yellow
LE…light blue H…gray TR…tomato red
Circuit No.1
7.3(.287)
8.0(.315)
63
PA
FAMILY SERIES /PA CONNECTOR (Crimp style Standard type)
Through-hole type shrouded header –––––––––––––––––––––––––––––––––––––––––
Circuits
Model No.
With a boss
Without a boss
B02B-PAFYK-A
B02B-PASK
B03B-PASK
B04B-PASK
B05B-PASK
B06B-PASK
B07B-PASK
B08B-PASK
B09B-PASK
B10B-PASK
B11B-PASK
B12B-PASK
B13B-PASK
B14B-PASK
B15B-PASK
B16B-PASK
Dimensions mm(in.)
A
B
B02B-PAFYK-1A
2.0( .079)
6.0( .236)
B02B-PASK-1
2.0( .079)
6.0( .236)
4.0( .157)
B03B-PASK-1
8.0( .315)
6.0( .236) 10.0( .394)
B04B-PASK-1
8.0( .315) 12.0( .472)
B05B-PASK-1
B06B-PASK-1
10.0( .394) 14.0( .551)
B07B-PASK-1
12.0( .472) 16.0( .630)
B08B-PASK-1
14.0( .551) 18.0( .709)
B09B-PASK-1
16.0( .630) 20.0( .787)
B10B-PASK-1
18.0( .709) 22.0( .866)
B11B-PASK-1
20.0( .787) 24.0( .945)
B12B-PASK-1
22.0( .866) 26.0(1.024)
B13B-PASK-1
24.0( .945) 28.0(1.102)
B14B-PASK-1
26.0(1.024) 30.0(1.181)
B15B-PASK-1
28.0(1.102) 32.0(1.260)
B16B-PASK-1
30.0(1.181) 34.0(1.339)
Q'ty /
box
1,000
1,000
1,000
1,000
500
500
500
500
500
500
250
250
250
250
250
250
Top entry type
(2
to
9
circuits)
B
A
Circuit No.1
1.2(.047)
3.0
7.7
(.303)
(.118)
5.3(.209)
0.5
(.020)
2.0
(.079)
0.8(.031)dia.
1.5(.059)
1.7(.067)
2 (Note1)
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
5.9(.232)
Material and Finish
(10
to
15
circuits)
B
A
Circuit No.1
1.2(.047)
3.0 7.7(.303)
(.118)
5.3(.209)
Post: Copper alloy, copper-undercoated, tin/lead-plated
Wafer: Glass-filled PBT, UL94V-0, natural (white)
(Note1) Nylon 66, UL94V-0, vivid yellow
5.9(.232)
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
B02B-PASK-
S…natural (white)
K…black R…red E…blue M…green O…orange N…brown
P…purple PK…pink Y…yellow L…lemon yellow FY…vivid yellow
LE…light blue H…gray TR…tomato red
0.5(.020)
2.0
(.079)
0.8(.031)dia.
1.5(.059)
1.7(.067)
(16
circuits)
B
A
Circuit No.1
5.3(.209)
1.2(.047)
3.0 7.7(.303)
(.118)
0.5(.020)
2.0
(.079)
0.8(.031)dia.
1.5(.059)
5.9(.232)
1.7(.067)
64
PA
FAMILY SERIES /PA CONNECTOR (Crimp style Standard type)
Through-hole type shrouded header –––––––––––––––––––––––––––––––––––––––––
Circuits
Model No.
S02B-PASK-2
S03B-PASK-2
S04B-PASK-2
S05B-PASK-2
S06B-PASK-2
S07B-PASK-2
S08B-PASK-2
S09B-PASK-2
S10B-PASK-2
S11B-PASK-2
S12B-PASK-2
S13B-PASK-2
S14B-PASK-2
S15B-PASK-2
S16B-PASK-2
Dimensions mm(in.)
A
B
2.0( .079)
6.0( .236)
4.0( .157)
8.0( .315)
6.0( .236)
10.0( .394)
8.0( .315)
12.0( .472)
10.0( .394)
14.0( .551)
12.0( .472)
16.0( .630)
14.0( .551)
18.0( .709)
16.0( .630)
20.0( .787)
18.0( .709)
22.0( .866)
20.0( .787)
24.0( .945)
22.0( .866)
26.0(1.024)
24.0( .945)
28.0(1.102)
26.0(1.024)
30.0(1.181)
28.0(1.102)
32.0(1.260)
30.0(1.181)
34.0(1.339)
Q'ty /
box
1,000
1,000
500
500
500
250
250
250
250
250
250
250
200
200
200
Side entry type
(2
to
9
circuits)
B
A
2.0(.079)
6.5(.256)
6.1(.240)
[3.4(.134)]
Circuit No.1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
7.7(.303)
8.2(.323)
11.7(.461)
5.9(.232)
Material and Finish
(10
to
15
circuits)
B
A
2.0(.079)
6.5(.256)
6.1(.240)
[3.4(.134)]
Post: Copper alloy, copper-undercoated, tin/lead-plated
Wafer: Glass-filled PBT, UL94V-0, natural (white)
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
S03B-PASK-2-
S…natural (white)
K…black R…red E…blue M…green O…orange N…brown
P…purple PK…pink Y…yellow L…lemon yellow LE…light blue
H…gray TR…tomato red
7.7(.303)
5.9(.232)
8.2(.323)
6.1(.240)
Circuit No.1
(16
circuits)
B
A
2.0(.079)
6.5(.256)
[3.4(.134)]
7.7(.303)
Circuit No.1
8.2(.323)
11.7(.461)
5.9(.232)
11.7(.461)
65
京公网安备 11010802033920号
EEWORLD
