2.5mm Pitch Connector for Full Lock and Discrete Wire Connection
DF1E Series
Full lock function
added
UL, C-CL Listed
Inner-lock system
full lock mechanism
Mis-insertion
prevention
Photo 1
■Features

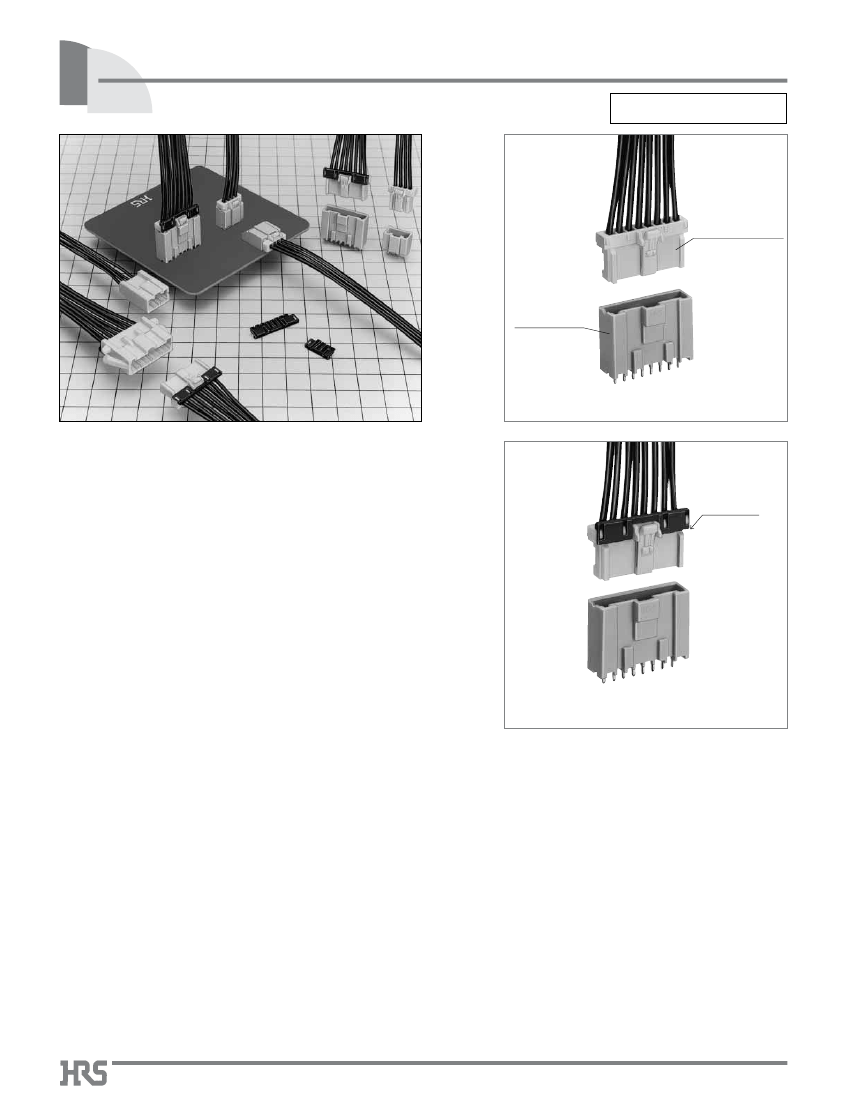

1. Full Lock Function Added
The inner lock system adopts a full lock mechanism.
This mechanism prevents disengagement to occur due to
an unexpected external shock. (Refer to photo 1)
Double lock
engaged
Double lock
engaged
2. Increase in Crimping Contact Fixation Force and
Semi-insertion Prevention
The double lock is activated for the use method to give a
stress to the cable, to increase crimping contact fixation
force, and to prevent the semi-insertion of the crimping
contact. (Refer to photo 2)
3. Mold Lance Adopted
Since the contact lance may be deformed involving in the
contact after the crimping process, the mold lance has been
adopted.
4. Mis-insertion Prevention
Equipped with the mechanism to completely prevent reverse
insertion and insertion between dissimilar contacts.
8. Various Applications
Photo 2
5. Means to Prevent Solder Crack
The glass enforcement resin is adopted for the pin header to
prevent a solder crack to occur due to heat compression.
With the same series, various applications can
be used for the board solder dip type and in-
line.
9. Listed by UL, C-UL
6. Correspond to Potting
Corresponding to potting, the pin header is provided for
product variations.
Corresponding to potting up to 8mm and mounting height
19.8mm (no retainer), the low profile is achieved.
■
Applications
Electronic equipment, office machines,
industrial equipment, and consumer
equipment, and so on
7. Production Facility Cost Reduction
The female crimping contact uses the DF1B series crimping
contact, which has been conventionally marketed.
Investment for new facilities isn't needed. However, if the
retainer is installed in the cable with AWG#22 or more wire,
use the DF1E crimping contact. The female crimping
contact for in-line is used together with the DF1B applicator.
Therefore, no investment is needed for new facilities.
B146
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
DF1E Seriesq2.5mm Pitch Connector for Full Lock and Discrete Wire Connection
sProducts
Specifications
Current rating Note 1.
AWG#20
to
24 :
3A
26 :
2A
28 :
1A
30 : 0.5A
Voltage rating 250VAC
Rating
Operating Temperature Range :
-35 to +85ç
Note 2.
Operating Moisture Range :
-40
to 80%
Storage Temperature Range :
-10 to +60ç
Note 3.
Storage Moisture Range
:
-40
to 70% Note 3.
C-UL Rating
AWG#20
to #22
: 3A
Current rating
Rating
Voltage rating
Item
1. Contact Resistance
2. Insulation Resistance
3. Withstanding voltage
4. Single Insertor/Extraction Forth
5. Durability (Mating/un-mating)
6. Vibration
7. Shock
8.
Humidity (Steady state)
9. Temperature Cycle
10. Resistance to Soldering heat
30m
ohms
max.
1000M
ohms
min.
No flashover or insulation breakdown.
MIN 0.29N, MAX 4.41N
30m
ohms
max
No electrical discontinuity of 1µs or more
No electrical discontinuity of 1µs or more
30m
ohms
max
30m
ohms
max.
No deformation of components affecting performance.
Specification
500V DC
AWG#24
to #28
: 1A
AWG#30
30V AC
: 0.5A
sUL/C-UL
File No. and Recognition No.
UL
:E52653
C-UL :E52653
Condition
Measured at 20mV max. and 1mA
650V AC/1 minute
Measured at the square steel pin with 0.635±0.002
30 cycles
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
Acceleration of 490 m/s
2
, 11 ms duration, sine half-wave waveform, 3 cycles in each of the 3 axis
96 hours at temperature of 40±2ç and humidity of 90% to 95%
(-55ç: 30 minutes-> 5 to 35ç: 5 minutes-> 85ç: 30 minutes-> 5 to 35ç: 5 minutes) 5 cicles
Flow: 260ç for 10 seconds
Manual soldering: 300ç for 3 seconds
Note 1: Current rating of header is 3A.
Note 2: Includes temperature rise caused by current flow.
Note 3: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 4: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for a
specific part number shown.
sMaterial
Product
Socket
Header
In-line Plug
retainer
Crimping contact
Part
Insulator
Insulator
Contact
Insulator
Insulator
Contact
Material
Polyamide
Polyamide
Brass
Polyamide
Polyamide
Phosphor copper
Treatment
White
Beige
Tin-lead plated
White
Black
Tin plated
Remarks
UL94V-0
UL94V-0
–––––––
UL94V-0
UL94V-0
–––––––
B147
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
DF1E Series●2.5mm Pitch Connector for Full Lock and Discrete Wire Connection
■Ordering
Information
●Pin
Header
DF1E C -
*
P - 2.5 DSA
q
w
e
r
t
y
q
Series Name : DF1E
w
Hold Types (Note. 1)
Standard Product
With Boss
C
Without Boss
G
Potting
With Boss
Without Boss
e
Number of Contacts : 2 to 15 contacts
(note. 2)
r
Connector Type
P : Pin Header
t
Contact Pitch : 2.5mm
y
Form type
DSA : Straight through hole
DS : Right Angle Type
Note 1 : The right angle pin header has no symbol.
Note 2 : The potting header has 2 to 10 contacts.
●Socket
DF1E -
*
S - 2.5 C
q
w
e
r
t
q
Series Name : DF1E
w
Number of Contacts : 2 to 15 contacts
e
Connector type
S: Socket
r
Contact Pitch : 2.5mm
t
Form Type
C : Crimping socket
●In-line
Plug
DF1E A -
*
EP - 2.5 C
q
w
e
r
t
y
q
Series Name : DF1E
w
In-line Plug type
Blank: With Panel mount Lock
A : Without Panel mount Lock
e
Number of Contacts : 2 to 10 contacts
r
EP : In-line plug
t
Contact Pitch : 2.5mm
y
Form Type
C : Crimping socket
●Crimping
Contact
DF1E -
**
SCF
q
w
e
q
Series Name :
Socket side : DF1B (Note 1)
DF1E (Note 1)
Plug side
: DF1E
w
Applicable Cable Size
2022 : AWG#20
to #22
2428 : WG#24
to #28
30
: AWG#30
e
Packaging Type
SCF : Female contact : Reel
SC
PC
: Female contact : Bag
: Male contact : Bag
PCF : Male contact : Reel
Note 1 : When the retainer is used, use DF1E-2022SC(F), DF1B-
2428SC(F), and DF1B-30SC(F) contacts.
Note 1 :
When no retainer is used, all DF1B-**SC(F) and DF1E-
2022SC(F) contacts can be used.
●Retainer
DF1E -
*
RS/P - 2.5
q
w
e
r
q
Series Name : DF1E
w
Number of Contacts : 2 to 10 contacts
e
Connector Type
RS/P : Retainer
Commonly used for socket and in-line plug
r
Contacts Pitch:2.5mm
B148
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
DF1E Series●2.5mm Pitch Connector for Full Lock and Discrete Wire Connection

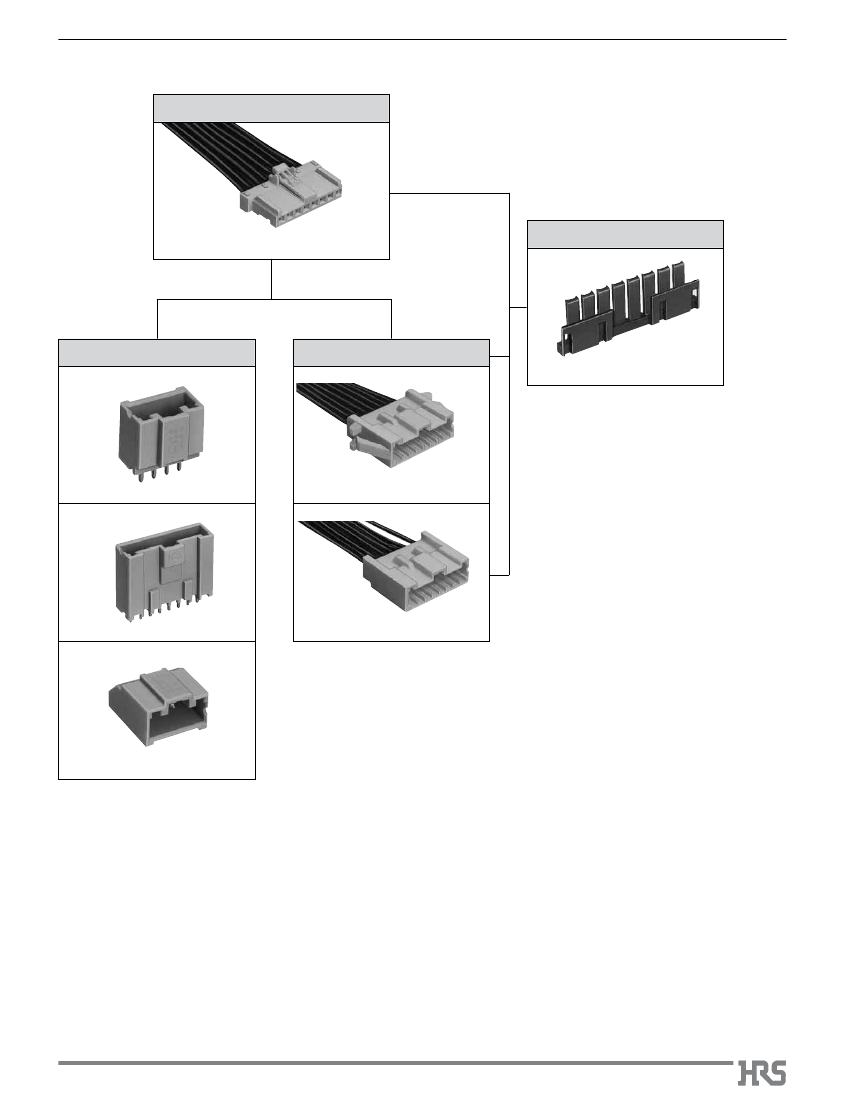

■Application
Pattern
Socket
Retainer
Photo : Contact Inserted
Pin Header
●Straight
Type
In-line Plug
●In-line
Plug (Panel Mount Lock Type)
Photo: Contact Inserted
●Straight
Potting Type
●In-line
Plug
Photo: Contact Inserted
●Right
Angle Type
B149
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
DF1E Series●2.5mm Pitch Connector for Full Lock and Discrete Wire Connection

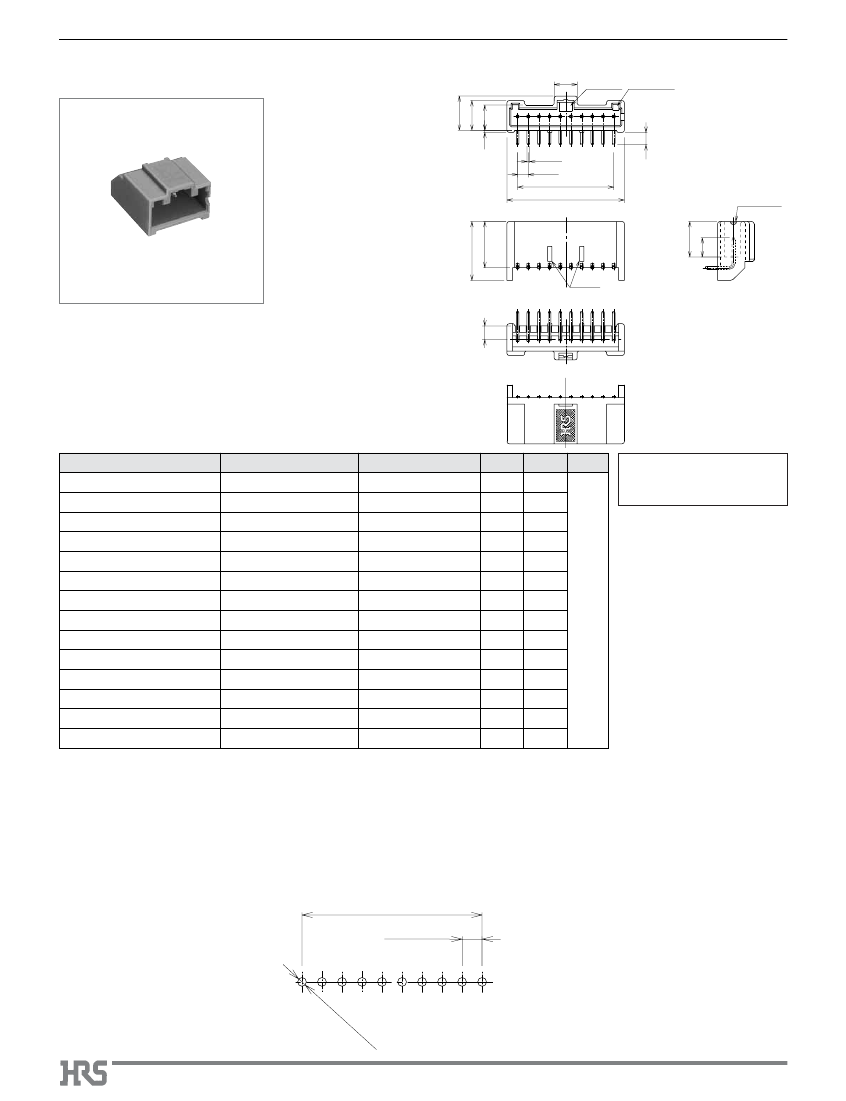

■Right
Angle Pin Header
8
6.95
5.9
5.4
10
Contact
No. mark
A
Mold Cavity
No. mark
0.5
M
0.64
P=2.5
A
B
Contact
No.1 indicated
2.9
10.8
8.3
Note 2
13.8
Part Number
DF1E –02P–2.5DS(**)
DF1E –03P–2.5DS(**)
DF1E –04P–2.5DS(**)
DF1E –05P–2.5DS(**)
DF1E –06P–2.5DS(**)
DF1E –07P–2.5DS(**)
DF1E –08P–2.5DS(**)
DF1E –09P–2.5DS(**)
DF1E –10P–2.5DS(**)
DF1E –11P–2.5DS(**)
DF1E –12P–2.5DS(**)
DF1E –13P–2.5DS(**)
DF1E –14P–2.5DS(**)
DF1E –15P–2.5DS(**)
CL No.
541 – 0985– 0 –**
541 – 0986– 3 –**
541 – 0987– 6 –**
541 – 0988– 9 –**
541 – 0989– 1 –**
541 – 0990– 0 –**
541 – 0991– 3 –**
541 – 0992– 6 –**
541 – 0993– 9 –**
541 – 0994– 1 –**
541 – 0995– 4 –**
541 – 0996– 7 –**
541 – 0997– 0 –**
541 – 0998– 2 –**
Number of Contacts
2
3
4
5
6
7
8
9
10
11
12
13
14
15
3.2
A
02.5
05.0
07.5
10.0
12.5
15.0
17.5
20.0
22.5
25.0
27.5
30.0
32.5
35.0
B
07.5
10.0
12.5
15.0
17.5
20.0
22.5
25.0
27.5
30.0
32.5
35.0
37.5
40.0
RoHS
[Specific No.]
–
* *
,
(*
*)
(01): Gold plated
(05): Tin plated
Yes
Note 1. : A packaging quantity is delivered by the bag unit (100 pcs.). If needed, please order the products per bag. However, the quantity
for delivery will be changed according to the Specific No.
Note 2. : The 2 to 4 contacts differ in two convex portions from those in above figures. The 2 and 3 contacts are not contained, but the 4
contact connector is contained in the center at one point.
Note 3. : Styles of 2 to 4 contact connectors partially differ from those in above figures.
