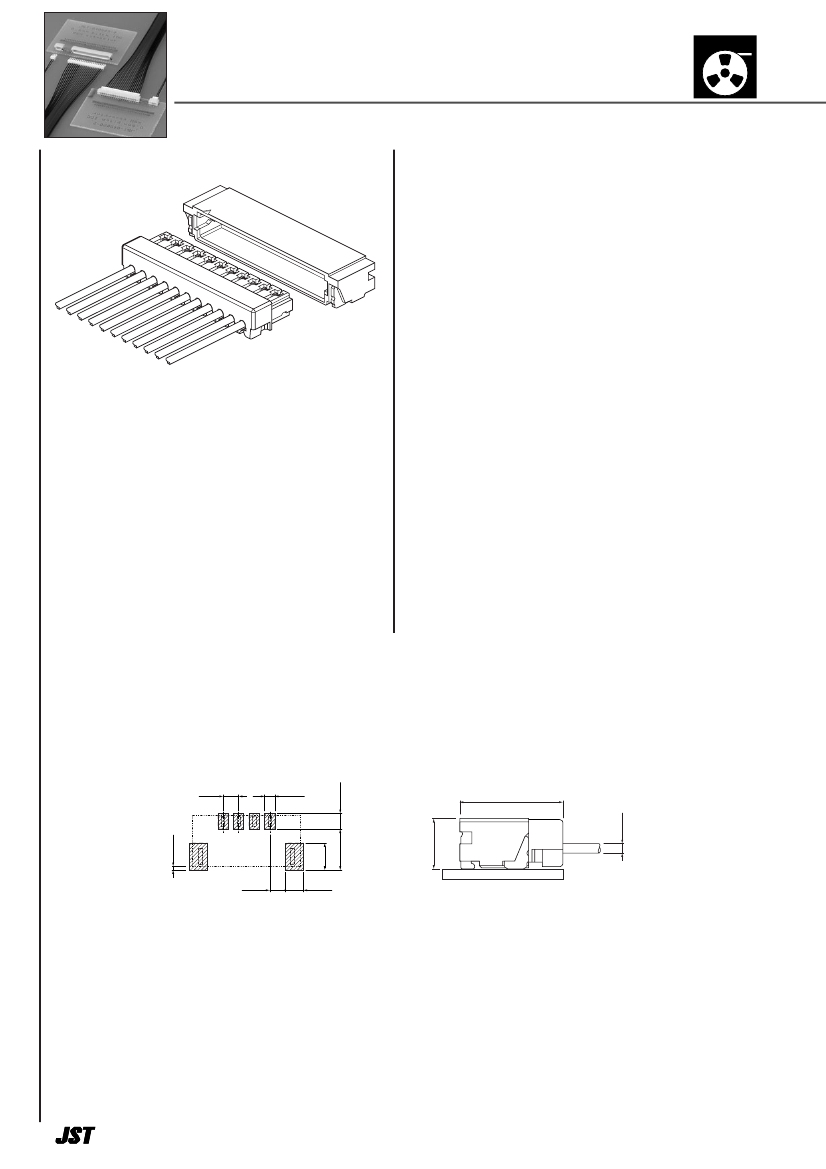

XSR
CONNECTOR
Emboss Tape
0.6mm pitch/Disconnectable Insulation displacement connectors
Specifications –––––––––––––––––––
• Current rating: 0.2A AC, DC
• Voltage rating: 30V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 30m
Ω
max.
After environmental testing/ 50m
Ω
max.
• Insulation resistance: 100M
Ω
min.
• Withstanding voltage: 200V AC/minute
• Applicable wire: Conductor size/ AWG #36
Conductor/ 7 strands,
tin-coated copper alloy
Insulation O.D./ 0.29mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
This is the world's smallest 0.6mm pitch ID
connector for discrete wires.
This Wire to Board miniaturized connector
has a mounting height of 1.45mm and
depth of 3.0mm.
• Space saving
• Twin U-slot insulation displacement section
• New strain relief structure
• Suitable for thin wires
• Applicable to automatic ID machines
Standards ––––––––––––––––––––––
1
Certified LR20812
0
Recognized E60389
0.6
0.6
±0.05
0.4
±0.05
±0.1
3
φ
0.29
0.15
±0.1
0.6
±0.1
0.7
Note: 1. The above figure is the figure viewed from the connector mounting side.
Note:
2. Tolerances are non-cumulative:
±
0.05mm for all centers.
Note:
3. The dimensions above should serve as a guideline. Contact JST for details.
1
1.05
±0.1
1.6
1.45
±0.1
±0.1
XSR CONNECTOR
Socket
Circuits
2
4
6
1.37
1.04
1.24
Model No.
02XSR-36S
04XSR-36S
06XSR-36S
10XSR-36S
16XSR-36S
20XSR-36S
*22XSR-36S
Dimensions (mm)
A
B
0.6
1.8
3.0
5.4
9.0
11.4
12.6
1.8
3.0
4.2
6.6
10.2
12.6
13.8
Q'ty / box
4,000
4,000
4,000
4,000
4,000
4,000
4,000
10
16
20
22
Header
Circuits
2
B
A
0.6
2
1.45
H JST 7
0.6
A
B
0.6
1.25
2.25
Material and Finish
Contact: Copper alloy, tin-plated (reflow treatment)
Housing: PA, UL94V-0, natural
RoHS compliance
Note: *Marked products are not UL/CSA approved.
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
02XSR-36S
S…natural (standard color)
LG…light green LP…light purple L…lemon yellow
PK…pink LE…light blue O…orange
Model No.
SM02B-XSRS-ETB
SM04B-XSRS-ETB
SM06B-XSRS-ETB
SM10B-XSRS-ETB
SM16B-XSRS-ETB
SM20B-XSRS-ETB
*SM22B-XSRS-ETB
Dimensions (mm)
A
B
0.6
1.8
3.0
5.4
9.0
11.4
12.6
3.0
4.2
5.4
7.8
11.4
13.8
15.0
Q'ty /
reel
3,500
3,500
3,500
3,500
3,500
3,500
3,500
4
6
10
16
20
22
0.7
0.4
0.57
Material and Finish
Contact: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
Housing: PA, UL94V-0, natural
Solder tab: Brass, copper-undercoated, tin-plated (reflow treatment)
RoHS compliance
This product displays (LF)(SN) on a label.
Note: 1.This products listed above are supplied on embossed-tape.
Note:
2.*Marked products are not UL/CSA approved.
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
SM02B-XSRS-ETB
S…natural (standard color)
LG…light green LP…light purple L…lemon yellow
PK…pink LE…light blue O…orange
