CP881 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> CP881

CP881: Descriptionconn bnc plug str 50 ohm crimp; CategoryThe connector; File Size86KB，1 Pages; ManufacturerEmerson; Environmental Compliance

Download Datasheet Parametric View All

CP881 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CP881	-	-	View	Buy Now

CP881 Overview

conn bnc plug str 50 ohm crimp

CP881 Parametric

Parameter Name	Attribute value
Datasheets
CP881 Drawing
Product Photos
CP881
Standard Package	10
Category	Connectors, Interconnects
Family	Coaxial Connectors (RF)
Packaging	Bulk
Connector Style	BNC
Connector Type	Plug, Male Pi
Contact Terminati	Crim
Shield Terminati	Crim
Impedance	50 Ohm
Mounting Type	Free Hanging (In-Line)
Cable Grou	RG-58
Fastening Type	Bayonet Lock
Frequency - Max	4GHz
Features	-
Housing Col	Silve
Ingress Protecti	-
Body Material	Brass
Body Finish	Nickel
Center Contact Material	Brass
Center Contact Plating	Gold
Dielectric Material	Polytetrafluoroethylene (PTFE)
Voltage Rating	500V
Operating Temperature	-55°C ~ 85°C
Dynamic Catalog	BNC Connectors
Other Names	012446236646367-0001367-0001-ND367-1001CP-88-1

Preview

Download Datasheet

View All

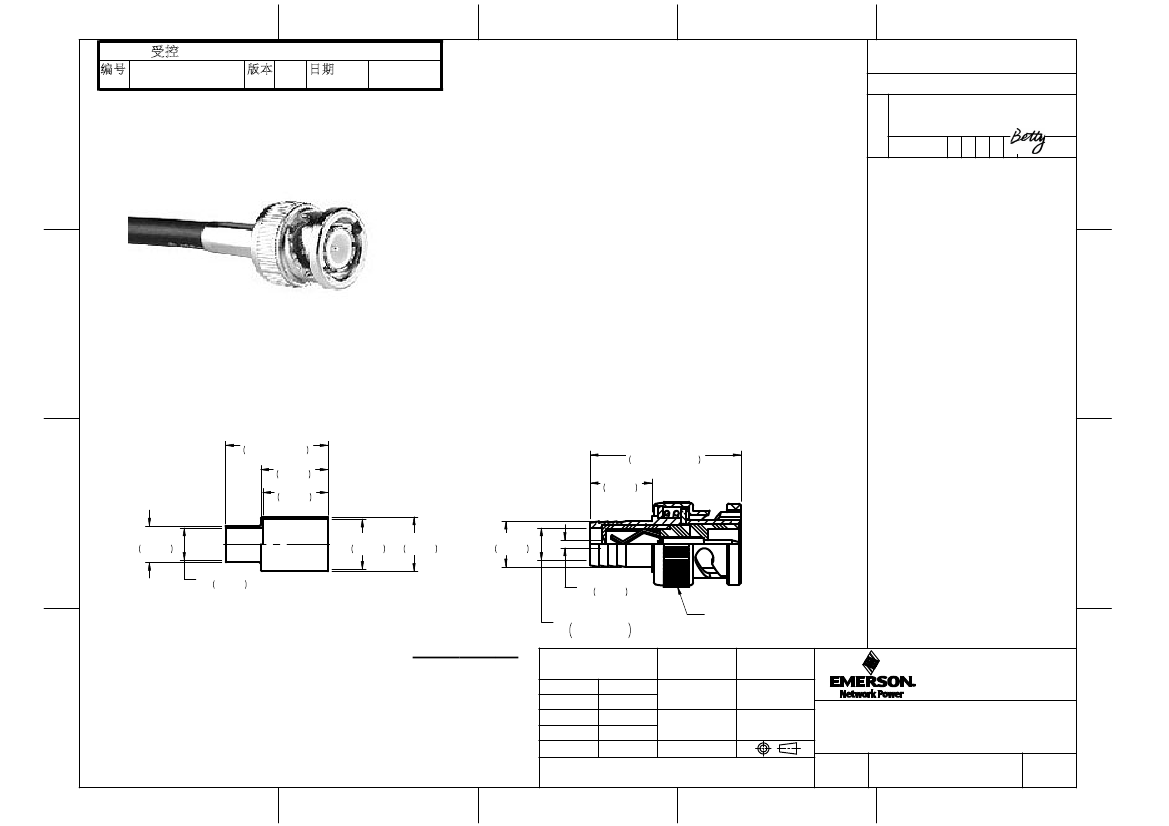

CONTROLLED DOCUMENT

SEP 14,09

DRAWING NO.

CP881-CUST

REVISIONS

P/N

CP881-CUST

Rev

Rel'd Date

Description:

BNC 2pc male crimp RG58

CP881

For RG58 Cable

24-9858P

50 Ohms

0-4 GHz

Body

Contact

Insulator

Brass Nickel plated

Brass Gold plated

Teflon

OFFICAL RELEASE

Part No:

Application:

Crimp Tool:

Impedance:

Frequency Range:

Material:

08-17-09

2009.09.0

8 08:57:32

+08'00'

RoHS Compliance:

Technical Detail:

17.4 ±0.3

.684 ±.012

11.4

.449

11.0

.435

Crimp sleeve Brass Nickel plated

Coupling nut

Yes

Refer to Emerson Document P/N 27-0000

Zinc Nickel plated

25.7 ±0.5

1.012 ±.020

10.5

.413

6.2

.244

8.50

.335

5.50

.217

9.2

.362

7.7

.304

1.30

.051

5.50

.217

+0.10

-0.05

+.004

-.002

REF

14.5

( .571 )

DATE

08-17-09

DATE

TITLE

DIM OUTLINE

CUSTOMER COPY

Connectivity

Solutions

BNC 2PC MALE CRIMP RG58

SHEET

1 OF 1

DRAWING NO.

SIZE

TOLERANCE UNLESS DRAWN BY

OTHERWISE SPECIFIED

JEAN.JIN

DECIMALS

X.X

X.XX

ANGLES

CHECKED BY

0.5

0.2

0.1

0.5

TERRY.W

THOMAS

U/M

08-17-09

APPROVED BY DATE

08-17-09

THIS DRAWING WAS PRODUCED BY COMPUTER,

DO NOT SCALE DRAWING OR UPDATE MANUALLY.

CP881-CUST
