3-644613-2: Description02P MTA156 HDR RA PO WO PEG LF; CategoryThe connector The connector; File Size189KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-644613-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-644613-2	-	-	View	Buy Now

3-644613-2 Overview

02P MTA156 HDR RA PO WO PEG LF

3-644613-2 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	POLARIZED
body width	0.425 inch
body length	0.307 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	5 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	2200VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	7.1168 N
Insulation resistance	5000000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.156 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	150u inch
Rated current (signal)	7 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	2
UL Flammability Code	94V-0
Evacuation force-minimum value	.8896 N
Base Number Matches	1

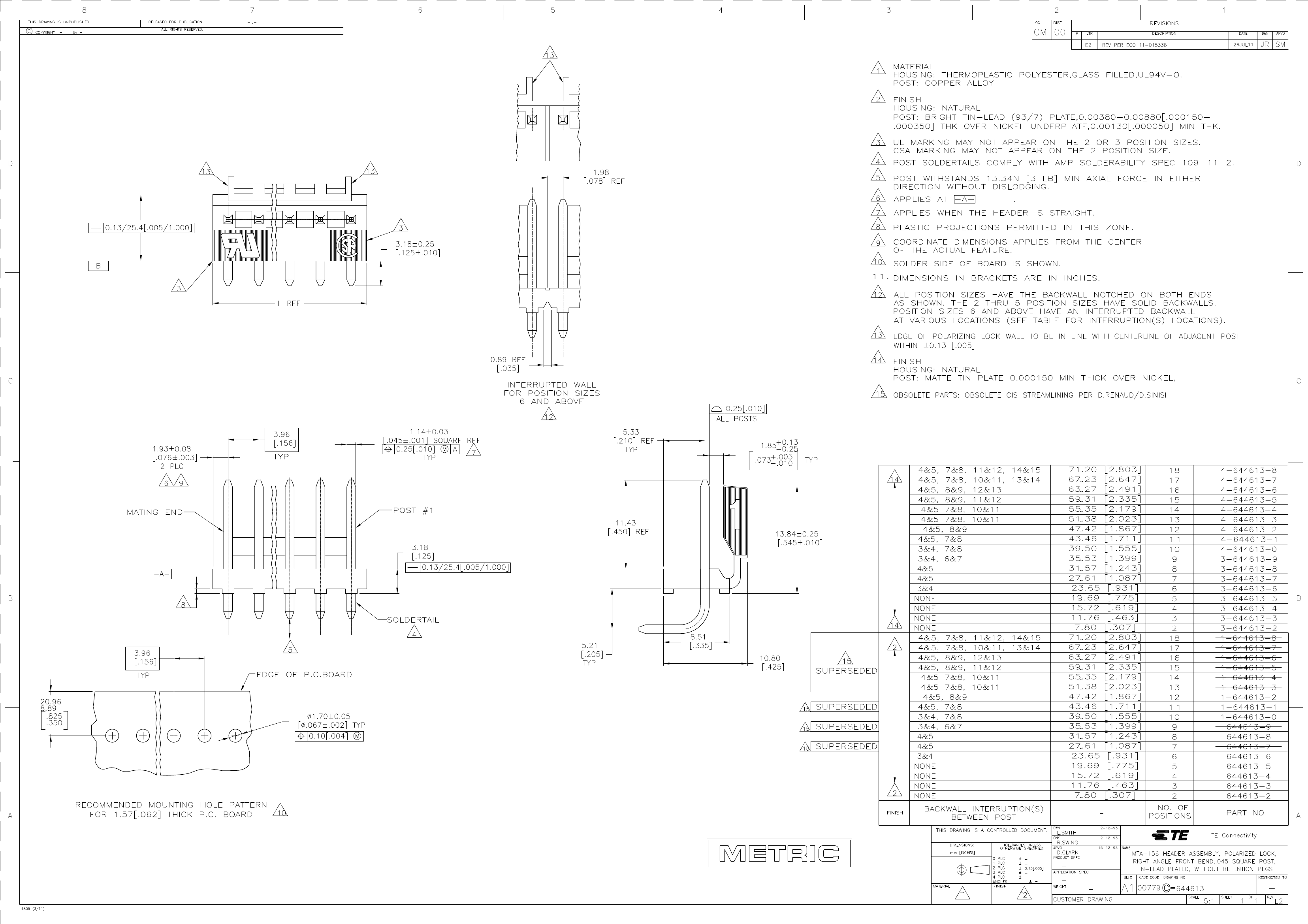

Preview

Download Datasheet

View All

3-644613-2 Related Products

	3-644613-2	10118615-608011T	3-644613-4
Description	02P MTA156 HDR RA PO WO PEG LF	Board Connector,	04P MTA156 HDR RA PO WO PEG LF
Is it Rohs certified?	conform to	incompatible	conform to
Reach Compliance Code	compli	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN	GOLD (15) OVER NICKEL (50)	TIN
Contact completed and terminated	Tin (Sn)	Gold (Au) - with Nickel (Ni) barrier	Tin (Sn)
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
JESD-609 code	e3	e4	e3
Brand Name	AMP	-	AMP
Is it lead-free?	Lead free	-	Lead free
Other features	POLARIZED	-	POLARIZED
body width	0.425 inch	-	0.425 inch
body length	0.307 inch	-	0.619 inch
Body/casing type	PLUG	-	PLUG
Contact point gender	MALE	-	MALE
contact mode	RECTANGULAR	-	RECTANGULAR
Contact resistance	5 mΩ	-	5 mΩ
Contact style	SQ PIN-SKT	-	SQ PIN-SKT
DIN compliance	NO	-	NO
Dielectric withstand voltage	2200VAC V	-	2200VAC V
Durability	25 Cycles	-	25 Cycles
Filter function	NO	-	NO
IEC compliance	NO	-	NO
maximum insertion force	7.1168 N	-	7.1168 N
Insulation resistance	5000000000 Ω	-	5000000000 Ω
Insulator color	NATURAL	-	NATURAL
insulator material	GLASS FILLED POLYESTER	-	GLASS FILLED POLYESTER
MIL compliance	NO	-	NO
Plug contact pitch	0.156 inch	-	0.156 inch
Mixed contacts	NO	-	NO
Installation method	RIGHT ANGLE	-	RIGHT ANGLE
Installation type	BOARD	-	BOARD
Number of connectors	ONE	-	ONE
PCB row number	1	-	1
Number of rows loaded	1	-	1
Maximum operating temperature	105 °C	-	105 °C
Minimum operating temperature	-55 °C	-	-55 °C
Options	GENERAL PURPOSE	-	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	-	RECTANGULAR
Plating thickness	150u inch	-	150u inch
Rated current (signal)	7 A	-	7 A
Guideline	UL	-	UL
reliability	COMMERCIAL	-	COMMERCIAL
Terminal length	0.125 inch	-	0.125 inch
Terminal pitch	3.96 mm	-	3.96 mm
Termination type	SOLDER	-	SOLDER
Total number of contacts	2	-	4
UL Flammability Code	94V-0	-	94V-0
Evacuation force-minimum value	.8896 N	-	.8896 N
Base Number Matches	1	-	1
