0877971200: Description2.54mm drdw hdr TH smt; CategoryThe connector The connector; File Size259KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

0877971200 Overview

2.54mm drdw hdr TH smt

0877971200 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LOW HALOGEN, ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
Is Samacsys	N
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	87797
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	12
Base Number Matches	1

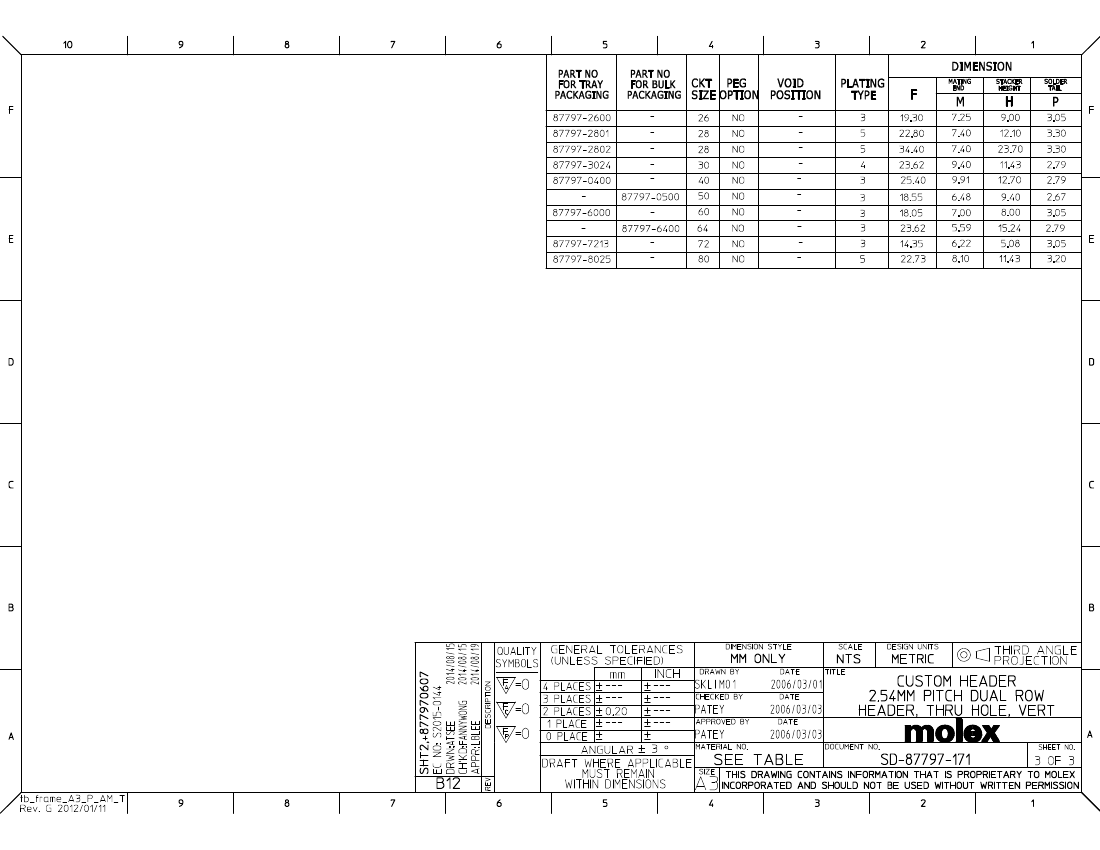

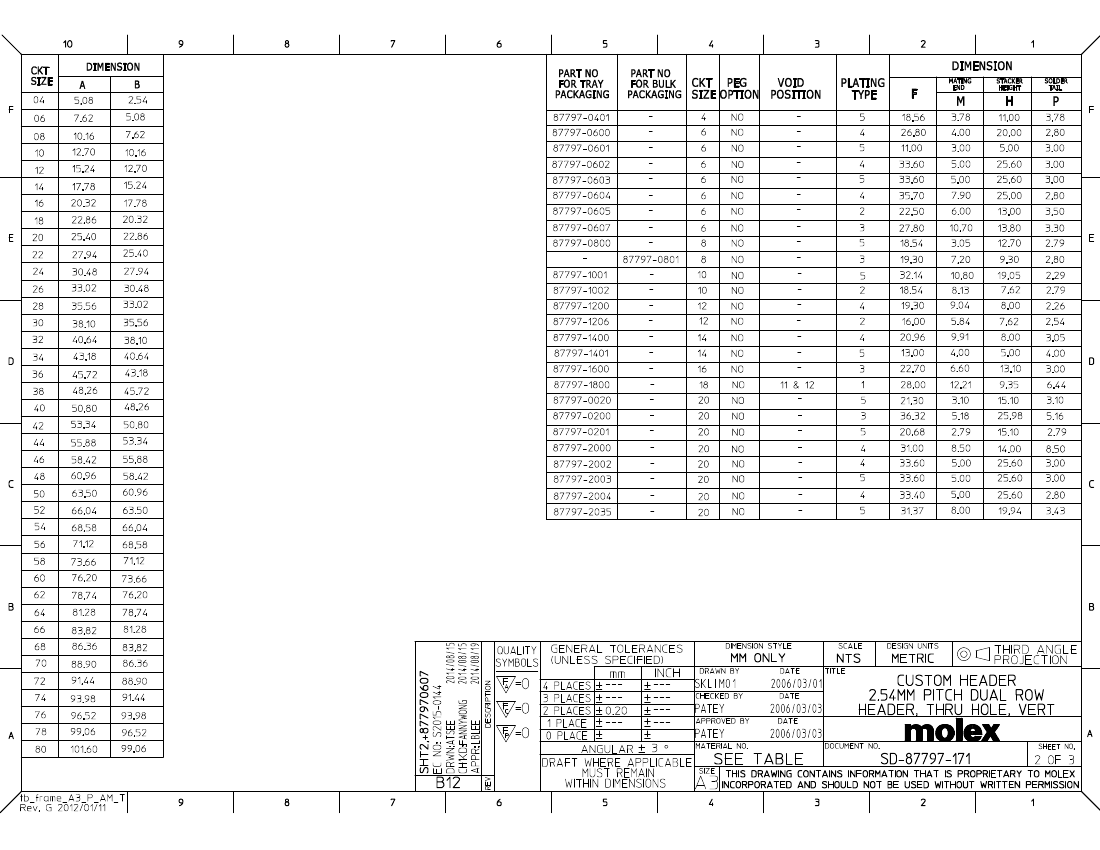

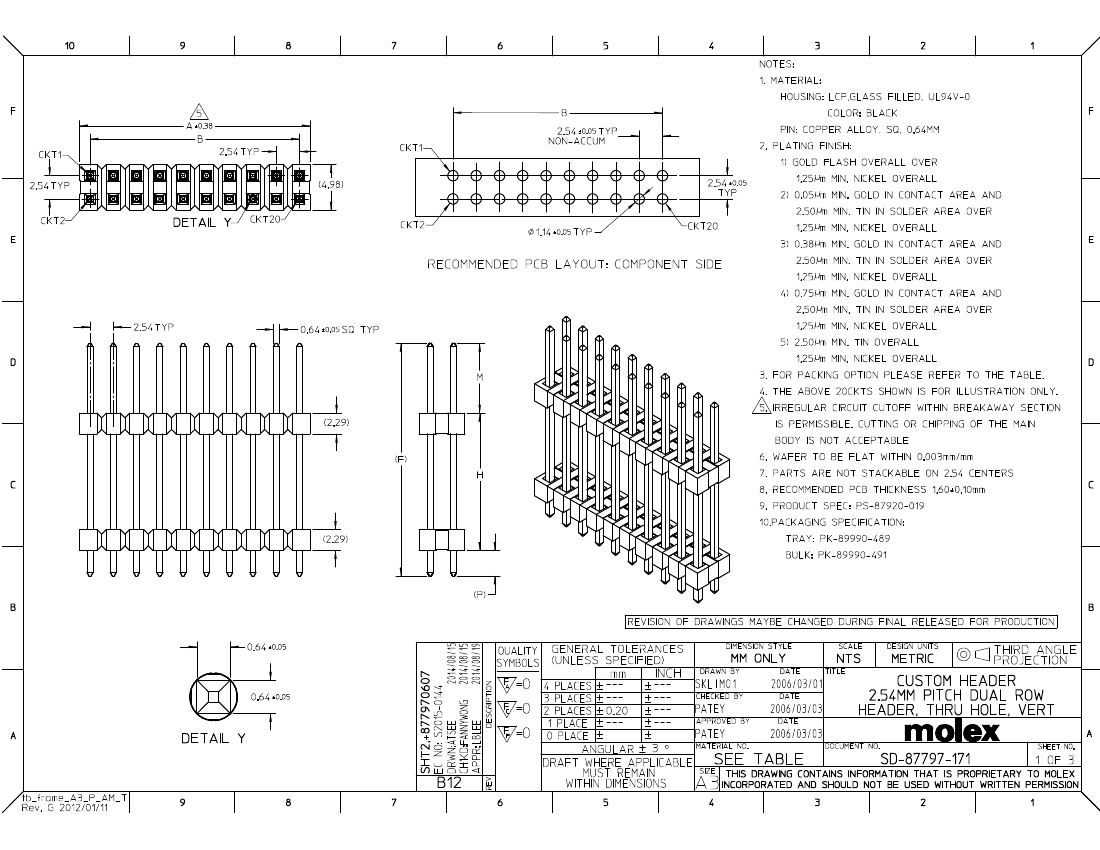

Preview

Download Datasheet

View All

0877971200 Related Products

	0877971200	0877971001	0877971002	0877972600	2M440MS134NF1209-11	0877972003	0877970500	0877977213	0877970400	0877972000
Description	2.54mm drdw hdr TH smt	2.54mm C-grid drdw T/H hdr 10ckt	2.54mm C-grid drdw T/H hdr 10ckt	2.54mm C-grid drdw T/H hdr	Circular Connector Adapter	2.54mm C-grid drdw T/H hdr 20ckt	2.54mm C-grid drdw T/H hdr 50ckt	2.54cgrid drdw hdr W/spacer	2.54mm C-grid drdw T/H hdr 40ckt	2.54mm C-grid drdw T/H hdr 20ckt
Standard Package	-	-	1,200	660	-	300	600	150	-	1,200
Category	-	-	Connectors, Interconnects	Connectors, Interconnects	-	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	-	Connectors, Interconnects
Family	-	-	Rectangular - Board to Board Connectors - Board Spacers, Stackers	Rectangular - Board to Board Connectors - Board Spacers, Stackers	-	Rectangular - Board to Board Connectors - Board Spacers, Stackers	Rectangular - Board to Board Connectors - Board Spacers, Stackers	Rectangular - Board to Board Connectors - Board Spacers, Stackers	-	Rectangular - Board to Board Connectors - Board Spacers, Stackers
Packaging	-	-	Tray	Tray	-	Tray	Bulk	Tray	-	Tray
Number of Positions	-	-	10	26	-	20	50	72	-	20
Pitch	-	-	0.100" (2.54mm)	0.100" (2.54mm)	-	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	-	0.100" (2.54mm)
Number of Rows	-	-	2	2	-	2	2	2	-	2
Row Spacing	-	-	0.100" (2.54mm)	0.100" (2.54mm)	-	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	-	0.100" (2.54mm)
Length - Overall	-	-	0.730" (18.54mm)	0.760" (19.30mm)	-	1.323" (33.60mm)	0.730" (18.54mm)	0.565" (14.35mm)	-	1.220" (31.00mm)
Length - Post (Mating)	-	-	0.320" (8.13mm)	0.286" (7.26mm)	-	0.197" (5.00mm)	0.255" (6.48mm)	0.245" (6.22mm)	-	0.334" (8.49mm)
Length - Stack Heigh	-	-	0.300" (7.62mm)	0.354" (9.00mm)	-	1.008" (25.60mm)	0.370" (9.40mm)	0.200" (5.08mm)	-	0.551" (14.00mm)
Length - Tail	-	-	0.110" (2.79mm)	0.120" (3.05mm)	-	0.118" (3.00mm)	0.105" (2.67mm)	0.120" (3.05mm)	-	0.334" (8.49mm)
Mounting Type	-	-	Through Hole	Through Hole	-	Through Hole	Through Hole	Through Hole	-	Through Hole
Terminati	-	-	Solde	Solde	-	Solde	Solde	Solde	-	Solde
Contact Finish - Post (Mating)	-	-	Gold	Gold	-	Ti	Gold	Gold	-	Gold
Contact Finish Thickness - Post (Mating)	-	-	20µin (0.51µm)	15µin (0.38µm)	-	*	15µin (0.38µm)	15µin (0.38µm)	-	30µin (0.76µm)
Col	-	-	Black	Black	-	Black	Black	Black	-	Black
Other Names	-	-	087797-1002877971-1002877971002	087797-260087797-2600877972600	-	087797-2003877972-2003877972003	0877-97-0500877-97-050087797-0500877970500	087797-721387797-7213877977213	-	0877-97-2000877-97-200087797-2000877972000
