2-1971793-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2-1971793-2

2-1971793-2: Description(2-1971793-2) NEW GI CONN2.5 PLUG HSG 2P BLU; CategoryThe connector The connector; File Size326KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

2-1971793-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-1971793-2	-	-	View	Buy Now

2-1971793-2 Overview

(2-1971793-2) NEW GI CONN2.5 PLUG HSG 2P BLU

2-1971793-2 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it Rohs certified?	conform to
Objectid	8003322121
Reach Compliance Code	compliant
Samacsys Description	NEW GI CONN2.5 PLUG HSG 2P BLU
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-09 20:32:13
body width	0.231 inch
subject depth	0.231 inch
body length	0.224 inch
Body/casing type	PLUG
Connector type	PCB CONNECTOR
Contact arrangement	S0P2
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	30 Cycles
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
maximum insertion force	2.9468 N
Insulation resistance	500000000 Ω
Insulator color	BLUE
insulator material	GLASS FILLED POLYAMIDE66
MIL compliance	NO
Power Connector Ratings	3A
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	LATCHING
Installation method	STRAIGHT
Installation type	CABLE
Number of connectors	ONE
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-30 °C
Options	GENERAL PURPOSE
Panel mounting	NO
polarization key	POLARIZED
Rated current (signal)	3 A
Rated voltage	50 V
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.5 mm
Termination type	CRIMP
Total number of contacts	2
UL Flammability Code	94V-0
Maximum wire diameter	22 AWG
Minimum wire diameter	28 AWG
Evacuation force-minimum value	.11954 N

Preview

Download Datasheet

View All

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

LOC

DIST

BY - TE CONNECTIVITY

Notes:

1 GENERAL TOLERANCE # 0.3, # 3 $

2 MATERIAL: PA66 GF(UL94V-0)

3 6-1971793-1 AS SHOWN ARE ONLY FOR P/N

IN TABLE1

4 APPLICABLE CONTACT P/N:1971795-1

RESTRICTED TO SPECIAL CUSTOMER (HAIER)

10.40

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

(2 POS.)

(6 POS.)

TRADE MARK

ECR-15-007519

ECR-15-015566

ECR-17-017050

19AUG2015

19OCT2015

23NOV2017

A.Q

C.X

D.Z

2-1971798-1

3-1971798-2

3-1971798-4

YELLOW

NATURAL

BLUE

6-1971798-X

6-1971800-X

YELLOW

BLUE

RED

NATURAL

BLACK

TABLE 1

8.2

6.2

5.7 2.5 5.7

3-2232701-2

2-2232701-1

6-1971793-6

6-1971793-5

6-1971793-4

6-1971793-3

6-1971793-2

6-1971793-1

5-1971793-5

5-1971793-4

5-1971793-3

5-1971793-2

5-1971793-1

4-1971793-5

4-1971793-4

3-2232701-4

15.7 12.5 8.6

NATURAL

5-1971798-X

5-1971800-X

YELLOW

BLUE

RED

BLACK

13.2 10

8.6

NATURAL

4-1971798-X

4-1971800-X

YELLOW

BLUE

RED

BLACK

5.88

3.88

10.7 7.5 7.4

4-1971793-3

4-1971793-2

4-1971793-1

3-1971793-5

3-1971793-4

3-1971793-3

3-1971793-2

3-1971793-1

2-1971793-5

2-1971793-4

2-1971793-3

2-1971793-1

P/N

2-1971793-2

NATURAL

3-1971798-X

3-1971800-X

YELLOW

BLUE

RED

BLACK

8.2

6.2

NATURAL

2-1971798-X

2-1971800-X

YELLOW

BLUE

RED

BLACK

5.7 2.5 5.7

MATING CONN P/N

NATURAL

COLOR

KEYING

N(POS.)

M=2.5X(N-1)

2.50

Pitch

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

HJ.Z

28MAY2013

NAME

TE Connectivity

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

CIRCUIT NO.1

1470-19 (3/11)

MATERIAL

ANGLES

PLC

SEE NOTE

FINISH

0.3

0.13

0.013

0.0001

3 $

PRODUCT SPEC

YH.M

APPLICATION SPEC

108-106077

114-106077

WEIGHT

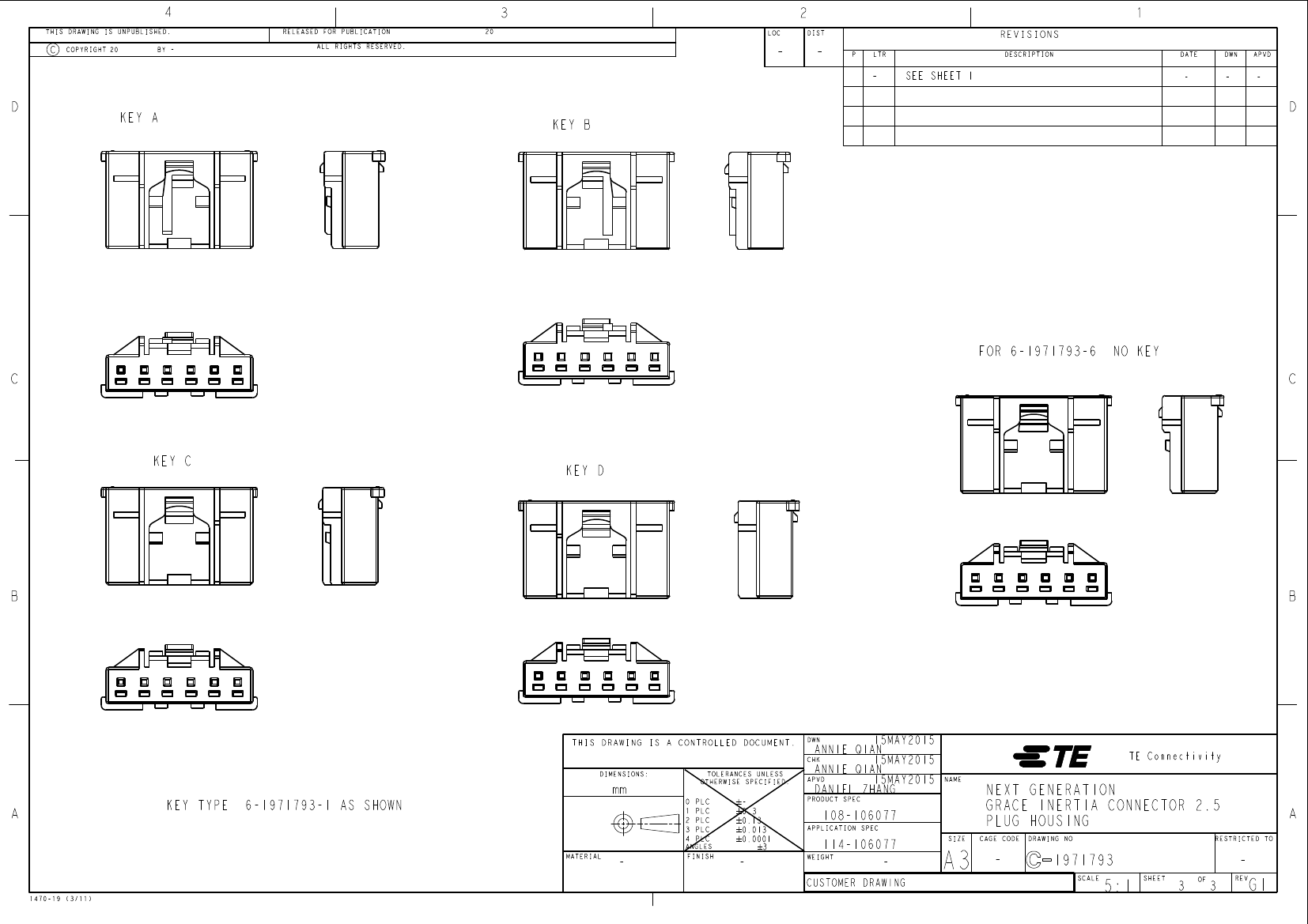

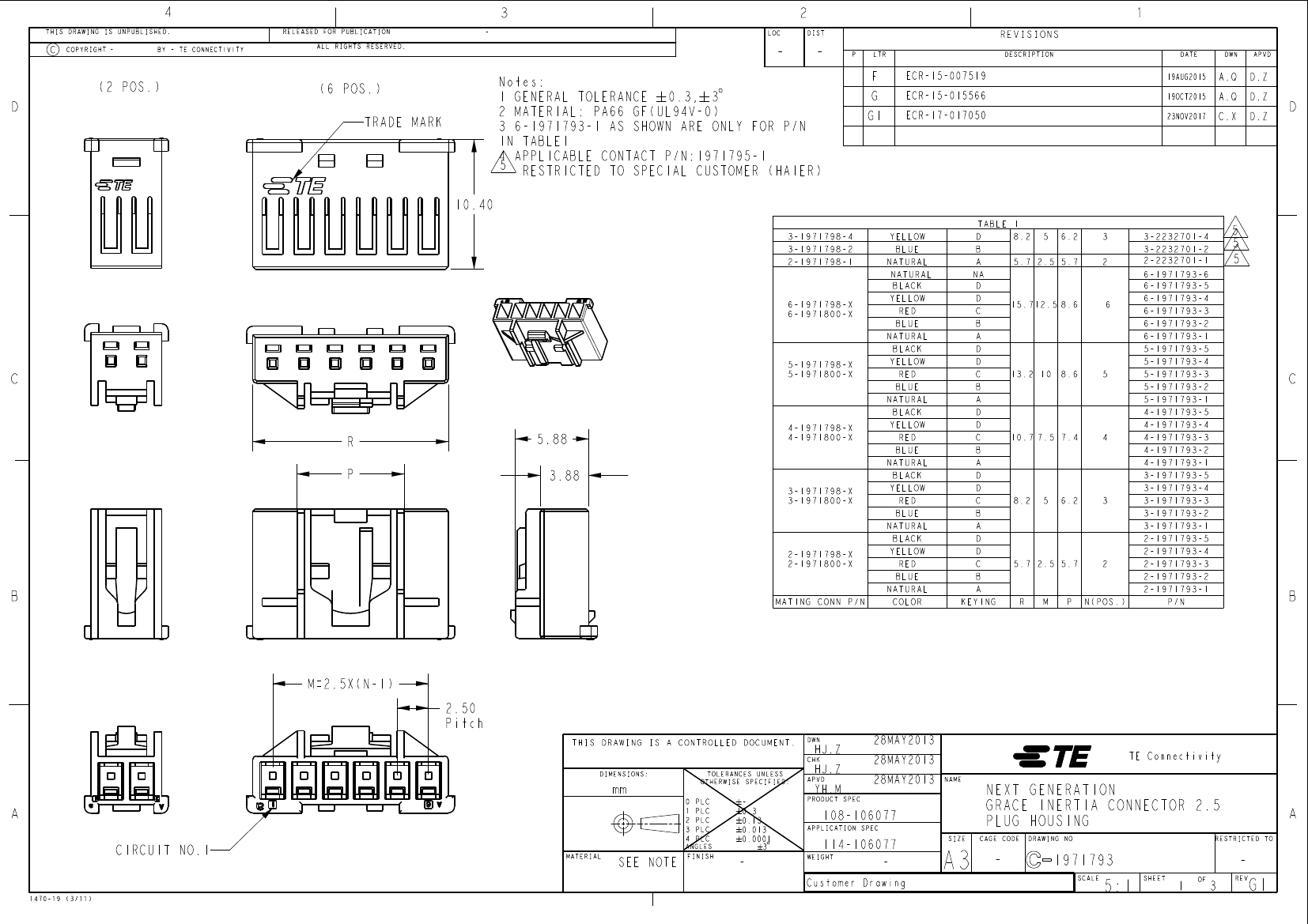

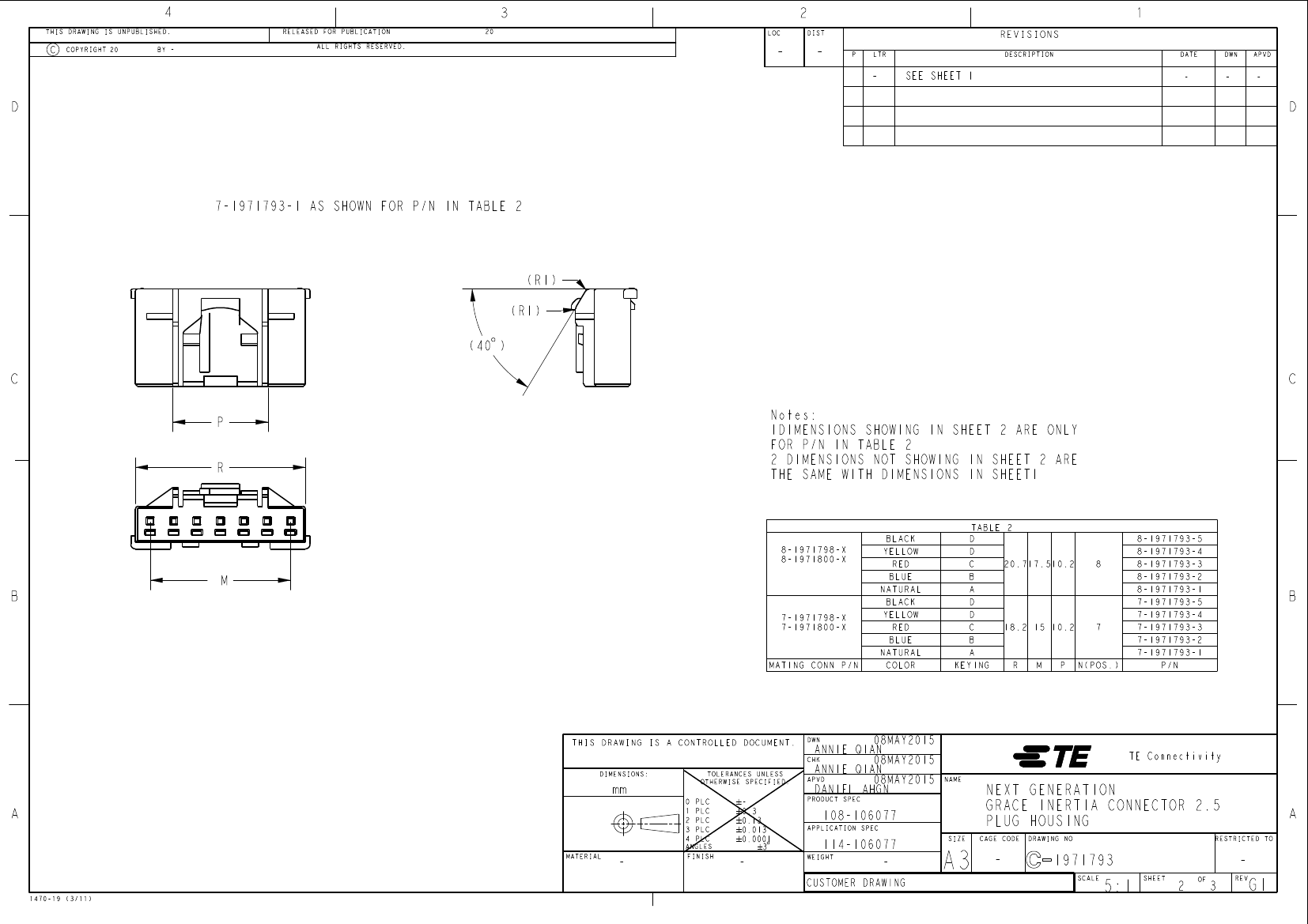

Customer Drawing

SIZE

CAGE CODE

NEXT GENERATION

GRACE INERTIA CONNECTOR 2.5

PLUG HOUSING

DRAWING NO

RESTRICTED TO

1971793

SCALE

5:1

SHEET

REV
