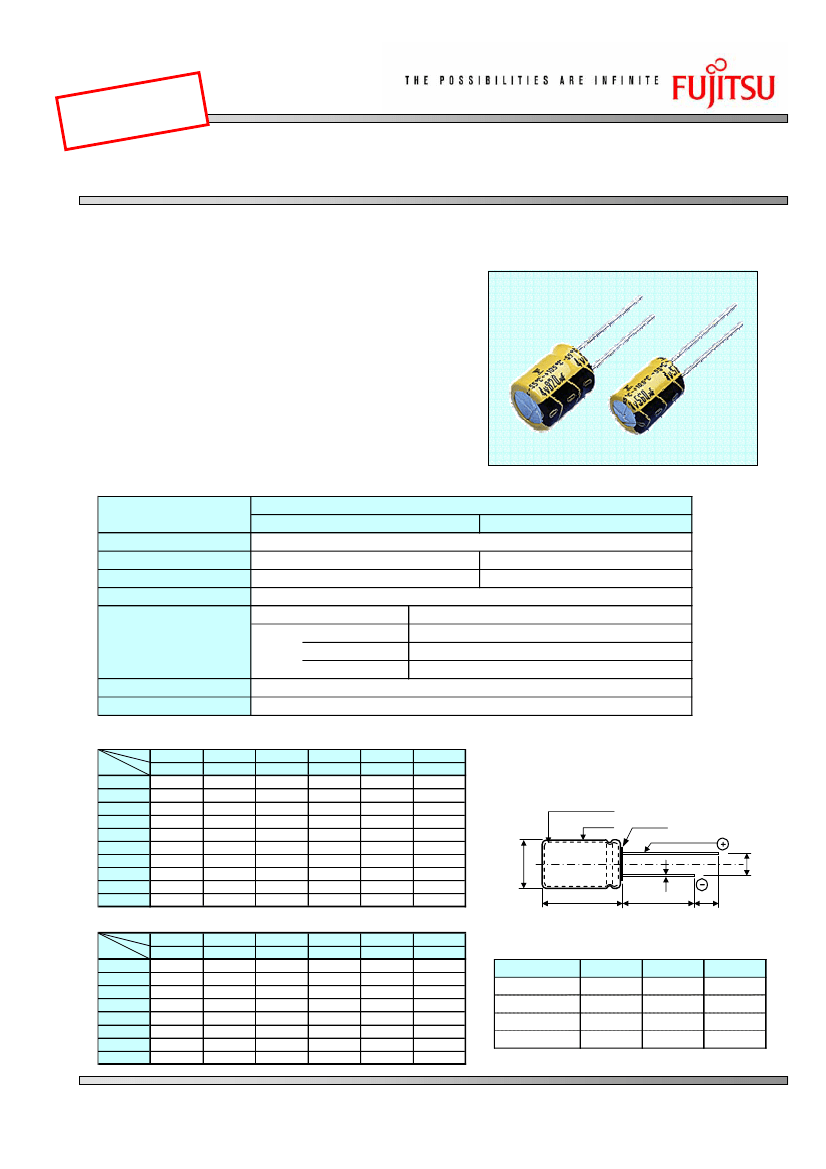

Functional Polymer Capacitors
FPCAP
Solid Electrolytic Capacitors with Functional Polymer
RE
Series
♦Features
Low ESR
♦Applications
By using Functional Polymer cathode, Frequency & Temp.
characteristics are greatly improved.
• Low ESR at a high frequency range.
• High ripple current capability.
• Long life and high reliability.(Reliability:0.05%/10000Hrs)
• Switching Power Supply and DC/DC Converter.
• Buck up Power Supplies of CPU(VRM etc.)
• Miniature high Power Supply.
♦Specifications
Items
Operating T emp. Range
Rated Voltage Range
Capacitance Range
Capacitance T olerance
Endurance
Standard type (0L)
6.3 to 25V·DC
10 to 330
µ
F
Characteristics
Extended capacitance type (SL)
-55 to +105°C
4.0 to 16V·DC
330 to 1200
µ
F
Reliability
Others
±20% (M)
Condition
105°C 2,000Hrs at rated voltage
Capacitance
Within ±20% of the value before test
Leakage Current
Not to exceed the value specified
Dissipation Factor Not to exceed 150% of the value specified
0.05% / 10,000Hrs. Max (60%CL)
JIS-C-5101-4
♦Dimensions
R.V.(V)
S.V
.(
Cap(µF)
V)
10
15
22
33
47
68
100
150
220
330
4.0
4.6
6.3
7.2
<Standard type : 0L>
10
11.5
16
18.4
(φD×L)
20
23.0
6.3×7
8×11.5
8×11.5
10×12.5
4.0
4.6
6.3
7.2
6.3×7
6.3×10
8×11.5
10×12.5
φD+0.5Max
6.3×7
6.3×7
6.3×10
8×11.5
8×11.5
10×12.5
φd
L+αMax
15Min
5Min
(Unit : mm)
R.V.(V)
S.V
.(
Cap(µF)
V)
<Extended capacitance type : SL>
10
11.5
8×11.5
16
18.4
10×12.5
(φD×L)
330
390
470
560
680
820
1000
1200
20
23.0
25
28.7
8×11.5
10×12.5
10×12.5
10×12.5
10×12.5
10×12.5
10×12.5
φ
D×L
6.3×7
6.3×10
8×11.5
10×12.5
φ
d
0.45
0.6
0.6
0.6
P
2.5
2.5
3.5
5.0
α
1.0
1.0
1.5
1.5
FUJITSU MEDIA DEVICES LIMITED
P±0.5
6.3×7
6.3×7
6.3×10
8×11.5
8×11.5
10×12.5
25
28.7
6.3×7
6.3×10
8×11.5
10×12.5
10×12.5
Aluminum Case
Sleeve
Stand off
Wire
Solid Electrolytic Capacitors with Functional Polymer FPCAP
♦Part
number & Specifications
Rated
Voltage
(V)
4.0
C apacitance
(
µ
F)
560
820
1200
47
150
220
6.3
330
390
680
820
1000
33
68
10
100
220
470
22
33
47
16
68
100
150
330
15
22
20
33
47
68
100
10
15
25
22
33
47
FP-4R0RE561M-SL
FP-4R0RE821M-SL
FP-4R0RE122M-SL
FP-6R3RE470M-0L
FP-6R3RE151M-0L
FP-6R3RE221M-0L
FP-6R3RE331M-0L
FP-6R3RE391M-SL
FP-6R3RE681M-SL
FP-6R3RE821M-SL
FP-6R3RE102M-SL
FP-010RE330M-0L
FP-010RE680M-0L
FP-010RE101M-0L
FP-010RE221M-0L
FP-010RE471M-SL
FP-016RE220M-0L
FP-016RE330M-0L
FP-016RE470M-0L
FP-016RE680M-0L
FP-016RE101M-0L
FP-016RE151M-0L
FP-016RE331M-SL
FP-020RE150M-0L
FP-020RE220M-0L
FP-020RE330M-0L
FP-020RE470M-0L
FP-020RE680M-0L
FP-020RE101M-0L
FP-025RE100M-0L
FP-025RE150M-0L
FP-025RE220M-0L
FP-025RE330M-0L
FP-025RE470M-0L
Part N umber
Leakage C urrent
(
µ
A, 2 minutes)
224.0
328.0
960.0
14.8
47.2
69.3
103.9
245.7
428.4
516.6
630.0
16.5
34.0
50.0
110.0
470.0
17.6
26.4
37.6
54.4
80.0
120.0
792.0
15.0
22.0
330
47.0
68.0
100.0
12.5
18.7
27.5
41.2
58.7
0.080
0.080
0.150
0.070
0.070
0.070
0.070
0.080
0.080
0.120
0.120
0.070
0.070
0.070
0.070
0.080
0.060
0.060
0.060
0.060
0.060
0.060
0.080
0.060
0.060
0.060
0.060
0.060
0.060
0.060
0.060
0.060
0.060
0.060
tan
δ
ESR
(m
Ω
, at100kH z)
10
8
10
42
21
21
10
10
10
10
10
49
35
21
10
10
49
49
42
25
21
10
10
63
49
49
28
25
15
63
49
28
20
20
Max mun permissible
Ripple C urrent
(mA, r.m.s.)
5230
5500
5500
2050
3900
3900
5500
5230
5500
5500
5500
1900
2650
3900
5500
5500
1900
1900
2400
3600
3900
5500
5500
1700
1900
2200
3400
3600
4500
1700
2200
3400
3800
3800
C ase Size
φ
D×L(mm)
8×11.5
10×12.5
10×12.5
6.3×7
8×11.5
8×11.5
10×12.5
8×11.5
10×12.5
10×12.5
10×12.5
6.3×7
6.3×10
8×11.5
10×12.5
10×12.5
6.3×7
6.3×7
6.3×10
8×11.5
8×11.5
10×12.5
10×12.5
6.3×7
6.3×7
6.3×10
8×11.5
8×11.5
10×12.5
6.3×7
6.3×10
8×11.5
10×12.5
10×12.5
♦Part
Number
(EX)
FP
Community
Mark
16V100µF
016
Rated
Voltage
RE
Series
Name
101
M
0L
Type Symbol
0L:Standard Cap.
SL:Extended Cap.
R
Lead
Forming
Management
number
Capacitance Capacitance
Tolerance
R:Bulk Long lead
J:2.5mm pitch taping
P:5mm pitch taping
C:Bulk cut lead
FUJITSU MEDIA DEVICES LIMITED
Sales Offices
•
North and South America
FUJITSU MEDIA DEVICES OF AMERICA INC,
1731 Technology Drive, Suite 800, San Jose, CA 95110 USA
Tel. +1-408-437-8900 Fax. +1-408-437-0700
•
Europe
FUJITSU MIKROELECTRONIK EUROPE GmbH
Am Siebenstein 6-10, D-63303 Dreieich-Buchschlag, Germany
Tel. +49-61-03-690-0
Fax. +49-61-03-690-122
•
Asia Pacific
FUJITSU MEDIA DEVICES HONG KONG LIMITED
Room. 1101 Ocean Centre, 5 Canton Road, Tsimshatsui Kowloon, Hong Kong
Tel. +852-2866-8509 Fax. +852-2866-8287
FUJITSU MEDIA DEVICES TRADING (Shanghai) LIMITED
Room. 3104, Bund Center 222 Yan An Road East, Shanghai 200002, China
Tel. +86-21-6323-4560 Fax. +86-21-6323-4510
Design and Specifications are subject to change without notice.
For more information. Please contact our sales office or distributor near to your company.
