87690-115R

Description
conn stacker 14pos 0.100" T/H
CategoryThe connector
File Size211KB,3 Pages
ManufacturerFCI [First Components International]
Download Datasheet Parametric Compare View All

87690-115R Overview

conn stacker 14pos 0.100" T/H

87690-115R Parametric

Parameter NameAttribute value

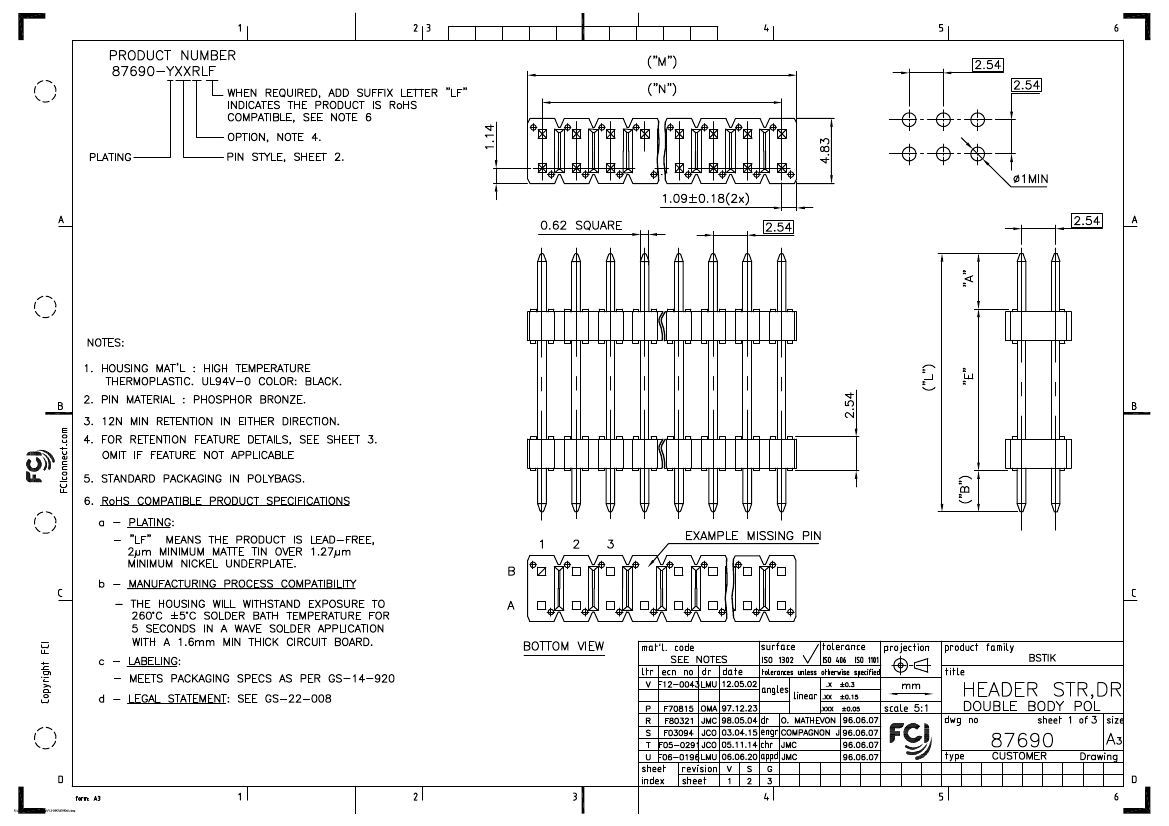

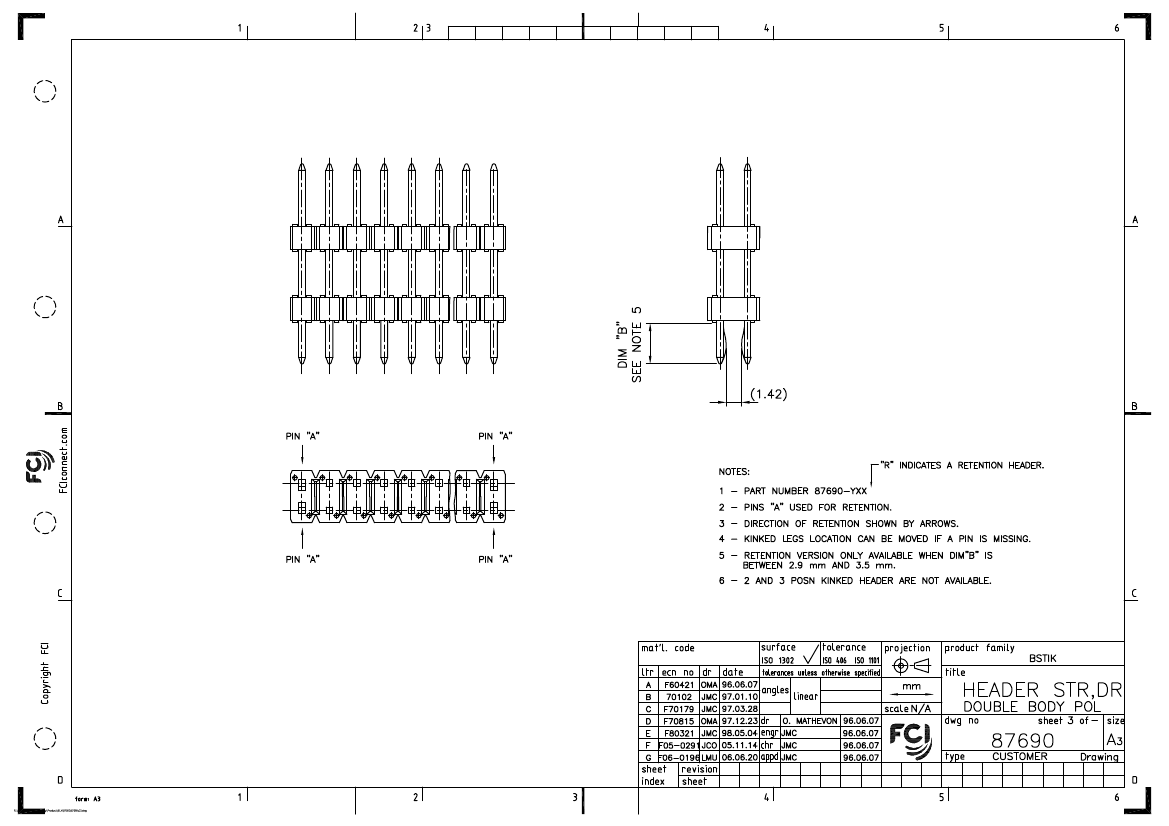

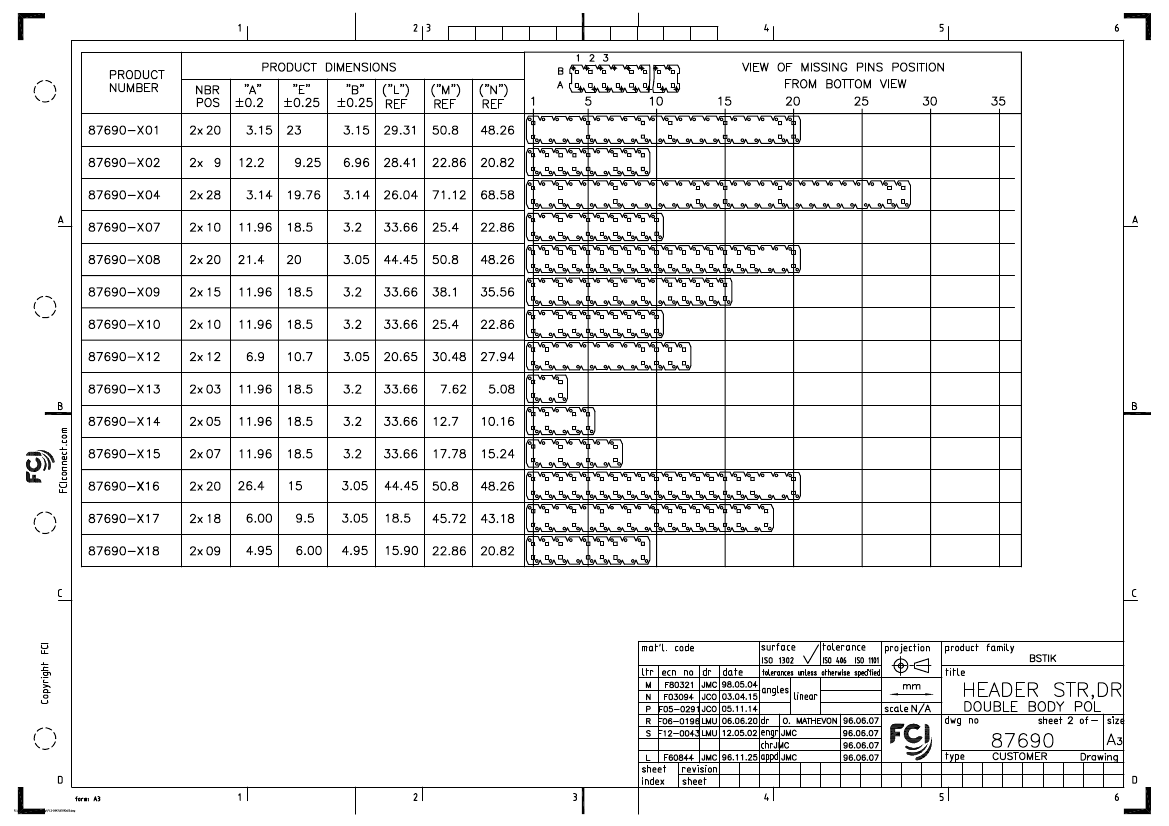

Datasheets
87690
Video File
Mezzselect Tool - Another Geek Mome
Featured Produc
MezzSelec
PCN Obsolescence/ EOL
HPL 522 577 578-& 538-559 12/Dec/2013
Standard Package100
CategoryConnectors, Interconnects
FamilyRectangular - Board to Board Connectors - Board Spacers, Stackers
PackagingBulk
Number of Positions14
Pitch0.100" (2.54mm)
Number of Rows2
Row Spacing0.100" (2.54mm)
Length - Overall1.325" (33.66mm)
Length - Post (Mating)0.471" (11.96mm)
Length - Stack Heigh0.728" (18.50mm)
Length - Tail0.126" (3.20mm)
Mounting TypeThrough Hole
TerminatiKinked Pin, Solde
Contact Finish - Post (Mating)Gold
Contact Finish Thickness - Post (Mating)30µin (0.76µm)
ColBlack
PDM: Rev:V
STATUS:
Released
Printed: Jun 28, 2012
.

87690-115R Related Products

87690-115R 87690-107R
Description conn stacker 14pos 0.100" T/H conn stacker 20pos 0.100" T/H
Standard Package 100 100
Category Connectors, Interconnects Connectors, Interconnects
Family Rectangular - Board to Board Connectors - Board Spacers, Stackers Rectangular - Board to Board Connectors - Board Spacers, Stackers
Packaging Bulk Bulk
Number of Positions 14 20
Pitch 0.100" (2.54mm) 0.100" (2.54mm)
Number of Rows 2 2
Row Spacing 0.100" (2.54mm) 0.100" (2.54mm)
Length - Overall 1.325" (33.66mm) 1.325" (33.66mm)
Length - Post (Mating) 0.471" (11.96mm) 0.471" (11.96mm)
Length - Stack Heigh 0.728" (18.50mm) 0.728" (18.50mm)
Length - Tail 0.126" (3.20mm) 0.126" (3.20mm)
Mounting Type Through Hole Through Hole
Terminati Kinked Pin, Solde Kinked Pin, Solde
Contact Finish - Post (Mating) Gold Gold
Contact Finish Thickness - Post (Mating) 30µin (0.76µm) 30µin (0.76µm)
Col Black Black
