Q30.0-JXS21P4-10-10/20-FU-HMR-LF datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> Q30.0-JXS21P4-10-10/20-FU-HMR-LF

Q30.0-JXS21P4-10-10/20-FU-HMR-LF: DescriptionParallel - Fundamental Quartz Crystal,; CategoryPassive components Crystal/resonator; File Size2MB，2 Pages; ManufacturerJauch; Websitehttp://www.jauchusa.com/; Environmental Compliance

Download Datasheet Parametric View All

Q30.0-JXS21P4-10-10/20-FU-HMR-LF Overview

Parallel - Fundamental Quartz Crystal,

Q30.0-JXS21P4-10-10/20-FU-HMR-LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7251035266
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
Country Of Origin	Taiwan
YTEOL	7.32
Other features	AT-CUT; TR, 7 INCH
Ageing	1 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.002%
frequency tolerance	10 ppm
JESD-609 code	e4
load capacitance	10 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	30 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L2.0XB1.6XH0.55 (mm)/L0.079XB0.063XH0.022 (inch)
Series resistance	50 Ω
surface mount	YES
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

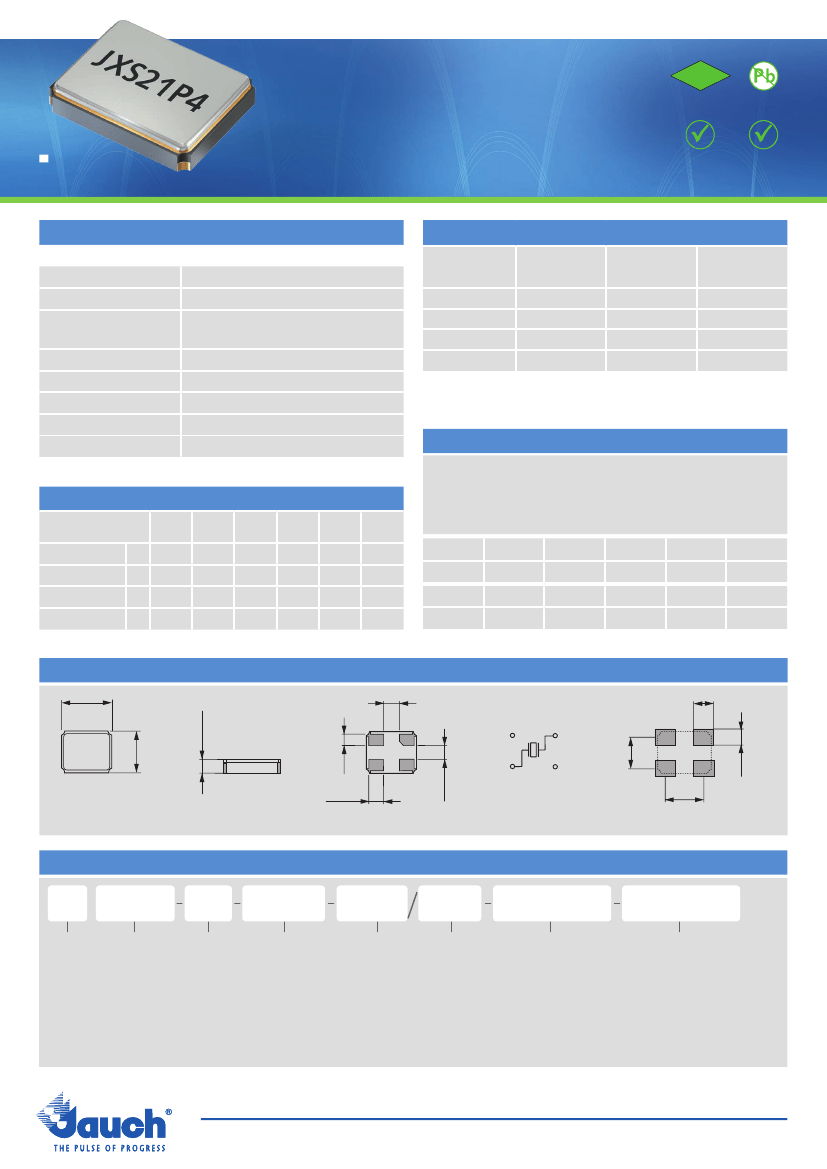

Automotive SMD Crystal · JXS21P4

- 4 Pad Version, 2.0 x 1.6 mm

- seam sealed ceramic/metal package

- all versions are AEC-Q200 qualified

- HMR version with extended shock & vibration immunity

actual size

2011/65/EC

RoHS

RoHS compliant

Pb free

REACH

compliant

Conflict

mineral free

GENERAL DATA

TYPE

frequency range

frequency tolerance at 25 °C

load capacitance C

shunt capacitance C

storage temperature

shock resistance

drive level max.

aging

JXS21P4

16.0 ~ 40.0 MHz

(fund. AT-cut)

ESR (SERIES RESISTANCE RS)

frequency

in MHz

16.0 ~ 19.999

20.0 ~ 29.999

30.0 ~ 35.999

36.0 ~ 40.000

vibration

mode

fund. - AT

ESR max.

in ½

150

100

ESR typ.

in ½

120

±10 ppm, ±20 ppm, ±30 ppm

8 pF / 10 pF / 12 pF standard

(option: 6 pF ~ 16 pF / series)

< 5 pF

-40 °C ~ +125 °C (T2, T3) / -40 °C ~ +85 °C (T1)

> 100 g

100 µW

(half sine pulse, 6.0 ms)*

(10 µW recommended)

< ±3 ppm first year (< ± 1 ppm for tol. ±10 ppm)

MARKING

* optional HMR version: 3000G / half sine pulse / 0.3 ms

TABLE 1: FREQUENCY STABILITY VS. TEMPERATURE

±15

ppm

±20

ppm

±25

ppm



frequency with load capacitance code

company code / date code / internal code

±50

ppm

±100

ppm

±30

ppm

date code: year/month; A ~ M: Jan. - Dec.; example 9A = 2019 January

9: 2019

0: 2020

1: 2021

2: 2022

3: 2023

4: 2024

Jan.

July

Febr.

Aug.

Mar.

Sept.

Apr.

Oct.

May

Nov.

June

Dec.

-20 °C ~ +70 °C

-40 °C ~ +85 °C

-40 °C ~ +105 °C

-40 °C ~ +125 °C





















available ∆ ask if available

DIMENSIONS

2.0

±0.1

1.6

±0.1

0.55 max.

0.47

±0.05

0.64

±0.05

1.1

±0.1

0.8

±0.1

1.4

±0.1

0.9

±0.1

0.50

±0.05

0.60

±0.05

top view

ORDER INFORMATION

side view

bottom view

#2–#4: connected to lid,

preferably connect to GND

crystal connection

pad layout

in mm

Quartz

frequency

16.0 ~ 40.0 MHz

type

JXS21P4

load capacitance

8/10/12 pF std.

6 pF ~ 16 pF

S for series

tolerance at

25 °C

10 = ±10 ppm

20 = ±20 ppm

30 = ±30 ppm

stability vs.

temp. range

see table 1

blank =

T1 =

T2 =

T3 =

FU =

option 1

option 2

AEC = AEC-Q200 qualified

-20 °C ~ +70 °C

HMR = high mechanical reliability

-40 °C ~ +85 °C

(3000g/half sine wave/0.3ms)

-40 °C ~+105 °C

-40 °C ~+125 °C

for fundamental

frequencies ≥ 20 MHz

Example: Q 26.0-JXS21P4-12-30/50-T2-FU-AEC-LF

(Suffix LF = RoHS compliant / Pb free)

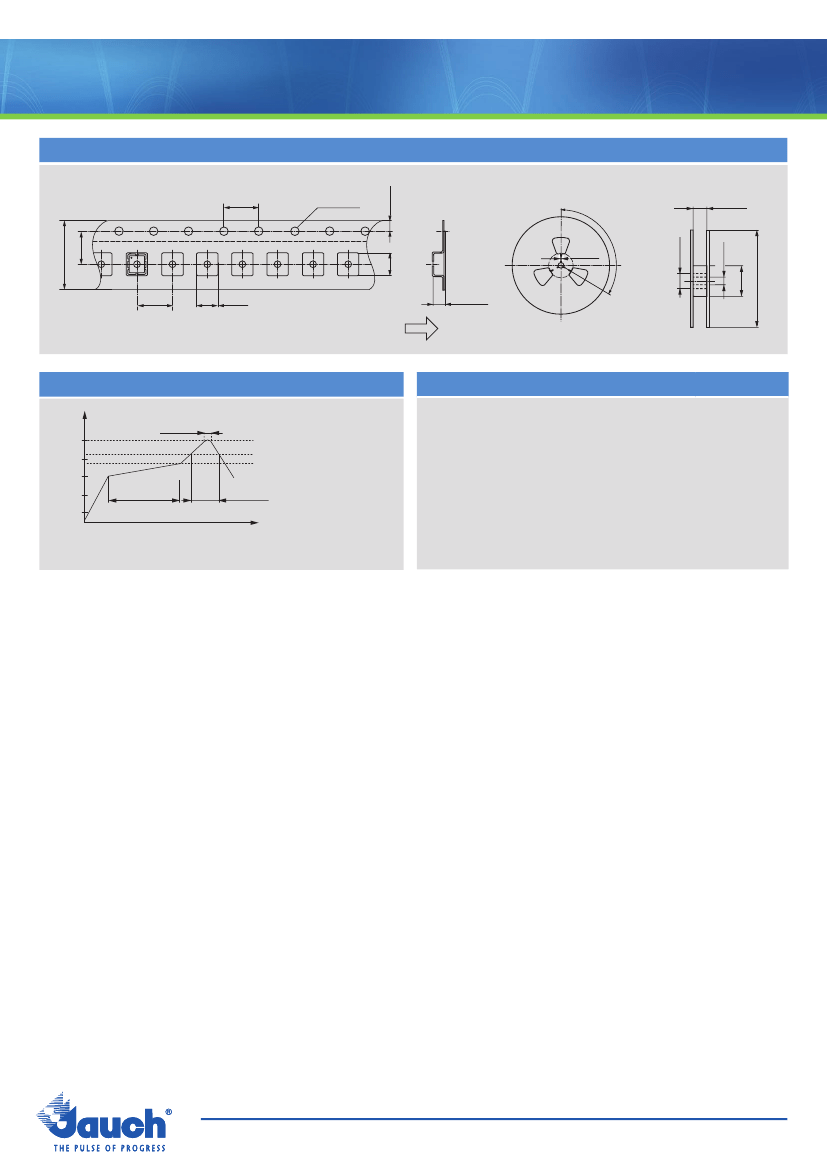

21032019

Jauch Quartz GmbH • e-mail: info@jauch.de • full data can bedata can be found under:

info@jauch.com

full found under: www.jauch.com

All specifications are subject to change without notice

www.jauch.de | www.jauch.co.uk | www.jauch.fr | www.jauchusa.com
