Quartz Crystal · SS4
- Pin Type Crystal, 11.35 x 4.65 mm
- wave soldering temperature: 260 °C max.
- package height 3.6 mm max.
actual size
2011/65/EC
RoHS
RoHS compliant
Pb free
REACH
compliant
Conflict
mineral free
GENERAL DATA
TYPE
frequency range fund. AT-cut
3rd OT AT-cut
fund. BT-cut
frequency tolerance at 25 °C
load capacitance C
L
shunt capacitance C
O
storage temperature
drive level max.
aging
SS4
3.27680 ~ 33.0 MHz
(>33.0 MHz, ask if available)
ask for availability
ask for availability
±20 ppm ~ ±50 ppm / ±50 ppm if ≤3.57 MHz
12 pF ~ 32 pF or series / 30 pF standard
< 5 pF
-40 °C ~ +125 °C
500 µW (100 µW recommended)
< ±5 ppm first year
ESR (SERIES RESISTANCE RS)
frequency
in MHz
3.276 ~ 3.499
3.500 ~ 3.999
4.000 ~ 5.999
6.000 ~ 6.999
7.000 ~ 8.999
9.000 ~ 13.999
14.000 ~ 33.000
(33.000 ~40.000)
ask
ask
vibration
mode
fund. - AT
fund. - AT
fund. - AT
fund. - AT
fund. - AT
fund. - AT
fund. - AT
fund. - AT
3rd OT - AT
fund. - BT
ESR max.
in ½
200
120
80
70
50
35
30
(30)
(100)
(50)
ESR typ.
in ½
100
80
60
35
25
15
10
(10)
(60)
(20)
numbers in brackets () only for reference
DIMENSIONS
3.6 max.
12.0 min.
4.65
±0.1
TABLE 1: FREQUENCY STABILITY VS. TEMPERATURE
±20
ppm
±30
ppm
±50
ppm
(*)
±100
ppm
±150
ppm
+10/-100
ppm
BT-cut
-20 °C ~ +70 °C STD.
11.35 max.
-40 °C ~ +85 °C T1
-40 °C ~ +105 °C T2
-40 °C ~ +125 °C T3
10.5 max.
4.88
±0.2
0.43
- 0.03
standard
available
ask, if available
(*) if ≤ 3.57 MHz, not better than ± 100 ppm at temp. range T1
+0.05
in mm
ORDER INFORMATION
Q
frequency
type
load capacitance
in pF
12 pF ~ 32 pF
S for series
30 pF standard
tolerance at
25 °C
30 = ±30 ppm std
20 = ±20 ppm
50 = ±50 ppm
stability vs.
temp. range
see table
blank =
T1 =
T2 =
T3 =
FU =
3OT =
BT =
MP =
TR =
TA =
KIS =
LL =
PT =
option
-20 °C ~ +70 °C
-40 °C ~ +85 °C
-40 °C ~ +105 °C
-40 °C ~ +125 °C
for fund. frequencies ≥ 20 MHz
3rd overtone (if available)
fundamental BT-cut (if available)
middle pin
taped
taped, ammo pack
insulation spacer
lead length in mm
plastic tray
Quartz 3.27680 ~ 33.0 MHz SS4
Example: Q 30.0-SS4-30-30/50-T1-FU-LF
(Suffix LF = RoHS compliant / Pb free pins)
25032019
Jauch Quartz GmbH • e-mail: info@jauch.de • full data can bedata can be found under:
full found under: www.jauch.com
info@jauch.com
All specifications are subject to change without notice
www.jauch.de | www.jauch.co.uk | www.jauch.fr | www.jauchusa.com

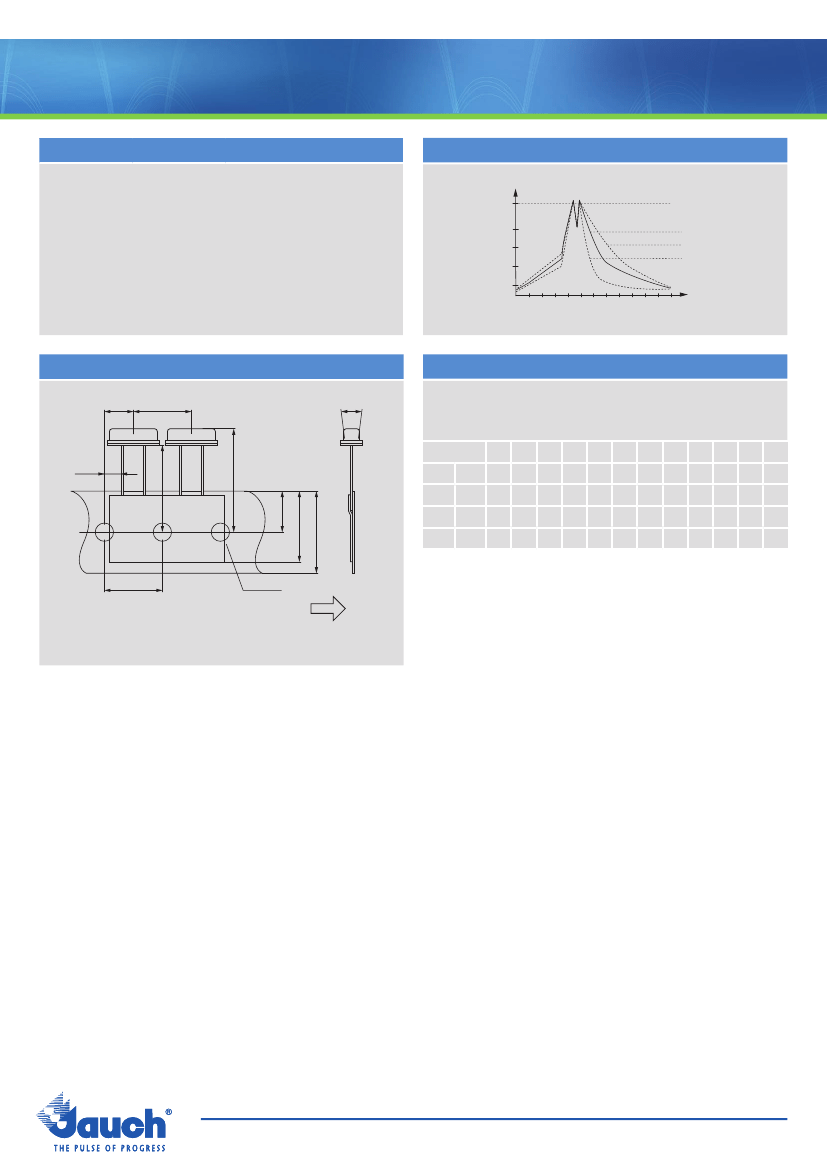

Quartz Crystal · SS4
LOAD CAPACITANCE CODES
12 pF: a
13 pF: v
14 pF: x
15 pF: j
16 pF: b
17 pF: t
18 pF: f
20 pF: c
22 pF: g
24 pF: d
25 pF: r
27 pF: w
30 pF: .
series: s
T: 3rd OT
WAVE SOLDERING PROFILE
bath temperature (°C)
32 pF: e
260
200
150
100
50
0
20
ca. 3.5 °C/s
ca. 2.0 °C/s
ca. 5.0 °C/s
example 4.0 MHz / 12 pF: 4a000
60 100 140 180 220
time (seconds)
TAPING SPECIFICATION
6.35
±1.3
12.7
±1.0
0
±2.0
MARKING
frequency with load capacitance code
company code / date code / internal code
Jan. Feb. Mar. Apr. May Jun. Jul. Aug. Sep. Oct. Nov. Dec.
2019 2023
a
n
A
N
b
p
B
P
c
q
C
Q
d
r
D
R
e
s
E
S
f
t
F
T
g
u
G
U
h
v
H
V
j
w
J
W
k
x
K
X
l
y
L
Y
m
z
M
Z
3.85
±1.7
18
+2.0/-0.5
24.55 max.
9.0
+0.75/-0.5
2020 2024
15.5 max.
18.0
+1/-0.5
2021 2025
2022 2026
12.7
±1.0
ø 4.0
±0.2
Direction of feed
in mm
25032019
Jauch Quartz GmbH • e-mail: info@jauch.com • full data can bedata can be found under:
info@jauch.de
full found under: www.jauch.com
All specifications are subject to change without notice
www.jauch.de | www.jauch.co.uk | www.jauch.fr | www.jauchusa.com
