Ribbon Cable Connector (Pin Header)
HIF3E Series

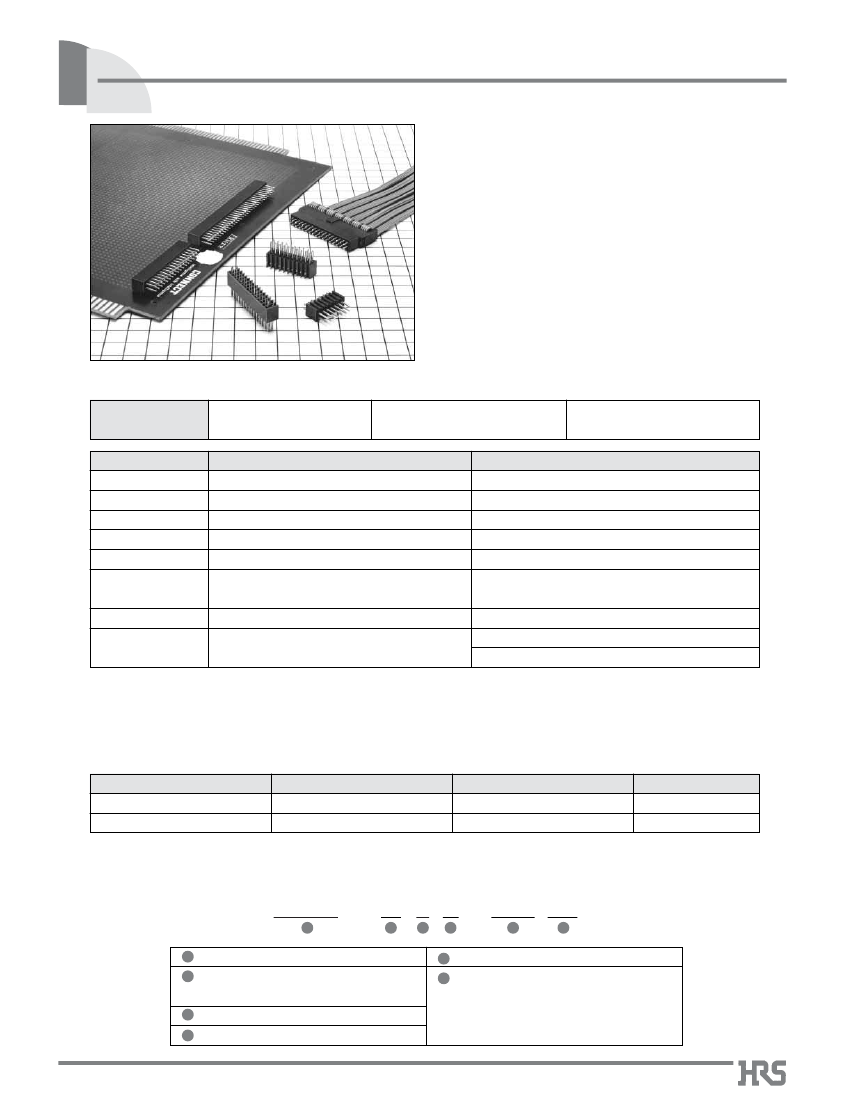

■Features
1. Product Variation
The straight type connector is connected vertical to the
printed board, and the right angle type connector is
connected horizontal to the printed board.
2. Compatibility
This pin header is compatible with HIF3B series.
■Applications
Computers, terminal equipment, PPC, various kinds of
electronic equipment, business machines, etc.
■Product
Specifications
Rating
Current rating: 1A
Voltage rating: 200V AC
Specification
1000M
ohms
min.
500V DC
650V AC/1 minute
0.1A
Operating Temperature Range:–55 to
+85ç
(Note 1)
Operating Moisture Range:40 to 80%
Storage Temperature Range:–10 to
+60ç
(Note 2)
Storage Humidity Range:40 to 70% (Note 2)
Condition
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
4. Vibration
No flashover or insulation breakdown.
15m
ohms
max.
No electrical discontinuity of 1μs or more
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(–55ç: 30 minutes
➝15
to 35ç: 5 minutes max.
125ç: 30 minutes
➝15
to 35ç: 5 minutes max.) 5 cycles
500 cycles
5.
Humidity (Steady state)
Insulation resistance: 1000M
ohms
min.
6. Temperature Cycle
No damage, cracks, or parts looseness.
7. Durability (Mating/un-mating) Contact resistance: 15m
ohms
max.
8. Resistance to Soldering heat
No deformation of components affecting performance.
Solder Bath: 260ç for 10 seconds
Manual soldering: 360ç for 5 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range
and Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3: Information contained in this catalog represents general requirements for this Series.Contact us for the drawings and
specifications for a specific part number shown.
■Material
Part
Insulator
Contact
Material
PBT
Brass
Finish
Black
Selective gold plating over nickel underplated
Remarks
UL94V-0
---------------
■Ordering
Information
HIF3E
1
1
Series Name: HIF3E
-
*
P A - 2.54 DS
2
3
4
5
6
5
Contact Pitch: 2.54mm
6
Contact type DSS: Right angle type
DSA: Straight type
2
Number of contacts: 8, 10, 12, 16, 18, 20,
26, 30, 34, 40, 50, 60
3
P: Pin header
4
A: Selective gold plating
B51
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will
Connector
soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
HIF3E Series●Ribbon Cable
be discontinued
(Pin Header)

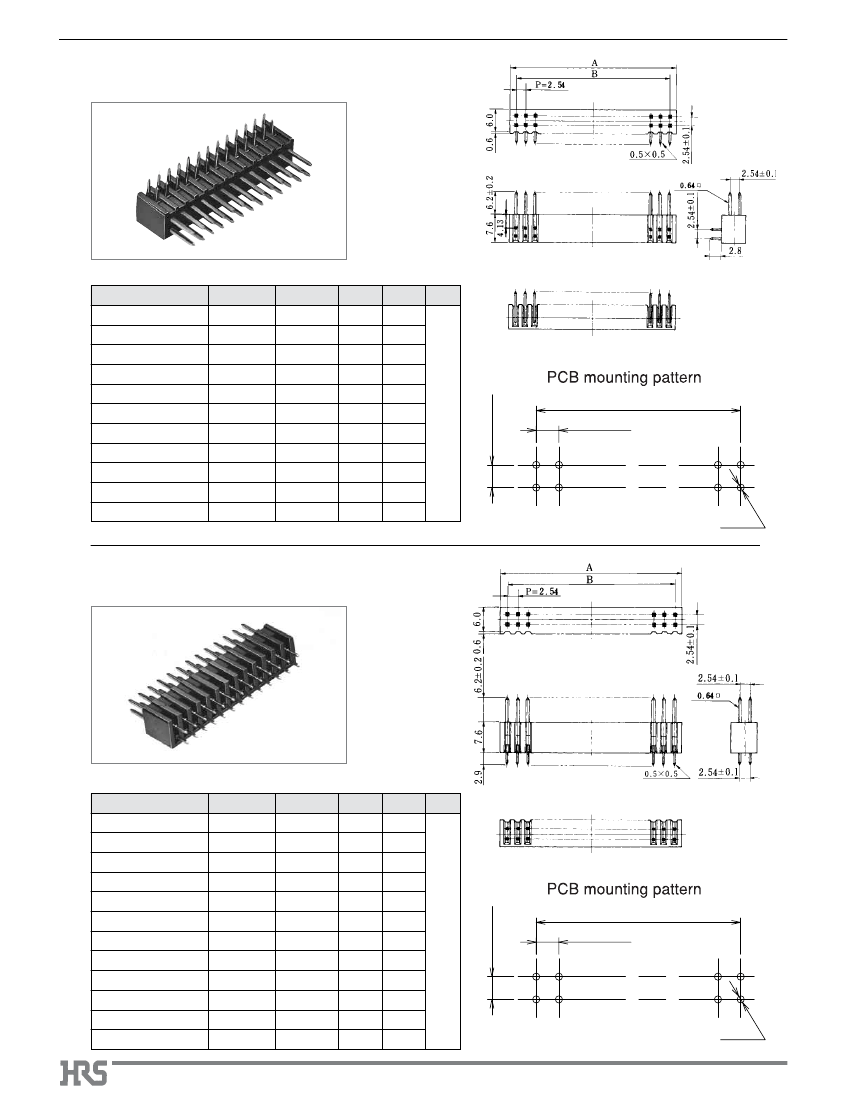

■Right
Angle Pin Header
Unit: mm
Part Number
CL No.
Number of Contacts
10
12
16
18
20
26
30
34
40
50
60
A
13.7
16.24
21.3
23.86
26.4
34.0
39.1
44.2
51.8
64.5
77.2
B
10.16
12.7
17.78
20.32
2.54±0.05
RoHS
HIF3E-10PA-2.54DS(71) 614-0041-0-71
HIF3E-12PA-2.54DS(71) 614-0050-0-71
HIF3E-16PA-2.54DS(71) 614-0042-2-71
HIF3E-18PA-2.54DS(71) 614-0051-3-71
HIF3E-20PA-2.54DS(71) 614-0043-5-71
HIF3E-26PA-2.54DS(71) 614-0044-8-71
HIF3E-30PA-2.54DS(71) 614-0045-0-71
HIF3E-34PA-2.54DS(71) 614-0046-3-71
HIF3E-40PA-2.54DS(71) 614-0047-6-71
HIF3E-50PA-2.54DS(71) 614-0048-9-71
HIF3E-60PA-2.54DS(71) 614-0049-1-71
22.86
30.48
35.56
40.64
48.26
60.96
73.66
YES
C±0.1
2.54±0.05
Ø0.8
+0.1
0
■Dip
Pin Header
Unit: mm
Part Number
CL No.
Number of Contacts
8
10
12
16
18
20
26
30
34
40
50
60
A
11.2
13.7
16.24
21.3
23.86
26.4
34.0
39.1
44.2
51.8
64.5
77.2
B
7.62
10.16
12.7
17.78
20.32
RoHS
HIF3E- 8PA-2.54DSA(71)
614-0072-3-71
HIF3E-10PA-2.54DSA(71)
614-0061-7-71
HIF3E-12PA-2.54DSA(71)
614-0070-8-71
HIF3E-16PA-2.54DSA(71)
614-0062-0-71
HIF3E-18PA-2.54DSA(71)
614-0071-0-71
HIF3E-20PA-2.54DSA(71)
614-0063-2-71
HIF3E-26PA-2.54DSA(71)
614-0064-5-71
HIF3E-30PA-2.54DSA(71)
614-0065-8-71
HIF3E-34PA-2.54DSA(71)
614-0066-0-71
HIF3E-40PA-2.54DSA(71)
614-0067-3-71
HIF3E-50PA-2.54DSA(71)
614-0068-6-71
HIF3E-60PA-2.54DSA(71)
614-0069-9-71
2.54±0.05
22.86
30.48
35.56
40.64
48.26
60.96
73.66
C±0.1
2.54±0.05
YES
Ø0.8
+0.1
0
B52
