5523-4-08-2: DescriptionPCMCIA Connector, 8 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal; CategoryThe connector The connector; File Size94KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

5523-4-08-2 Overview

PCMCIA Connector, 8 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal

5523-4-08-2 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
Board mount options	PEG
subject depth	1.041 inch
body length	0.762 inch
Connector type	PCMCIA CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
Durability	10000 Cycles
maximum insertion force	6.672 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	5523
Plug contact pitch	0.1 inch
Match contact row spacing	0.327 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	8
Evacuation force-minimum value	.2502 N
Base Number Matches	1

Preview

Download Datasheet

View All

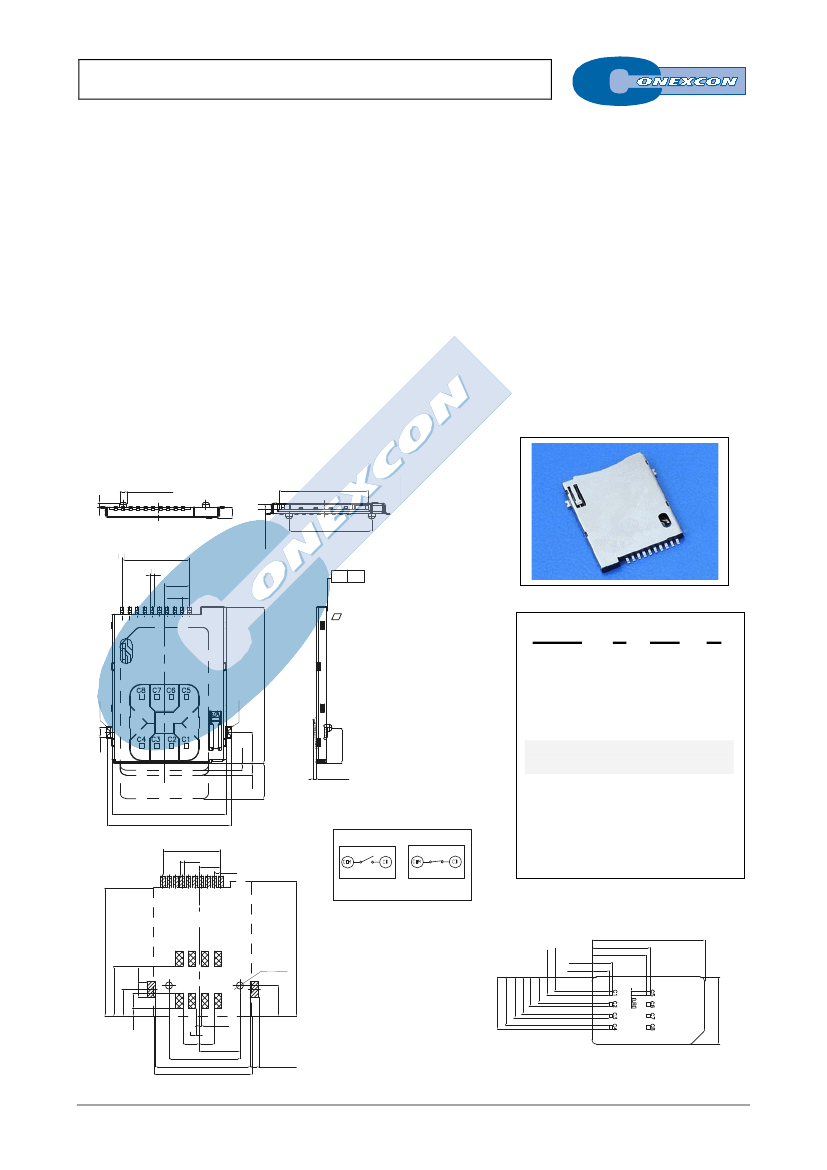

SIM CARD SOCKET PUSH-PUSH 8 CONTACTS

5523 SERIES.

SIM card socket.

General Features

Electrical Features



Available in 8 contacts

Accept SIM card 8 contacts

Contact area: different gold plating over 50 µ nickel

Solder area: 100 U tin plating over 50 µ nickel

With plastic peg to fix PCB

Stand off: 0 mm. With card detect



Voltage rating: < 30 V

Current rating: < 0.50 A

Contact resistance: < 30 mΩ

Dielectric withstanding voltage: 500 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features



Insulator: LCP + 30% GF UL 94 V-0

Contact: Brass

Switch terminal: Phosphor bronze

Shell: SUS304 t= 0,20 mm

Operating temperature. -25ºC to +85ºC

RoHS compliant



Contact retention force: > 0.10 Kgf

Insertion force: < 0.70 Kgf

Withdrawal Force: > 0.026 Kgf

Durability: 10.000 cycles

Dimensional Information

ø1.20±0.05

1.80±0.10

0.70

0.90±0.05

15.15±010

14.00±010

11.43±0.10

0.56±0.10

4.26

1.27

COM

0.10

CD C8 C4 C7 C3 C6 C2 C5 C1

5523 - T- XX- E

1

Zone A

26.45

2

3

4

1. Series

6.00±0.10

2. Plating Options

1.70

1.20

5.25



T =

4.

10µ” gold over nickel

Recommended Finish

3. Number of circuits

2.0

6.00

0.55 Max.

19.35

20.95



Available in 8 circuits

Without Card

11.43

0.90

4.28

1.27

Card inserted

5. Packing Options



E =

2.

Reel

CARD DETECT SW. STATUS

COM

CD C8 C4 C7 C3 C6 C2 C5 C1

Card

Center

25.25

26.50

25.00±0.10

12.88 min.

12.08 max.

4.58 min.

3.78 min.

3.23 Max.

4.03 Min.

3.00

ø1.40±0.1

6.57 Min.

8.31 Max.

9.11 Min.

10.85 Max.

11.65 Min.

5.77Max.

9.78

5.25

3.00

6.00

15.00±0.10

1.48

0.61

0.53

3.15 3.07

8.10

14.00±0.05

18.65

19.35

RECOMMENDED HOLE PATTERN

1.70±0.10

APPLICABLE CARD SIZE

E-XX
