5-964702-3 |
964702-2 |
| Description |

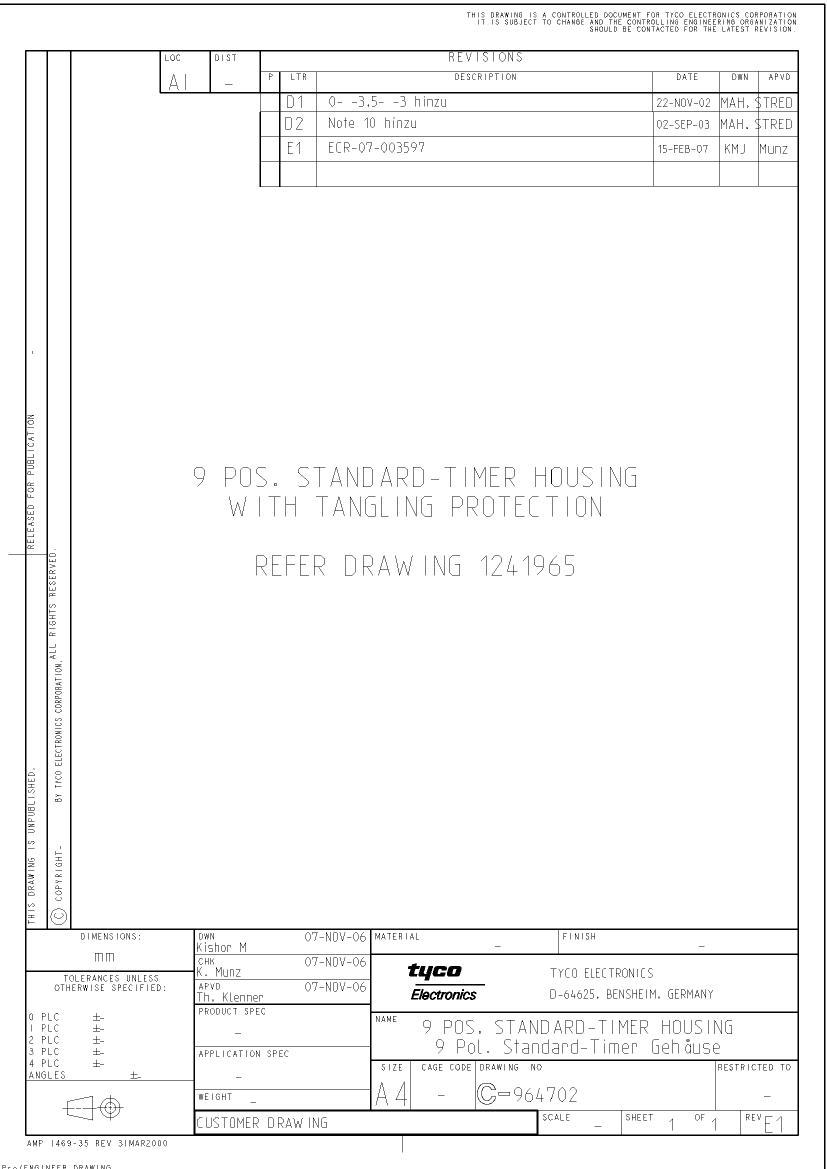

STD-TIMER HOUSING 9POS |
STD-TIMER GEH 9P |
| Connector System |
line to line |
line to line |
| Sealable |
no |
no |
| Connectors and terminals terminate to |
Wires and cables |
Wires and cables |
| Glow Wire Ratings |
glow wire |
glow wire |
| stress relief |
Without |
Without |
| Number of Positions |
9 |
9 |
| Rows |
1 |
1 |
| Key rib number (between or at) |
3d,7d |
2c/8d |
| color |
Khaki |
black |
| Cable termination method |
crimp |
crimp |
| PCB installation and fixation |
Without |
Without |
| Mating connector latch type |
latch, latch |
latch, latch |
| Panel mount features |
Without |
Without |
| Engage connector latch |
with |
with |
| joint fixation |
with |
with |
| Joint fixation type |
lock, lock |
lock, lock |
| Connector mounting type |
Cable installation |
Cable installation |
| joint alignment |
with |
with |
| Number of cavities between lock pins |
1&2, 6&7 |
2&3/7&8 |
| Joint alignment type |
keying |
keying |
| Polarization rib position |
5b |
2b/5a |
| Centerline (Pitch) |
5 mm [ .197 in ] |
5 mm [ .197 in ] |
| Shell material |
nylon |
nylon |
| Shell color |
nature |
black |
| length |
45 mm [ 1.771 in ] |
45 mm [ 1.771 in ] |
| Height (mm) |
.567, 14.4 |
.567, 14.4 |
| Working group temperature range |
-40 – 110 °C [ -40 – 230 °F ] |
-40 – 110 °C [ -40 – 230 °F ] |
| Circuit Application |
Power and Signal |
Power and Signal |
| UL flammability rating |
UL 94V-2 |
UL 94V-2 |
| RAST version |
none |
none |
| Encapsulation method |
carton |
boxes and cartons |
| Package quantity |
1000 |
1200 |
| Connector type |
female end |
female end |
| Lock type |
external |
external |
