REVISIONS
REV.
H
J
F
ECO. NO
2631
2829
DESCRIPTION
DATE
ADD TOLERANCE FOR GUIDE POST & PCB HOLE FOR
7/19/2012
GUIDE POSTS
ADD INSULATOR MATERIAL 'LCP' OPTION, UPGRADE 09/11/2014
NYLON 6T TO NYLON 9T
BY
JH
LH/JHSU
F
E
E
.079 2.00
.079 2.00
A±.008 [ .20]
D
B±.012 [ .30]
.157 4.00
.065 1.65
.173±.006 4.40±0.15
.213 5.40
D
.020 0.50
C
.039 1.00
.031±.004 0.80±0.10
C±.008 [ .20]
2X
02-20, 0.20mm MAX.
21-40, 0.30mm MAX.
.268 6.80
.039±.003 1.00±0.08
.008 0.20
OPTIONAL
A
.079 2.00
.228±.006 5.80±0.15
C
.071 1.80
B
B
.098 2.50
A
NOTES:
1. INSULATOR MATERIAL: SEE PART NUMBER CODING, UL 94V-0, COLOR: BLACK
2. CONTACT MATERIAL: PHOSPHOR BRONZE
3. CONTACT PLATING: .000030" - .000050" NICKEL UNDERPLATING,
GOLD FLASH OVERALL
4. CURRENT RATING: 2 AMPS
5. INSULATOR RESISTANCE: 5000 MEGOHMS MIN
6. CONTACT RESISTANCE: 20 MILLIOHMS MAX
7. DIELECTRIC WITHSTANDING: 500 VAC
8. OPERATING TEMPERATURE: SEE PART NUMBER CODING
9. PROCESSING TEMP.: SEE PART NUMBER CODING
10. MATES WITH SULLINS .079 [2.00] CONTACT CENTER MALE HEADER SERIES
(.020 [0.50] SQUARE POSTS)
8
7
6
5
.039 1.00
C
RECOMMENDED PCB SMT LAYOUT
.039 1.00
Pb
RoHS
COMPLIANT
4
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES [MM]
TOLERANCES:
ANGULAR:
DECIMALS
.XX= .01 [.3]
.XXX= .008 [.20]
.XXXX= .0040 [.100]
3
DRAWN
DATE
NAME
01/12/2009 JH
THE INFORMATION HEREIN CONTAINS
PROPIETARY INFORMATION OF
SULLINS ELECTRONICS AND IS NOT
TO BE REPRODUCED, USED OR
DISCLOSED TO OTHERS FOR ANY
PURPOSE EXCEPT AS SPECIFICALLY
AUTHORIZED IN WRITING BY AN
OFFICER OF SULLINS ELECTRONICS.
TITLE
PART NUMBER
SIZE

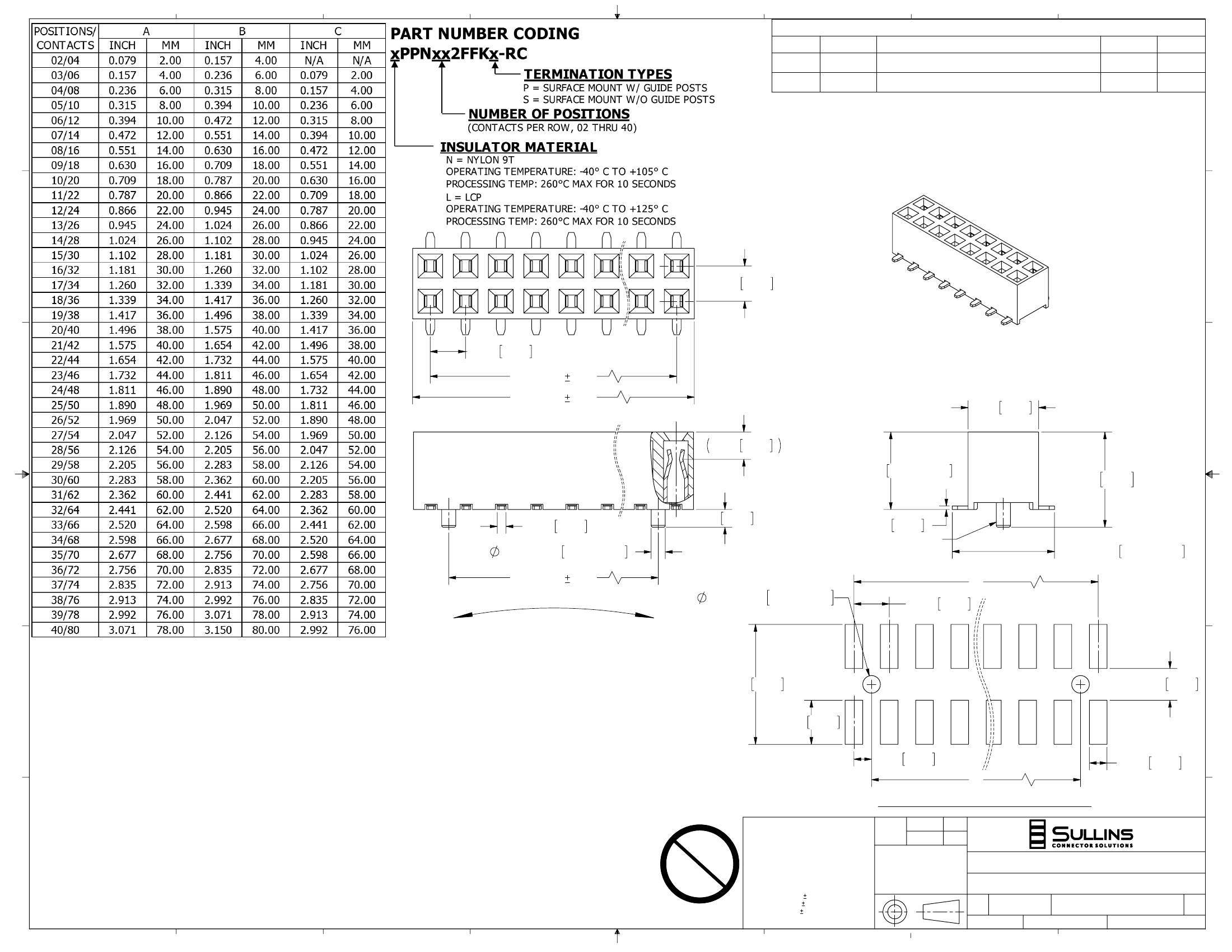

HEADER, FEMALE 2mm CC, 2 ROWS, SMT
CAGE CODE
A
SCALE: 8:1
2
C
54453
DWG. NO.
xPPNxx2FFKx-RC
10485
SHEET 1 OF 1
1
REV
J
FILE NAME: 10485, xPPNxx2FFKx-RC
