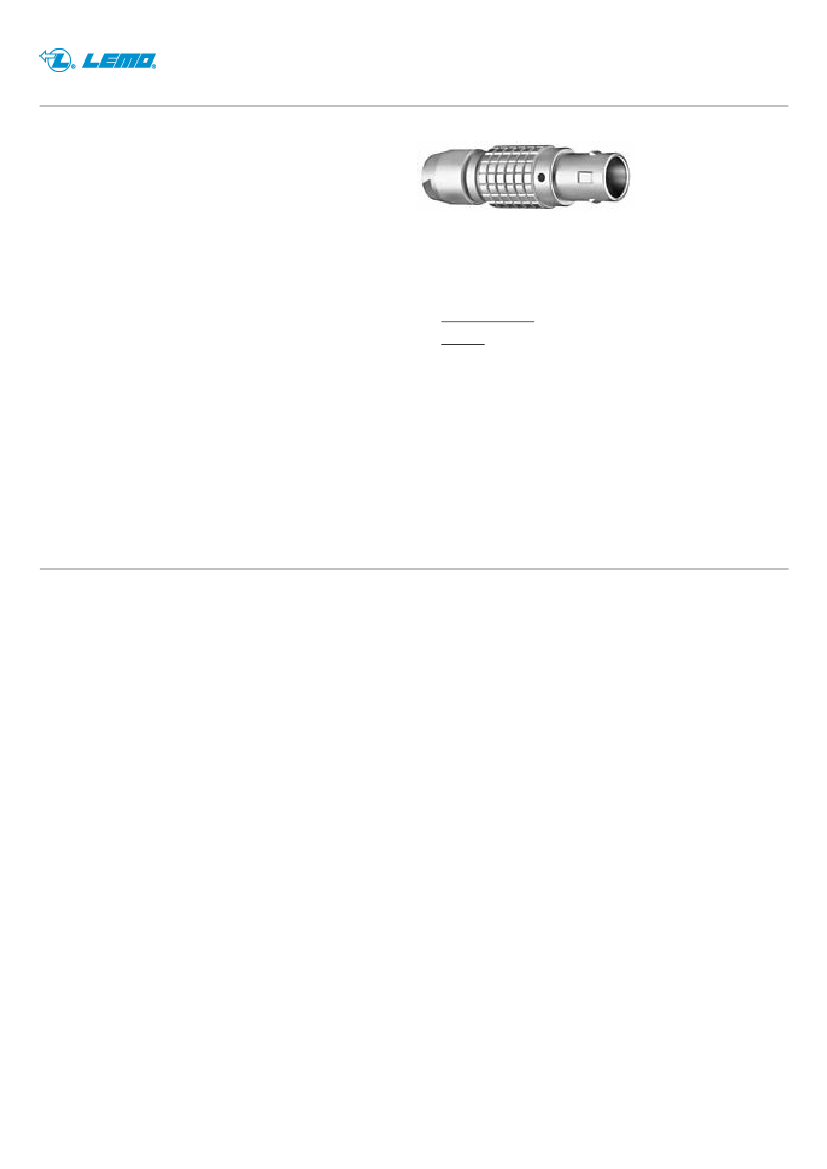

1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
D62: 4.9 - 6.2 mm
Performance
Configuration
Insulator
Rated Current
3B.242 : 2 Coax (50 Ohm)
L: PEEK (UL 94 / V-0/3.2, depends on material thickness)
2 Amps
Specifications
Contact Type: Coaxial 50 Ohm (Crimp) Type C
Max. Matings: 5000
Contact Dia.: 0.7 mm (0.028in)
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
1/3
Min. Conductor: 0.34 mm^2 (AWG 22)
Max. Conductor: 0.34 mm^2 (AWG 22)
R (max): 5.8 mOhm
Test voltage (kV rms): â??
Test voltage (kV dc): â??
Cable type: RG 179 B/U, RG 187 A/U
Others
Temp (min / max): -55°C / +250°C
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Salt Spray Corrosion: >1000 hr
Climatical Category: 50/175/21
Shielding (min): 75 dB (10 MHz)
Shielding (min): 40 dB (1 GHz)
IP Rating: 50

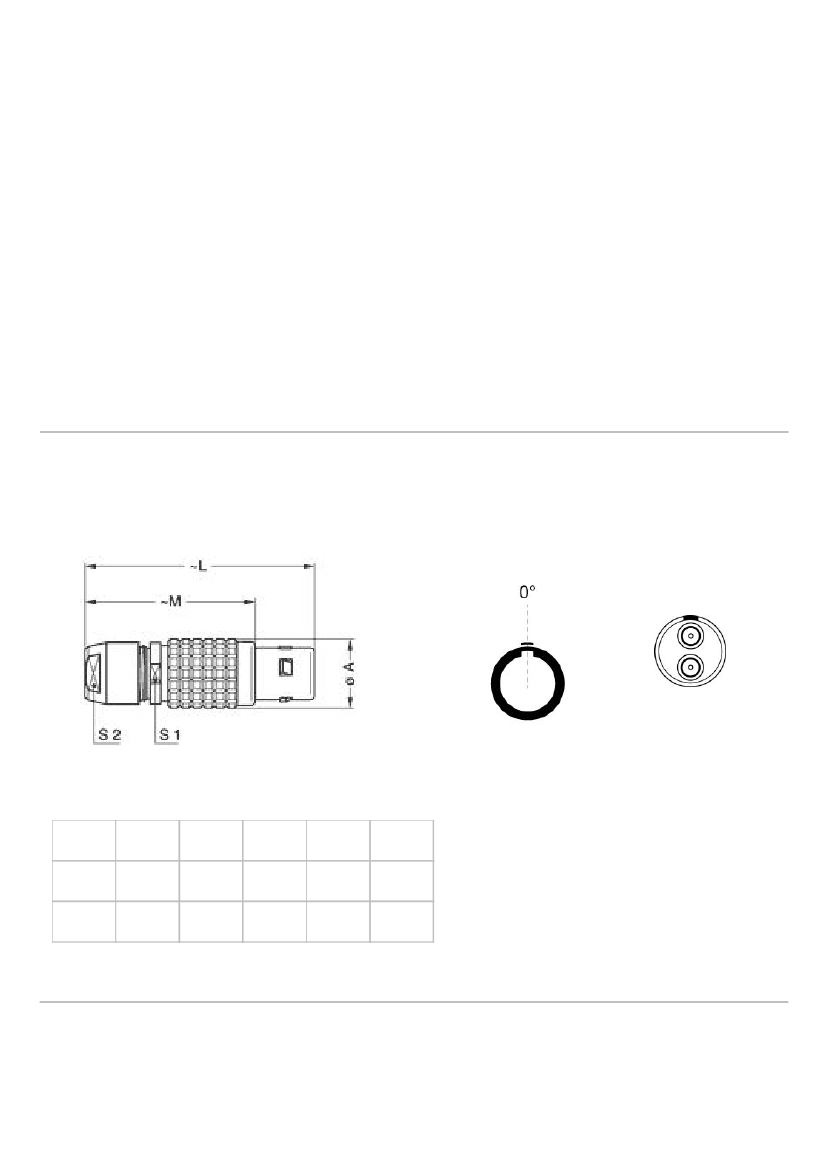

DRAWINGS
Draws
Dimensions
A
mm.
in.
18
0,71
L
58
2,28
M
43
1,69
S1
15
0,59
S2
14
0,55
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
2/3
RECOMMENDED BY LEMO
Tools
Extractor: DCC.91.384.5LA
Coax Tool: -
Die Tool: DPE.99.103.8K
Spanner wrench: DCD.3B.040.PA140
Caps: BFG.3B.100.PCSG
Cables
