0.3 mm Pitch, 0.9 mm above the board, Top and bottom Contact,
Back-Flip actuator Flexible Printed Circuit ZIF Connectors
FH35 Series
qSmall
size (35 pos. shown)
0.9mm
12.1
mm(
35 c
ondu
ctors
)
3.
m
2m

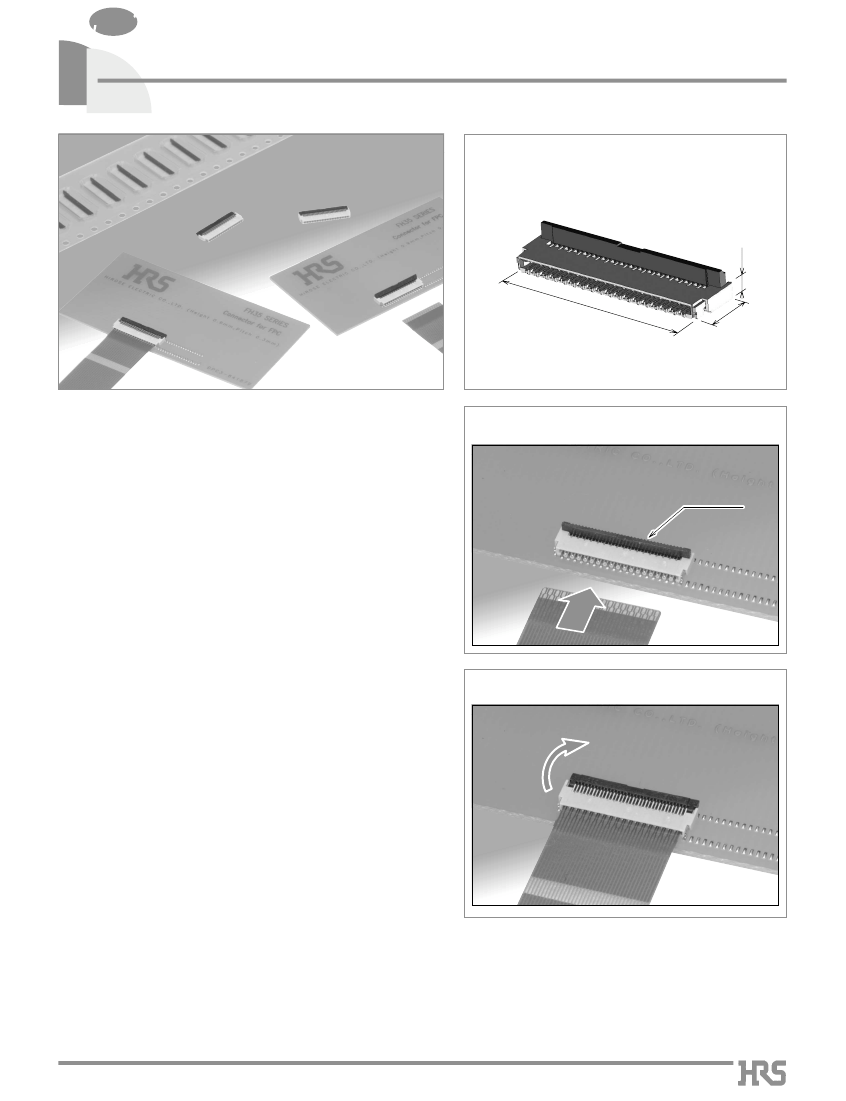

sFeatures
1. Low-profile
With the 0.9 mm above the board and width of 3.2 mm the
connectors are used in a space saving applications.
qEasy
FPC insertion
2. Unique Back-Flip rotating actuator
The rotating actuator opens from the back of the connector,
assuring reliable electrical and mechanical connection.
Actuator
3. Delivered with the actuator open
FPC can be immediately inserted without the need for the
opening of the actuator.
4. Easy FPC insertion
Entry chamfers at all sides of the FPC insertion slot assure
correct insertion and positioning of the FPC.
FPC
5. Accepts standard FPC thickness
0.2mm thick standard Flexible Printed Circuit (FPC) can be
used. This is the only ultra-low profile ZIF connector using
standard FPC.
qCompletely
locked
6. Conductive traces on the PCB can run under
the connector
No exposed contacts on the bottom of the connector.
7. Board placement with automatic equipment
Flat upper surface and tape and reel packaging facilitate
vacuum pick-up and placement. Standard reel packaging
contains 5000 connectors.
8. Halogen-free *
(FH35J,FH35RW,FH35W series)
*As defined by IEC61249-2-21
Br-900ppm maximum, Cl-900ppm maximum,
Cl + Br combined-1,500ppm maximum
9. Optional 500 piece reel packaging
Standard packaging is 5,000 pieces per reel; however, 500
piece reels are possible.
(Emboss reel external diameter is 180mm.)
2010.9
1
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH35 Seriesq0.3 mm Pitch, 0.9 mm above the board, Top and bottom Contact, Back-Flip actuator Flexible Printed Circuit ZIF Connectors
sSpecifications
Current rating 0.2 A (Note 1)
Rating
Voltage rating 30 Vrms AC
Recommended FPC
Operating
-55 to +85°C (Note 2)
temperature range
Operating
Relative humidity 90%
humidity range
max. (No condensation)
Storage
-10 to +50°C (Note 3)
temperature range
Storage
Relative humidity 90%
humidity range
max. (No condensation)
Thickness: 0.2±0.03, gold plated contact pads
Item
Specification
Conditions
1.Insulation resistance 50 Mø min
100 V DC
2.Withstanding voltage No flashover or insulation breakdown
90 Vrms AC / one minute
100 mø max.
1 mA AC
3.Contact resistance
* Including FPC conductor resistance
Contact resistance: 100 mø max.
10 cycles
4.Durability
No damage, cracks, or parts dislocation
No electrical discontinuity of 1 µs or longer
Frequency: 10 to 55 Hz,
Contact resistance: 100 mø max.
single amplitude of 0.75 mm,
5.Vibration
No damage, cracks, or parts dislocation
10 cycles in each of the 3 axial directions
No electrical discontinuity of 1 µs or longer
Acceleration: 981 m/s
2
, 6 ms duration,
Contact resistance: 100 mø max.
6.Shock
sine half-wave, 3 cycles in each of the 3 axis
No damage, cracks, or parts dislocation
Contact resistance: 100 mø max.
7.Humidity
Insulation resistance: 50 Mø min.
96 hours at 40ç and humidity of 90 to 95%
(Steady state)
No damage, cracks, or parts looseness
Contact resistance: 100 mø max.
Temperature:-55ç➝+15ç to +35ç➝+85ç➝+15ç to +35ç
Insulation resistance: 50 Mø min.
8.Temperature cycle
Time: 30➝ 2 to 3
➝
30➝ 2 to 3 minutes
No damage, cracks, or parts dislocation
5 cycles
9.Resistance to
Reflow: At the recommended temperature profile
No deformation of components affecting performance Manual soldering: 350 ±10°C for 5 seconds
soldering heat
Note 1: When passing the current through all of the contacts, use 70% of the rated current.
Note 2: Includes temperature rise caused by current flow.
Note 3: The term "storage" refers to products stored for a long period prior to mounting and use.
The operating temperature and humidity range covers the non-conducting condition of connectors after board mounting.
Note 4: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH35 Seriesq0.3 mm Pitch, 0.9 mm above the board, Top and bottom Contact, Back-Flip actuator Flexible Printed Circuit ZIF Connectors

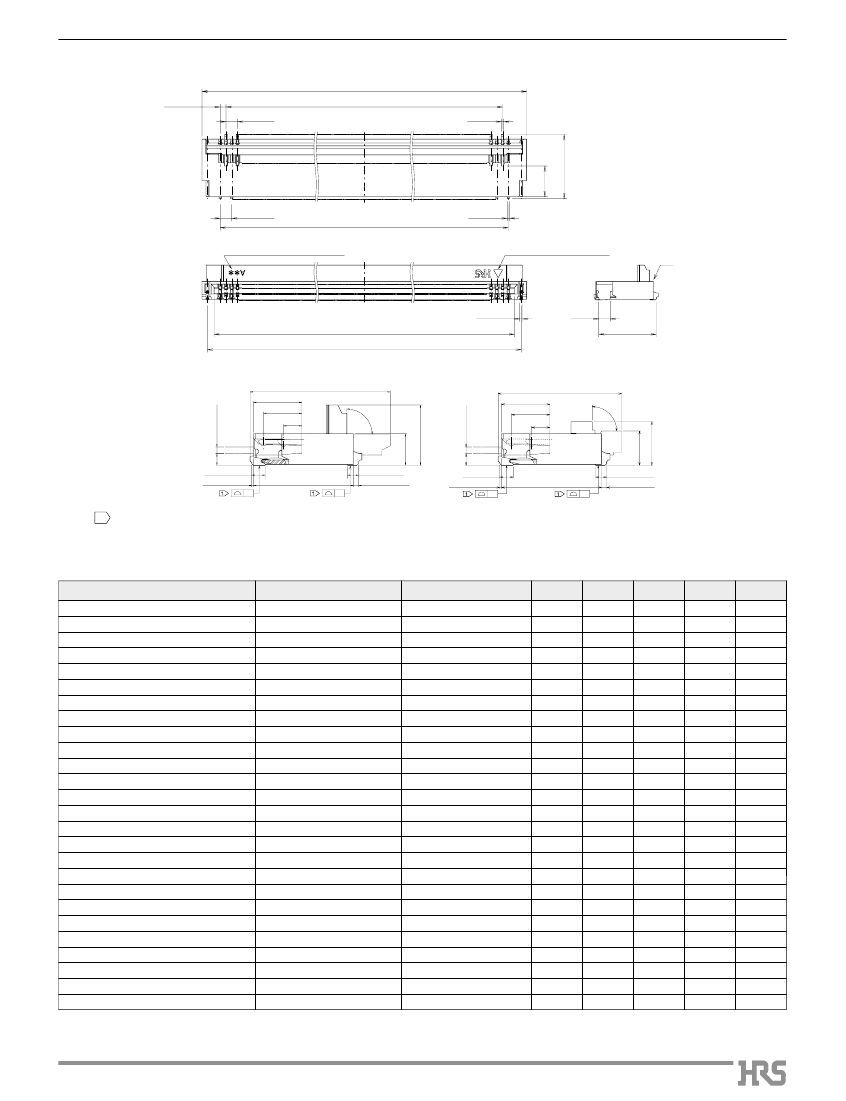

sConnector
Dimensions
A
0.3±0.1
0.6±0.1
B
(0.12)
0.6±0.1
C
Number of contacts indicator
(0.12)
Polarizing mark indicator
B
(0.15)
(D: FPC insertion slot dimension)
E
(1.6)
3.35
(0.6)
(3)
(3.7)
B
(0.35) FPC:t0.2
(1.45)
(1.15)
(0.55)
(4.2)
(9
B(FH35B Series)
(0.35) FPC:t0.2
(1.45)
(1.15)
(0.55)
(9
)
0˚
0.9±0.1
(1.8)
0.4±0.1
0.05±0.15
0.1
3±0.15
0.1
0.33±0.1
0.15±0.15
0.4±0.1
0.05±0.15
0.1
3±0.15
0.1
0.33±0.1
0.15±0.15
Note
Note
Note
Note
1
2
3
4
:
:
:
:
The coplanarity of each terminal lead within specified dimension is 0.1 mm Max.
Packaged on tape and reel only. Check packaging specification.
Slight variations in color of the plastic compounds do not affect form, fit or function of the connector.
After reflow, the terminal plating may change color, however this does not represent a quality issue.
All dimensions: mm
CL No.
580-1502-3-**
580-1504-9-**
580-1515-5-**
580-1514-2-**
580-1503-6-**
580-1501-0-**
580-1512-7-**
580-1520-5-**
580-1505-1-**
580-1513-0-**
580-1506-4-**
580-1524-6-**
580-1507-7-**
580-1509-2-**
580-1510-1-**
580-1525-9-**
580-2904-2-**
580-2905-5-**
580-2903-0-**
580-2902-7-**
580-1521-8-**
580-1522-0-**
580-1508-0-**
580-1511-4-**
580-1526-1-**
580-1516-8-**
Part Number
FH35-19S-0.3SHW(**)
FH35-25S-0.3SHW(**)
FH35-27S-0.3SHW(**)
FH35-31S-0.3SHW(**)
FH35-33S-0.3SHW(**)
FH35-35S-0.3SHW(**)
FH35-39S-0.3SHW(**)
FH35-41S-0.3SHW(**)
FH35-45S-0.3SHW(**)
FH35-49S-0.3SHW(**)
FH35-51S-0.3SHW(**)
FH35B-15S-0.3SHW(**)
FH35B-19S-0.3SHW(**)
FH35B-25S-0.3SHW(**)
FH35B-27S-0.3SHW(**)
FH35J-25S-0.3SHW(**)
FH35R-41S-0.3SHW(**)
FH35R-51S-0.3SHW(**)
FH35RW-21S-0.3SHW(**)
FH35RW-25S-0.3SHW(**)
FH35W-11S-0.3SHW(**)
FH35W-21S-0.3SHW(**)
FH35W-25S-0.3SHW(**)
FH35W-31S-0.3SHW(**)
FH35W-35S-0.3SHW(**)
FH35W-51S-0.3SHW(**)
Number of contacts
19
25
27
31
33
35
39
41
45
49
51
15
19
25
27
25
41
51
21
25
11
21
25
31
35
51
A
7.3
9.1
9.7
10.9
11.5
12.1
13.3
13.9
15.1
16.3
16.9
6.1
7.3
9.1
9.7
9.1
13.9
16.9
7.9
9.1
4.9
7.9
9.1
10.9
12.1
16.9
B
4.8
6.6
7.2
8.4
9
9.6
10.8
11.4
12.6
13.8
14.4
3.6
4.8
6.6
7.2
6.6
11.4
14.4
5.4
6.6
2.4
5.4
6.6
8.4
9.6
14.4
1±0.1
(1.3)
0˚
)
C
5.4
7.2
7.8
9
9.6
10.2
11.4
12
13.2
14.4
15
4.2
5.4
7.2
7.8
7.2
12
15
6
7.2
3
6
7.2
9
10.2
15
D
6.03
7.83
8.43
9.63
10.23
10.83
12.03
12.63
13.83
15.03
15.63
4.83
6.03
7.83
8.43
7.83
12.63
15.63
6.63
7.83
3.63
6.63
7.83
9.63
10.83
15.63
E
6.73
8.53
9.13
10.33
10.93
11.53
12.73
13.33
14.53
15.73
16.33
5.53
6.73
8.53
9.13
8.53
13.33
16.33
7.33
8.53
4.33
7.33
8.53
10.33
11.53
16.33
Tape and reel packaging (5,000 pieces/reel).
Order by number of reels.
3
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH35 Seriesq0.3 mm Pitch, 0.9 mm above the board, Top and bottom Contact, Back-Flip actuator Flexible Printed Circuit ZIF Connectors
sRecommended
PCB mounting pattern and metal mask dimensions
0.65±0.05
(0.55:Metal mask)
(Recommended metal mask thickness: t=0.1)
0.3±0.03
(0.23:Metal mask)
0.6±0.05
(0.2)
(0.35)
B±0.05
(3.6)
2.15±0.05
0.3±0.05
0.8±0.05
(0.65:Metal mask)
sRecommended
FPC Dimensions
AX
(0.5)(1.25)
R0
(0.07)
0.6±0.07
0.1±0.02
(0.2)
B±0.03
0.3
+0.04
– 0.03
0.6±0.07
πStiffener dimension should be 2.75mm min., and M dimension should be 0.5mm for
improved flexibility of FPC.
M
Check mark for
Press misalignment
2.75 MIN. Stiffener
.2
0.2±0.1
M
0.6±0.02
0.3±0.02
0.3
+0.04
– 0.03
0.75±0.1
0.85±0.1
0.3±0.07
F±0.05
C±0.03
0.3±0.07
0.2±0.05
0.3±0.03
(0.23:Metal mask)
C±0.05
0.6±0.05
(0.3:Metal mask)
0.4±0.05
0.5±0.05
(0.7:Metal mask)
0.95±0.05
0.2±0.03
1.75±0.3
2.1±0.1
2.25±0.1
All dimensions: mm
Part Number
FH35-19S-0.3SHW(**)
FH35-25S-0.3SHW(**)
FH35-27S-0.3SHW(**)
FH35-31S-0.3SHW(**)
FH35-33S-0.3SHW(**)
FH35-35S-0.3SHW(**)
FH35-39S-0.3SHW(**)
FH35-41S-0.3SHW(**)
FH35-45S-0.3SHW(**)
FH35-49S-0.3SHW(**)
FH35-51S-0.3SHW(**)
FH35B-15S-0.3SHW(**)
FH35B-19S-0.3SHW(**)
FH35B-25S-0.3SHW(**)
FH35B-27S-0.3SHW(**)
FH35J-25S-0.3SHW(**)
FH35R-41S-0.3SHW(**)
FH35R-51S-0.3SHW(**)
FH35RW-21S-0.3SHW(**)
FH35RW-25S-0.3SHW(**)
FH35W-11S-0.3SHW(**)
FH35W-21S-0.3SHW(**)
FH35W-25S-0.3SHW(**)
FH35W-31S-0.3SHW(**)
FH35W-35S-0.3SHW(**)
FH35W-51S-0.3SHW(**)
CL No.
580-1502-3-**
580-1504-9-**
580-1515-5-**
580-1514-2-**
580-1503-6-**
580-1501-0-**
580-1512-7-**
580-1520-5-**
580-1505-1-**
580-1513-0-**
580-1506-4-**
580-1524-6-**
580-1507-7-**
580-1509-2-**
580-1510-1-**
580-1525-9-**
580-2904-2-**
580-2905-5-**
580-2903-0-**
580-2902-7-**
580-1521-8-**
580-1522-0-**
580-1508-0-**
580-1511-4-**
580-1526-1-**
580-1516-8-**
Number of contacts
19
25
27
31
33
35
39
41
45
49
51
15
19
25
27
25
41
51
21
25
11
21
25
31
35
51
B
4.8
6.6
7.2
8.4
9
9.6
10.8
11.4
12.6
13.8
14.4
3.6
4.8
6.6
7.2
6.6
11.4
14.4
5.4
6.6
2.4
5.4
6.6
8.4
9.6
14.4
C
5.4
7.2
7.8
9
9.6
10.2
11.4
12
13.2
14.4
15
4.2
5.4
7.2
7.8
7.2
12
15
6
7.2
3
6
7.2
9
10.2
15
F
6
7.8
8.4
9.6
10.2
10.8
12
12.6
13.8
15
15.6
4.8
6
7.8
8.4
7.8
12.6
15.6
6.6
7.8
3.6
6.6
7.8
9.6
10.8
15.6
4
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH35 Seriesq0.3 mm Pitch, 0.9 mm above the board, Top and bottom Contact, Back-Flip actuator Flexible Printed Circuit ZIF Connectors
sRecommended

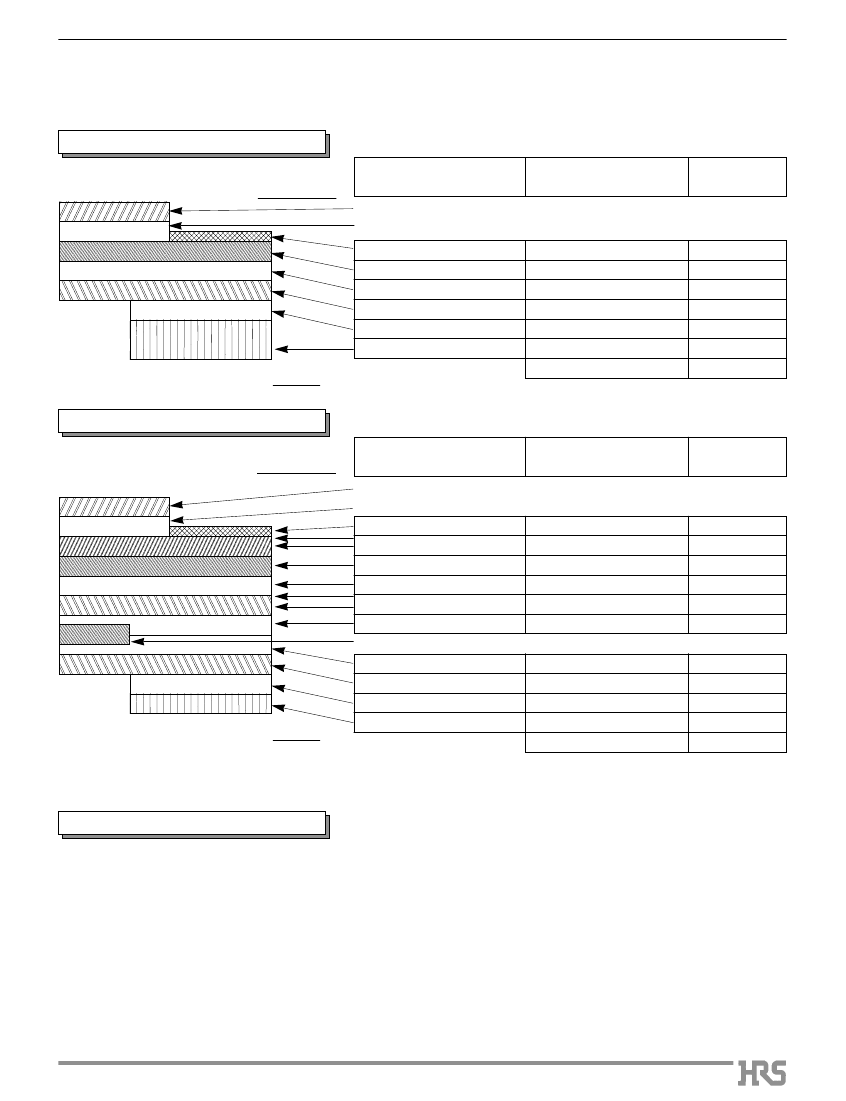

FPC construction
qContact
FPC manufacturer for specific details
1. Using Single-sided FPC
Connecting side
FPC : Flexible Printed Circuit
Material Name
Covering film layer
Cover adhesive
Surface treatment
Copper foil
Base adhesive
Base film
Stiffener
0.2µm thick gold plated over 1 to 5µm
nickel underplating
Material
Polyimide
1 mil thick.
Material Thickness
(µm)
(25)
(25)
3
35
25
25
40
75
203
Cu
Polyimide
1oz
1 mil thick
Thermosetting adhesive
Reinforcement material adhesive Thermosetting adhesive
Polyimide 3 mil thick
Total
Back side
2. Using Double-sided FPC
Connecting side
FPC : Flexible Printed Circuit
Material Name
Covering layer film
Cover adhesive
Surface treatment
Through-hole copper
Copper foil
Base adhesive
Base film
Base adhesive
Copper foil
Cover adhesive
Covering film layer
Stiffener
0.2µm thick gold plated over 1 to 5µm
nickel underplating
Material
Polyimide
1 mil thick
Material Thickness
(µm)
(25)
(25)
3
15
18
18
25
18
(18)
25
25
25
25
197
Cu
Cu
Polyimide
Cu
Polyimide
Polyimide
Total
1/2oz
1 mil thick
1/2oz
1 mil thick
1 mil thick
Thermosetting adhesive
Thermosetting adhesive
Thermosetting adhesive
Reinforcement material adhesive Thermosetting adhesive
Back side
* To prevent release of the FPC due to its bending, use of the double sided FPC with copper foil on the back side is NOT RECOMMENDED.
3. Precautions
1. This specification is a recommendation for the construction of the FH35 Series FPC (t=0.2 ±0.03).
2. For details about the construction, please contact the FPC/FFC manufacturers.
Waveform display interfaceBoot interfaceNow just add the waveform and parameter display. Another netizen has already done it. Just combine the code and this part will be almost done. The buttons shoul...
moden:Conexant CX11252 I am a novice, just switched to driver development... I hope experts can provide some information about moden driver development, give some examples or something. I want to deve...
Design a traffic light control system for an intersection. The system requires a 50s countdown. When the countdown reaches 10s before the traffic light needs to change, the yellow light will be displa...
I have written two articles about unboxing and quick guide. If I don’t post something substantive, I’m afraid I will be hit to death by rotten eggs. So I posted the third article of this MSP432 evalua...
[color=#373636][backcolor=rgb(247, 247, 247)][font=微软雅黑, "][size=14px]The inclinometer LE is a high-precision dual-axis digital inclinometer;[/size][/font][/backcolor][/color][color=rgb(55, 54, 54)][b...
UTStarcom recently announced that the statistics report recently released by iLocus, a well-known international communications consulting company, showed that in the global NGNVoIP traffic statistics ...
Emergency hand-held lamps powered by 6V maintenance-free batteries are widely used in rural areas. The charger used is a transformer step-down and single diode half-wave rectifier, and the charging...[Details]
A single-chip microcomputer is also called a single-chip microcontroller. It is not a chip that completes a certain logical function, but a computer system integrated into one chip. In general, a c...[Details]
In this article, the high-performance DSP developed by TI can be used as an effective confidentiality method if it is applied to PC encryption cards.
As an effective network security solution,...[Details]
introduction
The emergence of high-performance, low-power embedded CPUs and high-reliability network operating systems has made it possible to implement applications with large amounts of comp...[Details]
Aromatic gases are widely present in food, medicine, cosmetics and various daily chemical products, such as snacks, liquor, spices, Chinese herbal medicines, plasters, perfumes, soaps, shampoos, et...[Details]
Contact resistance
is the resistance to current flow through a closed pair of contacts. This type of measurement is performed on devices such as connectors,
relays
, and switches. The...[Details]
Since the No. 4 blast furnace of Handan Iron and Steel was put into operation in 1993, its external equipment has been seriously aged, and the original PLC control system TDC3000 of the hot blast furn...[Details]
1. Introduction to CIF Board
Fieldbus integration based on PC system
Whether it is a master or a slave, fieldbus has won unanimous praise in the field of PC-based automation. For more...[Details]
1 Introduction
Water resources are the basic conditions for human survival and the lifeline of economic development. The reality shows that due to the global shortage of water resources and th...[Details]
1 Introduction to HART Protocol
HART (Highway Addressable Remote Transducer), an open communication protocol for addressable remote sensor high-speed channels, was launched by Rosemen in the U...[Details]
The concept of state machine
State machine is an important concept in software programming. More important than this concept is its flexible application. In a clear and efficient program, ther...[Details]
Abstract: Aiming at the needs of coal-rock acoustic emission signal monitoring system, a data acquisition circuit with 24-bit resolution and 16-channel synchronous data acquisition function is desi...[Details]
The TPS92210 is a single-stage LED lighting pulse width modulation (PWM) controller. The TRIAC dimmable solution not only regulates the LED current, but also achieves a power factor close to 1. The...[Details]
System Overview
The system consists of a signal preprocessing circuit, a single-chip computer AT89C2051, a systematic LED display module, a serial port data storage circuit and system software...[Details]
Temperature compensated quartz crystal oscillator (TCXO) is widely used as a high-precision frequency source in communication systems, radar navigation systems, precision measurement and control sy...[Details]
_pdf/pg_0001.png)
DIY/Open Source Hardware
京公网安备 11010802033920号
EEWORLD_pdf/1.png)
_pdf/2.png)
_pdf/3.png)
_pdf/4.png)
_pdf/5.png)
_pdf/pg_0002.png)
_pdf/pg_0003.png)
_pdf/pg_0004.png)
_pdf/pg_0005.png)
