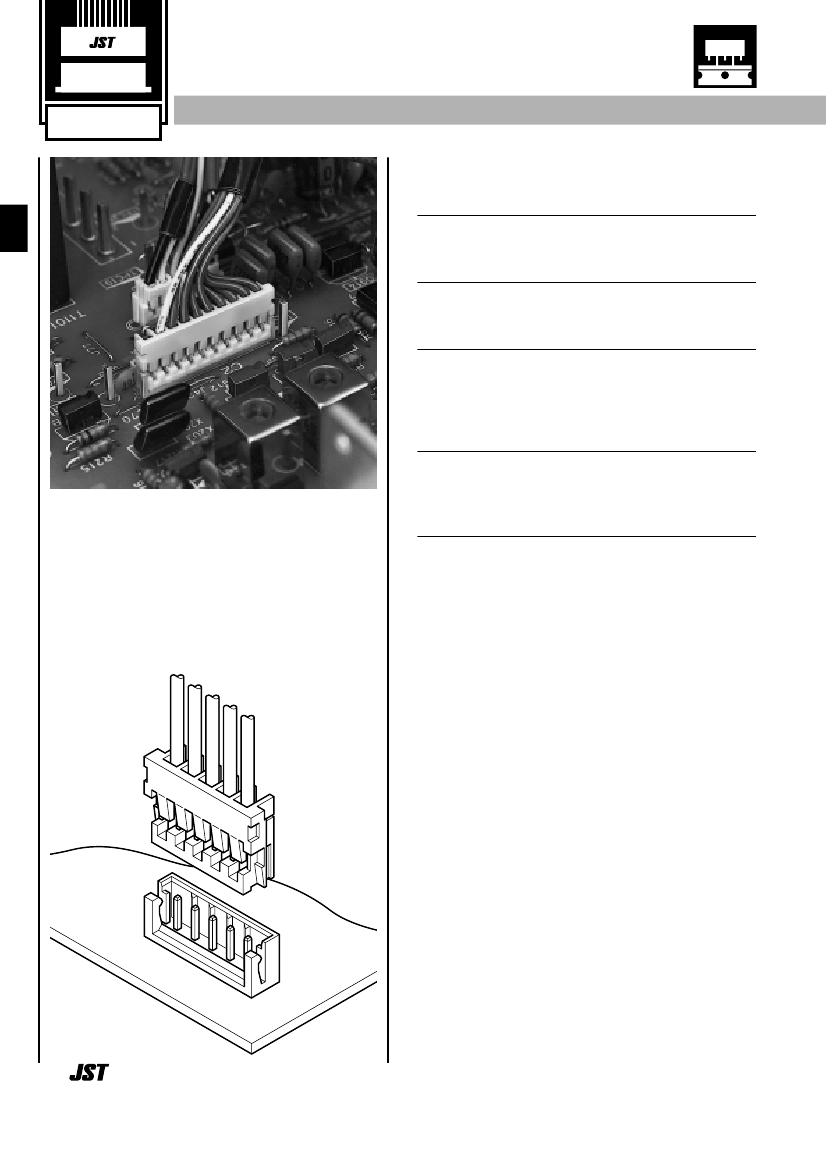

IDC
HR
CONNECTOR
Radial Tape
2.5mm
(.098") pitch
Disconnectable Insulation displacement connectors
Features ––––––––––––––––––––––––
• Twin U-slot insulation displacement section
The insulation displacement section has reliable twin U-slots
like those of JST's other insulation displacement connectors.
• Ultra-thin design
The connector is very small, with a mounting height of 11.3mm
(.445") and a width of 4.1mm (.161").
• High reliability
The contact has a dimple where it mates with the post to ensure
a continuous gas tight connection when used for circuits
requiring minute amounts of current and voltage. In addition,
it is built to withstand vibration and prevent deformation.
• Strain relief
A metallic strain relief secures the wire so as to protect the
insulation displacement connection against vibration, impact
and other external forces.
This 2.5mm (.098") pitch connector for
printed circuit boards has an ultra-thin
construction. The in-line method provides
high-density capability to the end user.
• Interchangeability
The shrouded header is interchangeable with the 2.5mm (.098")
pitch crimp style EH connectors.
Specifications –––––––––––––––––––
• Current rating: 2A AC, DC (AWG #24)
• Voltage rating: 250V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m
Ω
max.
After environmental testing/20m
Ω
max.
• Insulation resistance:
1,000M
Ω
min.
• Withstanding voltage: 1,000V AC/minute
• Applicable wire: UL1007(Contact JST for details regarding other UL
wires.)
AWG #28, #26, #24
Conductor/7 strands, tin-coated
Insulation O.D/1.0 to 1.5mm(.039" to .059")
• Applicable PC board thickness: 0.8 to 1.6mm(.031" to .063")
* Contact JST for details.
JS
T5
Standards ––––––––––––––––––––––
262
0
1
2
Recognized E60389
Certified LR20812
R75089
HR
CONNECTOR
Receptacle –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Model No.
Cir-
cuits
AWG #28
(green)
02HR-8M
03HR-8M
04HR-8M
05HR-8M
06HR-8M
07HR-8M
08HR-8M
09HR-8M
10HR-8M
11HR-8M
12HR-8M
13HR-8M
-
AWG #26
(natural/white)
02HR-6S
03HR-6S
04HR-6S
05HR-6S
06HR-6S
07HR-6S
08HR-6S
09HR-6S
10HR-6S
11HR-6S
12HR-6S
13HR-6S
15HR-6S
AWG #24
(black)
02HR-4K
03HR-4K
04HR-4K
05HR-4K
06HR-4K
07HR-4K
08HR-4K
09HR-4K
10HR-4K
11HR-4K
12HR-4K
13HR-4K
15HR-4K
Dimensions mm(in.)
A
2.5( .098)
B
7.5( .295)
Q'ty /
box
1,000
1,000
1,000
1,000
1,000
500
500
500
500
500
500
250
250
4.1(.161)
2
3
4
5
5.0( .197) 10.0( .394)
7.5( .295) 12.5( .492)
10.0( .394) 15.0( .591)
12.5( .492) 17.5( .689)
15.0( .591) 20.0( .787)
17.5( .689) 22.5( .886)
20.0( .787) 25.0( .984)
22.5( .886) 27.5(1.083)
25.0( .984) 30.0(1.181)
27.5(1.083) 32.5(1.280)
30.0(1.181) 35.0(1.378)
35.0(1.378) 40.0(1.575)
10.3(.406)
6
7
8
9
10
3.6(.142)
2.5
2.5 (.098)
(.098)
11
A
B
12
13
15
Material and Finish
Contact: Phosphor bronze, tin-plated
Housing: Nylon 66, UL94V-0
Note: 15HR-6S and 15HR-4K are not UL recognized nor CSA certified.
Shrouded header –––––––––––––––––––––––––––––––––––––––––––––––––––––––––
The shrouded headers are interchangeable with those of the EH and HR crimp style connectors.
PC board layout
(viewed from soldering side)
and Assembly layout –––––––––––––––––––
Top entry type
2.5
±
0.05 2.5
(.098
±
.002) (.098)
min.
2.2
(.087)
min.
4.1
(.161)
Side entry type
2.5
±
0.05 2.5
(.098
±
.002) (.098)
min.
6.7
(.264)
min.
12.5(.492)
8.2(.323)
4.2
(.165)
6.7(.264)
11.3(.445)
0.9
(.035
+0.1
0
+.004
0
0.9
+0.1
0
(.035
+.004
)dia.
0
)dia.
Top entry type on radial-tape
2.5
±
0.05 2.5
(.098
±
.002) (.098)
min.
2.2
(.087)
min.
4.4
(.173)
0.9
+0.1
0
(.035
+.004
)dia.
0
Note:
1. Tolerances are non-cumulative: ±0.05mm(±.002" ) for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method. If PC boards are made of hard material such as FR-4 are used, the hole
dimensions should be larger. The dimensions above should serve as a guideline.
Contact JST for details.
6.5
(.256)
11.8(.465)
263
