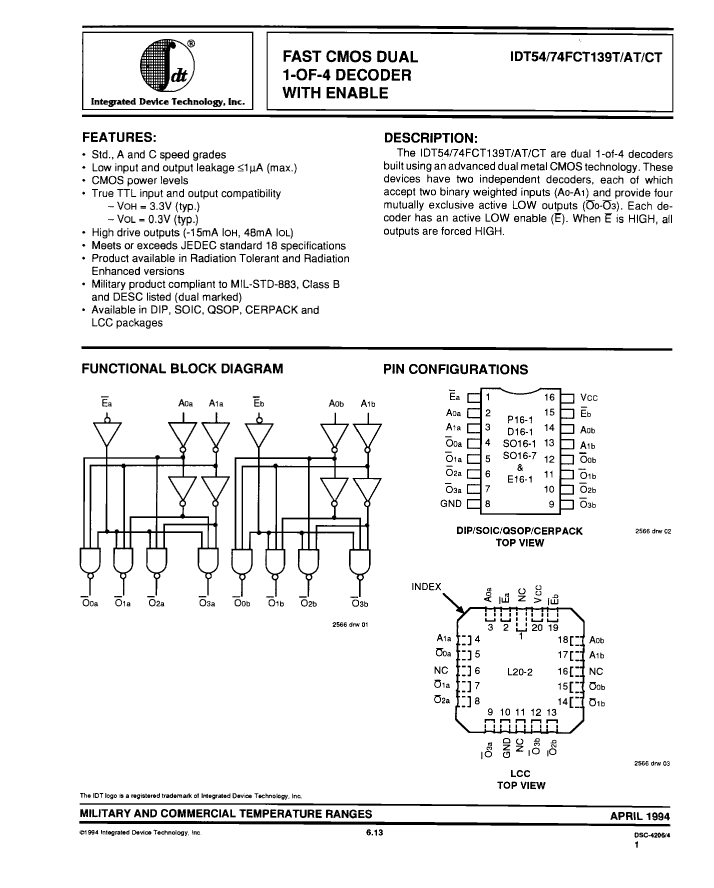

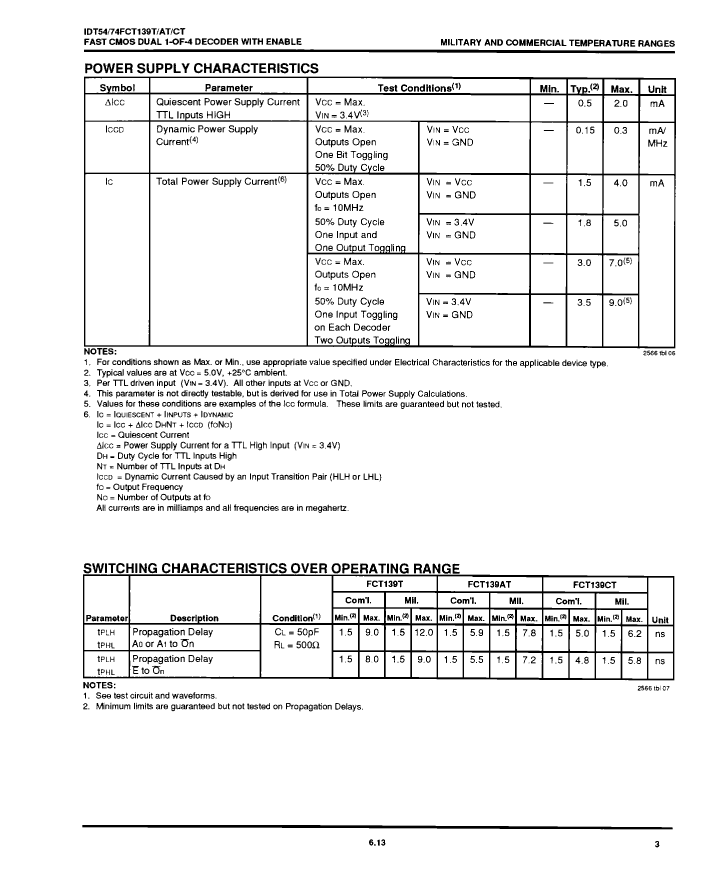

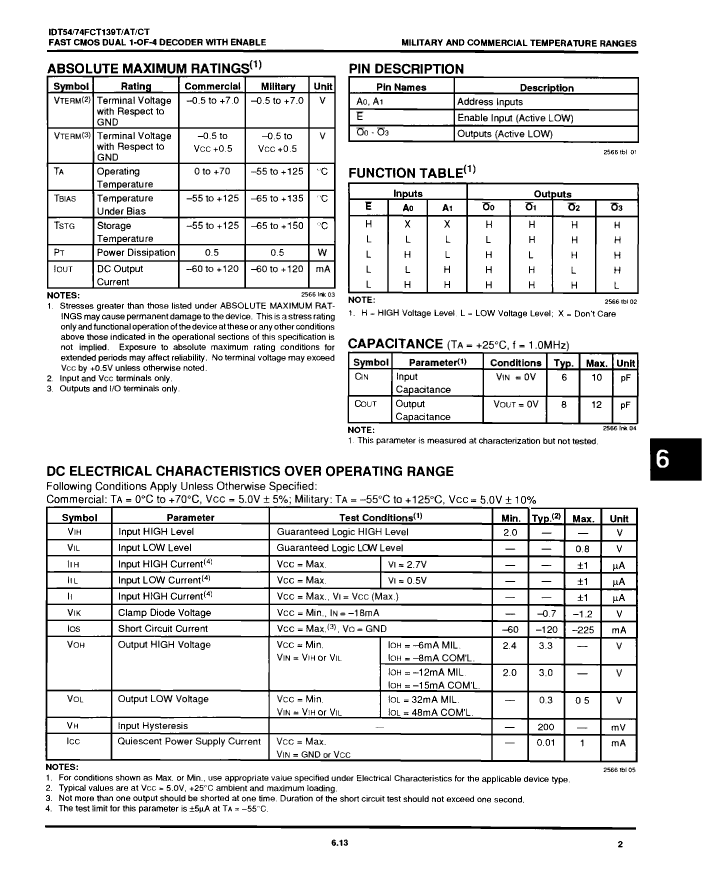

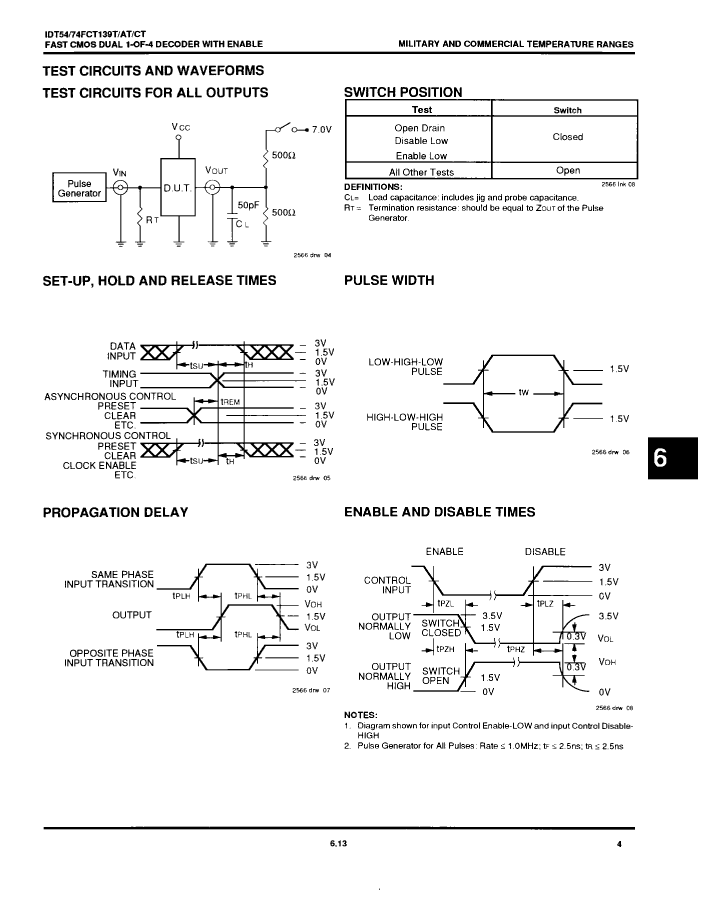

Preview

5962-9220206MFA: DescriptionCPACK-16, Tube; Categorylogic logic; File Size140KB，5 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

5962-9220206MFA Overview

CPACK-16, Tube

5962-9220206MFA Parametric

Parameter Name	Attribute value
Brand Name	Integrated Device Technology
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	CPACK
package instruction	DFP, FL16,.3
Contacts	16
Manufacturer packaging code	CP16
Reach Compliance Code	_compli
ECCN code	EAR99
series	FCT
JESD-30 code	R-CDFP-F16
JESD-609 code	e0
length	10.16 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	OTHER DECODER/DRIVER
MaximumI(ol)	0.032 A
Humidity sensitivity level	1
Number of functions	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Prop。Delay @ Nom-Su	6.2 ns
propagation delay (tpd)	6.2 ns
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	2.159 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	6.731 mm
Base Number Matches	1

Preview

Download Datasheet

View All

5962-9220206MFA Related Products

	5962-9220206MFA	5962-9220204MFA	5962-9220202MFA
Description	CPACK-16, Tube	CPACK-16, Tube	CPACK-16, Tube
Brand Name	Integrated Device Technology	Integrated Device Technology	Integrated Device Technology
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	CPACK	CPACK	CPACK
package instruction	DFP, FL16,.3	DFP, FL16,.3	DFP, FL16,.3
Contacts	16	16	16
Manufacturer packaging code	CP16	CP16	CP16
Reach Compliance Code	_compli	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99
series	FCT	FCT	FCT
JESD-30 code	R-CDFP-F16	R-CDFP-F16	R-CDFP-F16
JESD-609 code	e0	e0	e0
length	10.16 mm	10.16 mm	10.16 mm
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER
MaximumI(ol)	0.032 A	0.032 A	0.032 A
Humidity sensitivity level	1	1	1
Number of functions	2	2	2
Number of terminals	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output polarity	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DFP	DFP
Encapsulate equivalent code	FL16,.3	FL16,.3	FL16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK
Peak Reflow Temperature (Celsius)	260	260	260
power supply	5 V	5 V	5 V
propagation delay (tpd)	6.2 ns	7.8 ns	12 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883
Maximum seat height	2.159 mm	2.159 mm	2.159 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	FLAT	FLAT	FLAT
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	6.731 mm	6.731 mm	6.731 mm
Base Number Matches	1	1	1
Prop。Delay @ Nom-Sup	-	7.8 ns	12 ns
