115-13-314-41-003: DescriptionIC Socket, DIP14, 14 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder,; CategoryThe connector socket; File Size126KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

115-13-314-41-003 Overview

IC Socket, DIP14, 14 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder,

115-13-314-41-003 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	DIP SOCKET
body width	0.4 inch
subject depth	0.094 inch
body length	0.7 inch
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact material	NOT SPECIFIED
Contact style	RND PIN-SKT
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	DIP14
Dielectric withstand voltage	1000VAC V
Shell material	GLASS FILLED POLYETHYLENE POLYESTER
Insulation resistance	10000000000 Ω
JESD-609 code	e4
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.3 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

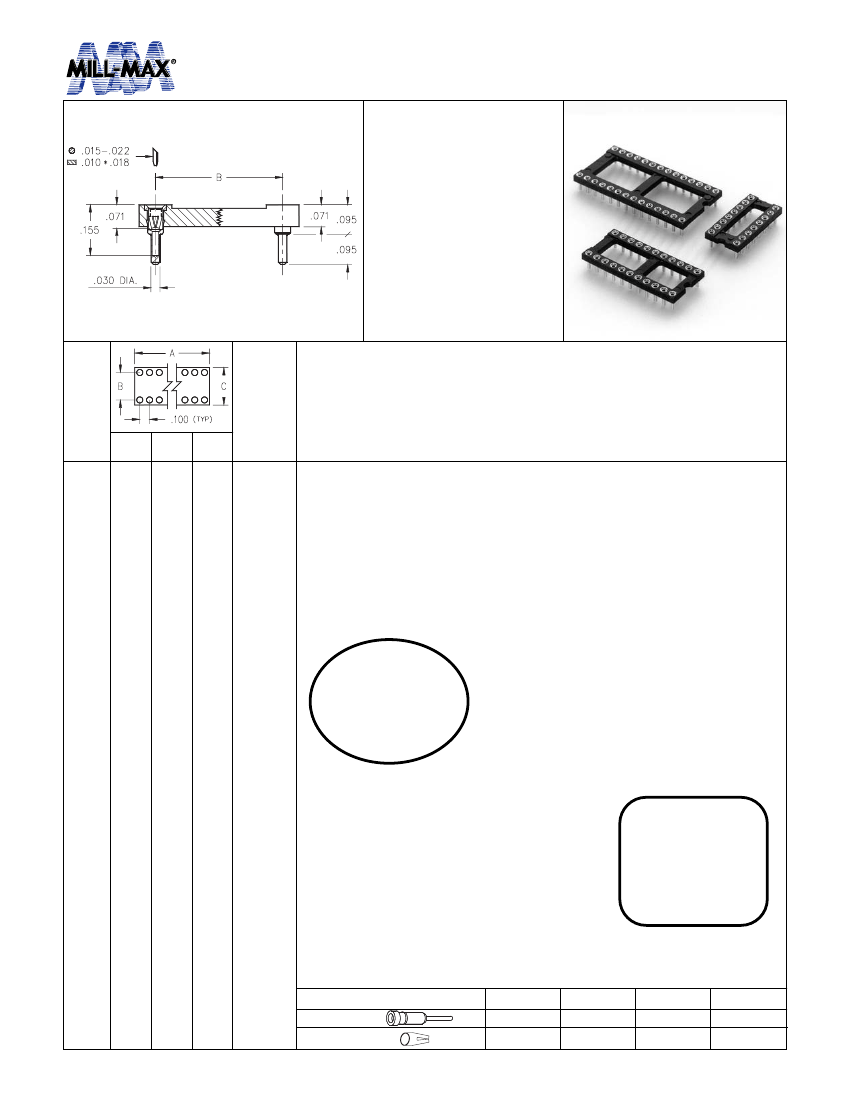

DUAL-IN-LINE SOCKETS

Ultra Low Profile

Open Frame

•

Our lowest profile DIP

sockets with an above

PCB height of .095”.

•

Special short, Hi-Rel,

4-finger BeCu #12 clip

rated at 3 amps. See page

207 for details.

•

Uses Mill-Max #0703

pin.See page 130 for

details.

Series 115...003

Total number

of pins

Quantity

per tube

Ordering Information

A

B

C

6

8

14

16

18

20

22

24

28

20

22

24

28

24

28

32

36

40

48

50

0.3

0.4

0.7

0.8

0.9

1.0

1.1

1.2

1.4

1.0

1.1

1.2

1.4

1.2

1.4

1.6

1.8

2.0

2.4

2.5

0.3

0.4

0.6

0.4

0.5

0.7

67

50

28

25

22

20

18

16

14

20

18

16

14

16

14

12

11

10

8

115-XX-306-41-003

115-XX-308-41-003

115-XX-314-41-003

115-XX-316-41-003

115-XX-318-41-003

115-XX-320-41-003

115-XX-322-41-003

115-XX-324-41-003

115-XX-328-41-003

115-XX-420-41-003

115-XX-422-41-003

115-XX-424-41-003

115-XX-428-41-003

115-XX-624-41-003

115-XX-628-41-003

115-XX-632-41-003

115-XX-636-41-003

115-XX-640-41-003

115-XX-648-41-003

115-XX-650-41-003

XX= Plating Code

See Below

For High

Temperature

Insulators

Add ‘100’

To End Of

Part Numbers

SPECIFY PLATING CODE XX=

13

10µ” Au

30µ” Au

91

10µ” Au

93

30µ” Au

99

200µ”Sn/Pb

Sleeve (Pin)

Contact (Clip)

200µ” Sn/Pb 200µ” Sn/Pb 200µ”Sn/Pb
