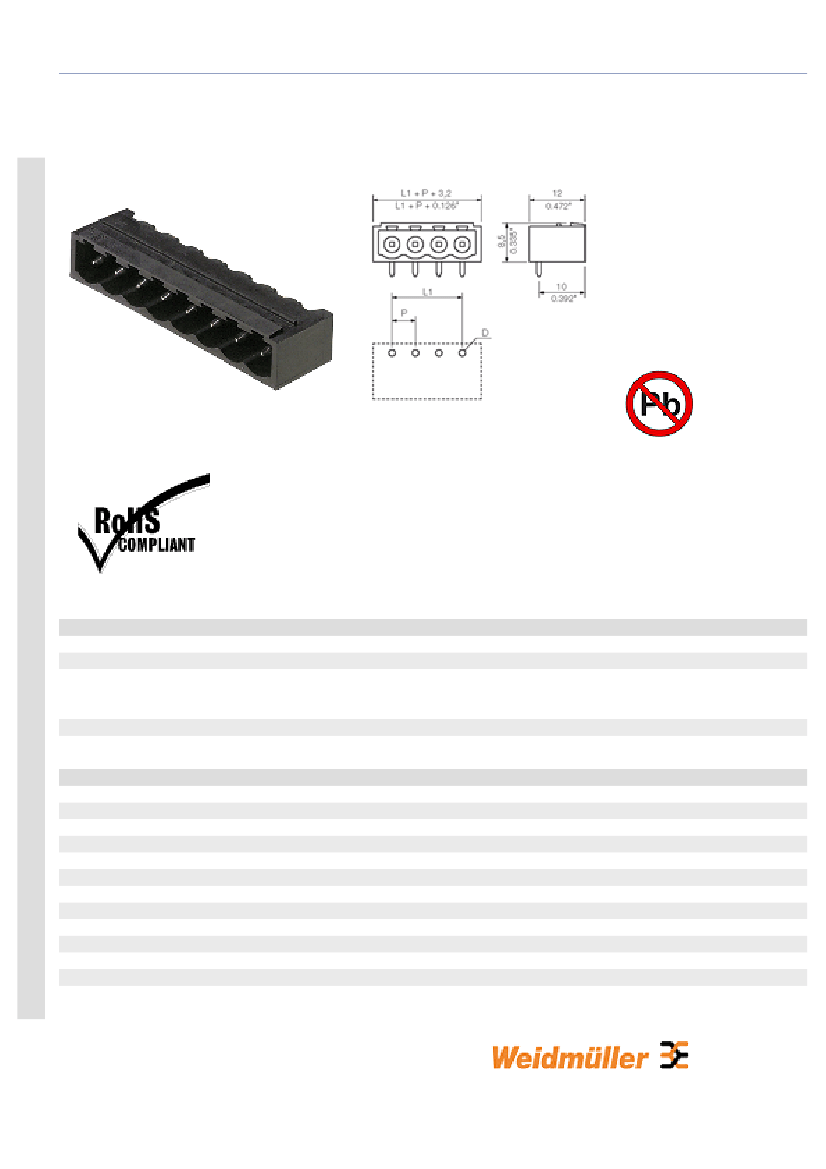

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) | Plug
connectors, THR solder connection, pitch 5.00/5.08 | SL-SMT 5.00-5.08/90G | SL-SMT 5.00/90G Box
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
Contact surface
Constant operating temp., min.
Constant operating temp., max.
Storage temperature, min.
Storage temperature, max.
Max. relative humidity during storage
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Rated voltage for overvoltage class/pollution
severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated voltage for overvoltage class/pollution
severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
LCP GF
black
Similar to RAL 9011
IIIa
V-0
>= 175
CuSn
tinned
-25 °C
100
-25 °C
55 °C
80 %
19 A
15 A
16 A
13 A
250 V
4 kV
320 V
4 kV
400 V
4 kV
300 V
10 A
300 V
10 A
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) | Plug
connectors, THR solder connection, pitch 5.00/5.08 | SL-SMT 5.00-5.08/90G | SL-SMT 5.00/90G Box
Approvals
Approvals institutes
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-04
Similar products
Order No.
1797080000
1840120000
1797090000
1840130000
1797100000
1840140000
1797110000
1840150000
1797120000
1840160000
1797130000
1840170000
Part designation
SL-SMT5.00/2/90G 1.5SN
SL-SMT5.00/2/90G 3.2SN SW
BOX
SL-SMT5.00/3/90G 1.5SN
SL-SMT5.00/3/90G 3.2SN SW
BOX
SL-SMT5.00/4/90G 1.5SN
SL-SMT5.00/4/90G 3.2SN SW
BOX
SL-SMT5.00/5/90G 1.5SN
SL-SMT5.00/5/90G 3.2SN SW
BOX
SL-SMT5.00/6/90G 1.5SN
SL-SMT5.00/6/90G 3.2SN SW
BOX
SL-SMT5.00/7/90G 1.5SN
SL-SMT5.00/7/90G 3.2SN SW
BOX
Version
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 2, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 2, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 3, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 3, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 4, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 4, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 5, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 5, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 6, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 6, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 7, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 7, 90°, Box
-3-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) | Plug
connectors, THR solder connection, pitch 5.00/5.08 | SL-SMT 5.00-5.08/90G | SL-SMT 5.00/90G Box
1797140000
1840180000
1840190000
1797160000
1840200000
1797170000
1840210000
1797180000
1840220000
1797190000
1840230000
1797200000
1840240000
1797210000
1840250000
1797220000
1840260000
1840270000
1840280000
1840290000
1840300000
1840310000
1840320000
1840330000
1840340000
SL-SMT5.00/8/90G 1.5SN
SL-SMT5.00/8/90G 3.2SN SW
BOX
SL-SMT5.00/9/90G 3.2SN SW
BOX
SL-SMT5.00/10/90G 1.5SN
SL-SMT5.00/10/90G 3.2SN SW
BOX
SL-SMT5.00/11/90G 1.5SN
SL-SMT5.00/11/90G 3.2SN SW
BOX
SL-SMT5.00/12/90G 1.5SN
SL-SMT5.00/12/90G 3.2SN SW
BOX
SL-SMT5.00/13/90G 1.5SN
SL-SMT5.00/13/90G 3.2SN SW
BOX
SL-SMT5.00/14/90G 1.5SN
SL-SMT5.00/14/90G 3.2SN SW
BOX
SL-SMT5.00/15/90G 1.5SN
SL-SMT5.00/15/90G 3.2SN SW
BOX
SL-SMT5.00/16/90G 1.5SN
SL-SMT5.00/16/90G 3.2SN SW
BOX
SL-SMT5.00/17/90G 3.2SN SW
BOX
SL-SMT5.00/18/90G 3.2SN SW
BOX
SL-SMT5.00/19/90G 3.2SN SW
BOX
SL-SMT5.00/20/90G 3.2SN SW
BOX
SL-SMT5.00/21/90G 3.2SN SW
BOX
SL-SMT5.00/22/90G 3.2SN SW
BOX
SL-SMT5.00/23/90G 3.2SN SW
BOX
SL-SMT5.00/24/90G 3.2SN SW
BOX
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 8, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 8, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 9, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 10, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 10, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 11, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 11, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 12, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 12, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 13, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 13, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 14, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 14, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 15, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 15, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 16, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 16, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 17, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 18, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 19, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 20, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 21, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 22, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 23, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 24, 90°, Box
-4-
