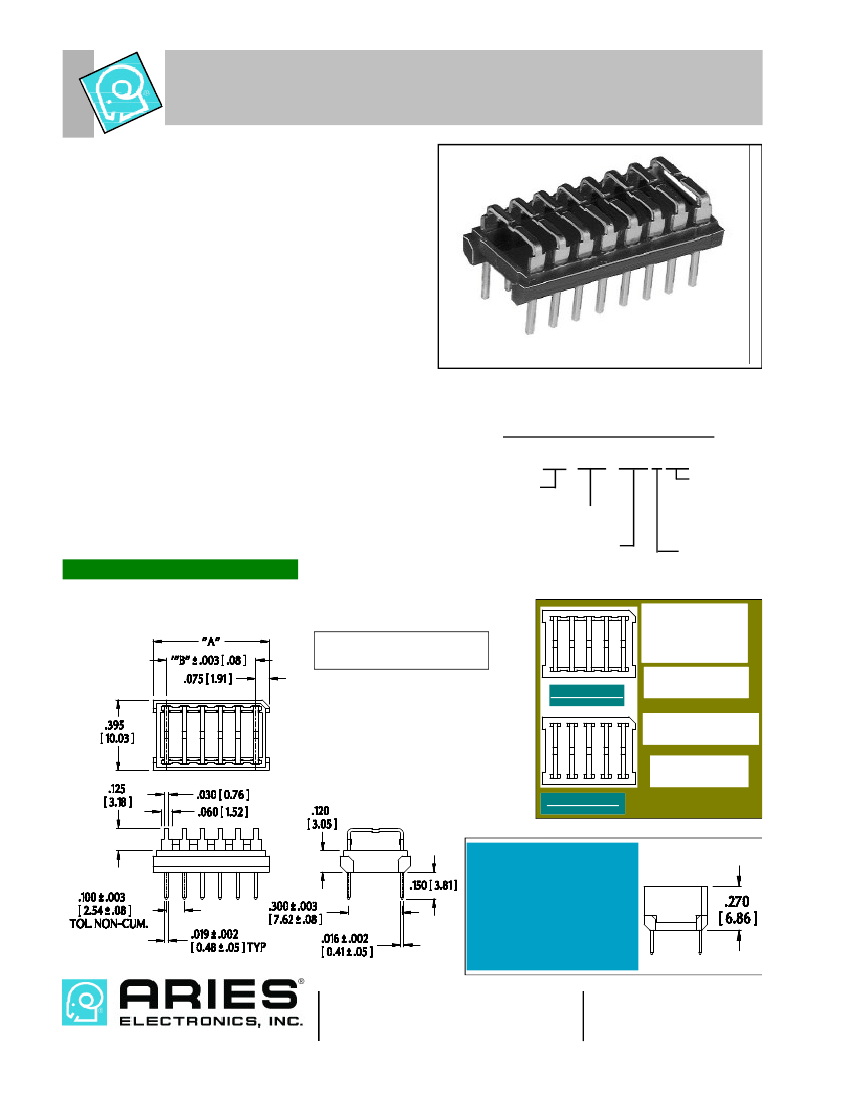

Series 675
DIP Program Headers
FEATURES:
• Aries DIP programmable headers offer unusual versatility
for programming within the header itself.
• They can be individually programmed using cutters or Aries’
programming tool, Part No. T-675, available
separately, to remove the interconnecting sections. Consult
Data Sheet No. 22002 for Aries’ programming tool.
• Adjacent and/or opposing pins are interconnected until the
pre-slotted section is programmed out. An almost infinite
number of programs can be attained by merely leaving or
removing interconnecting sections.
• A low profile, snap-on cover protects header from dirt or
accidental damage, and can be marked to identify the
program within the header.
SPECIFICATIONS:
• Standard header body and cover are red UL 94-HB Glass-
filled Nylon.
• Hi-temp. header body and cover are black UL 94V-0
4/6 Nylon.
• Pins are Brass Alloy, 3/4 hard.
• Pin plating is either 100µ [2.54µm] Tin per MIL-T-10727 or
10µ [.25µm] Gold per MIL-G-45204 over 50µ [1.27µm] min.
Nickel per QQ-N-290.
• Current rating=2 Amps.
• Operating temperature=221°F [105°C] Tin plating,
=257°F [125°C] Gold plating.
MOUNTING CONSIDERATIONS:
• Suggested PCB hole size=.035 ± .002 [.89 ± .05] dia.
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
ORDERING INFORMATION
XX-675-19XXXX
No. of pins
4 to 20
Series
Style (see below)
190 or 191
Optional suf-
fix:V0=
UL 94V-0
plastic
Plating suffix:
None=Gold
T=Tin
All pins intercon-
nected, both
adjacent and
opposing.
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
“A”=(NO. OF PINS PER ROW X .100 [2.54]) + .050
“B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
All tolerances ± .005 [.13]
unless otherwise specified
STYLE 190
Available in 4-16
pins only.
Opposing pins
interconnected only.
Available in
4-20 pins.
STYLE 191
Covers available for 4-20
pin headers. To order,
specify Part No.
XX-650-10 or 10V0
where “XX” denotes the
number of pins. Consult
Data Sheet No. 12033 for
additional details.
