DF62C-6S-2.2C(11) datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> DF62C-6S-2.2C(11)

Preview

DF62C-6S-2.2C(11): Descriptionconn recept housing 6pos blk; CategoryThe connector The connector; File Size61KB，1 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/; Environmental Compliance

Download Datasheet Parametric View All

DF62C-6S-2.2C(11) Overview

conn recept housing 6pos blk

DF62C-6S-2.2C(11) Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Hirose
Reach Compliance Code	unknow
ECCN code	EAR99
body width	0.301 inch
body length	0.28 inch
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	650VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.087 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-35 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	6

Preview

Download Datasheet

View All

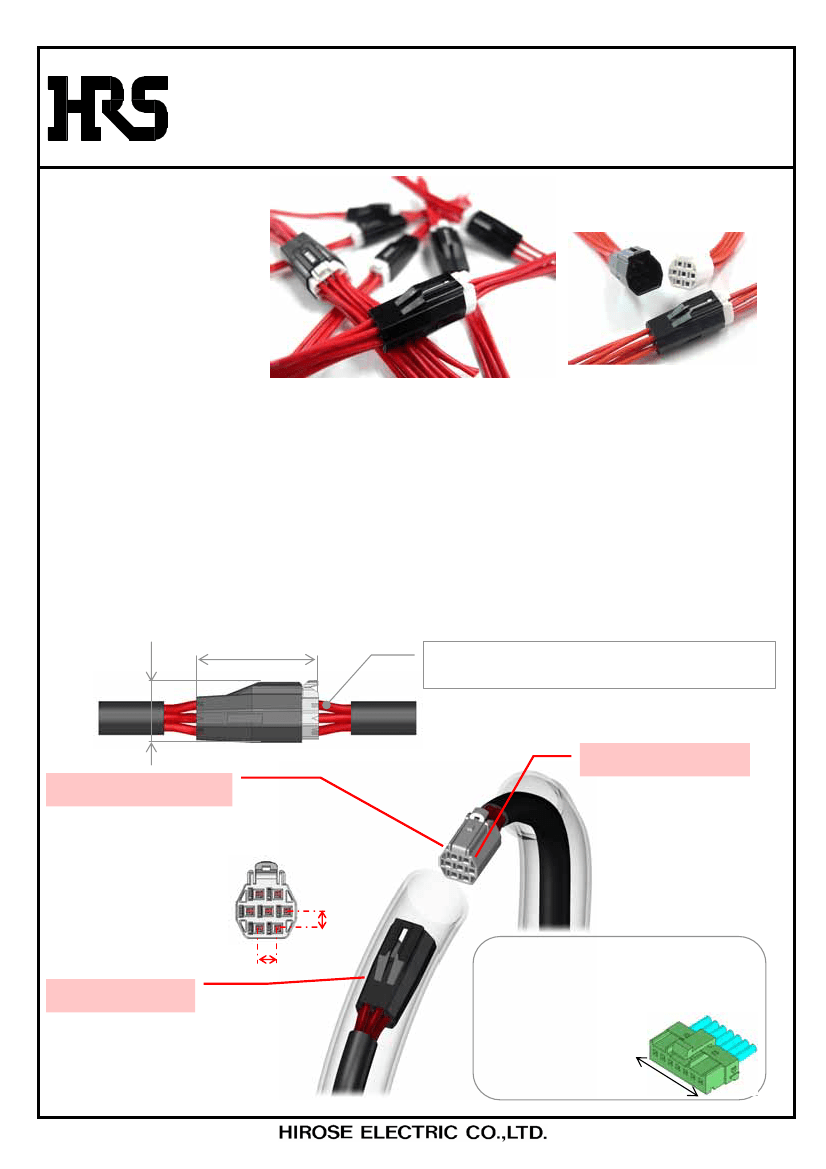

DF62 Series

Slim In-Line Connectors

ITS-P-11028NW

Features

1. Slim design and smooth contour for connection inside small spaces

2. Secure positive lock with tactile click and visible lock confirmation

3. Protected crimp contact from deformation

4. Contact lance for secure connection

5. Wide pin count variations available from 2 to 7 and 13 pos.

6. RoHS compliant

7 pos.

Optimized design for connection inside small space

[7 pos. in mated condition]

9.3

(18.6)

Applicable Cable:

AWG#22 to 30 (Outer dia:

φ

0.75 to 1.45 mm)

No Metal Exposure

Multi-Row Pin Layout

Contacts are arranged in grid,

making the diagonal diameter

small.

[3 rows for 7 pos.]

1

2

3

Pitch: 2.2 mm

Pitch:

2 mm

No metal component

is exposed, avoiding

accidental conduction

to metal caliber.

Conventional Single Row Product

Smooth Contour

Connector outline is designed

to be smooth, eliminating

being caught in the middle of

small space during wiring.

1. Too wide to go through small space.

2. With rough outline and lock hock,

it could be blocked up inside

small spaces.

Specifications herein are subject to change without notice. Contact Hirose for latest specifications, drawings or availabilities.

Issued: Jan. 11, 2012
