Y00781K52000B9L datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> Y00781K52000B9L

Y00781K52000B9L: DescriptionFixed Resistor, Metal Foil, 0.3W, 1520ohm, 300V, 0.1% +/-Tol, Through Hole Mount, 4216, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size483KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

Y00781K52000B9L Overview

Fixed Resistor, Metal Foil, 0.3W, 1520ohm, 300V, 0.1% +/-Tol, Through Hole Mount, 4216, RADIAL LEADED, ROHS COMPLIANT

Y00781K52000B9L Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1287961725
package instruction	Radial,
Reach Compliance Code	compliant
Country Of Origin	Israel
ECCN code	EAR99
YTEOL	10
Other features	ULTRA HIGH PRECISION, NON INDUCTIVE
structure	Rectangular
JESD-609 code	e3
Lead diameter	0.635 mm
Lead length	25.4 mm
lead spacing	3.81 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package height	10.92 mm
Package length	11.05 mm
Package shape	RECTANGULAR PACKAGE
Package form	Radial
Package width	4.7 mm
method of packing	BULK
Rated power dissipation(P)	0.3 W
Rated temperature	70 °C
resistance	1520 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL FOIL
Temperature Coefficient	50 ppm/°C
Terminal surface	TIN
Terminal shape	WIRE
Tolerance	0.1%
Operating Voltage	300 V

Preview

Download Datasheet

View All

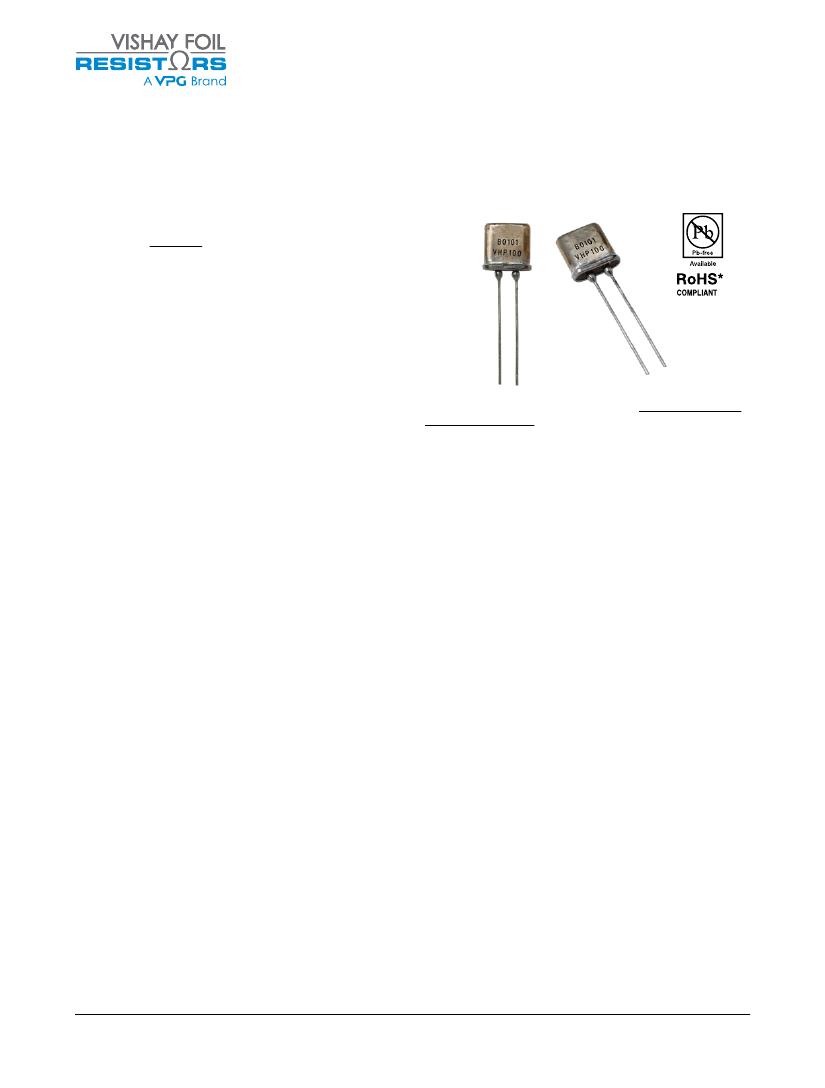

VHP100, VHP101, VHP102, VHP103

Ultra-High Precision Hermetically Sealed Bulk Metal

Foil Resistor

Ultra-High Precision Hermetically Sealed Bulk Metal® Foil Resistor

with Zero TCR, no Humidity Effect and 0.005% Tolerance within a

Unique Construction, Minimizing the Effects of Stress Factors

FEATURES

• Essentially zero TCR

• Absolute resistance change

(window):

VHP100 <60 ppm (–55°C to +125°C)

VHP101 <10 ppm (+15°C to +45°C)

• Tolerance: to ±0.005% (50 ppm) –

[(available to ±0.001% (10 ppm)]

• No humidity effect: hermetically sealed against

moisture

• Load life stability: ±50 ppm typical for 2,000 h,

70°C at 0.3 W

• Resistance range: 100 Ω to 150 kΩ (higher or lower

values available on request)

• Bulk Metal

Foil resistors are not restricted to standard

values; specific “as required” values can be supplied

at no extra cost or delivery (e.g., 1K2345 vs. 1K)

• Electrostatic discharge (ESD) up to 25,000 V

• Non inductive, non capacitive design

• Rise time: 1 ns effectively no ringing

• Thermal stabilization <1 s

• Current noise: 0.010 µV

RMS

/V of applied voltage

(<–40 dB)

• Thermal EMF: 0.05 µV/°C typical

• Voltage coefficient: <0.1 ppm/V

• Inductance: <0.08 µH

• Non hot spot design

• Hermeticity: 10

–7

atmospheric cc/s max.

• Terminal finish: lead (Pb)-free; tin/lead alloy

• Oil filled as standard,

air filled available upon request

• Load-life stability can be considerably improved

through in-house oriented tests

The VHP10x represents an essentially Zero Temperature

Coefficient Resistor type of resistor. This oil filled

hermetically sealed device makes unique use of foil on

ceramic in such a way that self cancelling responses

to temperature are produced by combining equal and

opposite effects. This product is sold only in hermetic

packages because applications requiring this level of

temperature stability require humidity stability as well.

The value of the hermetic enclosure over the molded part

is in the long term performance. The hermetic sealing

prevents the ingress of moisture and oxygen, while the oil

acts as a thermal conductor.

TCR WINDOW DEFINITION

The TCR of the VHP10x is so small that an additional

definition –

window,

has been introduced. The window

definition requires that the absolute resistance remain

within the stated window over the temperature range

specified. The resistance of the VHP10x resistor

stays within a 60 ppm window over the entire military

temperature range of –55°C to +125°C (figures 1 and 3).

A window of 10 ppm is available for the laboratory

instrument range (+15°C to +45°C);

see figure 4 – type VHP101.

INTRODUCTION

The VHP10x type represents a metrology breakthrough.

A new construction concept combined with special

treatments make this resistor the first choice in the most

demanding instrumentation and laboratory applications.

The ability of the VHP10x to minimize the changes in

resistance value when the resistor is subjected to load

variations and thermal stresses, ensure the ultra high

performances for the tight metrology specifications.

The total error budget of 2 ppm drift and the high speed

recovery represent an improvement of almost an order of

magnitude on the earlier model.

TCR TRACKING

Tracking of the VHP10x resistor is also vastly superior

to conventional precision resistors. Typical ±5 ppm/°C

precision resistors have a worst-case tracking of 10 ppm/°C

(wirewounds, thick film, thin film) or a difference between

resistors of 1000 ppm (10 ppm/°C x 100°C) when

temperature changes from +25°C to +125°C. For a

3 ppm/°C tracking, as with S102C, the difference will be

300 ppm (3 ppm/°C × 100°C) for the same temperature

range. The VHP10x resistors will track to 60 ppm from

–55°C to +125°C, a five-fold improvement over the

S102C resistor.

Note

* This datasheet provides information about parts that are RoHS-compliant and/or parts that are non-RoHS-compliant. For example,

parts with lead (Pb) terminations are not RoHS compliant. Please see the information/tables in this datasheet for details.

4085-EN

Rev 09-Mar-2021

For any questions, contact

foil@vpgsensors.com

www.vishayfoilresistors.com
