1-0508-30 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> 1-0508-30

1-0508-30: DescriptionIC Socket, SIP1, 1 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size245KB，1 Pages; ManufacturerAries Electronics; Environmental Compliance

Download Datasheet Parametric View All

1-0508-30 Overview

IC Socket, SIP1, 1 Contact(s), ROHS COMPLIANT

1-0508-30 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARD: UL 94V-0
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrie
Contact material	BRASS
Device slot type	IC SOCKET
Type of equipment used	SIP1
Shell material	NYLON46
JESD-609 code	e3
Number of contacts	1
Base Number Matches	1

Preview

Download Datasheet

View All

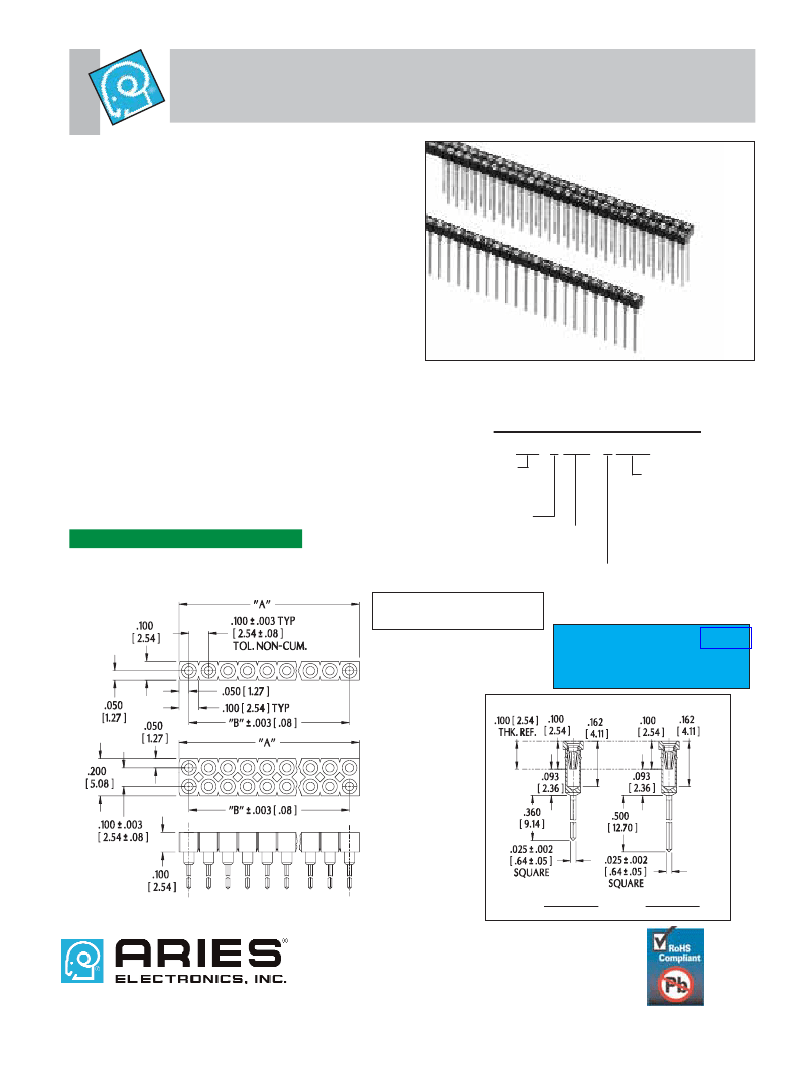

Series X508 Single and Dual Row

Collet Sockets with Wire Wrap Pins

FEATURES:

• Aries collet sockets are available in single or dual rows.

• Cuttable to the number of pins desired to fit the

application.

• Side-to-side and end-to-end stackable.

SPECIFICATIONS:

• Body material is black UL 94V-0 Nylon 4/6.

• Pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-00.

• Pin body plating is either 10

[.25μm] min. Gold per MIL-G-45204 or

200μ [5.08μm] min. 93/7 Tin/Lead per ASTM B545 or 200μ [5.08μm]

min. Tin per ASTM B545 Type 1 over 100μ [2.54μm] min. Nickel per

SAE-AMS-QQ-N-290.

• 4-fingered collet contact is Beryllium Copper Alloy per UNS C17200

ASTM-B194-01.

• Contact plating is either 200

[5.08μm] min. 93/7 Tin/Lead per ASTM

B545 or 200μ [5.08μm] min. Tin per ASTM B545 Type 1 or 10μ

Note: Aries specializes in custom design and production. In addition to the

[.25μm] min. Gold per MIL-G-45204 over 50

[1.27μm] min. Nickel per

standard products shown on this page, special materials, platings, sizes, and

SAE-AMS-QQ-N-290.

configurations can be furnished, depending on quantities. Aries reserves the

right to change product specifications without notice.

• Contact current rating=3 Amps.

• Operating Temp. = -67°F to 221°F [-55°C to 105°C] Tin

ORDERING INFORMATION

= -67°F to 257°F [-55°C to 125°C] Gold

• Insertion Force=180 grams/pin; Withdrawal Force=90 grams/pin;

XX-X508-XXXX

Normal Force=140 grams/pin; based on a .018 [.46] dia. test lead.

Plating:

No. of pins:

• Accepts leads .015-.025 [.38-.64] in diameter, .110-.160 [2.79-4.06]

0=Gold collet/Tin

Single row: 1-40 pins

long.

shell

Dual row: 2-40 pins

MOUNTING CONSIDERATIONS:

0TL=Gold collet/

• Suggested PCB hole size=.045 ± .002 [1.14 ± .05] dia.

Tin/Lead shell

0=Single row

LL DIMENSIONS

INCHES

[

MILLIMETERS

]

1=Dual row

Series

“A”=(NO. OF PINS PER ROW) X .100 [2.54]

“B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]

All tolerances ± .005 [.13]

unless otherwise specified

1=Gold collet/Gold

shell

2=2 level wire wrap

3=3 level wire wrap

Consult Data Sheet No. 12020

for Series X518 Collet Sockets

with solder tail pins.

2 LEVEL

3 LEVEL

http://www.arieselec.com • info@arieselec.com

12021

REV. F

PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED

NORTH AMERICA

Bristol, PA USA

TEL: (215) 781-9956

FAX: (215) 781-9845

abc

EUROPE

TEL: +44 870 240 0249

FAX: +44 871 919 6033

europe@arieselec.com
