13800FL18210-01 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 13800FL18210-01

13800FL18210-01: DescriptionBoard Connector, 10 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size93KB，2 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

13800FL18210-01 Overview

Board Connector, 10 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

13800FL18210-01 Parametric

Parameter Name	Attribute value
Objectid	308880285
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.098 inch
subject depth	0.169 inch
body length	0.807 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	138
Plug contact pitch	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	3.4036 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	3.9878 mm
Termination type	SURFACE MOUNT
Total number of contacts	10

Preview

Download Datasheet

View All

Ratioplast-Electronics H.Wiedemann GmbH

Jockweg 66, D-32312 Lübbecke

Tel.: +49 (0) 5741 23661-0

Fax: +49 (0) 5741 23661-20

E-Mail: info@ratioplast.de

Serie 138

Technische Daten:

Isolierkörper

Farbe

Kontaktmaterial

Nennspannung

Nennstrom

Temperaturbereich

Lötwärmebeständigkeit

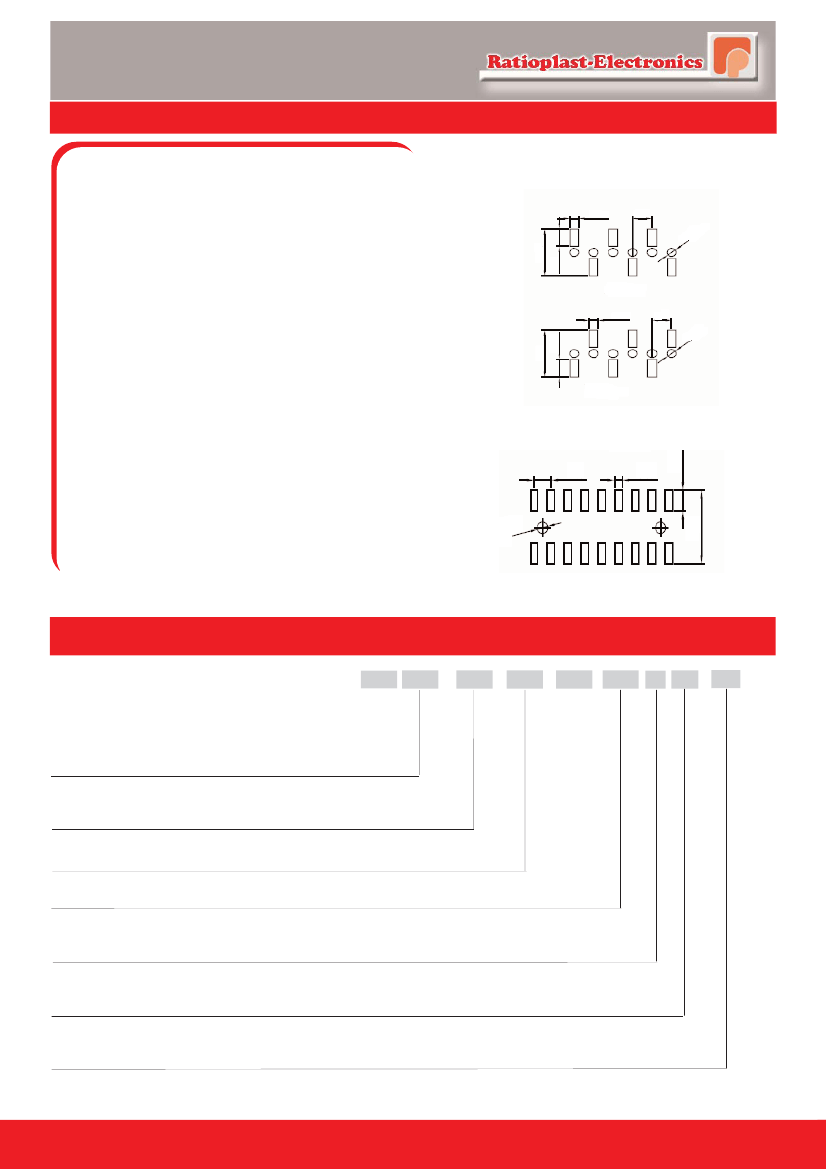

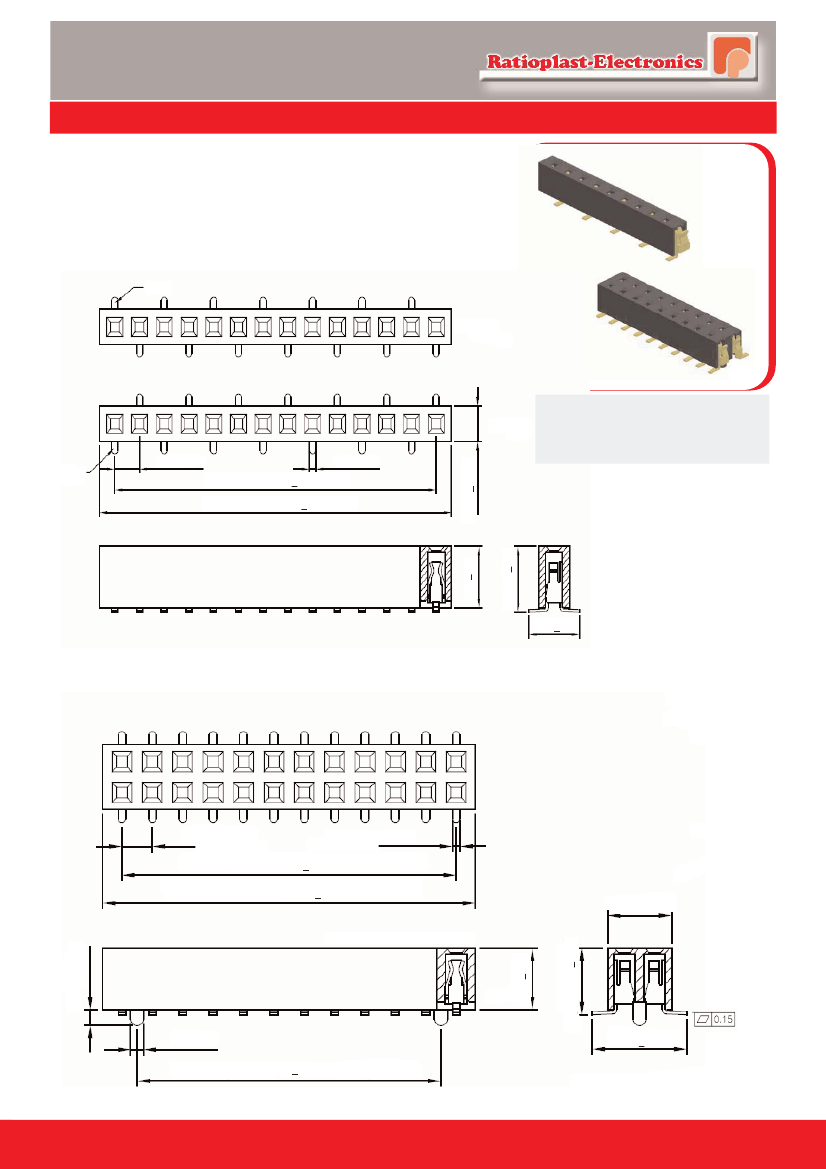

SMT BUCHSENLEISTE

SMT FEMALE HEADER

RASTER 2,0mm für Vierkantstift 0,5mm

PITCH 2,0mm for square contact 0,5mm

Empfohlenes Leiterplatten-Layout

(Toleranz +0,05)

Recommended P.C.B Layout

(Tolerance +0,05)

Nylon 6T

Hochtemperaturfest, UL94-V0

Schwarz

Kupfer

500 V AC für 1 Minute

1,5 A

- 40°C ... +105°C

235°C (30-60 sek.)

max. 260°C (5 sek.)

Layout 1

0,89

2,00

Ø 1,00

5,40

2,00

Weitere technische Informationen zu den Produkten erhalten Sie auf

Anfrage

Technical Data

Insulator

Colour

Contact Material

Current Voltage

Current Rating

Temperature Range

Resistance to soldering

More technical Information on request

Ø 1,20

0,89

2,00

Ø 1,00

Nylon 6T

High temperature, UL94-V0

Black

Copper alloy

500 V ACfor 1 minute

1,5 A

- 40°C ... +105°C

235°C (30-60 sec.)

max. 260°C (5 sec.)

Layout 2

5,40

2,00

0,89

2,10

7,20

BESTELLBEISPIEL

HOW TO ORDER

BITTE ERSETZEN SIE `X` DURCH UNTEN AUFGEFÜHRTEN CODE

PLEASE REPLACE `X`WITH CODING LISTED BELOW

138 XX

X XX - XX

00 = 1- reihig - 1- row

01 = Mit Positionierhilfe - With locating peg (2- reihig - 2- row)

02 = Ohne Positionierhilfe - Without locating peg (2- reihig - 2- row)

Veredelung - Plating

FL = Flash Vergoldet - Flash gold plated(Au) (Standard)

Andere Veredelungen auf Anfrage - Other plating on request

1 = 1- reihig - 1- row

2 = 2- reihig - 2- row

8 = 2,0 mm Raster - Pitch

9 = Sonderraster - Other pitch

1 = Layout 1 (nur 1- reihig - only 1- row)

2 = Layout 2 (nur 1- reihig - only 1- row)

0 = 2- reihig - 2- row

Polzahl - Number of contacts (03... 40) ( 1- reihig - 1- row)

(04... 80) ( 2- reihig - 2- row) (Ohne Positionierhilfe - Without locating peg)

(10... 80) ( 2- reihig - 2- row) (Ohne Positionierhilfe - Without locating peg)

01 = Verpackt im Tube ohne PP-Pad - Packing Tube without PP-Pad (Standard)

11 = Verpackt im Tube mit PP-Pad (Auf Anfrage) - Packing Tube with PP-Pad (on request)

12 = Verpackt im Gurt mit PP-Pad - Reel packing Tube with PP-Pad

Seite: 128

Version 1 / 2011

www.ratioplast.com
