3964C-13TW-L datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 3964C-13TW-L

Preview

3964C-13TW-L: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), Female, Straight, 0.156 inch Pitch, Solder Terminal, Locking, Natural Insulator; CategoryThe connector The connector; File Size2MB，2 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

3964C-13TW-L Overview

Board Connector, 13 Contact(s), 1 Row(s), Female, Straight, 0.156 inch Pitch, Solder Terminal, Locking, Natural Insulator

3964C-13TW-L Parametric

Parameter Name	Attribute value
Objectid	308885221
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.461 inch
subject depth	0.449 inch
body length	2.023 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	NYLON
Manufacturer's serial number	3964
Plug contact pitch	0.156 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	7 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	3.9624 mm
Termination type	SOLDER
Total number of contacts	13

Preview

Download Datasheet

View All

Ratioplast-Electronics H.Wiedemann GmbH

Jockweg 66, D-32312 Lübbecke

Tel:+49 (0) 5741 23661-0

Fax:+49 (0) 5741 23661-20

Ratioplast-Electronics

3.96mm Wafer DIP Type

Current Rating: 7A AC,DC

Voltage Rating: 250V AC,DC

Temperature Range: -40°C to +105°C

Contact Resistance: 10mΩ Max

Insulation Resistance: 1000M

Ω

Min

Withstanding Voltage: 1500V AC/minute

Material: Nylon 66,UL94V-2

Specifications

A Type

No. of

Contacts

02

03

04

05

06

07

08

09

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

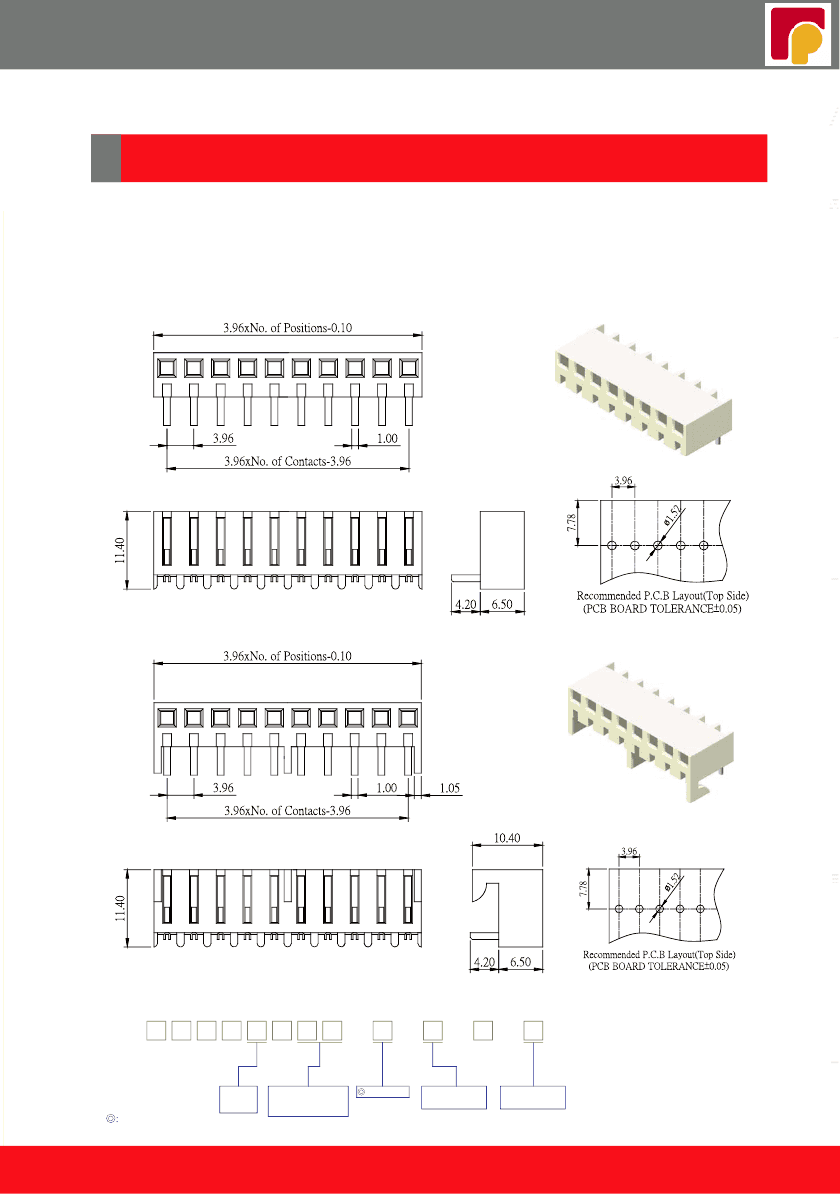

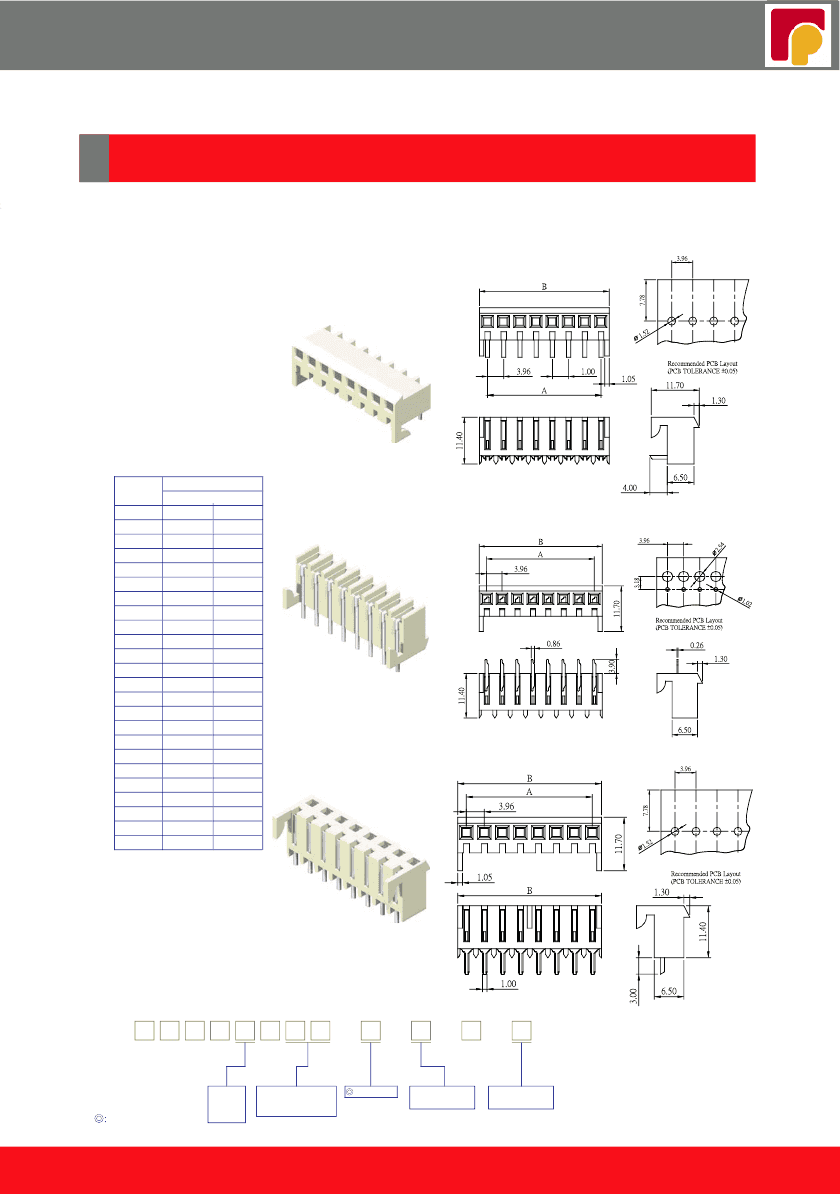

Dimensions

A

B

3.96

7.92

11.88

15.84

19.80

23.76

27.72

31.68

35.64

39.60

43.56

47.52

51.48

55.44

59.40

6.336

67.32

71.28

75.24

79.20

83.16

87.12

91.08

95.04

7.82

11.78

15.74

19.70

23.66

27.62

31.58

35.54

39.50

43.46

47.42

51.38

55.34

59.30

63.26

67.22

71.18

75.14

79.10

83.06

87.02

90.98

94.94

98.90

B Type

C Type

ORDER INFORMATION

3 9 6 4 X - X X

T

W

-

L

Standard Recommend

A:A Type

B:B Type

C:C Type

No. of contacts per row

(02~25)

T:Tin Plated

W:Nylon natural

L:RoHS + Nylon 66

www.amtek-co.com.tw

www.ratioplast.com
