310031-1004: DescriptionD Subminiature Connector, 3 Contact(s), Male, Solder Terminal, Plug,; CategoryThe connector The connector; File Size1MB，2 Pages; ManufacturerSmiths Group; Environmental Compliance

Download Datasheet Parametric View All

310031-1004 Overview

D Subminiature Connector, 3 Contact(s), Male, Solder Terminal, Plug,

310031-1004 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	YES
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

Filter D-Sub Connectors

High Power Filter Combo D-Subminiature Connectors

Sabritec offers a complete line of high powered EMI filtered D-Sub connectors

including the single row size #8 power contacts (3W3, 3WK3, etc.). With the

addition of Sabritec’s in-house production of ceramic planar capacitors, we can

easily achieve up to 47 nF per line on this series. The planar capacitor provides

excellent attenuation as well as meeting the Bellcore requirements for 1000

VDC Dielectric Withstanding Voltage. The materials used in the construction

meet the UL flammability requirements of 94V-0. Sabritec’s filtered D-Sub

connectors are intermateable with standard non-filter D-Sub connectors.

This series is available in PC tail, solder cup and solderless press-fit

terminations into standard plated-thru holes. Sabritec also offers combo D-Sub

arrangements for power coaxial and signal contacts mixed arrangements

including layouts 5W5, 8W8, 17W2, 9W1 and 24W7.

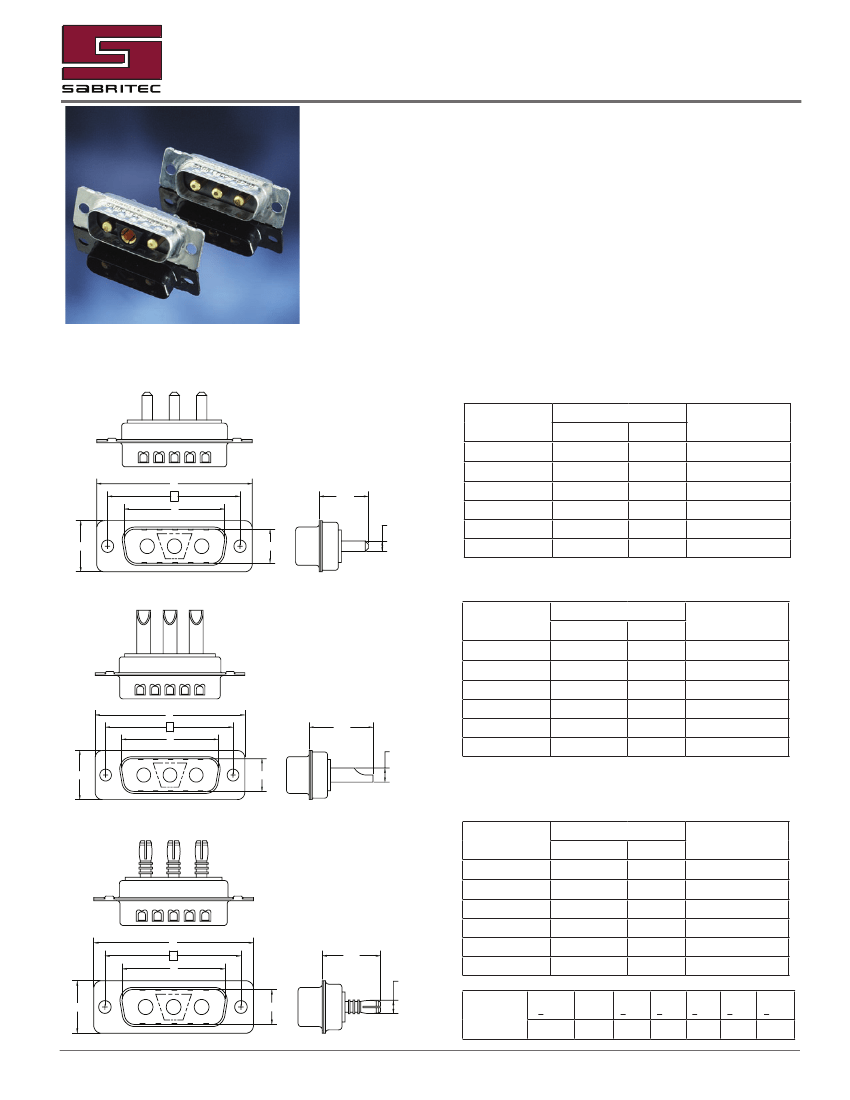

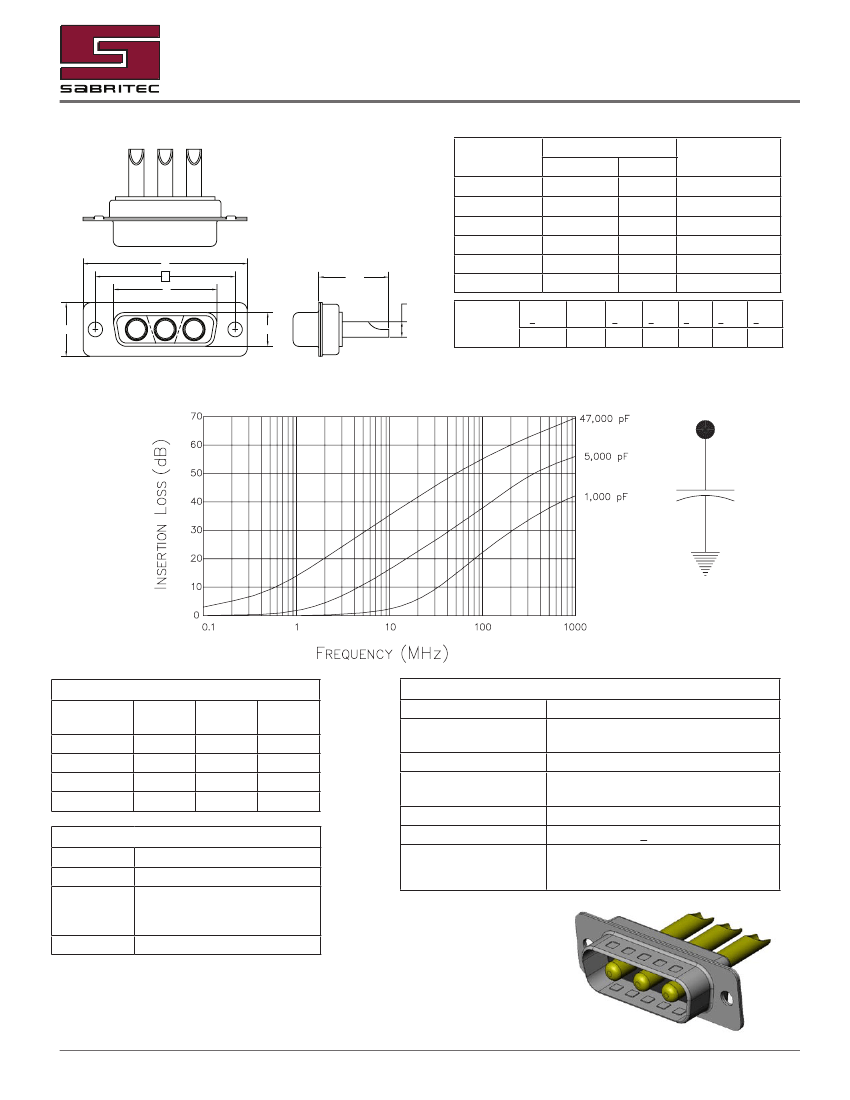

Combo D-Sub 3W3/3WK3 Filtered Power Connectors

PC Tail

SABRITEC

D-Sub High Power Plugs

Sabritec

Part Number

310031-1000

310032-1001

EMI Filter

Cap Value

1 nF

5 nF

47 nF

Layout

3W3

3WK3

3W3

3WK3

3W3

3WK3

Voltage Rating

400 VDC

A

B

D

(Ø.102)

(.487)

310031-1002

310032-1003

310031-1004

310032-1005

A1

C

A3

E

Solder Cup

Sabritec

Part Number

310031-2000

EMI Filter

Cap Value

1 nF

5 nF

47 nF

Layout

3W3

3WK3

3W3

3WK3

3W3

3WK3

Voltage Rating

400 VDC

SABRITEC

310032-2001

310031-2002

310032-2003

(.656)

A

B

D

(Ø.142)

310031-2004

310032-2005

A1

C

A3

E

Press-Fit

Sabritec

Part Number

310031-4000

EMI Filter

Cap Value

1 nF

5 nF

47 nF

Layout

3W3

3WK3

3W3

3WK3

3W3

3WK3

C

+.010

0.494

D

+.004

0.995

Voltage Rating

400 VDC

E

+.004

0.329

F

+.004

0.970

G

+.004

0.310

SABRITEC

310032-4001

310031-4002

310032-4003

A

B

D

(Ø.124)

(.561)

310031-4004

310032-4005

A

+ .010

1.541

A1

C

A3

E

Dimensions

B

Basic

1.312

17550 Gillette Avenue, Irvine, CA 92614 • www.sabritec.com • Tel: (949) 250-1244 • Fax (949) 250-1009

Pg. 43
