20021112-00186T5LF datasheet, PDF

20021112-00186T5LF: DescriptionBoard Connector, 86 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size150KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

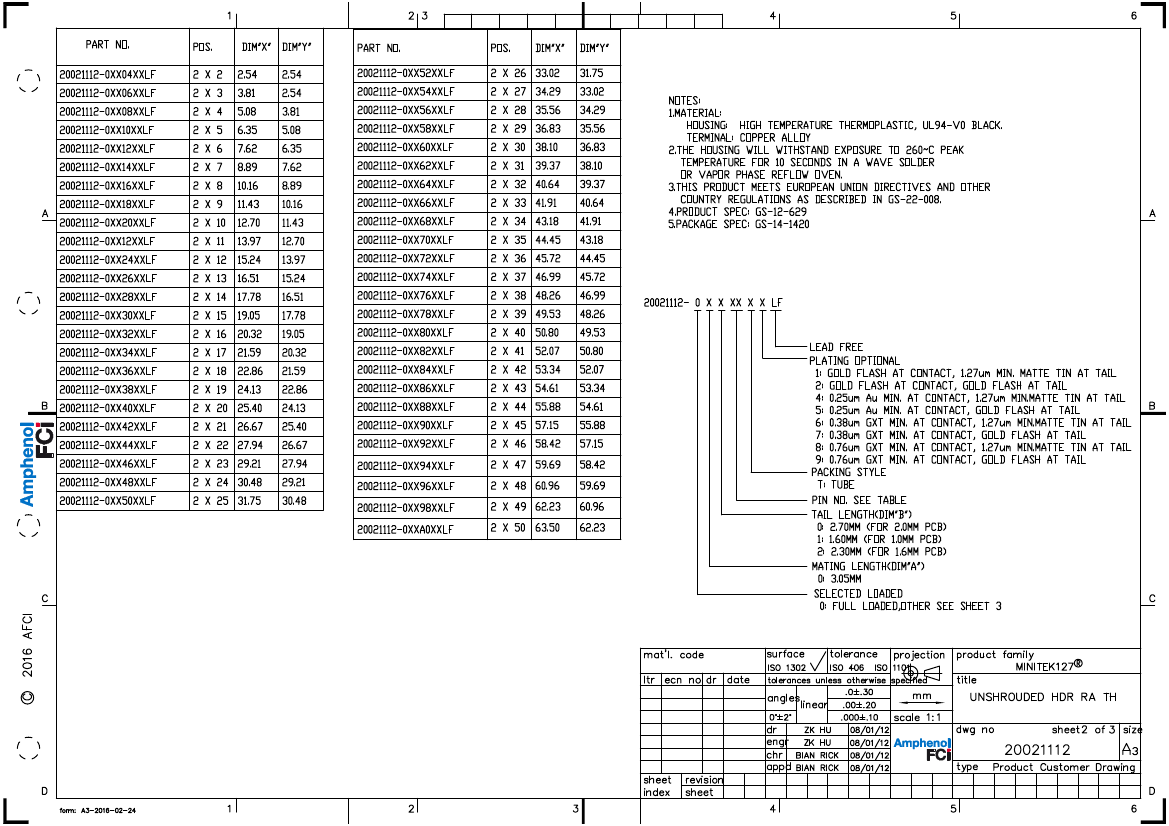

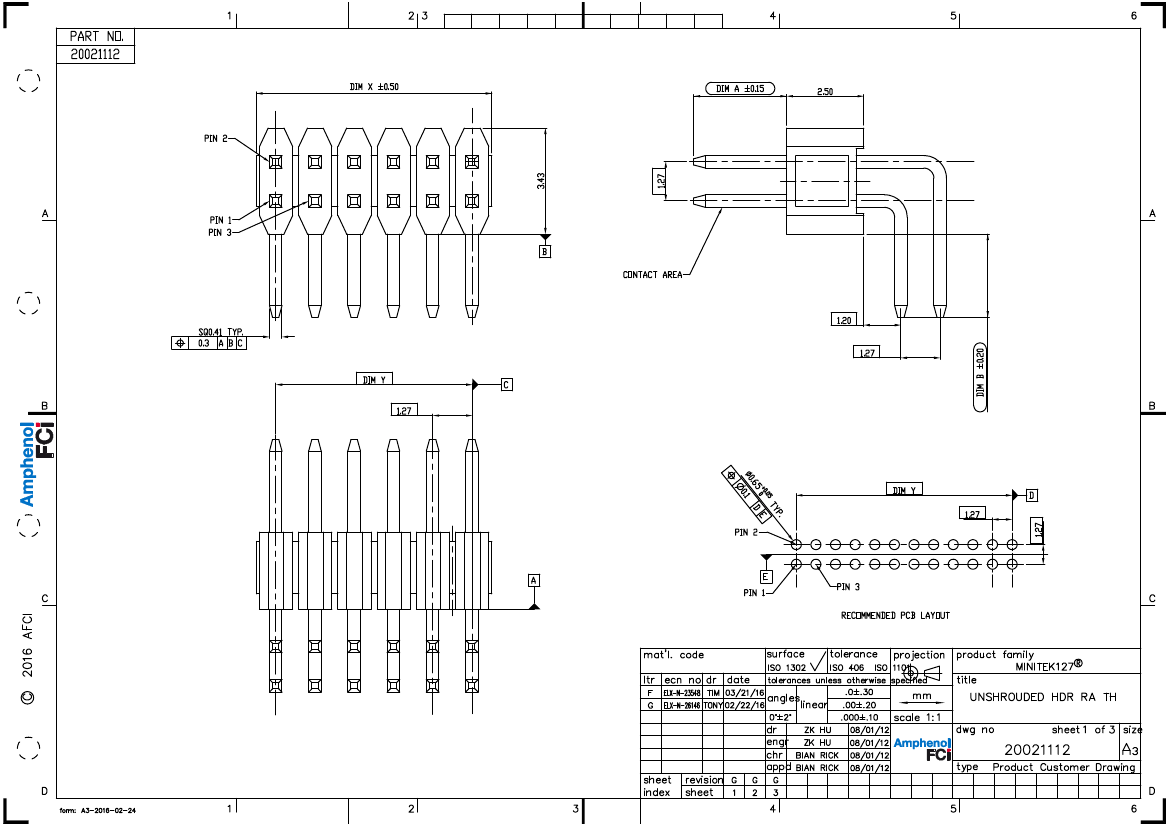

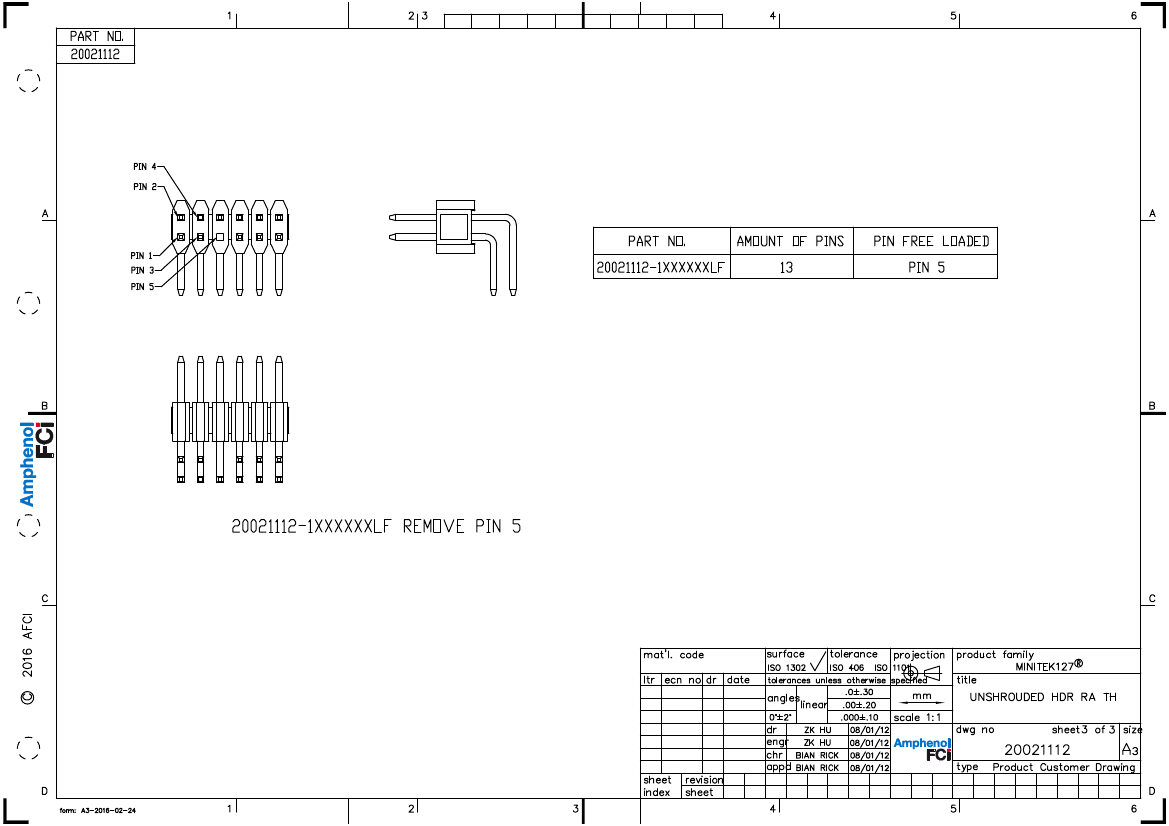

20021112-00186T5LF Overview

Board Connector, 86 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1315929880
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.15
body width	0.135 inch
subject depth	0.196 inch
body length	2.15 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	700VAC V
Durability	100 Cycles
maximum insertion force	2.1406 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
JESD-609 code	e4
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	10u inch
Rated current (signal)	1 A
reliability	COMMERCIAL
Terminal length	0.063 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	86
Evacuation force-minimum value	.1946 N

PDS: Rev :G

STATUS:Released

Printed: Feb 24, 2017
