53268-2870: DescriptionBoard Connector, 28 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal, LEAD FREE; CategoryThe connector The connector; File Size337KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

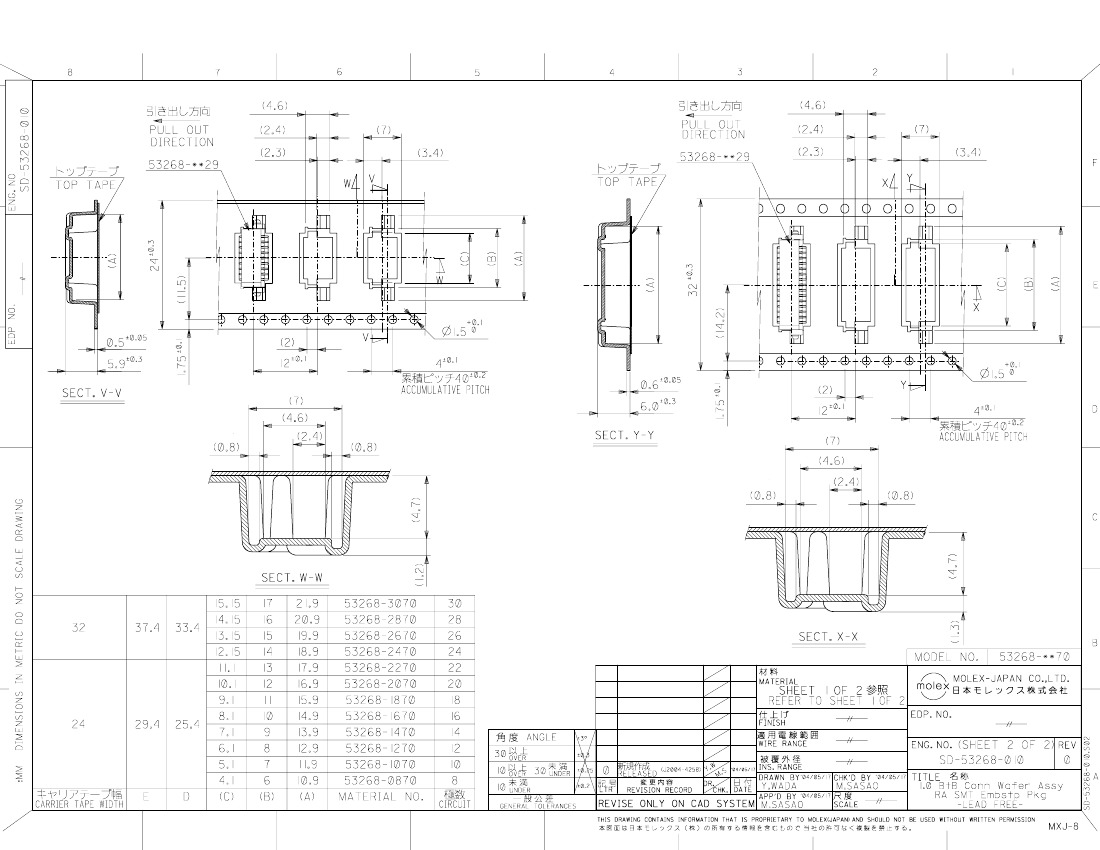

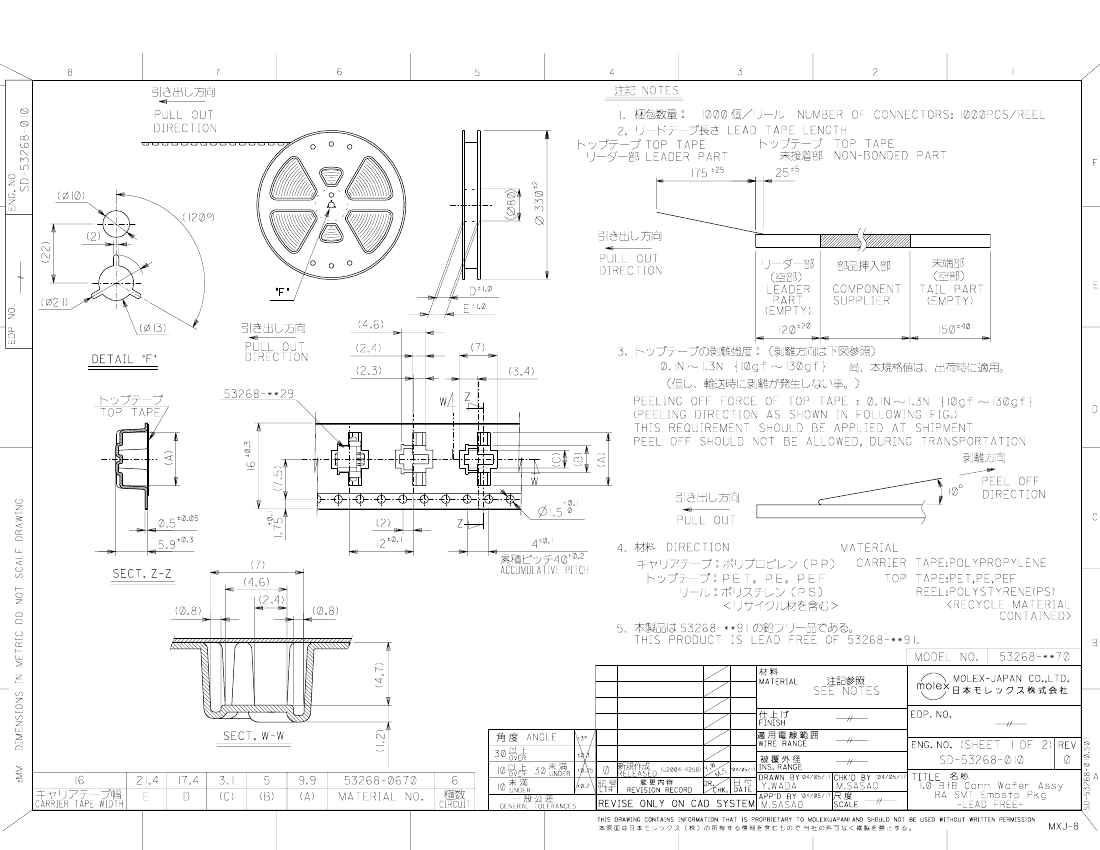

53268-2870 Overview

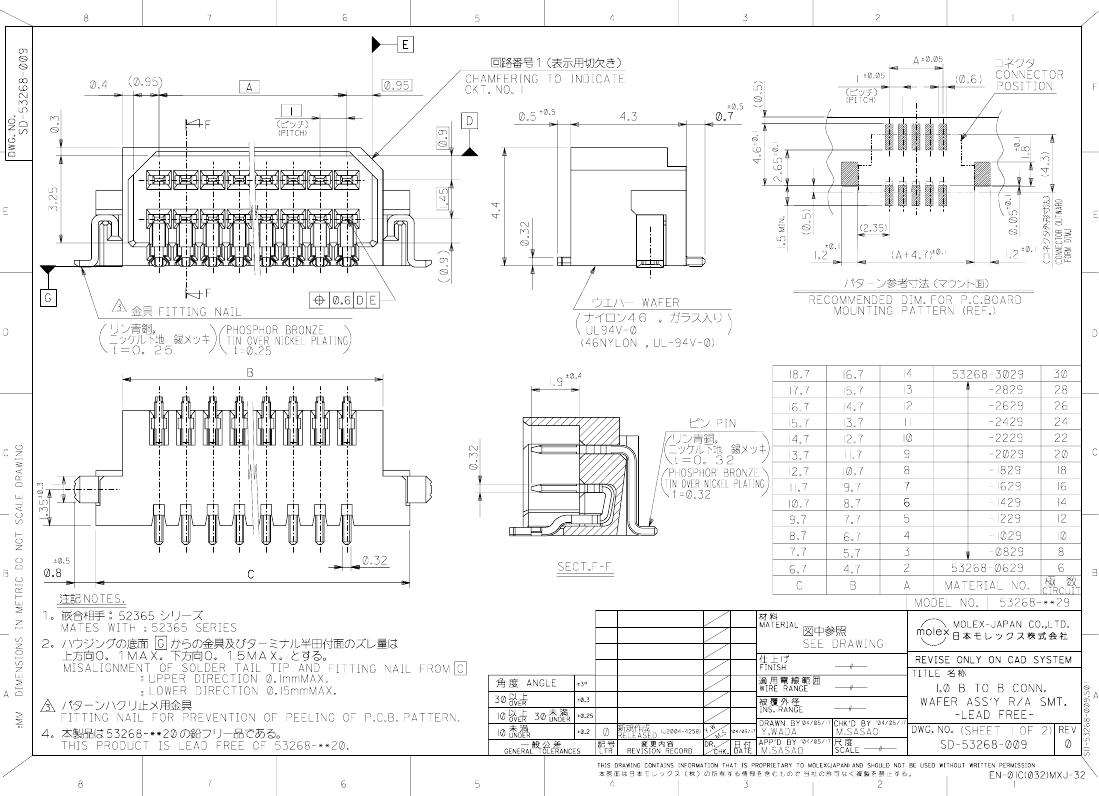

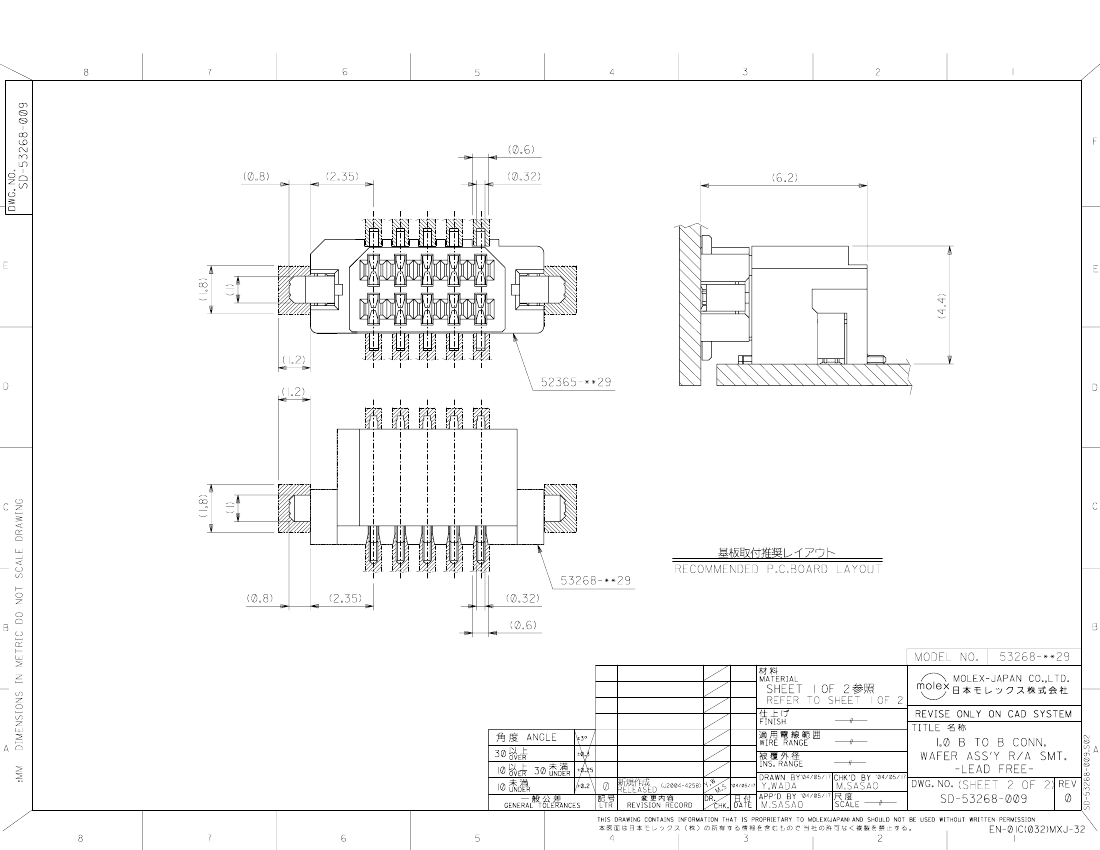

Board Connector, 28 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal, LEAD FREE

Parameter Name	Attribute value
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	unknown
Other features	POLARIZED
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	53268
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	28
UL Flammability Code	94V-0
Base Number Matches	1
